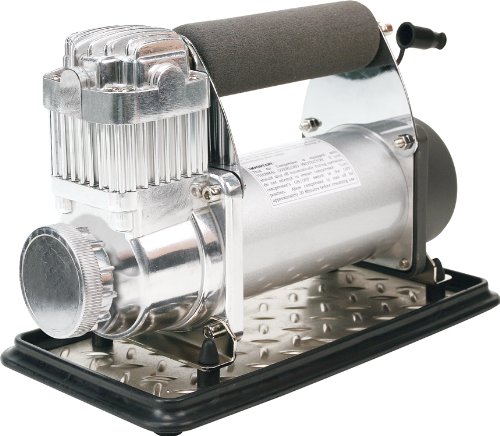

VIAIR 400P – 40043 Portable Compressor Kit. Tire Pump, Truck/SUV Tire Inflator, For Up to 35 Inch Tires

Author: Viair

Brand: VIAIR

Color: Silver

Features:

• HIGH PERFORMANCE OFFROAD COMPRESSOR (Model: 40043, 12V, 150 PSI, 35″ Tires) – The 400P Portable Truck Air Compressor is 12V heavy-duty electric air compressor for offroad enthusiasts. Its powerful, direct drive gearless motor and maintenance-free operation are perfect for tackling tough terrain. Ultra-compact and storable in its own carrying case, it’s an essential tool for any off-road adventure, combining reliability with convenience.

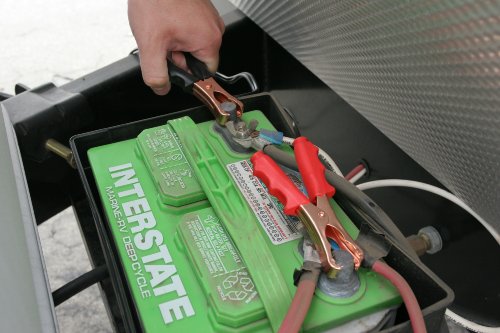

• EXPLORE WITHOUT LIMITS: Trucks, SUVs, Jeeps, Offroad Vehicles, 4x4s, Side-by-Sides, RVs, Motorcycles, Road Bikes & Mountain Bikes. *Instructions: Attach the battery clamps to your vehicle’s battery and start the engine. Connect to a valve stem and turn the unit on. When required, use the included bicycle Presta valve adapter.

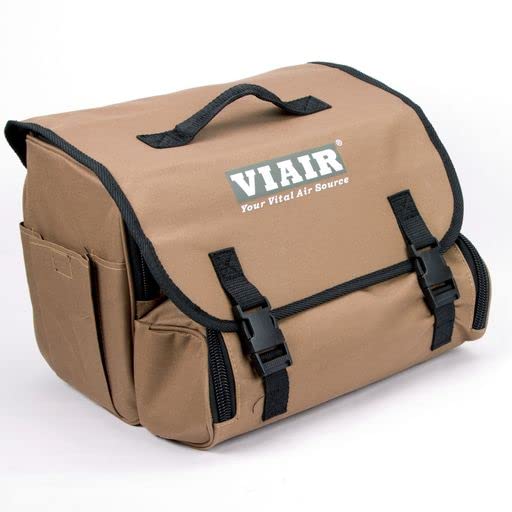

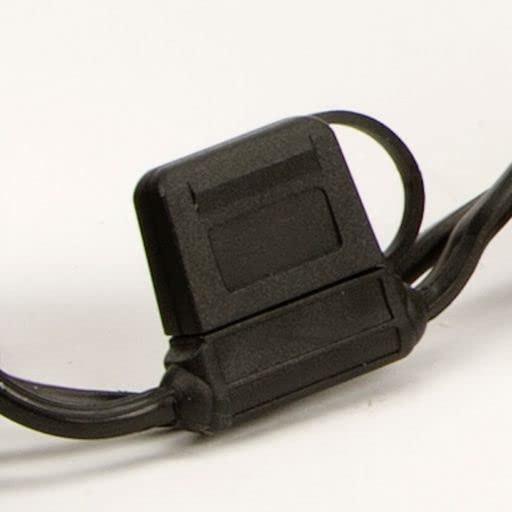

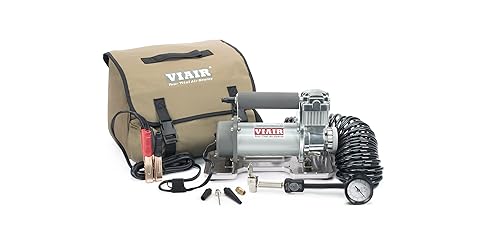

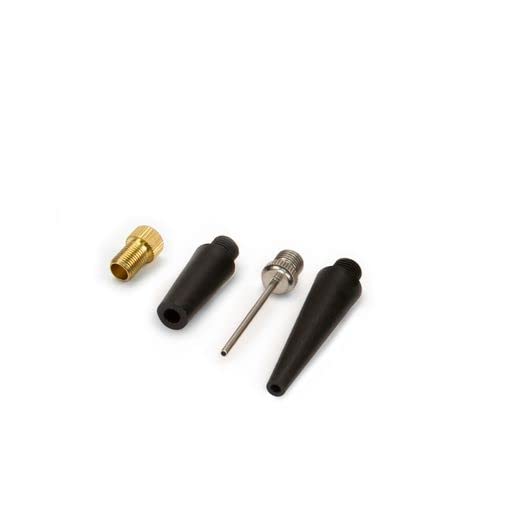

• INCLUDED COMPONENTS: 12V mini air compressor tire inflator has a 25 ft 5-in-1 inflator/deflator air hose with inline 100 PSI gauge, 8 ft power cord, deluxe dual-compartment carry bag, 3 inflation tips (3/16″ nozzle, 5/16″ nozzle, and needle adapter), and Presta Valve Adapter. Features: Aluminum I-Beam sand tray, thermal overload protector, 40-Amp inline fuse holder, press-on tire chuck.

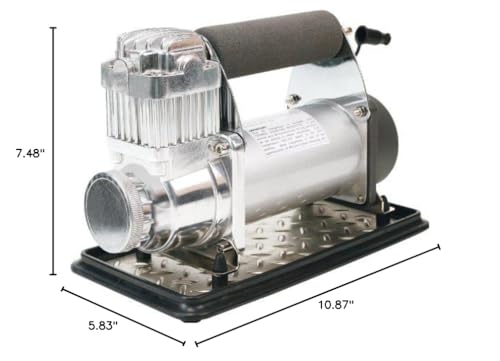

• HIGH CAPACITY SPECS for LARGE TIRES: Powered by 12 volts, this small but mighty electric air compressor with a permanent magnetic motor delivers a maximum working pressure of 150 PSI with a 33% duty cycle @ 100 PSI; Free flow capacity: 2.3 CFM. Maximum Recommended Tire Size: 35″. Fills a 35″ tire from 15 to 30 PSI in 2 min. 45 sec or less. IP54 rating protects against dust and water spray from any direction. Dimensions: 10.87″L x 5.83″W x 7.48″H; 10.40 lbs.
• DEPENDABLE QUALITY: VIAIR offroad compressors offer you the freedom to explore further and challenge boundaries. For over 25 years, our American owned and operated company has provided top-quality portable air compressors & inflators. Our commitment to durability, continuous testing, and refinement results in long-lasting performance.

Package Dimensions: 279x362x6396

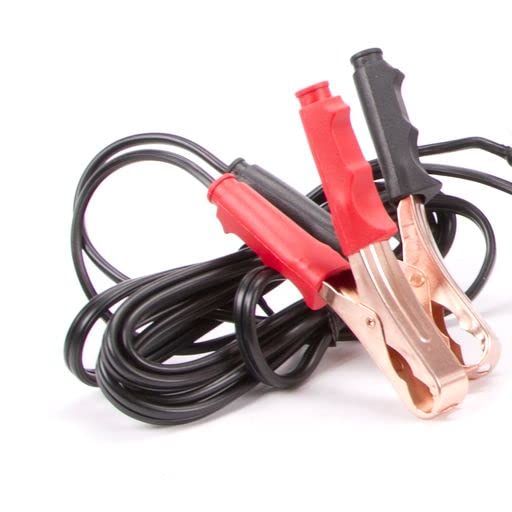

Details: Amazon.comnnVIAIR’s 400P is a larger portable compressor kit that is capable of inflating up to 35-inch tires from 0 to 30 PSI in less than 5 minutes, with a maximum working pressure of 150 PSI and a maximum duty cycle of 33%. The unit features a low power draw, provided by any available 12-volt battery. Used and approved of by off road enthusiasts worldwide, the 400P can save you when you’re miles from home. Accessories supplied in this compression system include a zippered soft carry case, inflation tips, a 5-in-1 inflator/deflator open ended air hose with 100 PSI gauge, dual heavy duty direct battery clamps and more. .caption { font-family: Verdana, Helvetica neue, Arial, serif; font-size: 10px; font-weight: bold; font-style: italic; } ul.indent { list-style: inside disc; text-indent: -15px; } table.callout { font-family: verdana; font-size: 11px; line-height: 1. 3em; } td.vgoverview { height: 125px; background: #9DC4D8 url(https://images-na.ssl-images-amazon.com/images/G/01/electronics/detail-page/callout-bg.png) repeat-x; border-left: 1px solid #999999; border-right: 1px solid #999999; padding-left: 20px; padding-right: 20px; padding-bottom: 10px; width: 250px; font-family: verdana; font-size: 12px; }nnPortable air compression up to 150 PSI suitable for tires up to 35″.nView larger.nAll your portable compression needs are in the bag.nView larger.nHeavy duty tray included for vibration control.nView larger. Portable Compression Stowed for the RoadnThe VIAIR 400P Portable Compressor offers inflation of up to 35-inch tires at a rapid rate, and operation at up to 150 PSI for up to 15 continuous minutes at a time, providing that there are 30 minutes provided afterwards for the unit to cool sufficiently. The unit is powered by an easy to establish temporary connection to a 12-volt battery power source via included alligator clamps. The 400P comes with an open-ended tire inflation hose with included 100 PSI air pressure gauge that offers the following functions: air up, air up intermittently, air down, air down intermittently and check tire pressure. To check tire pressure, simply turn off the portable compressor to halt inflation and check the pressure on the air pressure gauge. Additional parts provided include an inline fuse holder, a 8′ power cable, a heavy duty sand tray with vibration isolators and deluxe carry bag.n400P Air Compressor Specifications Motor voltage – 12 volt Motor type – Permanent magnetic Max. duty cycle: 33% @ 100 PSI Max. working pressure – 150 PSI Max. Amp draw – 30 Amps Max. ambient temperature – 158°F Min. ambient temperature – -40°F CFM @ 0 PSI – 2.54 Inline pressure gauge – 100 PSI Dimensions – 11.25″L x 4.00″W x 7.00″H Net weight – 8.50 lbs About Compressor Duty CyclenCompressor duty cycle refers to amount of time a compressor can be operated in a given time period, at 100 PSI and at a standard ambient temperature of 72°F. Duty Cycle is commonly expressed in percentile as: compressor on time (compressor on time + off time) %. As an example, a compressor that is rated for 25% duty cycle means that compressor can be operated at: 100 PSI @ 72°F for 10 minutes on and 30 minutes off. 10 min. on / (10 min. on + 30 Min. off) = 10 min. / 40 Min = 25% duty cycle.nFill Rates:n31″ x 10.5″ 33″ x 12.5″ 35″ x 12.5″ 0 – 30 PSI 2 min. 28 sec. 4 min 00 sec. 4 min. 50 sec. 15 – 30 PSI 1 min. 25 sec. 2 min 00 sec. 2 min. 20 sec.nWhat’s in the Boxn1-VIAIR 400P portable air compressor 1-Deluxe zippered carry bag with storage compartments 1-25′, 5-in-1 inflator/deflator open ended air hose with 120 PSI gauge 1-Heavy duty sand tray with vibration isolators 1-Set of dual heavy duty direct battery clamps 1-8′ power cable 1-3 piece inflation tips kit 1-Inline fuse holder 1-Owner’s manual 1-Year Limited WarrantynVIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one (1) year from its original date of purchase. This warranty covers product defects only. It does not cover incidental or consequential damages as a result of misuse or abuse.nAbout VIAIR CorporationnVIAIR offers the most complete line of air compressors and air accessories for both the on-and off-road markets available anywhere. VIAIR products are used in the OEM segment, 4×4 and Sport Air Suspension and have become the industry standard for both 12- and 24-volt automotive applications worldwide. Their compressors are currently being used in every corner of the globe, in the harshest climates imaginable and the company is recognized by its customers and peers alike as the leading manufacturer of high performance air compressors for mobile pneumatic applications.nnProduct DescriptionnnThe VIAIR 400P (40043) – 12 Volt Portable Air Compressor for Truck Tires Enjoy peace of mind everywhere you go. The 400P tire pump for trucks, SUVs, RVs and more is portable and lightweight, with a maximum dimension of 10.87 inches and weight of 10

UPC: 818114004032
