TDPRO DC 72V Electric Brushless Motor 72V 1000W Complete Kit Electric Motor with Controller Handlebar Twist Grip Throttle for Electric Scooter Bicycle Motorcycle E-Bike DIY

Brand: TDPRO

Color: BLACK

Features:

n
• 72V 1000W Brushless DC Motor, complete with Gearbox and Speed Controller. Specifically crafted for diverse electric rides like bikes, scooters, ATVs, go-karts, and golf carts

n

• Boasting a Sine Wave design, this motor reaches remarkable speeds of 4200-4500rpm, with Economic and Sports modes

n

• DC Brushless Motor: Type: Sine Wave | Speed: 4200-4500rpm | Rated voltage: 72V | Rated current: 38-40A | Under voltage: 62V | Terminal torque 120N.M

n

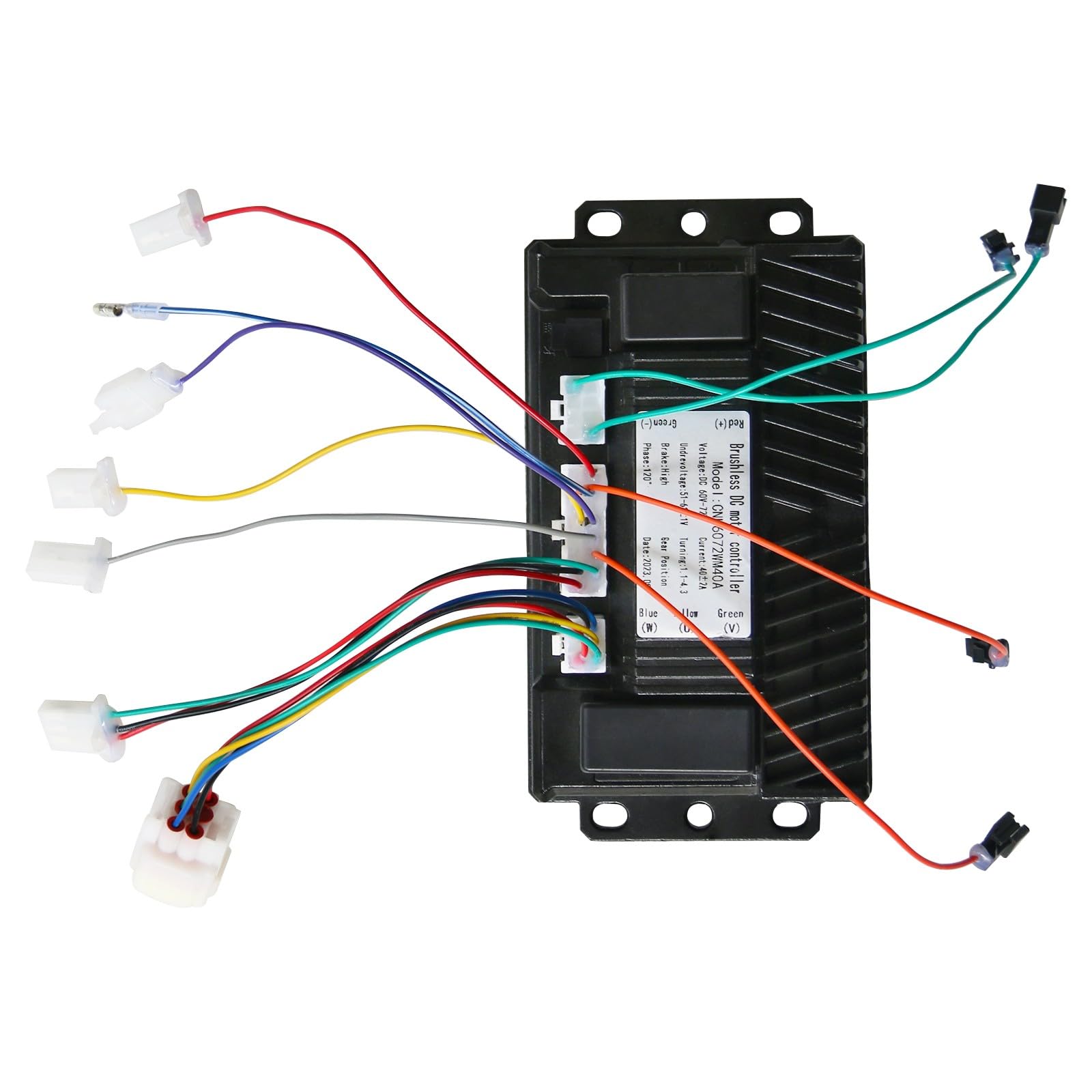

• Sine Wave Controller: 18 tubes, 38-40A controller

n

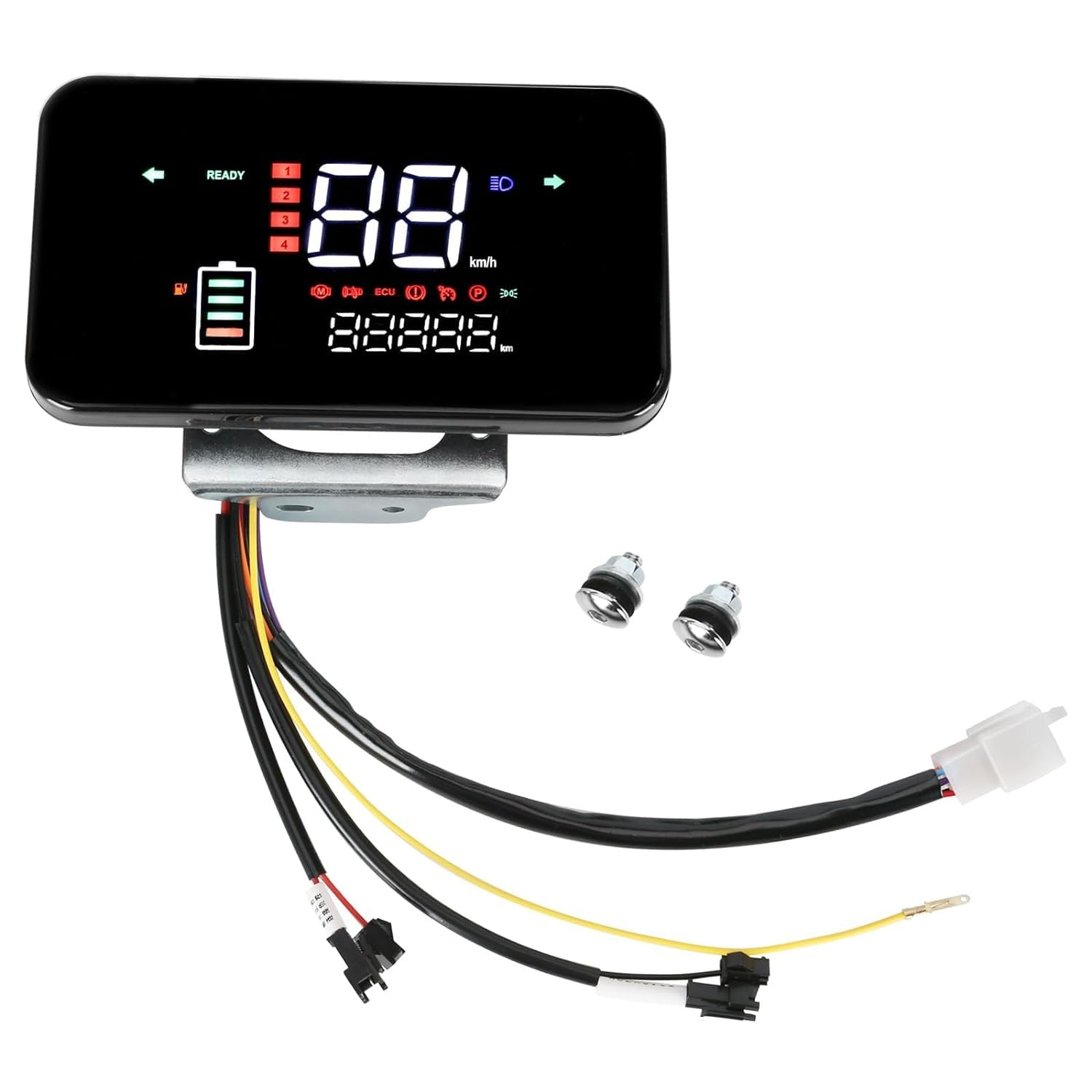

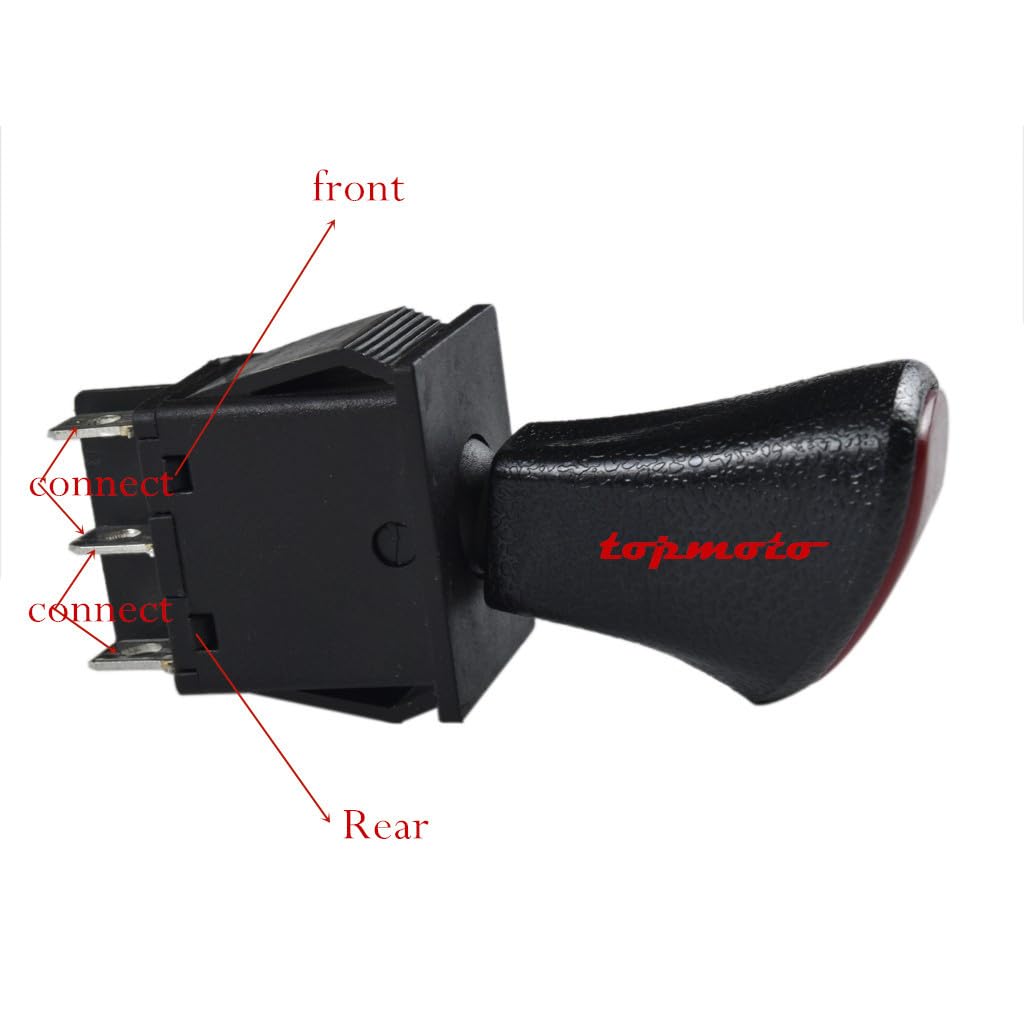

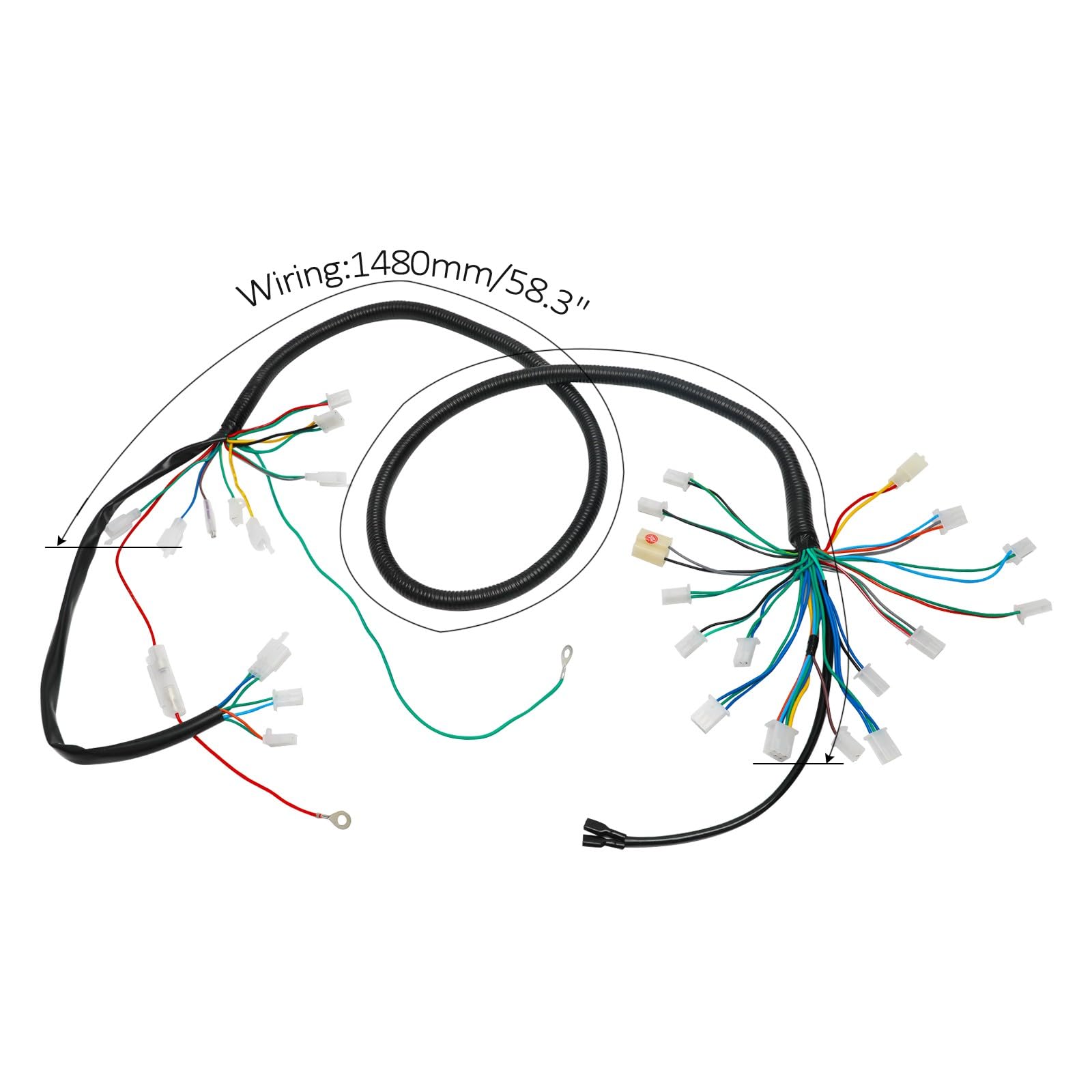

• kit includes: motor, controller, LCD display, sprocket, chain, forward/reverse switch, 3-speed switch, wiring harness, terminal boards, power key, twist throttle, and circuit breaker, 3 in 1 switch, brake switch

n

Binding: Apparel

model number: TD539

Part Number: td224

Details: Brand New 72V 1000W Brushless DC Motor withGear box and Speed Controller Rated voltage: 72V Under voltage: 62V Rated current: 1000W Peak current: 2500W Type: Sine Wave Sine wave Controller: 24 tubes, 38-40A Speed: 4200-4500rpm Terminal torque: 120N.M Gear Sprocket: 428-15T Gear Ratio: 2.85 Max load: 2000lbs Two Drive Modes: Economic mode + Sports mode Condition: High speed in default with high brake Achieve top speeds of 50-60 km/h
n
nFits for electric bikes, scooters, electric dirt pit bikes, ATV quad, buggies, go karts, golf carts, E-Bikes, drift trikes,tricycles, motorcycle, razors, mini bikes
nkit includes: 72v 1000w motor Controller LCD display 428-41T-48mm Sprocket 428-140L Chain forward/reverse switch 3-speed switch wiring harness terminal boards power key twist throttle circuit breaker 3 in 1 switch brake switch
