Sunluway 4″x24″ Hydraulic Log Splitter Cylinder 4″ Bore x 24″ Stroke x 1.75″ Rod for 22-25 Ton Log Splitters – Universal Hydraulic Cylinder – Heavy Duty Wood Splitting Double Acting Cylinder 4×24

Brand: Sunluway

Color: Black

Features:

n
• 【Application】 Log Splitter Hydraulic Cylinder is designed for use on 22-25 Ton Log Splitters, compatible with Dirty Hand Tools, Tractor Supply Co (TSC), CountyLine, Huskee, MTD, Oregon, SpeeCo & SplitMaster Log Splitters. Universal Hydraulic Cylinder 4″ Bore 24 inch Stroke.

n

• 【Universal】 Wood Splitting Double Acting Cylinder works on many wood splitting applications, and fits in different types of log splitting equipment such as gas log splitters, electric log splitters, 3 point tractor log splitters and skid steer log splitters

n

• 【Function】 To replace the worn or damaged hydraulic cylinder for your log splitter, make it a clinch with splitting firewood. It is a perfect replacement for 4 inch bore x 24 inch stroke log splitter hydraulic cylinder.

n

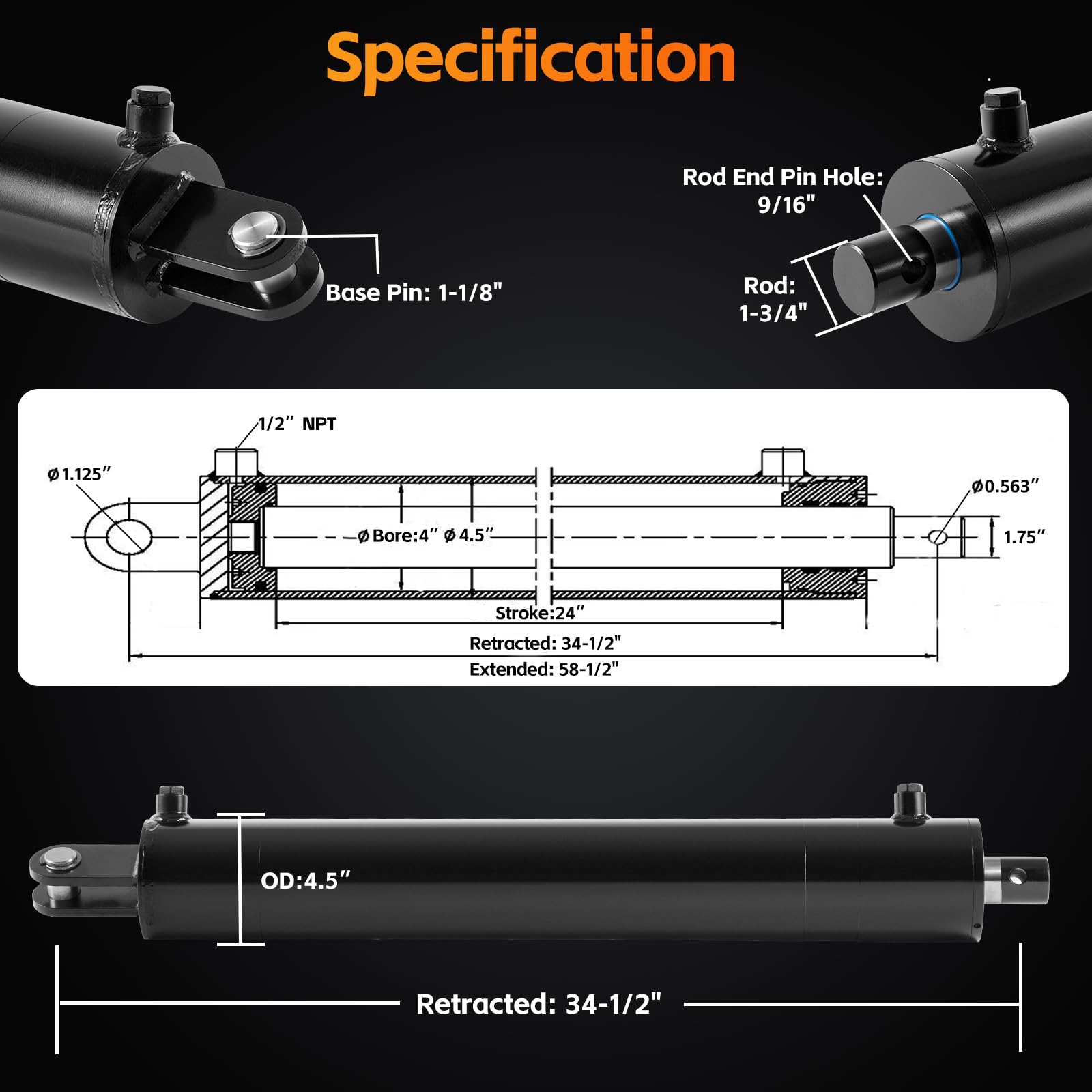

• 【Specification】Bore: 4″ ,Stroke: 24″ ,Rod: 1-3/4″, Retracted: 34-1/2″, Extended: 58-1/2″ ,Ports: 1/2 NPT, Base Pin: 1-1/8″, Rod End Pin: 9/16″. The rigid replacement hydraulic cylinder operates at up to Pressure 3500 PSI, Column Load 36,000 LBs.

n

• 【High Quality】Our 4×24 Hydraulic Cylinder is constructed with high-standard material, resistant to rust, and corrosion to work in severe conditions. Heavy-duty welded construction and reliable seal components for excellent performance. Comes with hard chrome plated rod, high tensile steel piston, and cast iron threaded gland with wear ring. Includes rod seals: U-cup polyurethane seal with O-ring, POM-C wear rings polyurethane wiper, and component compact piston seals.

n

model number: SL-4x24x1.75 cylinder

Part Number: SL-4x24x1.75 cylinder

Details: Log Splitter Hydraulic Cylinder 4″ Bore x 24″ Stroke -Universal Hydraulic Cylinder-Heavy Duty Hydraulic Cylinder – Wood Splitting Double Acting Cylinder (4×24).
nBore: 4″ ,Stroke: 24″ ,Rod: 1-3/4″, Retracted: 34-1/2″, Extended: 58-1/2″ ,Ports: 1/2 NPT, Base Pin: 1-1/8″, Rod End Pin: 9/16″.

Package Dimensions: 39.5 x 8.0 x 7.0 inches
