Renogy 400 Watt 12 Volt Premium 4 Pcs 100W Panel+40A MPPT Charge Controller+ Bluetooth Module Fuse+ Mounting Z Brackets+Adaptor Kit +Tray Cables Set, 400W, Grid 12V Solar Power System

Brand: Renogy

Color: Off-grid System

Features:

n
• 【Superior Generation & Long-Term Warranty】The Premium Kit will deliver a daily output of 2-2.5kWh (varies with sunlight) using 100% EL-tested Grade A+ Solar Cells at 22.5% efficiency. Backed by a 10-year panel material and workmanship warranty and a 3-year MPPT controller warranty for worry-free enjoyment.

n

• 【Sturdy & Easy Setup】With a robust 3.2mm low-iron glass surface and a wider 35mm aluminum alloy frame, the solar panels endure high wind (2400Pa) and snow loads (5400Pa). The Premium Kit includes panels with pre-drilled holes, Z brackets, Y branch connectors, and ready-to-use wiring for easy installation.

n

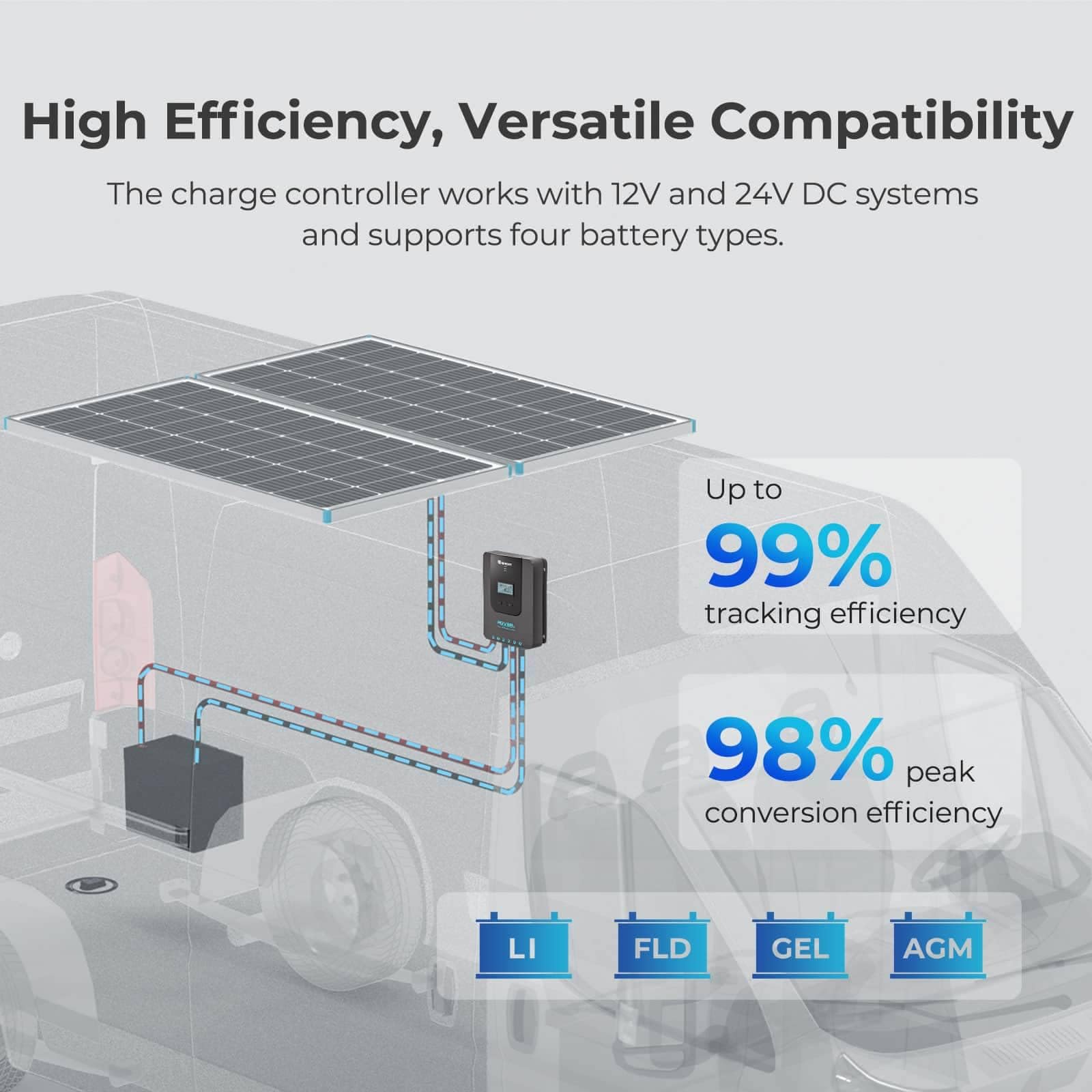

• 【Efficient MPPT Technology】Renogy’s certified MPPT charge controller boasts 99% tracking efficiency and 98% peak conversion efficiency, outperforming traditional PWM controllers by 30%. The included temperature sensor adjusts input voltage based on battery temperature, preventing under-charging and overcharging.

n

• 【Complete System Safety】Beyond the comprehensive protection ensured by the MPPT charge controller, In-line and ANL fuses offer overcurrent protection for solar panels, controller, and battery. Wide-diameter cables further reduce power loss and the risk of overheating, providing an additional layer of safety.

n

• 【Monitor & Modify from Your Phone】Effortlessly monitor your system with the BT-1 Bluetooth module (RS232). It pairs with the controller, offering real-time data on your controller, battery, and load. Adjust controller parameters, such as boost voltage, through the Renogy DC Home App. Enjoy a signal range extending up to 82 feet (25m).

n

• Max Battery Voltage: 32V

n

Binding: Tools & Home Improvement

Release Date: 27-08-2018

model number: 400 Watt 12 Volt

Part Number: 400 Watt 12 Volt Off Grid Solar Panel

EAN: 0816360028062

Package Dimensions: 43.5 x 23.0 x 11.0 inches
