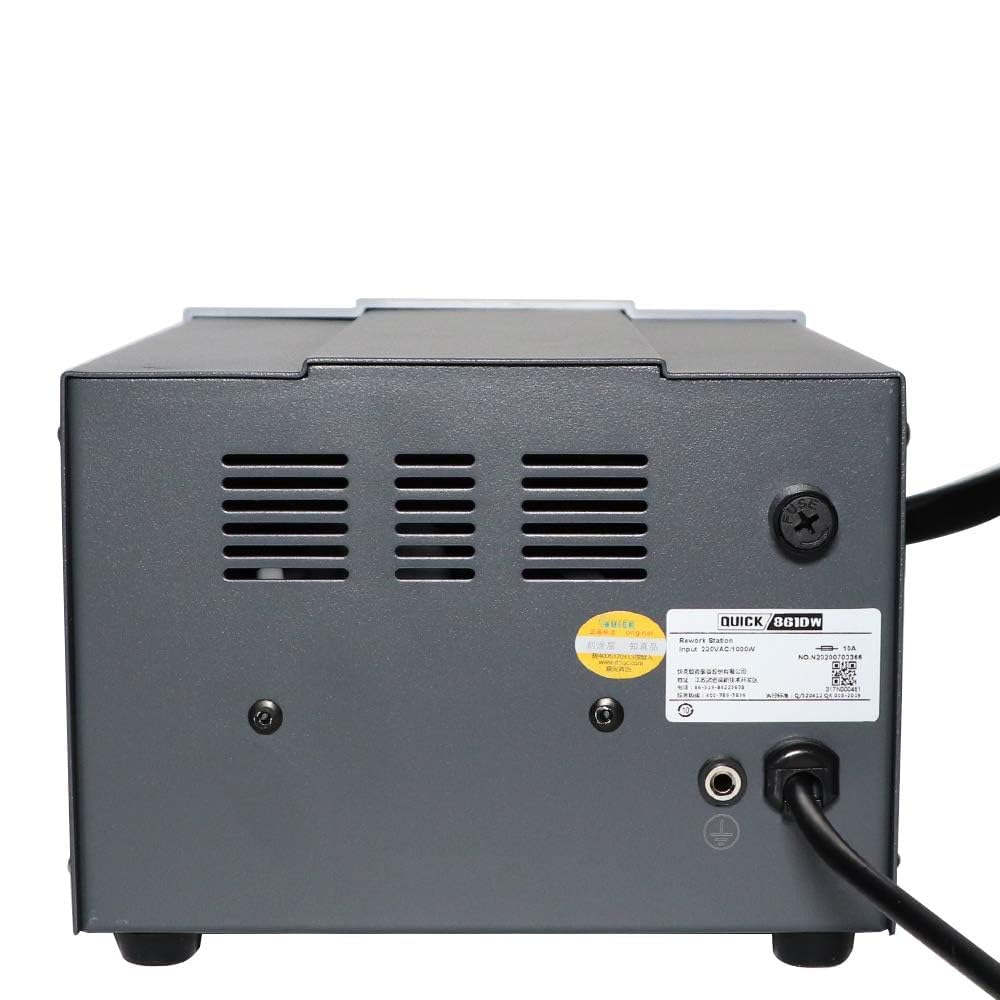

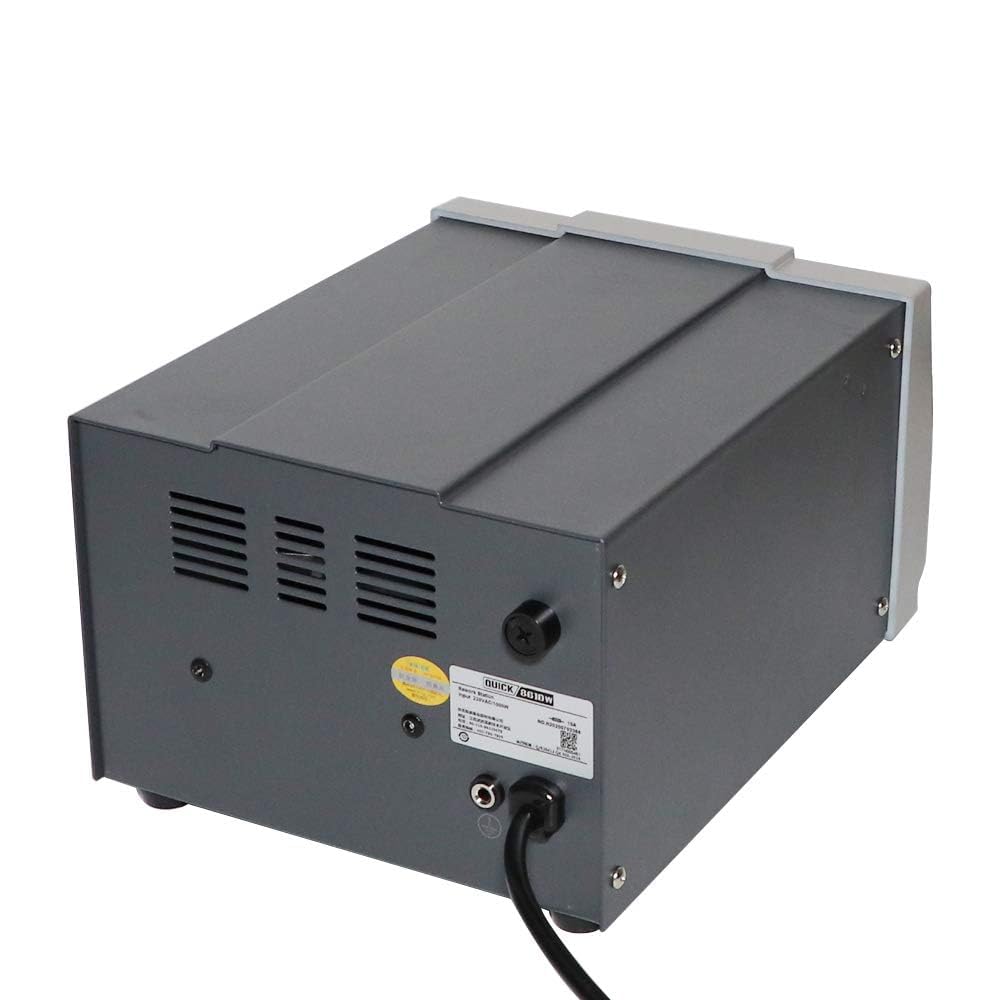

Quick 861DW 1000W Digital Rework Station with LCD Display

Brand: Quick Products

Color: As Picture Shows

Features:

n
• QUICK 861DW Hot Air Station, Desoldering and soldering of BGA IC components with CH1, CH2, CH3 three working channels which can be set to the amount of wind and temp

n

• The system has an automatic cooling function of wind capacity, extend the life of the heating element and protect the hot air handle; With automatic sleep function, in a dormant state parameters can be set; Password protection and key-lock functions

n

• Sensor closed loop, microcomputer zero trigger temperature control, power, heating quickly, easily and precisely adjust the temperature stable, free from the influence of wind

n

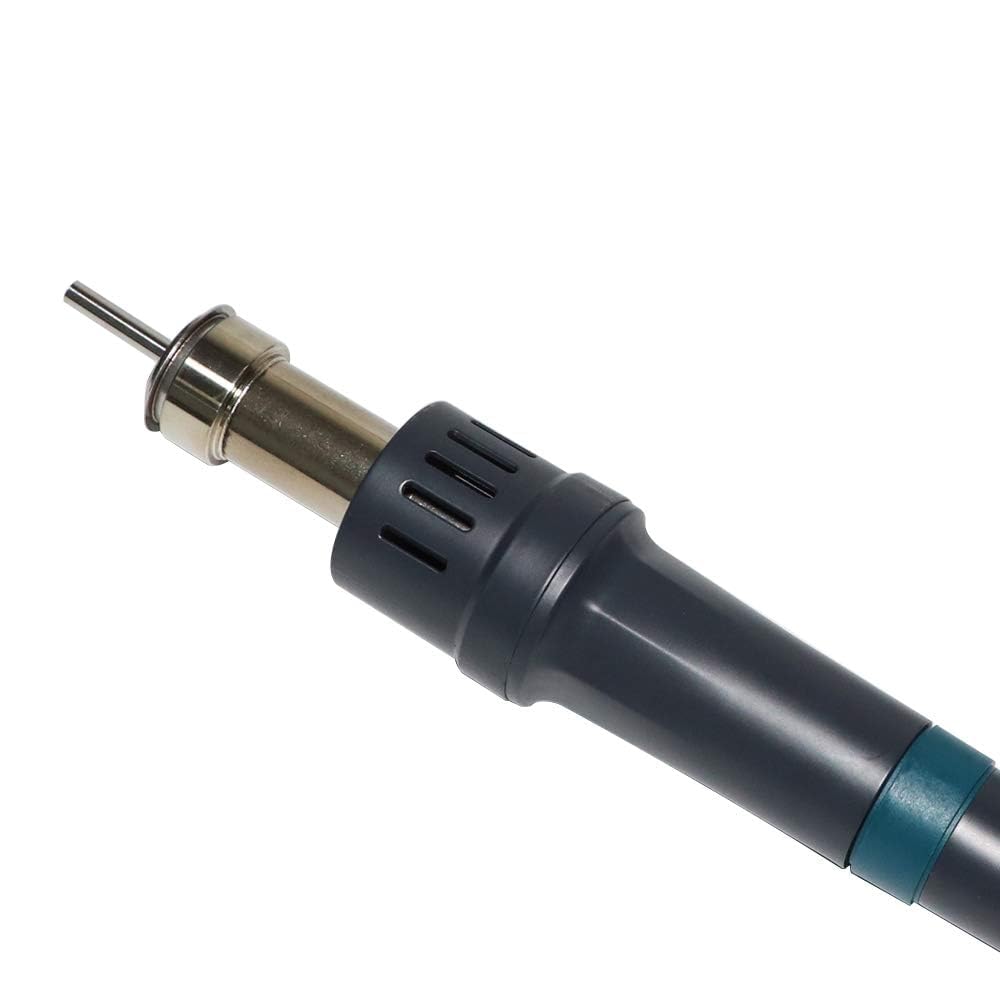

• The use of brushless vortex blower, air flow adjustable, wide range, can be adapted to a variety of uses, such as Phone BGA soldering work

n

• What Will You Get: 1*5 mm straight nozzles, 1*6 mm straight nozzles, 1*8 mm straight nozzles, 1*Quick 861DW Hot Air Rework Station

n

Binding: Tools & Home Improvement

model number: 861DW

Part Number: 861DW

Details: DIYPHONE QUICK 861DW Hot Air Rework Station With 3Pcs Personalize Nozzles 110V 500°C Professional Digital Soldering Rework Station with Hot Air Gun for iPhone Mobile Phone Repair
n
nProduct Introduction:
nQUICK 861DW Hot Air Rework station is the new Lead Free Rework Station, 861DW Rework Station for Mobile Phone BGA desoldering Repairing, 1000W / 500 °C Genuine original Hot Air Rework station, With CH1, CH2, CH3 three working channels
n
nProduct Feature:
n※ With CH1, CH2, CH3 three working channels, and each channel can be set to the amount of wind, and temperature.
n※Password protection and key lock function.
n※Facilitate real-time operation, with magnetic switch control lever is placed in the handle holder immediately into hibernation.
n※With automatic sleep function, in a dormant state parameters can be set.
n※ Sensor closed loop, microcomputer zero trigger temperature control, power, heating quickly, easily and precisely adjust the temperature stable, free from the influence of wind.
n※The use of brushless vortex blower, air flow adjustable, wide range, can be adapted to a variety of uses.
n※The system has an automatic cooling function of wind capacity, extend the life of the heating element and protect the hot air handle.
n
nProduct Specification:
n※Power: 1000W
n※Voltage: AC 220V / 110V
n※Temperature range: 100 °C ~ 500 °C
n※Air volume ratio range: 1 to 120
n※Maximum air flow: 120L / min
n※Dimensions: 188 (L) × 245 (D) × 135 (H) mm
n
nPackage List:
n1* QUICK 861DW Hot Air Rework Station
n3* Personalize Nozzles(5 mm / 6 mm /8 mm)

EAN: 0700604234640

Package Dimensions: 15.2 x 13.1 x 9.0 inches
