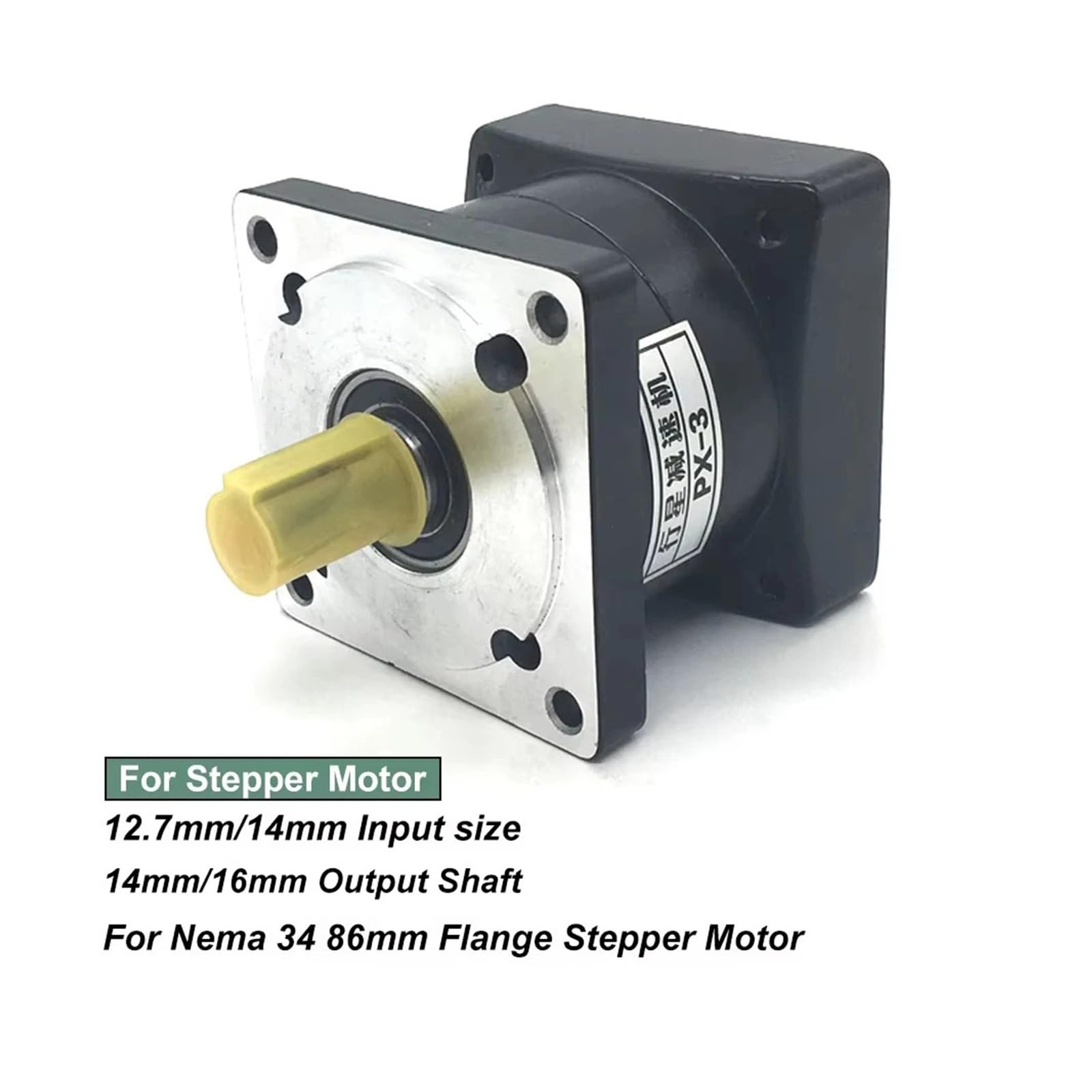

Planetary Reducer Nema 34 Planetary Gearbox Motor Reducer 86mm Stepper Motor Reduction Step-Down Gearbox Ratio 3 to 1~216 for Textile Machines(14 Input 16 Output,Ratio 36 to 1)

Brand: SHIHUANI

Color: 14 Input 16 Output

Features:

n
• 【PREMIUM MATERIAL】The housing of this planetary gearbox is made of hard aluminum alloy, which can protect the internal parts well and ensure longer service life. It adopts multiple precision threads to fit your motor tightly and is not easy to loosen.

n

• 【PRECISE SPEED ADJUSTMENT】 It has a reduction ratio , so you can change your motor speed more easily.

n

• 【REMOVABLE OUTPUT SHAFT】It adopts an enlarged rectangular base, which increases the contact area with the plane to ensure its stability when working.

n

• 【LOW NOISE DESIGN】This planetary gearbox uses lubrication to reduce friction between parts. As a result, so it protects your hearing. This one-piece gearbox reducer is very easy to replace. You can easily replace a rusty or damaged gearbox on your motor with it .

n

• 【WIDE APPLICATION】This planetary gearbox is is a great solution for applications that require quick stops, have shock loads, and have little space. widely working on mill, lathe, bench, and bandsaw machines.

n

model number: SHIHUANI

Part Number: SHIHUANI

Details: Model Number : 86PX-3-14/16-73-69.5
nConstruction : Gearbox
nType : Gear Motor
nCommutation : Brush
nEfficiency : IE 1
nOrigin : Mainland China
nInput : 14mm/12.7mm
nOutput Shaft : 16mm/14mm
nRated Input speed : less than 3000prm
nNoise : 60dB
nPrecision : less than 18 Arcmin
nProtection level : IP65
nFlange : 86mm
nGear material : 20Cr Carbon steel

EAN: 8259865931482

Package Dimensions: 1.2 x 0.8 x 0.4 inches
