Phanteks (PH-P1000PR_WT01C) Revolt 1000W 80PLUS Platinum, ATX 3.0, PCIe 5.0, Fully Modular, Cable-Less, Power Supply Unit Only (Cables Sold Separately), White

Brand: Phanteks

Color: White

Features:

n
• Complete control to choose which power supply and which cables you need. Total control and freedom. No need to pay for (unnecessary cables). Choose the perfect customized cables from CableMod. (No cables included)

n

• Ready to handle new and upcoming CPU and GPU hardware, high power peaks of up to 235% of its rated output.

n

• The 12VHPWR connector provides up to 600 watts of power to the GPU through a single connector directly from the Revolt power supply.

n

• 80PLUS Certified 94% efficiency at 50% load increases stability which lowers power consumption and heat from the PSU

n

Binding: Personal Computers

Release Date: 21-07-2023

model number: PH-P1000PR_WT01C

Part Number: PH-P1000PR_WT01C

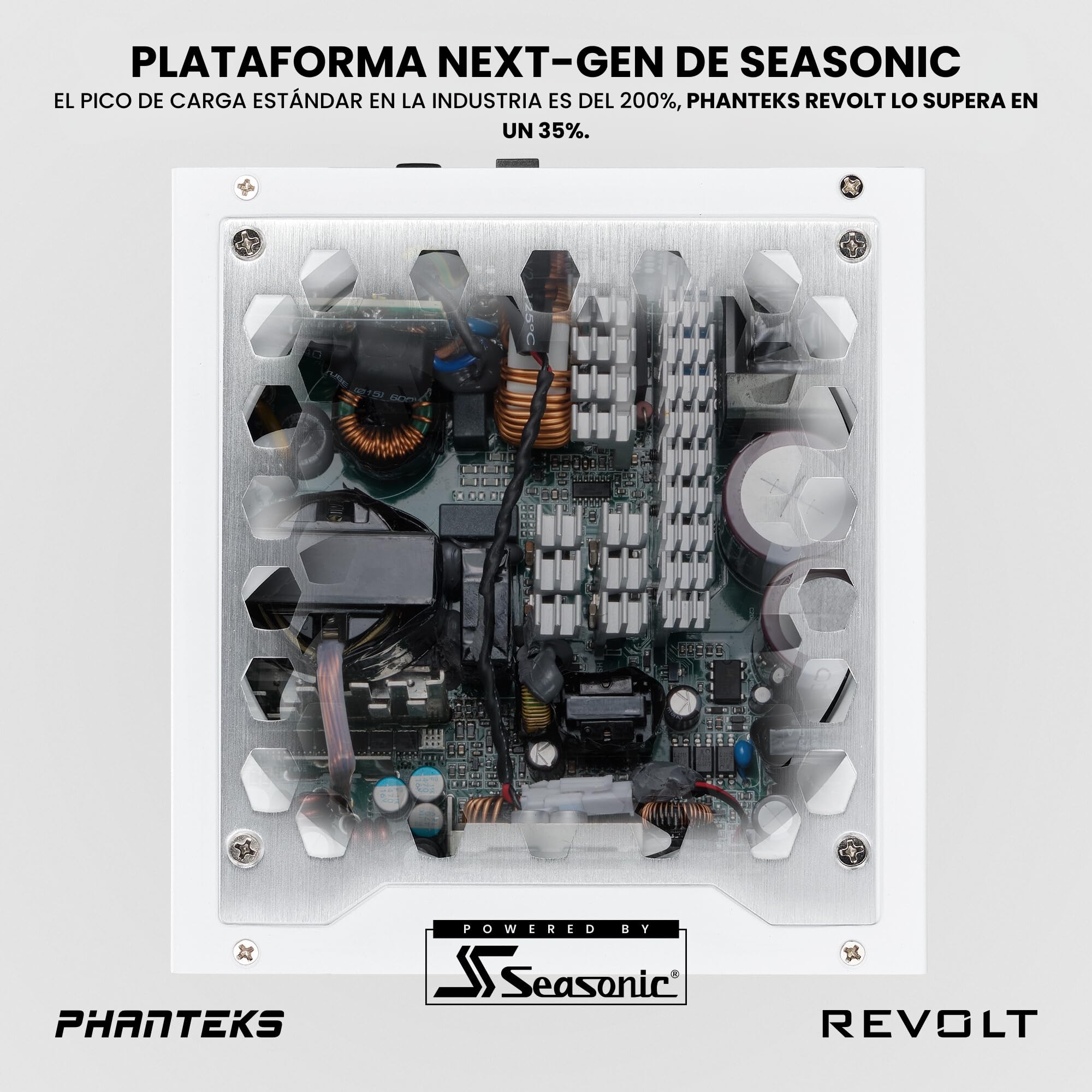

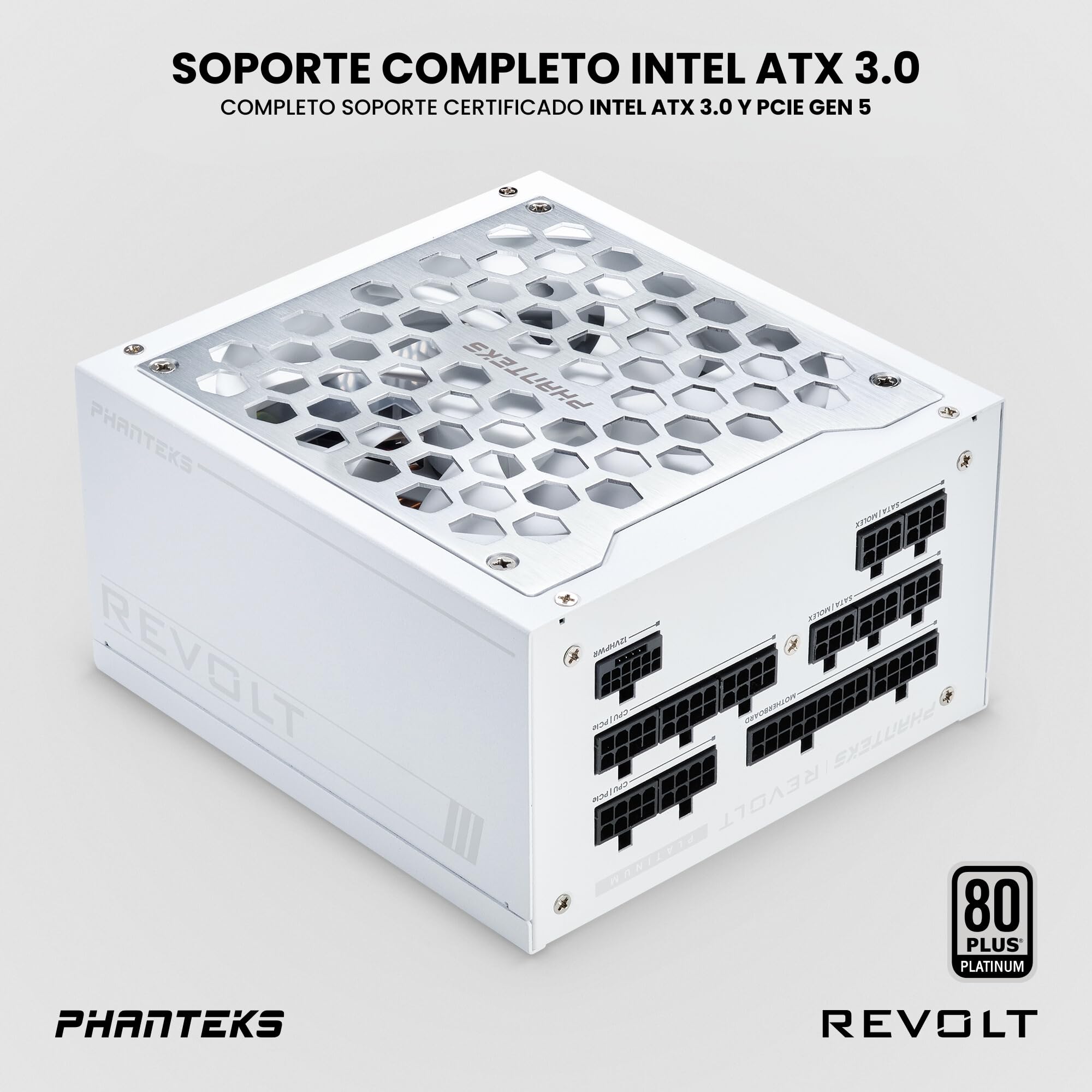

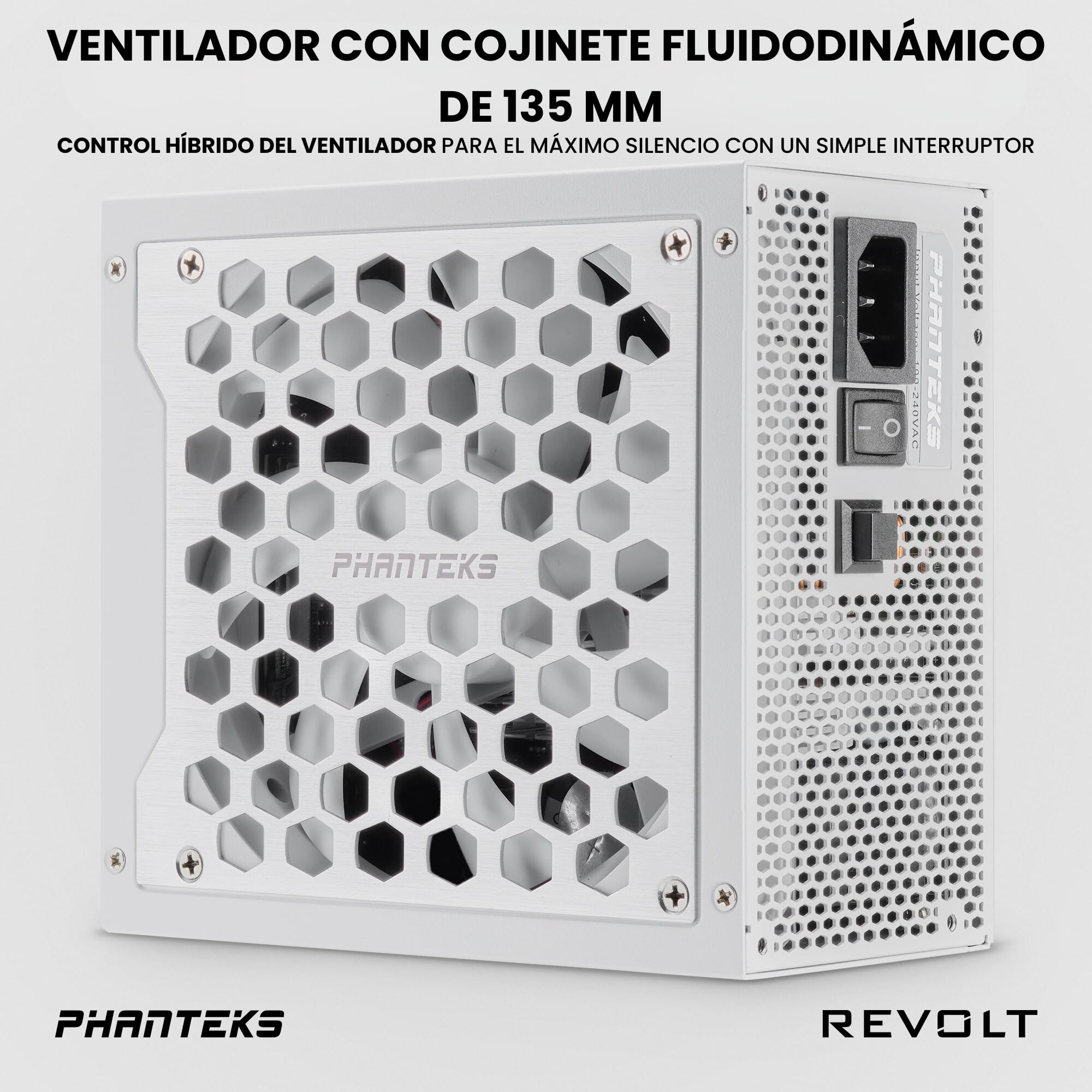

Details: Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process. The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and with 80 Plus Platinum. Type: Power Supply DC output 1000W 80+ Platinum. Color: White. Cooling Fan: 135mm Fluid Dynamic Bearing (FDB) Fan. Output Protection: OPP (Overpower Protection), OVP (Over Voltage Protection), UVP (Under voltage protection , SCP (Short Circuit Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), No-Load Protection, Reset Protection. Back Plate: Fully Modular. PSU Output Connector: 1x 18+10pin => Motherboard, 5x 8pin => CPU / PCIe, 5x 6pin => SATA / Molex, 1x 12VHPWR => PCIe. Output Voltage 12V / Maximum Current 83A / Max Capacity 996W. Output Voltage 5V / Maximum Current 25A / Max Capacity 125W. Output Voltage 3.3V / Maximum Current 25A / Max Capacity 125W. Output Voltage -12V / Maximum Current 0.3A / Max Capacity 3.6W. Output Voltage 5VSB / Maximum Current 3A / Max Capacity 15W. DC Output: 1000W. AC Input: 100-240Vac 13-6.5A 50-60Hz. 16-Pin PCI-e Gen5 Capacity: 600W. Operating Temp.: 0 to 50 degree Celsius (The rated power will derate from 100% to 80% from 40 degree Celsius to 50 degree Celsius linearly). Operating Humidity : To 85% relative humidity (non-condensing). Storage Temperature: -40 to 85 degree Celsius. Storage Humidity: To 95% relative humidity (non-condensing). MTBF: Over 100,000 hours at 25 degree Celsius excluding the DC Fan. PSU Dimension (LxWxH): 160 mm x 150 mm x 86 mm (6.3 in x 5.9 in x 3.4 in). Net Weight: 2.05 kg / 4.52 lbs. Scope of Delivery: 1x PH-P1000PR_BK01C Power Supply Unit, 1x C14 (female) – C13 (male) Power cord (1500mm), Accessory: 1x User’s manual, 1x Installation guide, 1x PSU bag, 1x Zip tie bag , 1x Screw pack,1x Velcro pack, 1x PSU tester.

EAN: 0886523510246

Package Dimensions: 13.0 x 8.0 x 5.0 inches
