Oududianzi Solar Panel Wire, 10AWG Solar Wire H1Z2Z2-K Tinned Copper Solar Cable for Photovoltaic Solar System, Automotive RVs, Boats (200 Ft Black & 200 Ft Red)

Brand: Oududianzi

Color: Black Red

Features:

n
• 【𝟏𝟎𝑨𝑾𝑮 𝑾𝒊𝒓𝒆】 The 10AWG solar panel extension cable kit is a combination of a black 200ft solar cable and a red 200ft solar wire, enough length for you to DIY the connection in your solar system. Generally, the 10AWG solar cable is the maximum diameter for solar panel cables, thick and durable. Using this diameter solar extension cable can provide your equipment with stable current and faster transmission speed, effectively reducing power loss.

n

• 【𝑻𝒊𝒏𝒏𝒆𝒅 𝑪𝒐𝒑𝒑𝒆𝒓 𝑾𝒊𝒓𝒆】 The solar panel cable is made of tin plated conductive copper material, 84 strands 0.295 mm tinned copper wire are inside each 10 gauge wire, has better conductivity, thermal conductivity, and corrosion resistance than other common materials, extra-thick insulation can withstand extreme heat and cold -40℉~194℉(-40℃-90℃). Designed for Extreme Weather, It can be buried directly in the ground.

n

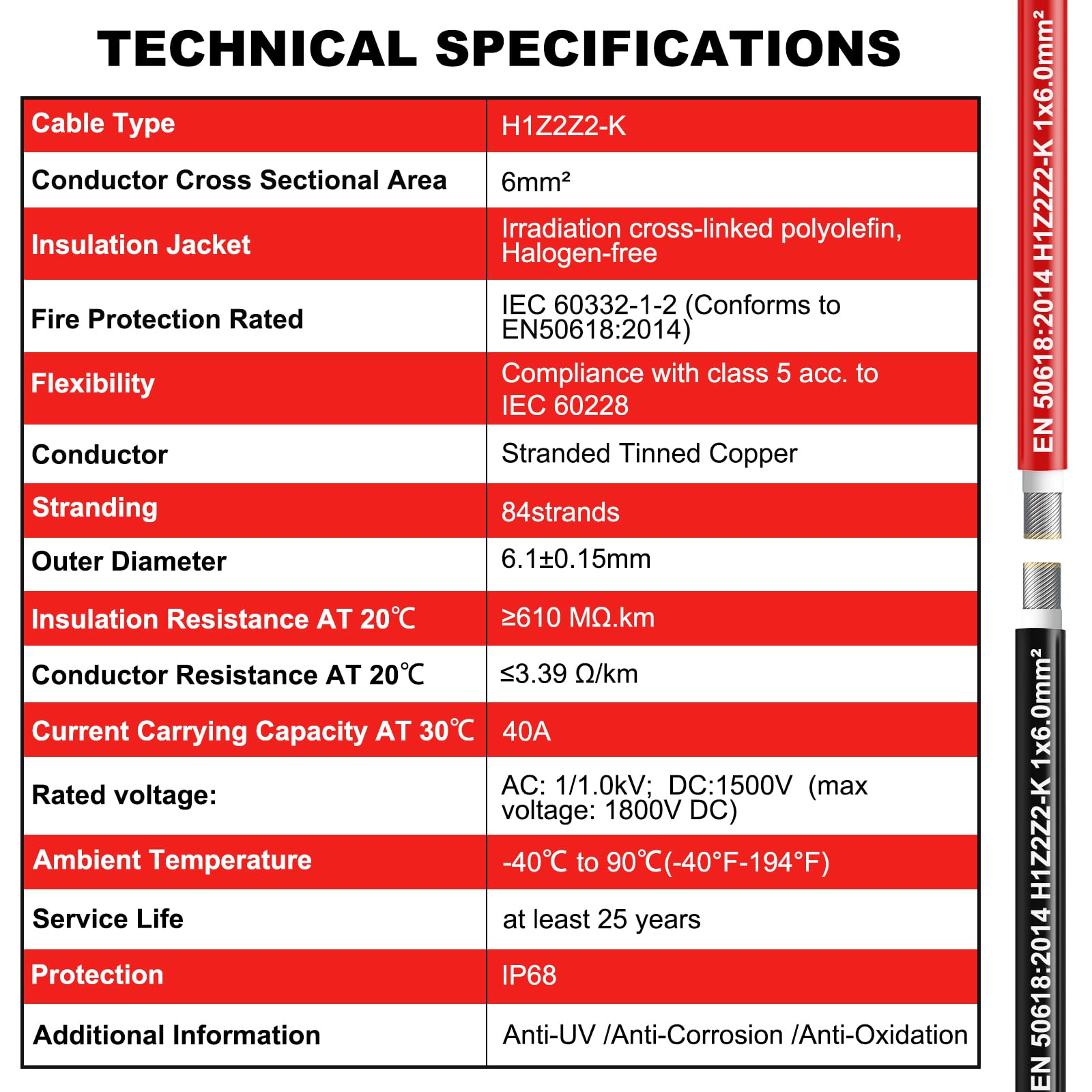

• 【𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝑷𝐡𝐨𝐭𝐨𝐯𝐨𝐥𝐭𝐚𝐢𝐜 𝑺𝐨𝐥𝐚𝐫 𝑾𝐢𝐫𝐞】 This solar panel extension cable meets TUV standards for photovoltaic solar applications and can be used in a variety of environments to ensure circuit safety. Cross-sectional area: 6mm², temperature range: environment -40°C-90°C, test voltage: 6500V, rated voltage: DC1500V, conductor resistance: (20°C) ≤≤5.09Ω/KM, weather resistance: UV, rated current: 57A.

n

• 【𝐈𝐏𝟔𝟖 𝐖𝐚𝐭𝐞𝐫𝐩𝐫𝐨𝐨𝐟】: The IP68 level of waterproofing allows the solar panel wire to work outdoors for a long time (over 25 years), The solar wire outer layer consists of XLPE materials, which can protect the wires from wear and chemical corrosion, built-in insulation protection layer to prevent the risk of electric shock, flame retardant and prevent fire. It ensures reliable and efficient power transmission even in harsh environments such as rain, snow and wind.

n

• 【𝟏𝟎 𝐀𝐖𝐆 𝑺𝒐𝒍𝒂𝒓 𝐖𝐢𝐫𝐞】 The 10 gauge copper wire allow for more space to be extended between the solar panels and the charge controllers, easy to solder and cut, which is widely used for wiring various low-voltage electronic devices, including solar panels, DC circuits, ships, ships, automobiles, RVs, LEDs, and inverter wiring etc.

n

model number: solar-panels

Part Number: SEA084

Package Dimensions: 10.4 x 10.2 x 6.1 inches
