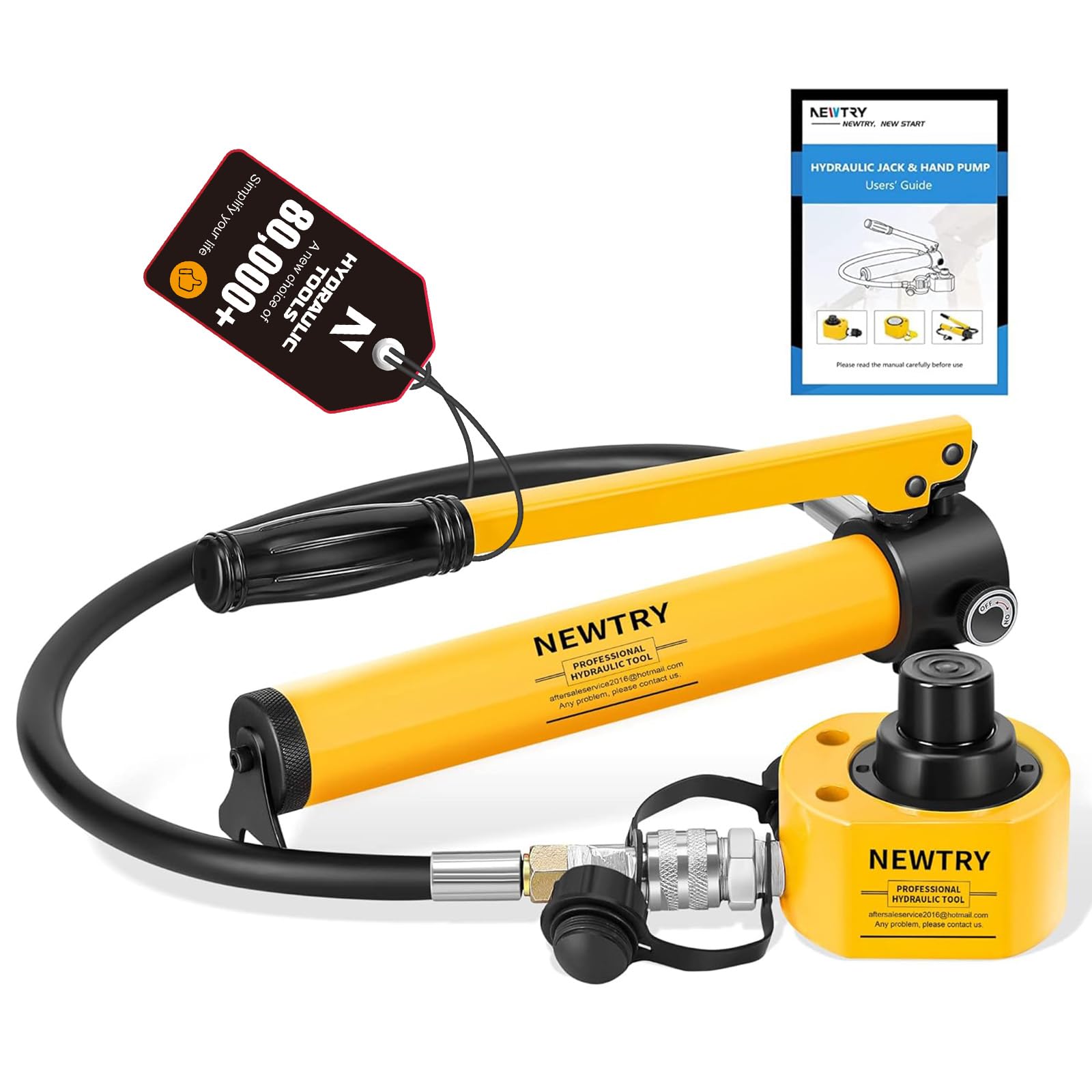

NEWTRY 20T Low Profile Hydraulic Jack Porta Power Kit + CP-180 Manual Hydraulic Hand Pump Multi Section Jack, 1.18” Stroke Industrial Mini Hydraulic Cylinder

Brand: NEWTRY

Color: Yellow

Features:

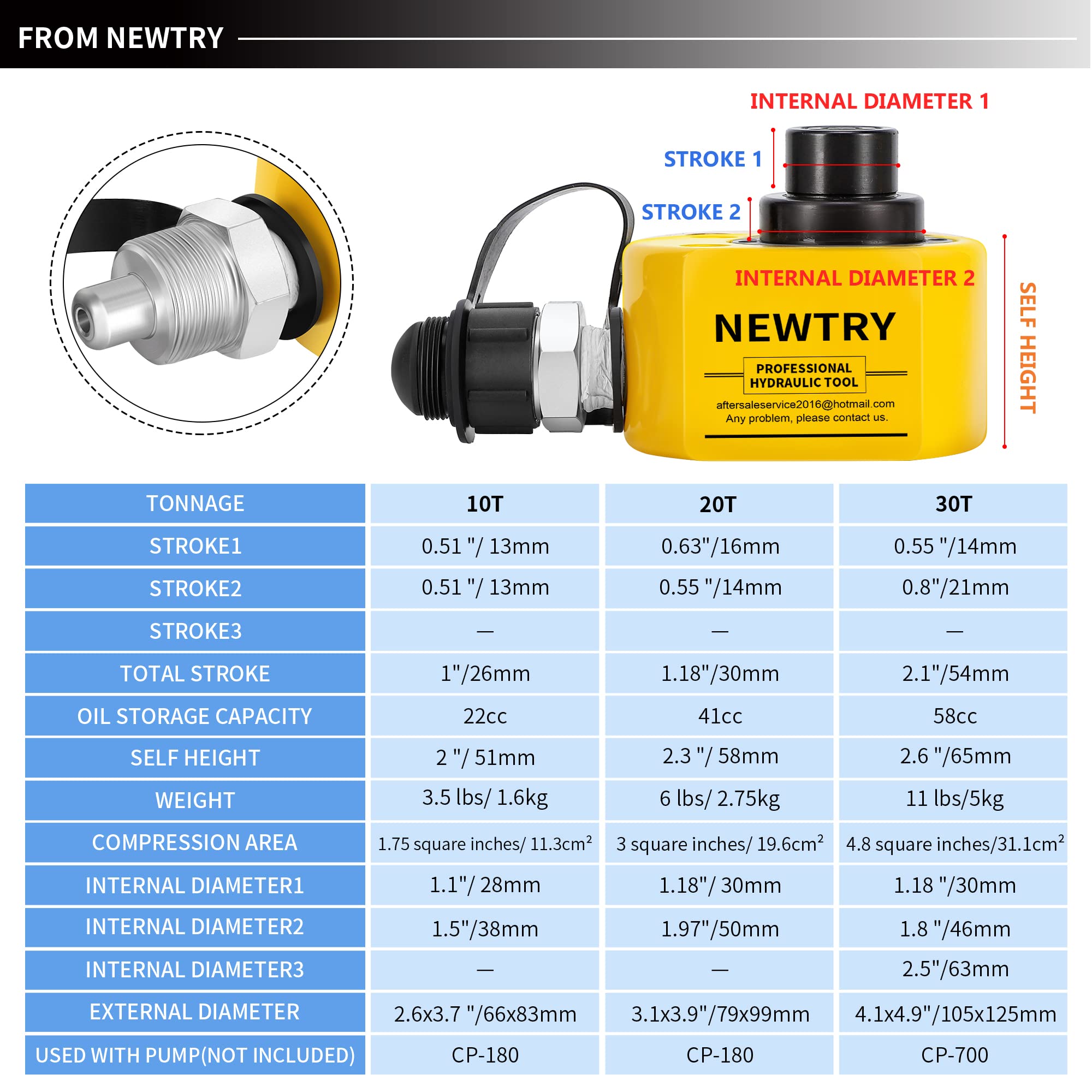

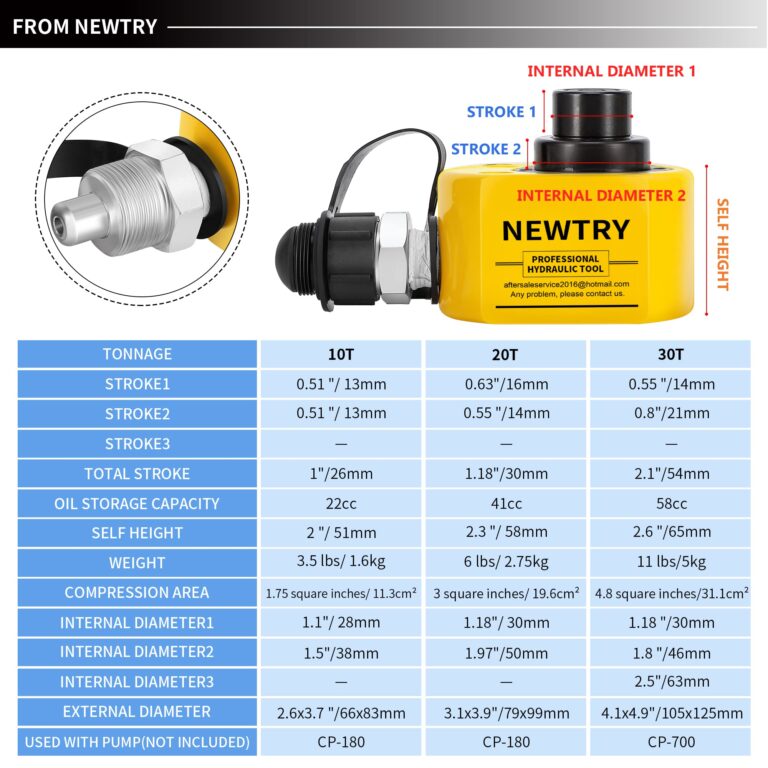

• ▷Jack Parameters—Tonnage: 20T | Stroke 1: 0.63 inch/16MM | Stroke 2: 0.55 inch/14MM | Total stroke: 1.18 inches/30MM | Oil storage capacity: 41CC | Self height: 2.24 inches/57MM | Weight: 6.17 lbs/2.8kg | Compression area: 3.04 square inches/19.6cm2 | Inner diameter 1: 1.18 inches/30mm | Inner diameter 2: 1.97 inches/50mm | Inner diameter 3: / | External diameter: 3.11×3.90 inches/79x99mm

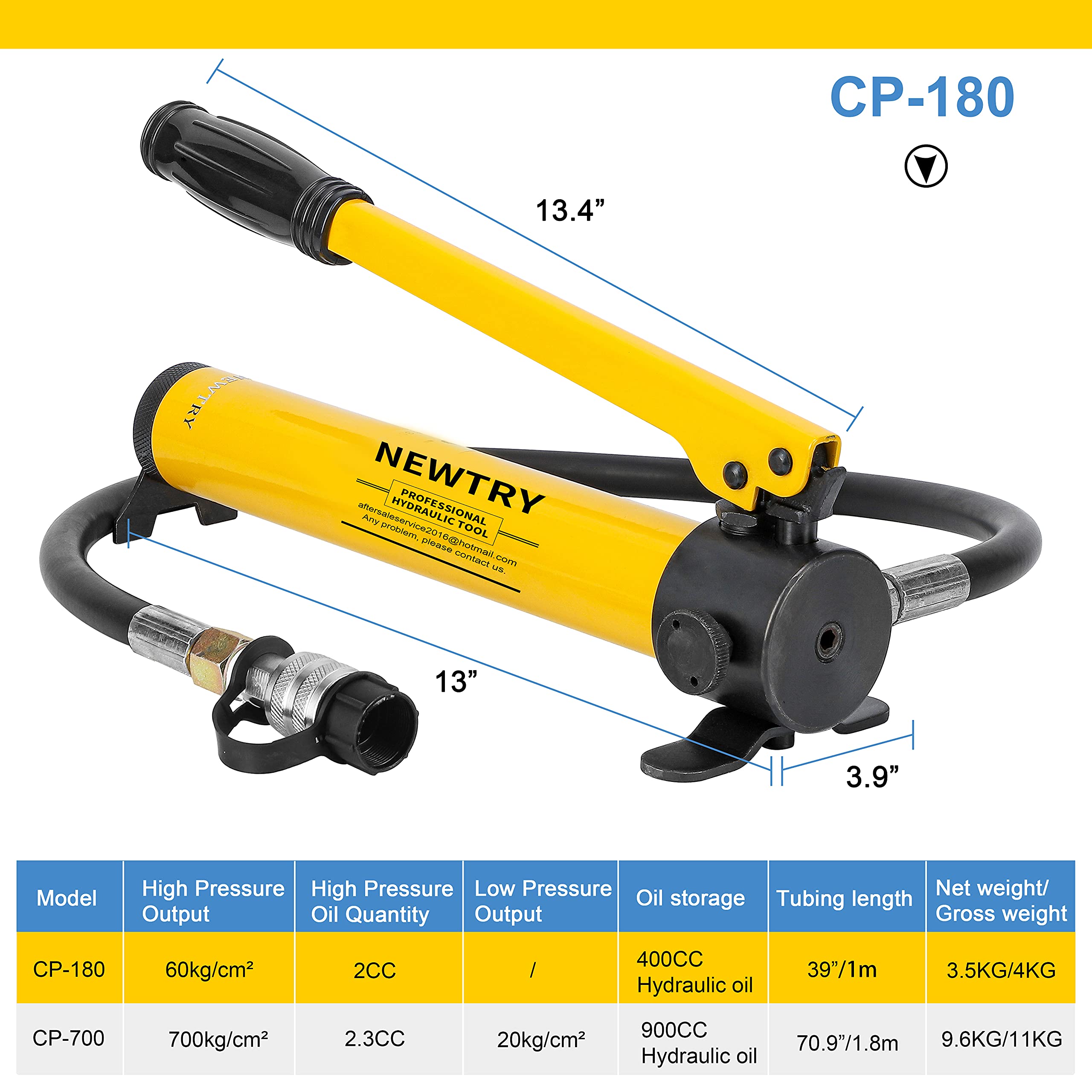

• ▷Pump Parameters—Oil capacity: 400cc | High pressure output: 600kg/cm2 | Length: 13.4”/340mm | Weight: 7.7lbs/3.5kg | Oil pipe coupling with: 3/8” connector | Hose length : 31”/0.8m. When using the cp – 180 manual hydraulic pump, which has a relatively small oil volume, you may need to press the handle several times to slowly lift the hydraulic jack. This is not a quality issue.
• ▷Convenient Mounting Options—Featuring two pre-drilled holes, this multi – section jack offers convenient mounting options. Whether you need to install it in a workshop, these holes simplify the mounting process. Just note that after pressure release, the piston needs external gravity to retract.

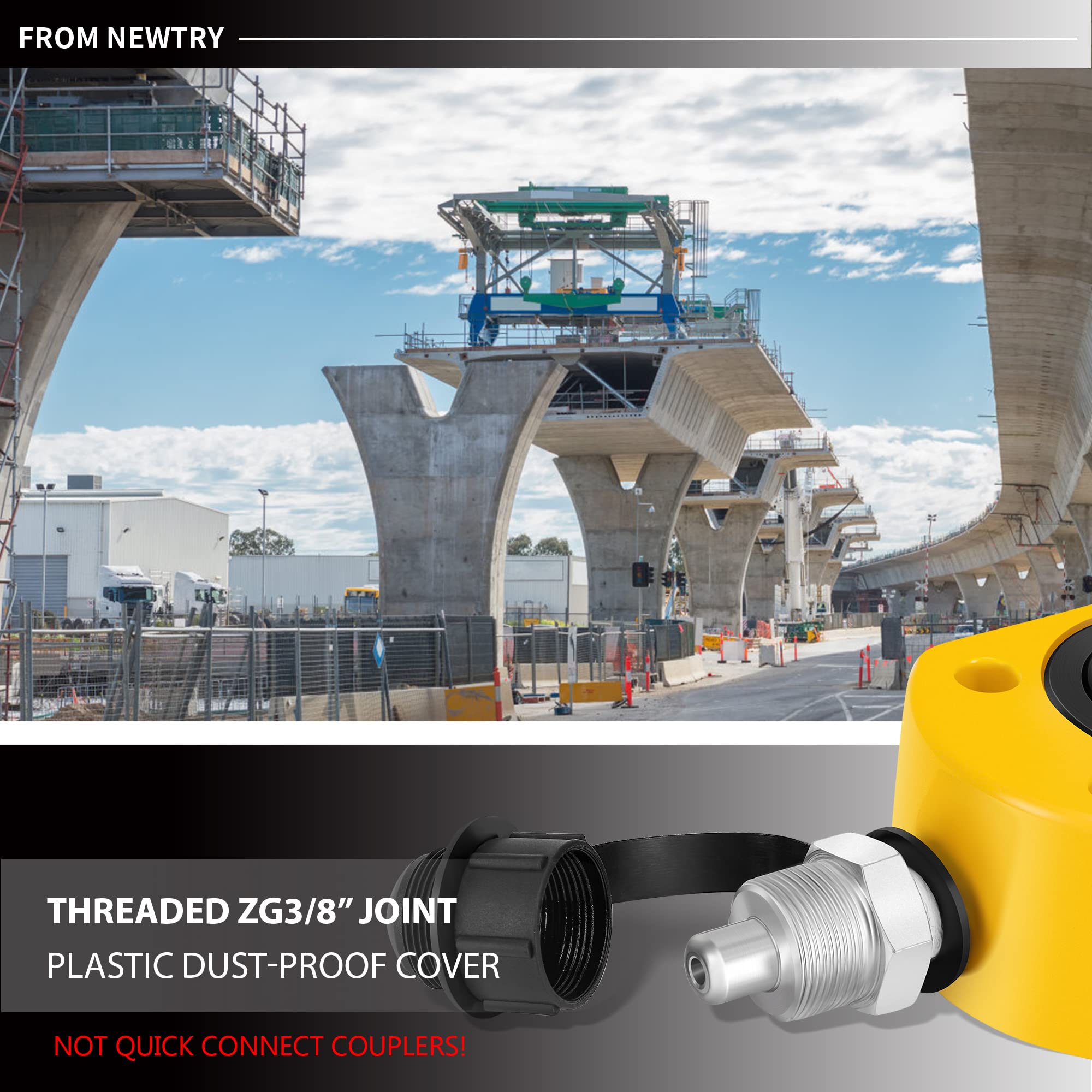

• ▷Leak – Proof and Dust – Resistant Design—The joints of this hydraulic jack are equipped with a plastic dust – proof cap. It prevent oil leakage and keep dust away from the internal components, maintaining the jack’s performance over time. This leak – proof and dust – resistant design ensures that the jack remains in good working condition.

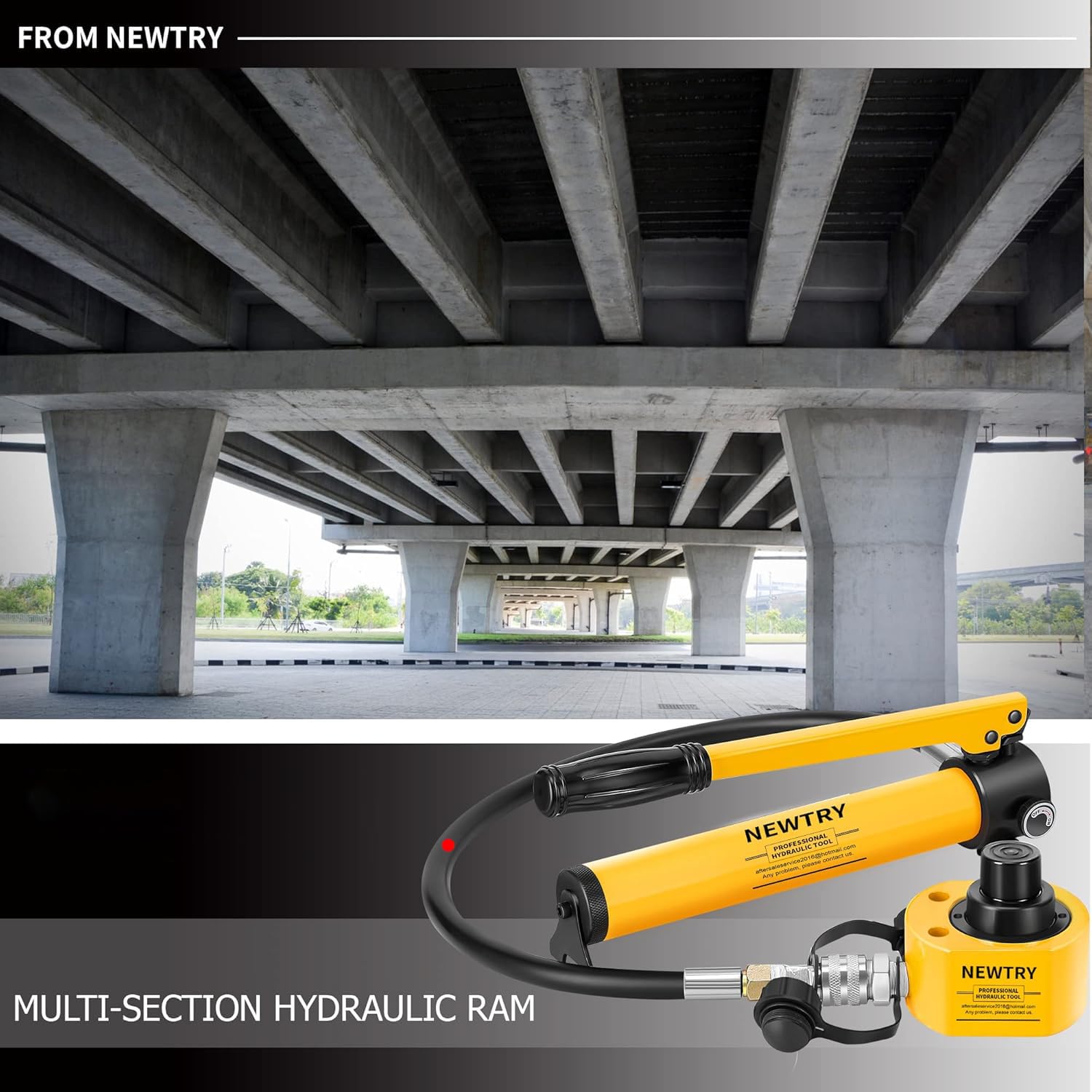

• ▷Compact Design with Strong Functionality—This hydraulic porta power ram features a compact size, making it suitable for use in tight spaces. It has a notable working capacity, providing both portability and flexibility during operation. With its small size, it can generate a substantial lifting force. This makes it a practical tool for various applications where space is limited yet reliable performance is required.

Package Dimensions: 190x374x7462
