MSI PRO B850-P WiFi Motherboard, ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 – DDR5 Memory Boost (8200+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

Brand: MSI

Features:

n
• ULTRA POWER – SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE – The PRO B850-P WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

n

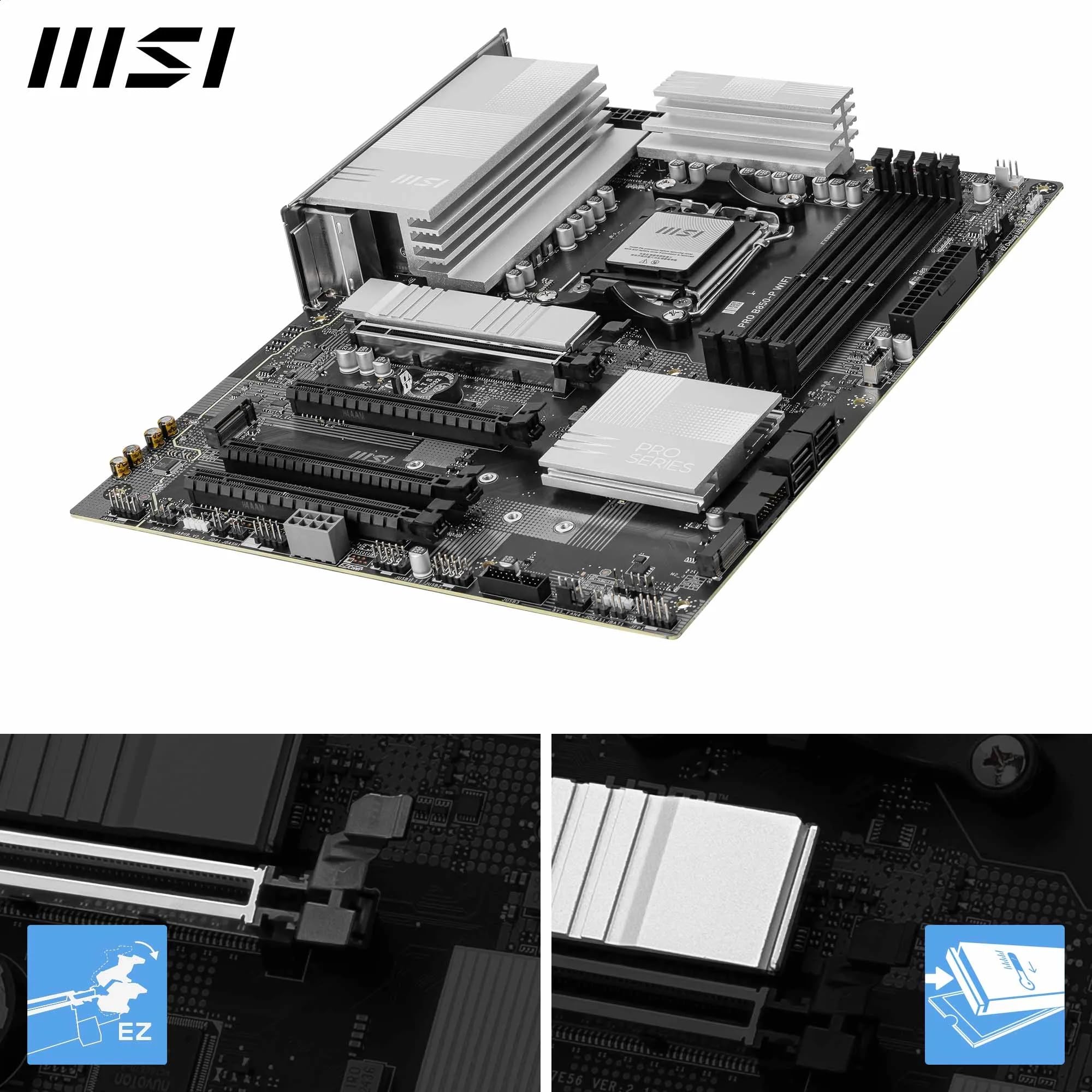

• FROZR GUARD – Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)

n

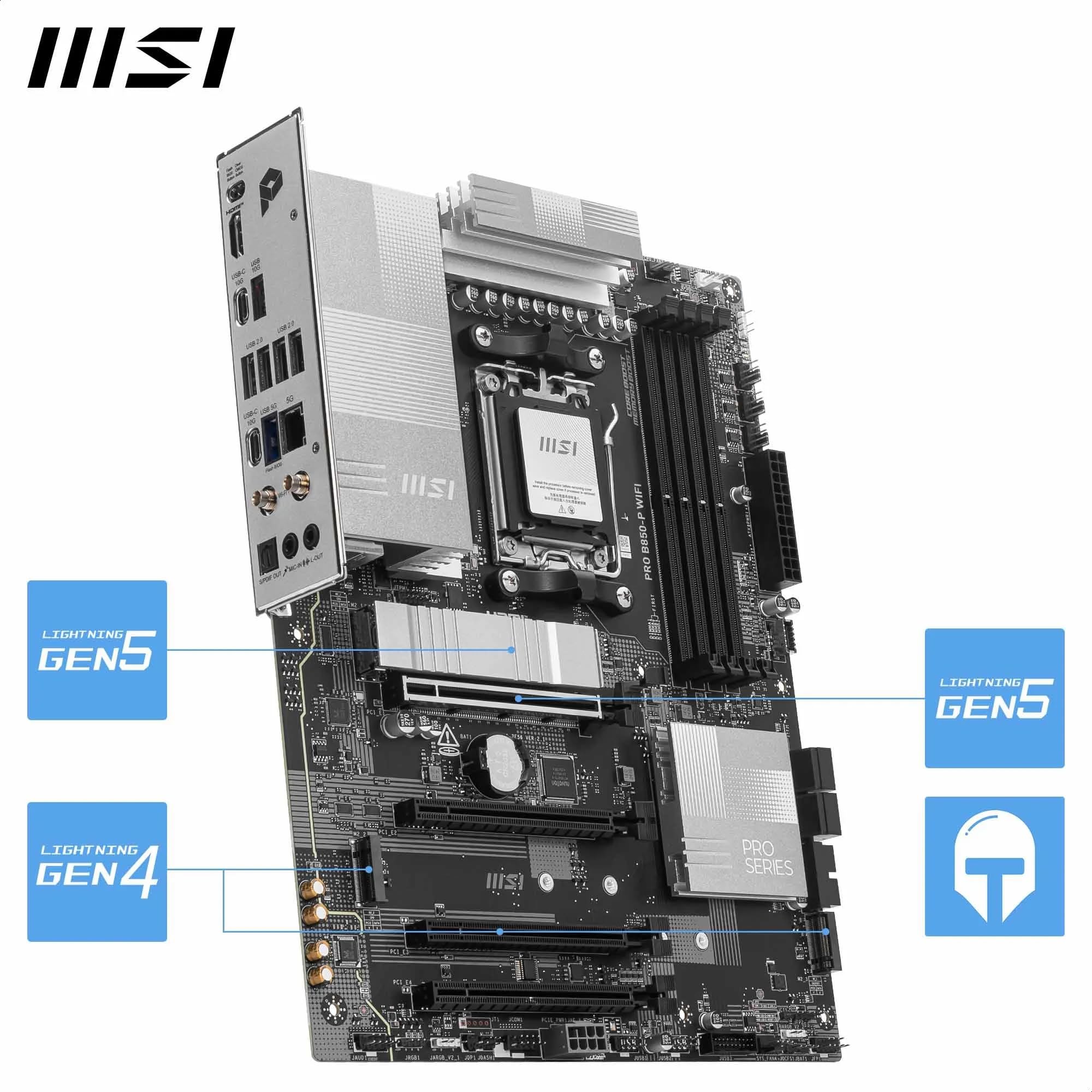

• DDR5 MEMORY, PCIe 5.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards

n

• TRIPLE M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot

n

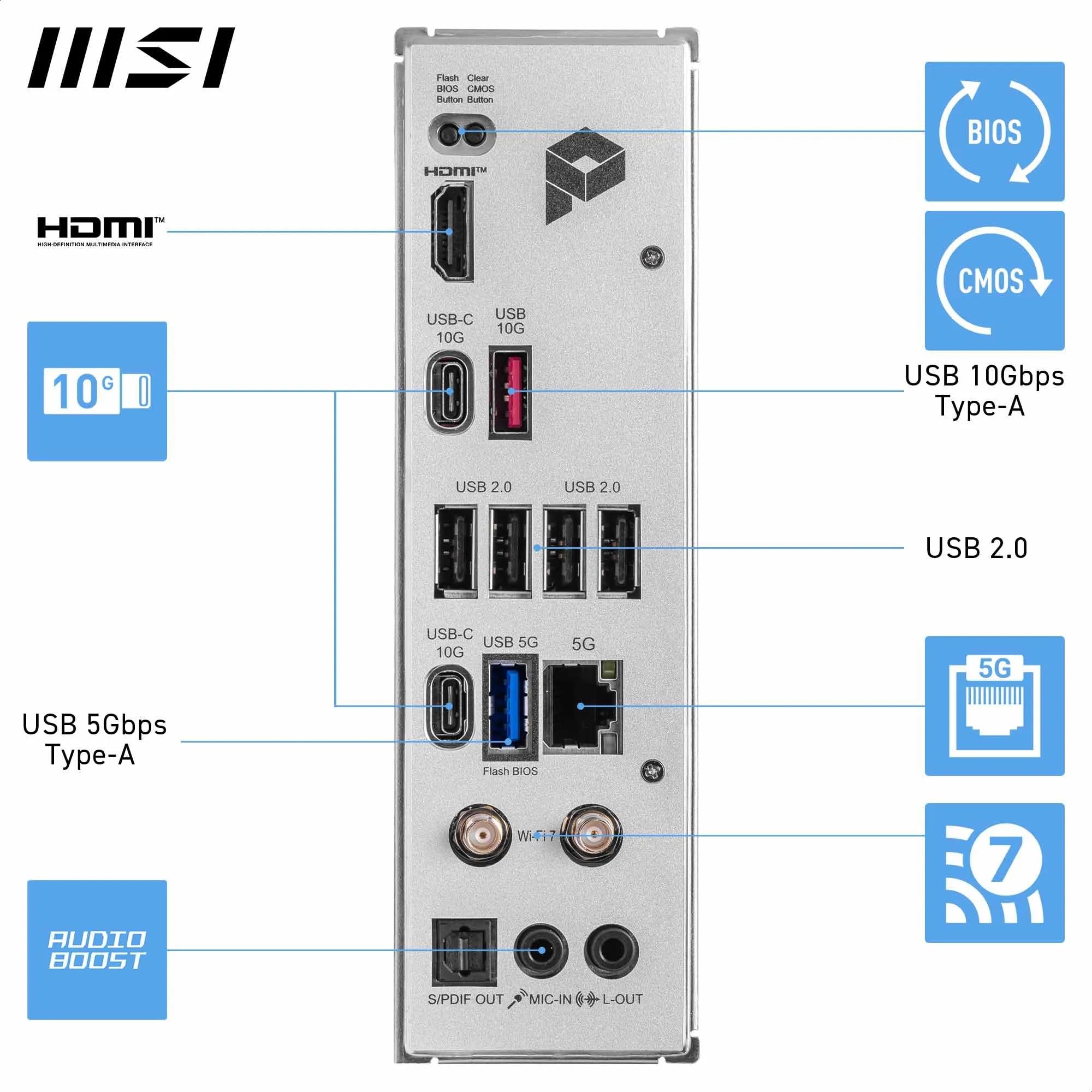

• HIGH-SPEED CONNECTIVITY – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost

n

Binding: Personal Computers

Release Date: 06-01-2025

model number: B850-P WiFi

Part Number: PROB850PWIFI

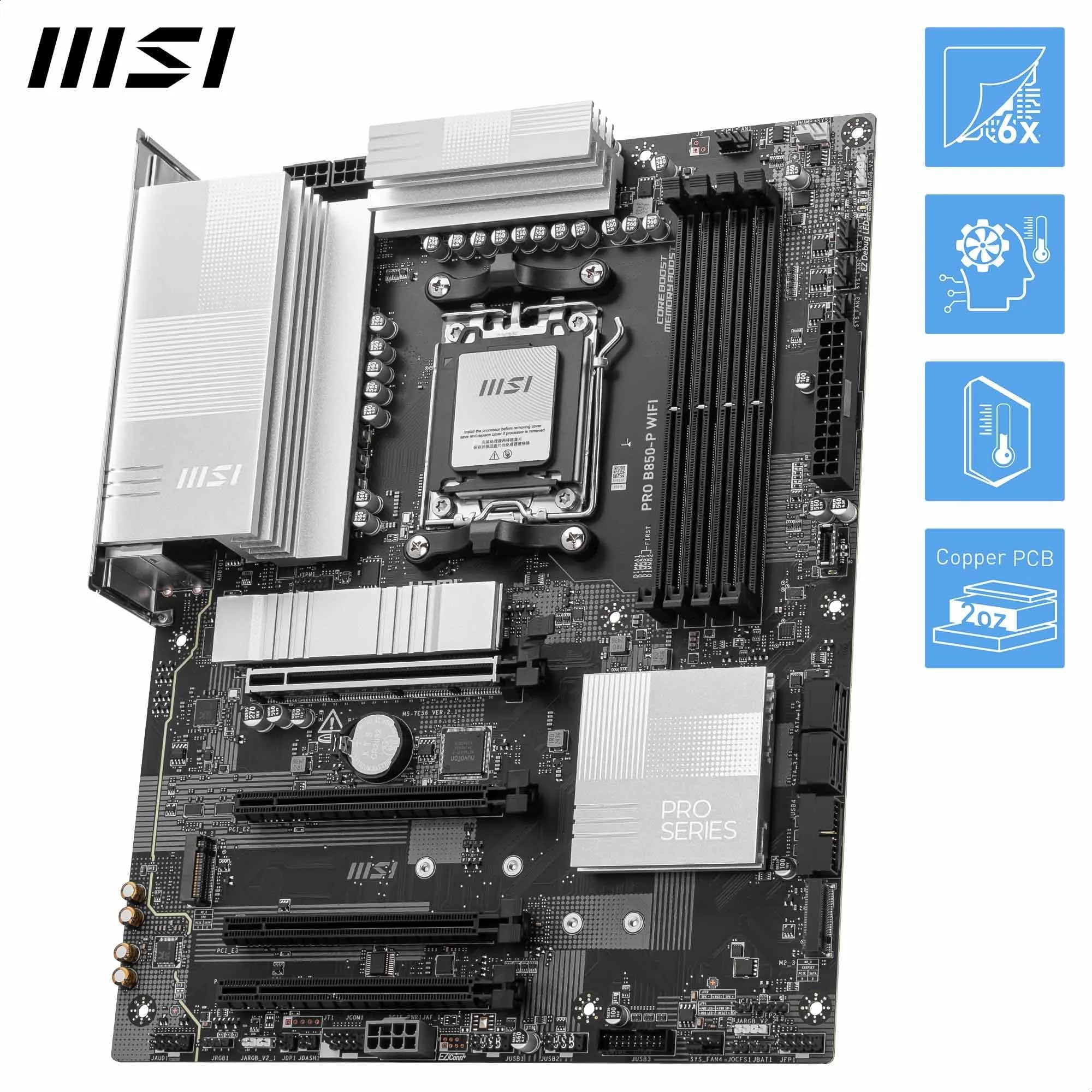

Details: PRO B850-P WIFI: Business Elegance Designed for efficient and stable performance on the AMD B850 chipset (Ryzen 9000 / 8000 / 7000 supported, AM5), the MSI PRO B850-P WIFI motherboard includes premium GPU support with a PCIe 5.0 x16 slot, improved DDR5 memory support (8200+ MT/s OC), and extensive M.2 Gen5 storage options (with EZ M.2 Shield Frozr II). To ensure stable power delivery to the latest Ryzen 9000 processors, the PRO B850-P WIFI is equipped with a 12 Duet Rail Power System (P-PAK) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. MSI B850 PRO motherboards feature durable server-grade PCBs with 2oz of thickened copper and all-new Surface Mount Technology (SMT) solder welding for improved signal clarity. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 5G LAN, USB 10Gbps Type-C, 4K/60Hz display support, and 7.1 HD audio. For professionals looking for efficient AMD Ryzen 9000 / 8000 / 7000 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI PRO B850-P WIFI epitomizes business elegance.

EAN: 0824142392607

Package Dimensions: 13.6 x 10.5 x 2.9 inches
