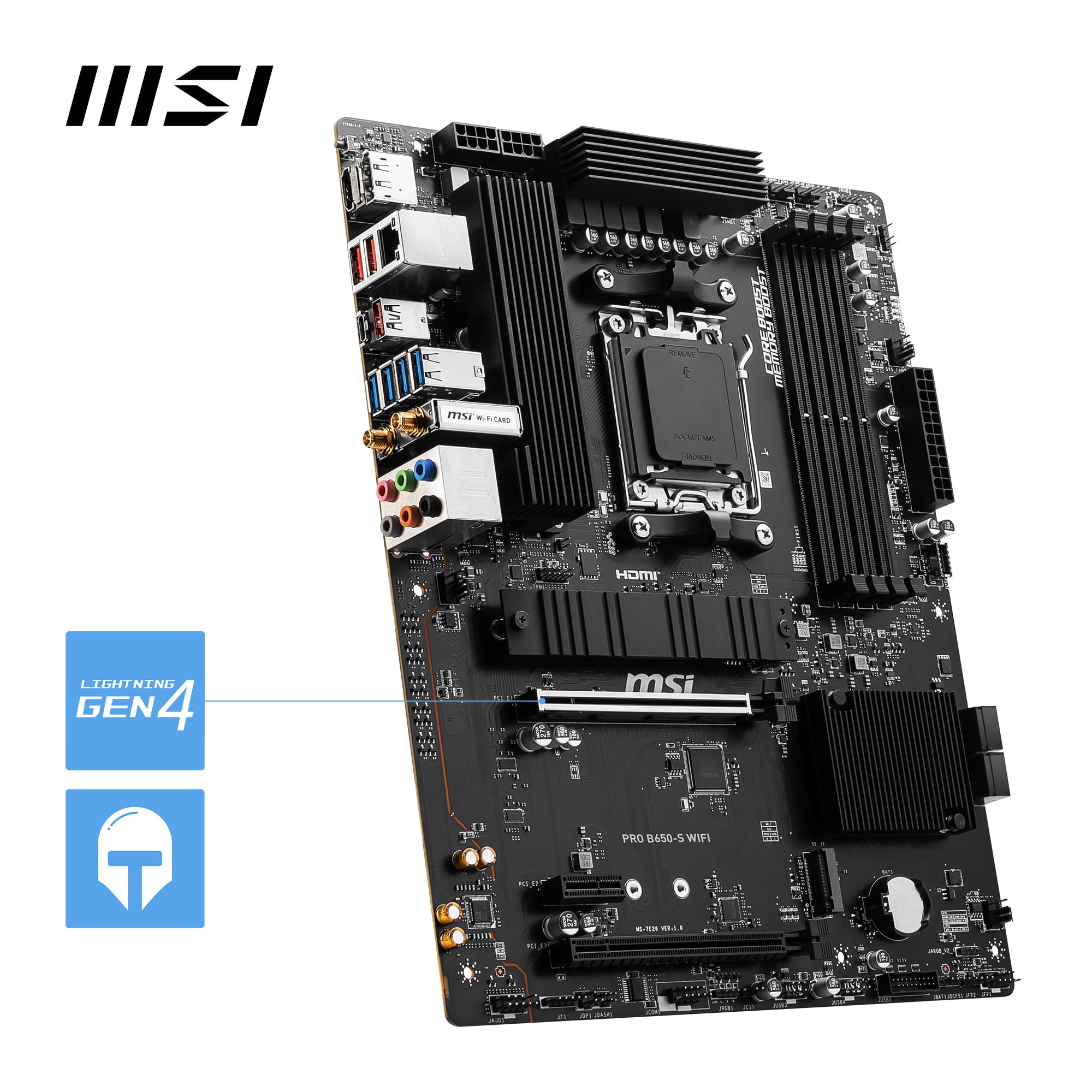

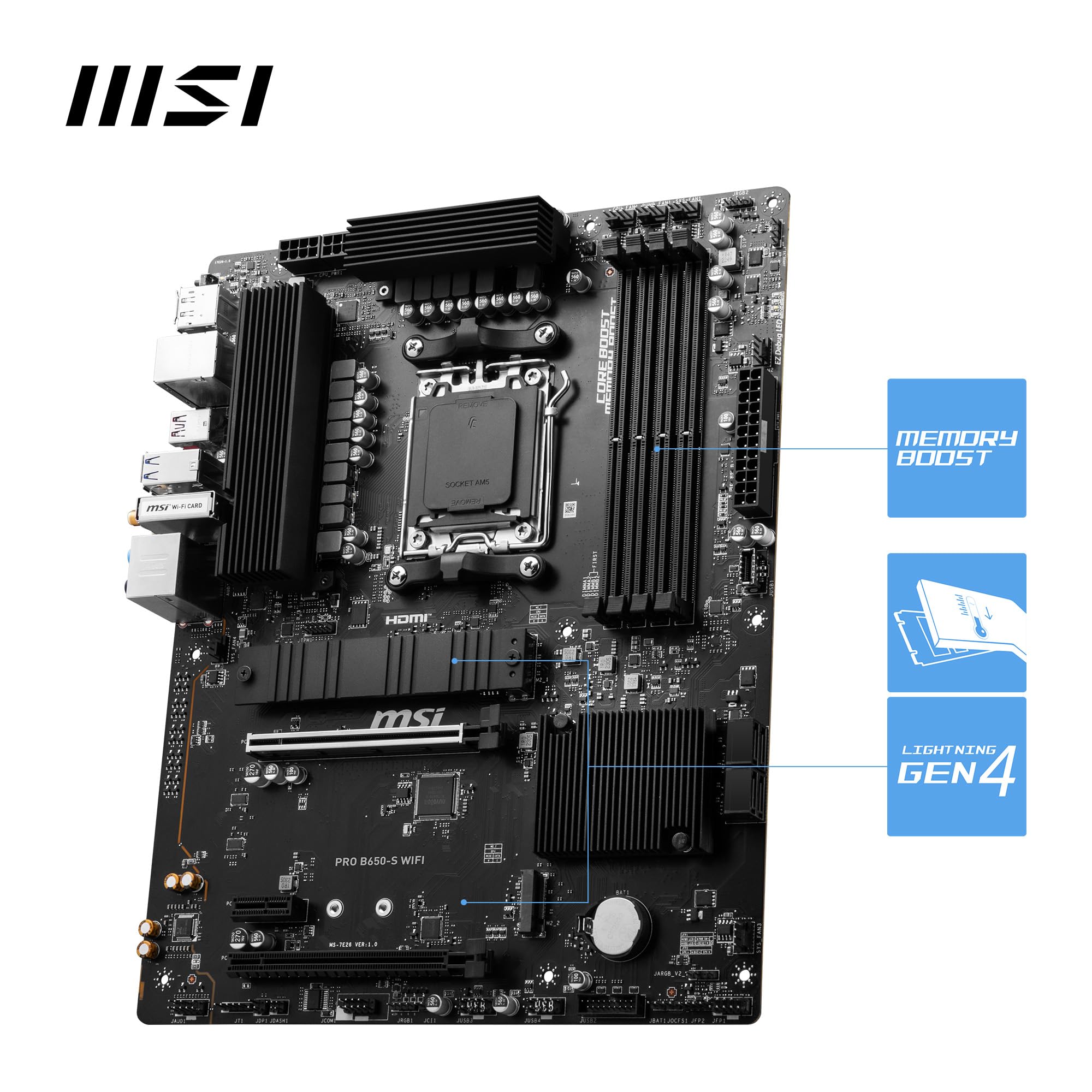

MSI PRO B650-S WIFI Motherboard, ATX – Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors, AM5 – DDR5 Memory Boost 6000+MHz/OC, 2 x PCIe 4.0 x16, 2 x M.2 Gen4, Wi-Fi 6E

Brand: MSI

Color: Black

Features:

n
• POWERFUL VRM, Ryzen 7000 READY – The PRO B650-S WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for improved stability & performance

n

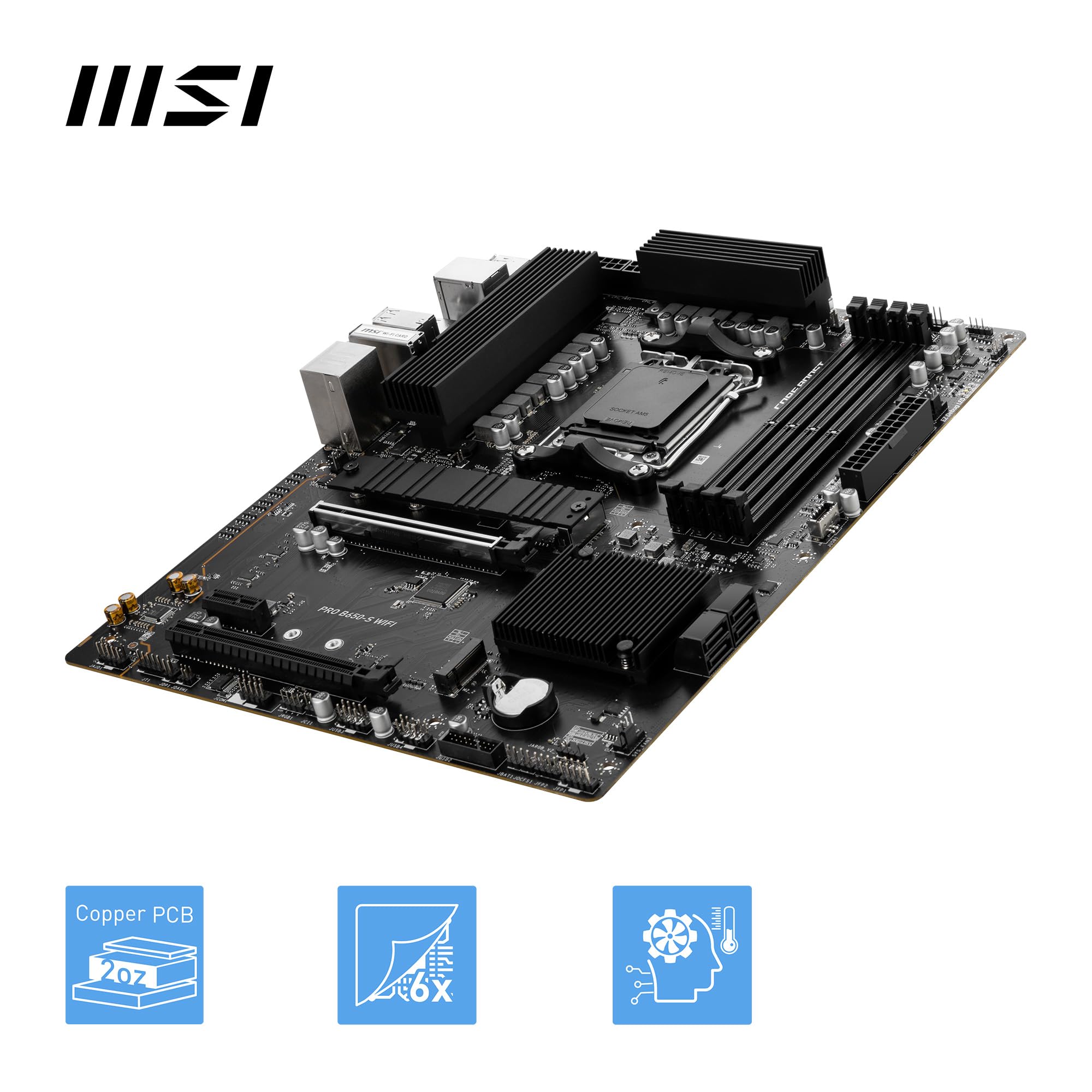

• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads; Includes chipset heatsink, M.2 Shield Frozr, active Frozr AI CPU & GPU responsive cooling, a dedicated pump-fan header & 6-layer PCB with 2 oz. thickened copper

n

• DDR5 MEMORY, DUAL PCI-E 4.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots enable high-speed memory and improve signal clarity (1DPC 1R, 6000+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor, secondary PCIe x16 slot supports PCIe 4.0

n

• DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots; The primary M.2 slot includes Shield Frozr to prevent thermal throttling during hyper-fast SSD access

n

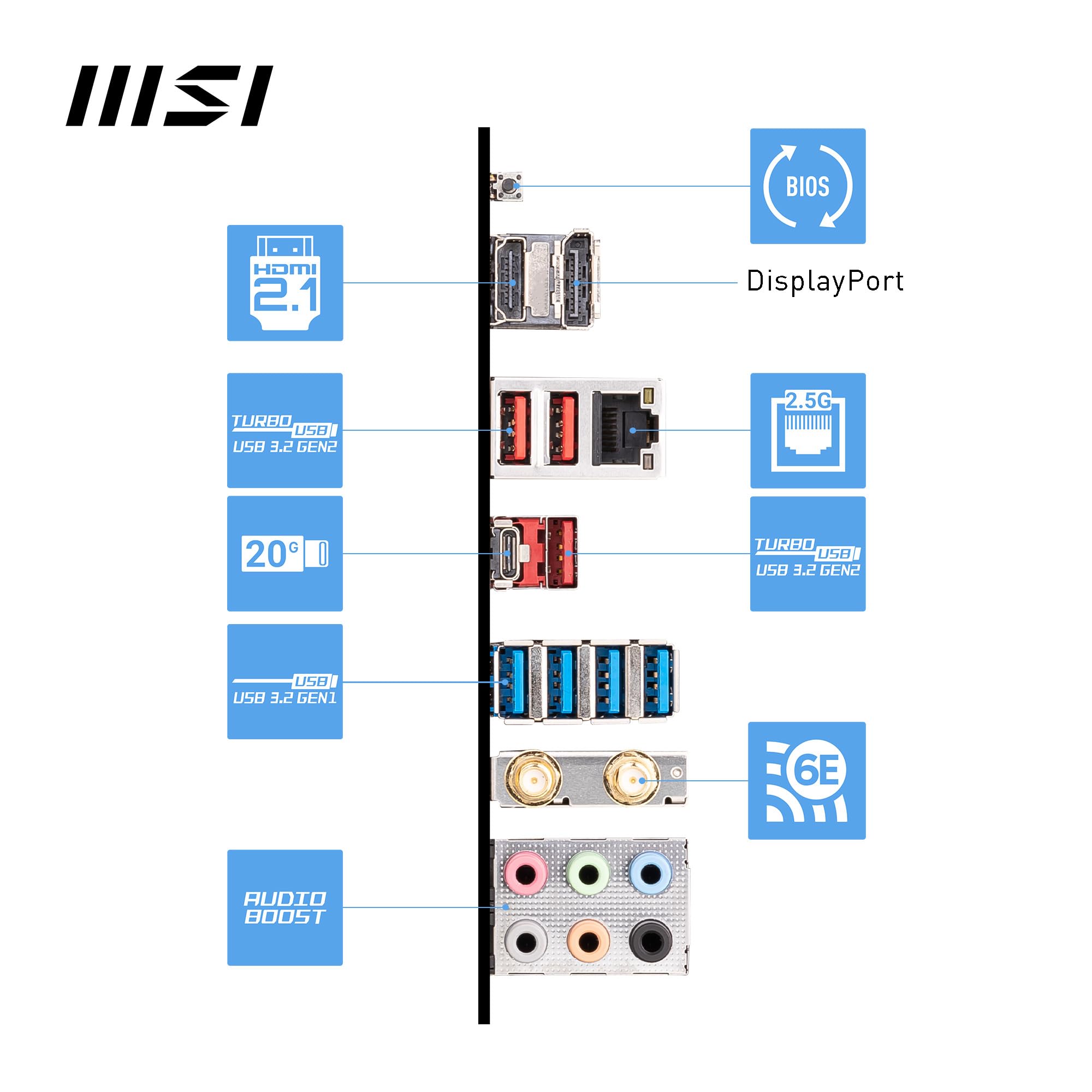

• WI-FI 6E CONNECTIVITY – Network hardware includes Wi-Fi 6E with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost

n

Binding: Personal Computers

Release Date: 01-01-2023

model number: 7E26-003R

Part Number: 7E26-003R

Details: MSI PRO B650-S WIFI, AMD, Socket AM5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 192 GB

EAN: 4711377132862

Package Dimensions: 13.6 x 10.7 x 2.8 inches

Languages: French, Italian
