MSI B840 Gaming Plus WiFi Motherboard, ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 – DDR5 Memory Boost 8000+ MT/s (OC), PCIe 4.0 x16, M.2 Gen4, Wi-Fi 7, 2.5G LAN

Brand: MSI

Features:

n
• ULTRA POWER – SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE – The B840 GAMING PLUS WIFI employs a Direct 7 phases CPU power (P-PAK) for the AMD B840 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

n

• FROZR GUARD – Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)

n

• DDR5 MEMORY, PCIe 4.0 x16 SLOT – 4 x DDR5 DIMM SMT slots enable excellent memory overclocking speeds (1DPC 1R, 8000+ MT/s OC); 1 x PCIe 4.0 x16 slot (64GB/s) with Steel Armor supports cutting-edge graphics cards

n

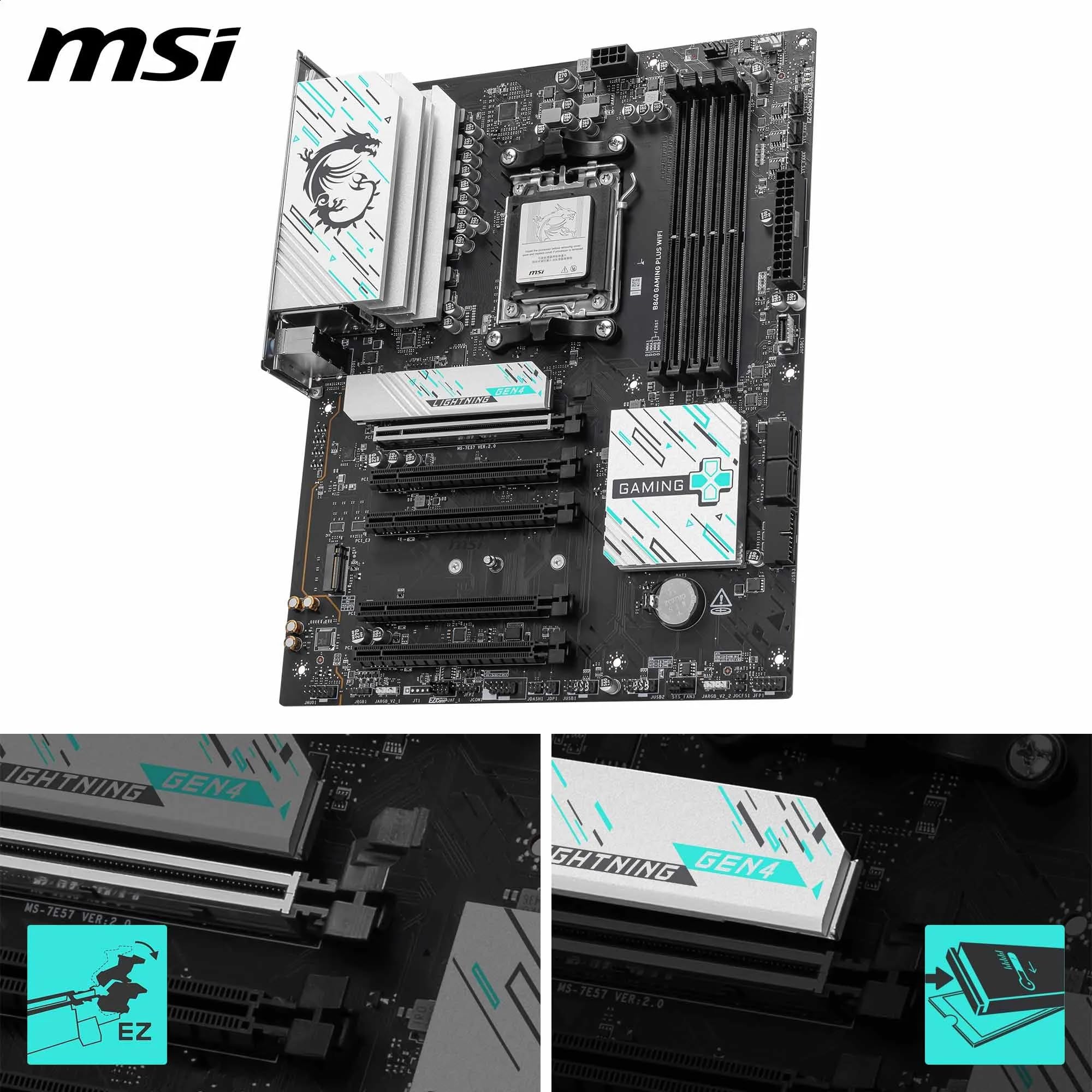

• DOUBLE M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots; The primary M.2 slot includes EZ M.2 Shield Frozr II to prevent thermal throttling during hyper-fast SSD access

n

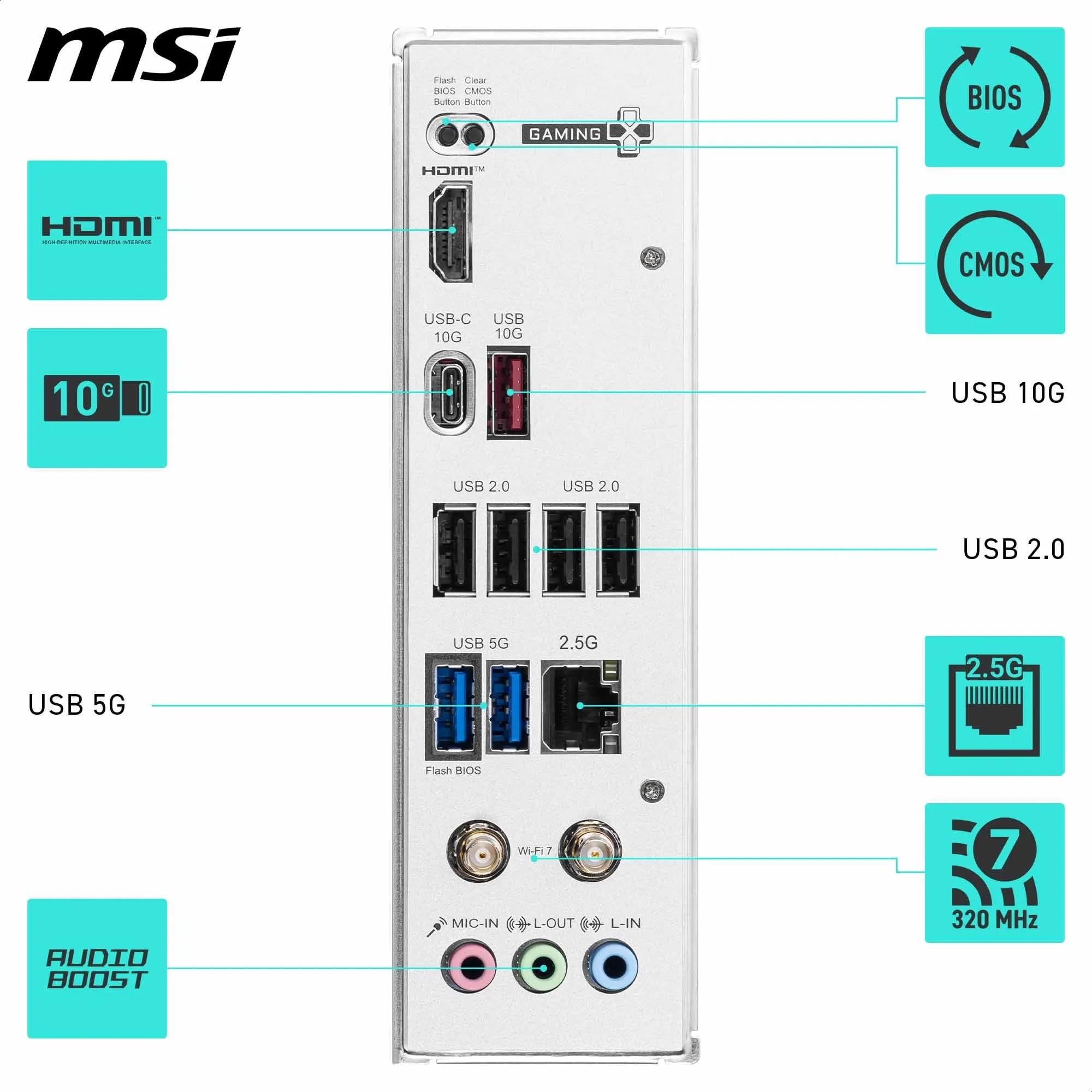

• CONNECTIVITY – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 2.5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost

n

Binding: Personal Computers

Release Date: 06-01-2025

model number: B840GPW

Part Number: B840GPW

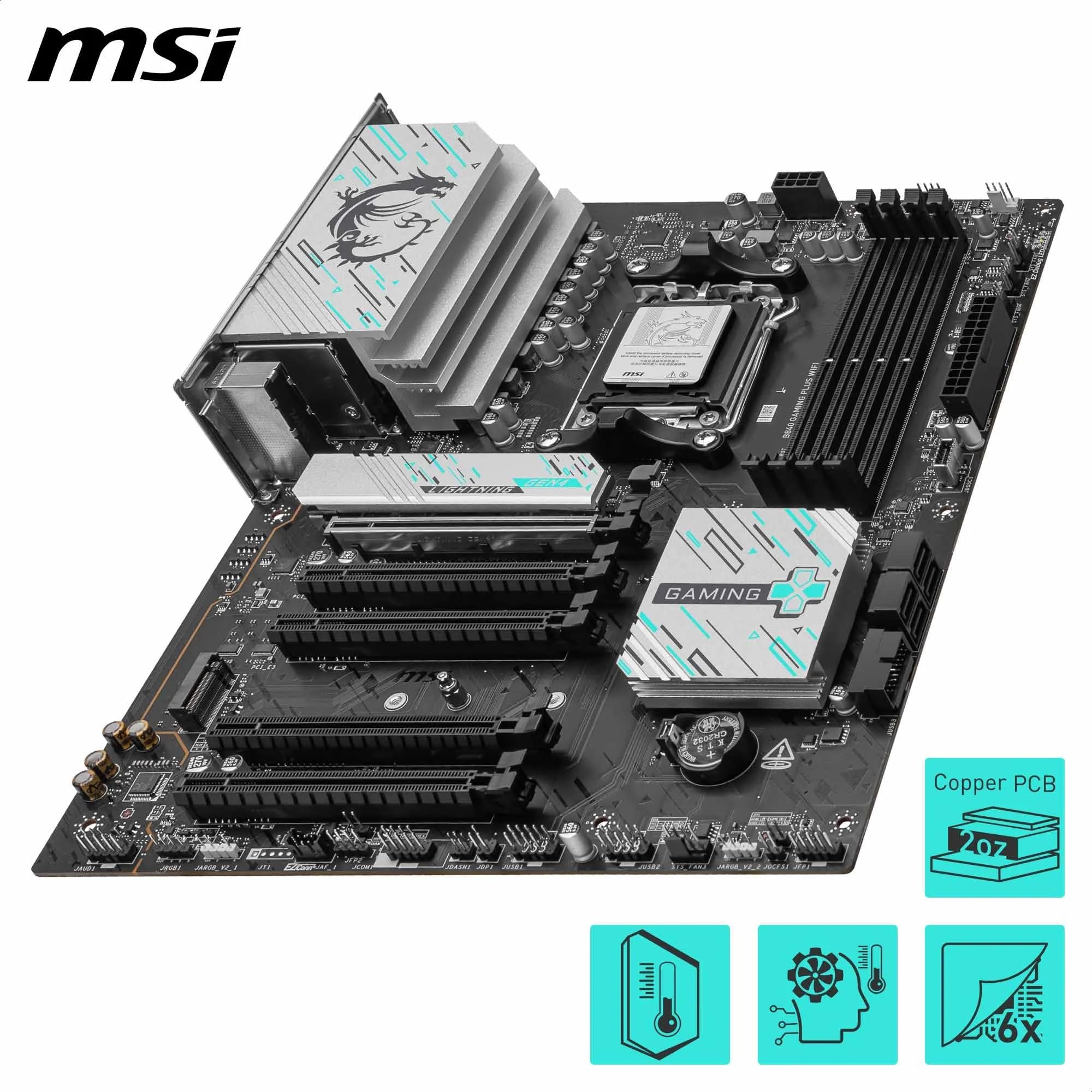

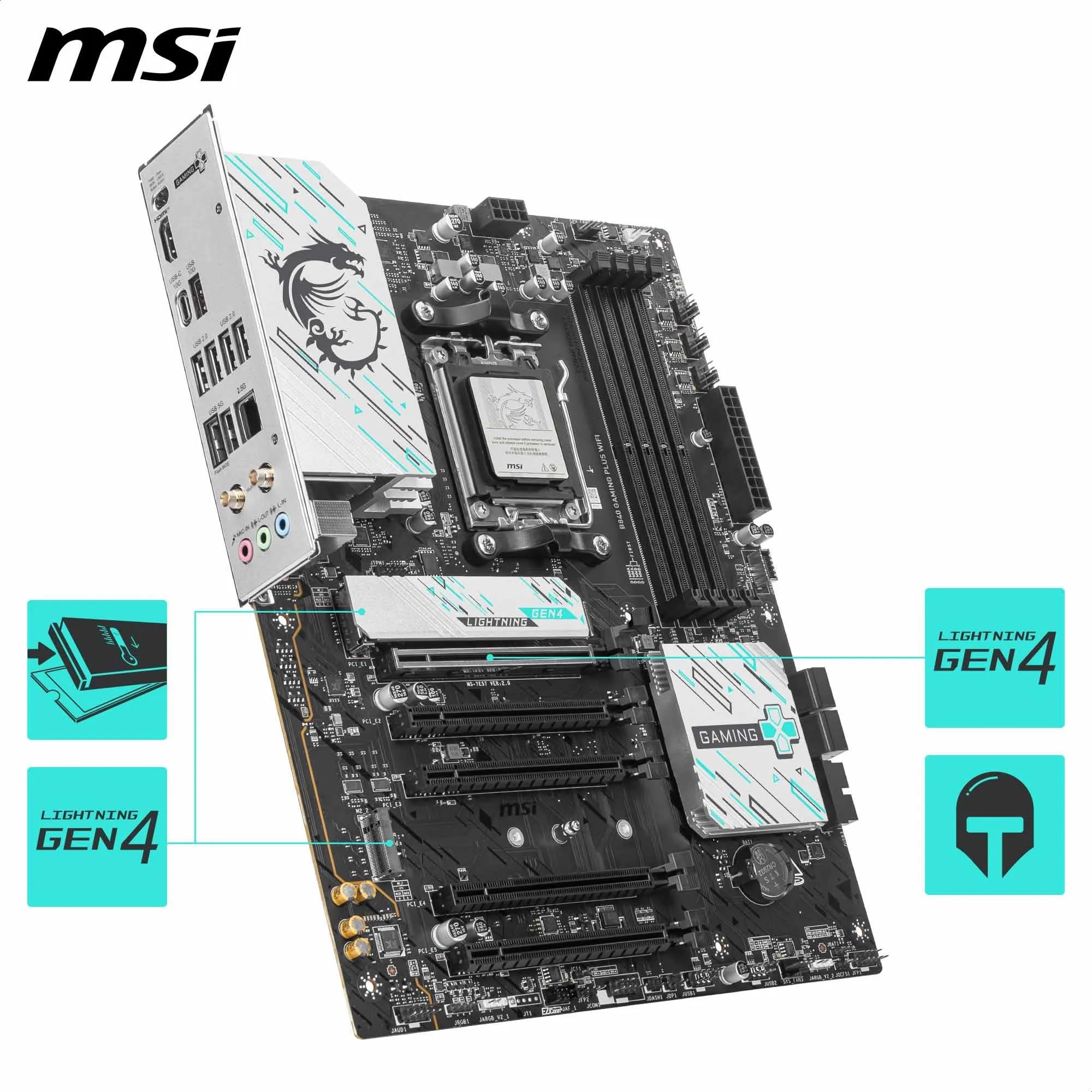

Details: B840 GAMING PLUS WIFI: Win the Competition Designed for efficient and stable performance on the AMD B840 chipset (Ryzen 9000 / 8000 / 7000 supported, AM5), the MSI B840 GAMING PLUS WIFI motherboard includes premium GPU support with a PCIe 4.0 x16 slot, improved DDR5 memory support (8000+ MT/s OC), and extensive M.2 Gen4 storage options (with EZ M.2 Shield Frozr II). To power the latest Ryzen 9000 processors, the B840 GAMING PLUS WIFI is equipped with a Direct 7 phases CPU power (P-PAK) for the CPU and a 8-pin CPU power connector, augmented with multiple passive cooling features. MSI gaming motherboards feature durable 6-layer PCB with 2oz of thickened copper for improved signal clarity. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 2.5G LAN, USB 10Gbps Type-C, 4K/60Hz display support, and 7.1 HD audio. For gamers looking for an efficient AMD Ryzen 9000 / 8000 / 7000 platform that unites PCIe 4.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen4 storage options into one elegant design, the MSI B840 GAMING PLUS WIFI gaming motherboard is the perfect choice.

EAN: 0824142392966

Package Dimensions: 13.6 x 10.7 x 2.7 inches
