MSI B650 Gaming Plus WiFi Motherboard AMD B650 Socket AM5 ATX

Brand: MSI

Color: Black

Features:

n
• Ryzen 7000 READY, HIGH PERFORMANCE – The B650 GAMING PLUS WIFI (ATX) employs a 12+2 Duet Rail VRM for the AMD B650 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports demanding multi-core processors

n

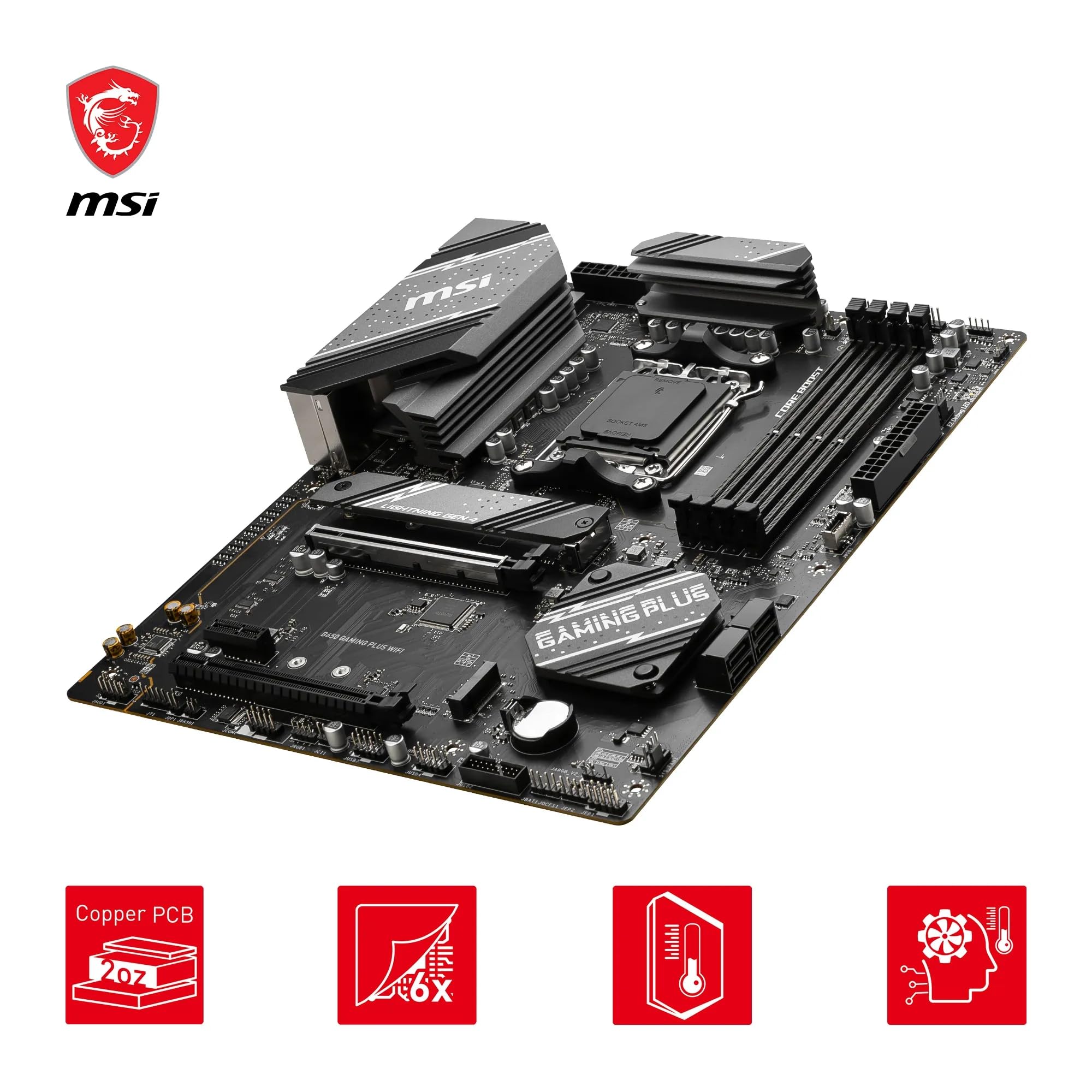

• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper

n

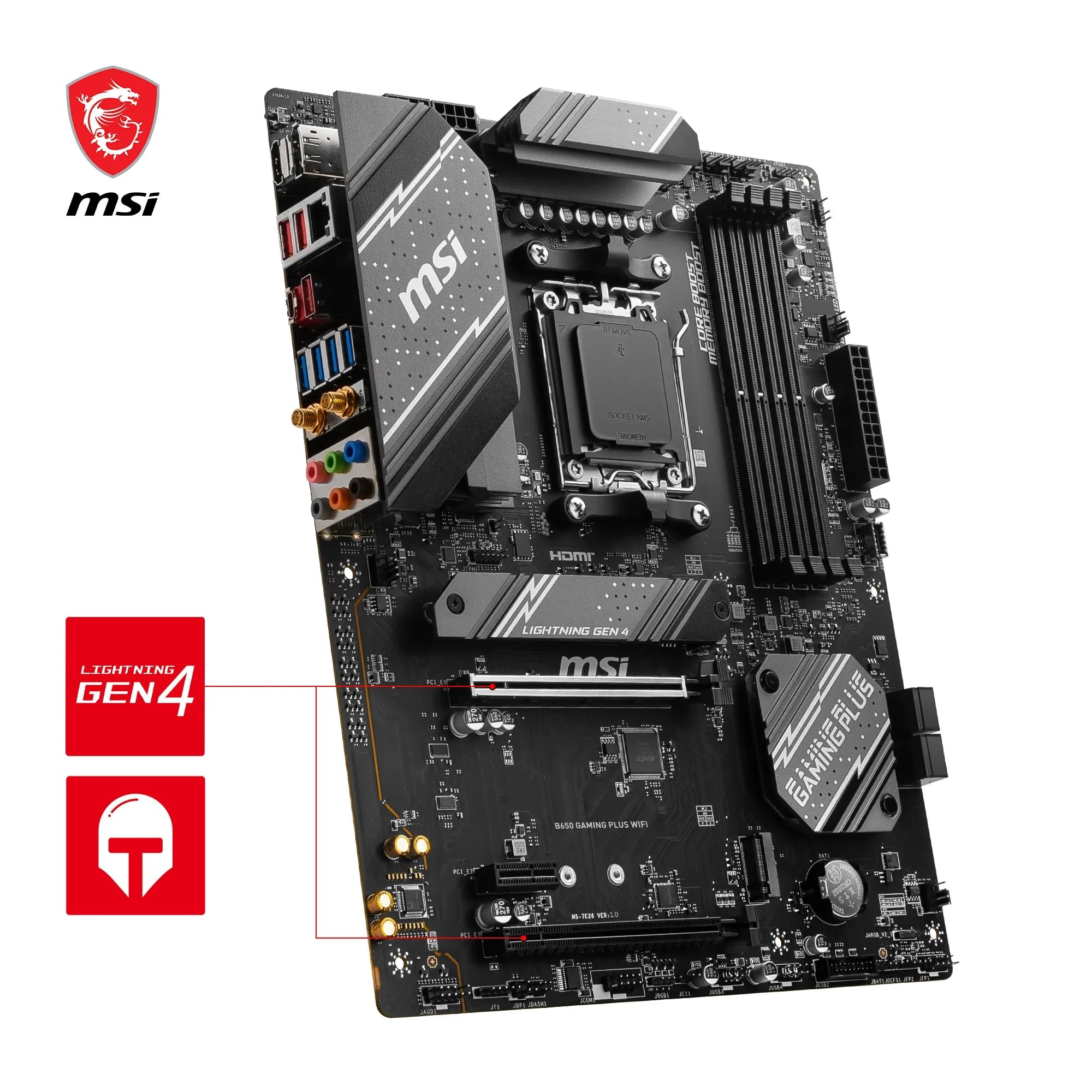

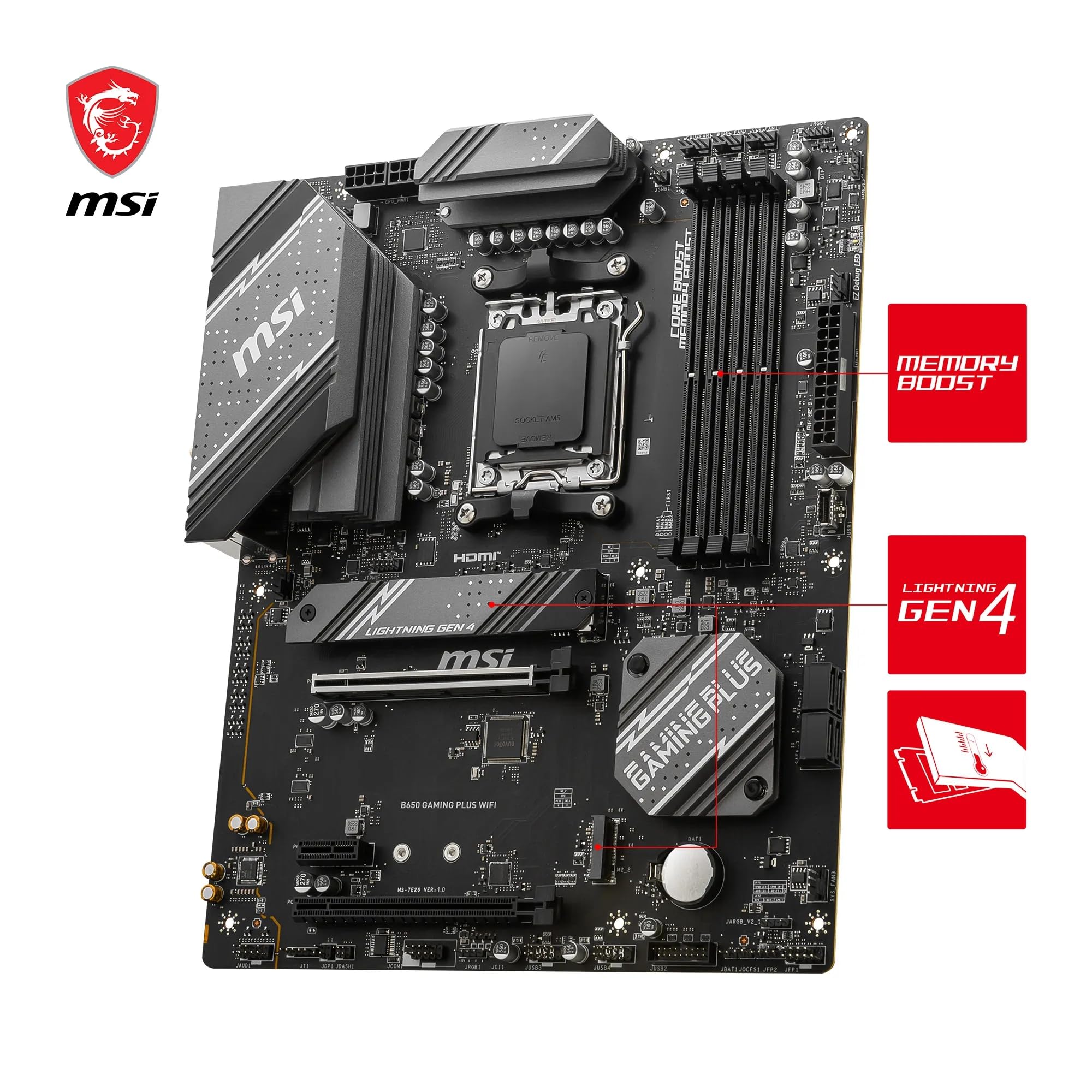

• DDR5 MEMORY, DUAL PCIe 4.0 x16 SLOTS – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6400+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) supports graphics cards, primary PCIe x16 slot includes Steel Armor

n

• DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr (M2_1) to prevent thermal throttling during hyper-fast SSD access

n

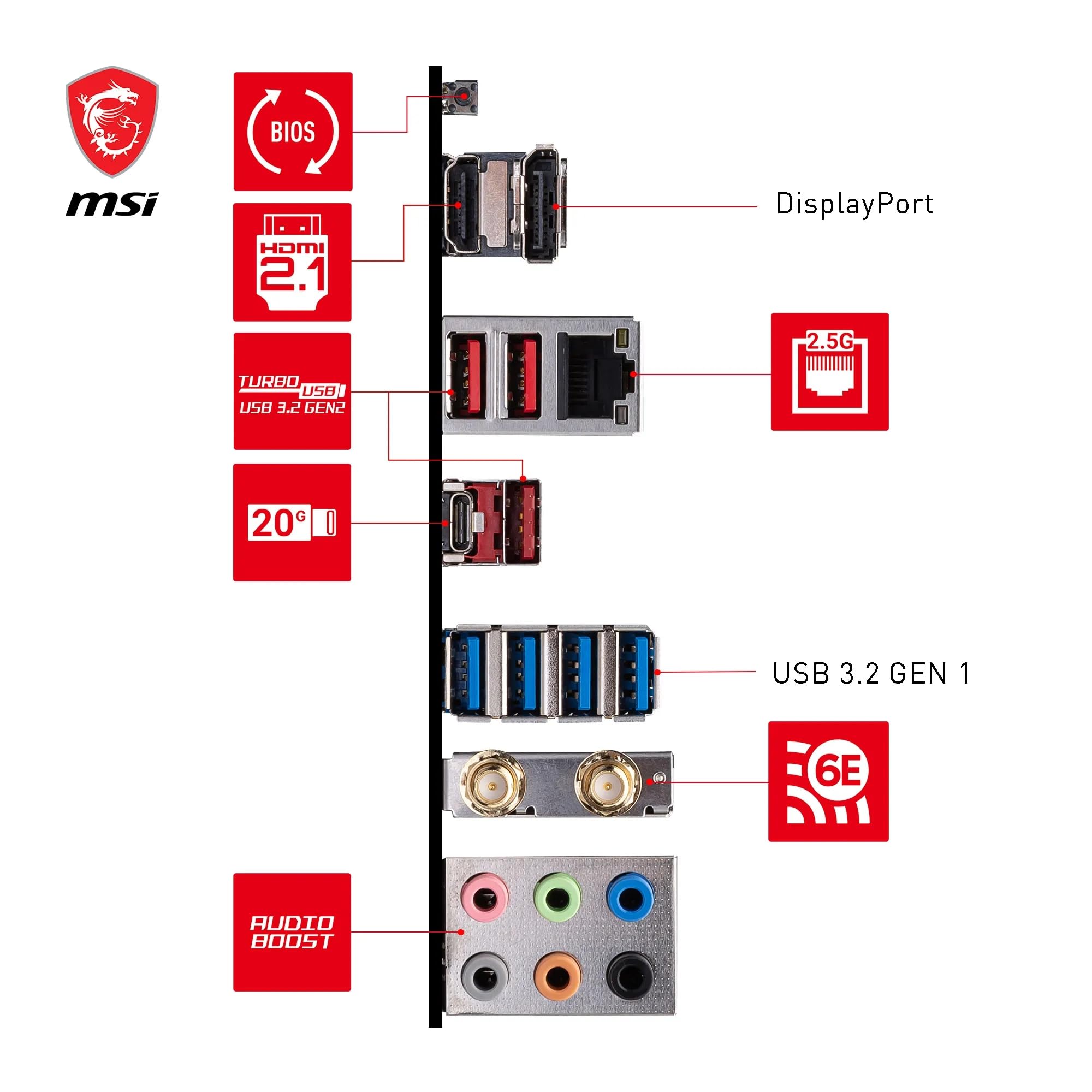

• WI-FI 6E CONNECTIVITY – Network hardware includes an AMD Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost

n

Binding: Personal Computers

Release Date: 24-05-2023

model number: 7E26-001R

Part Number: 7E26-001R

Details: MSI B650 GAMING PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

EAN: 4711377098052

Package Dimensions: 13.7 x 10.8 x 2.7 inches

Languages: English, French
