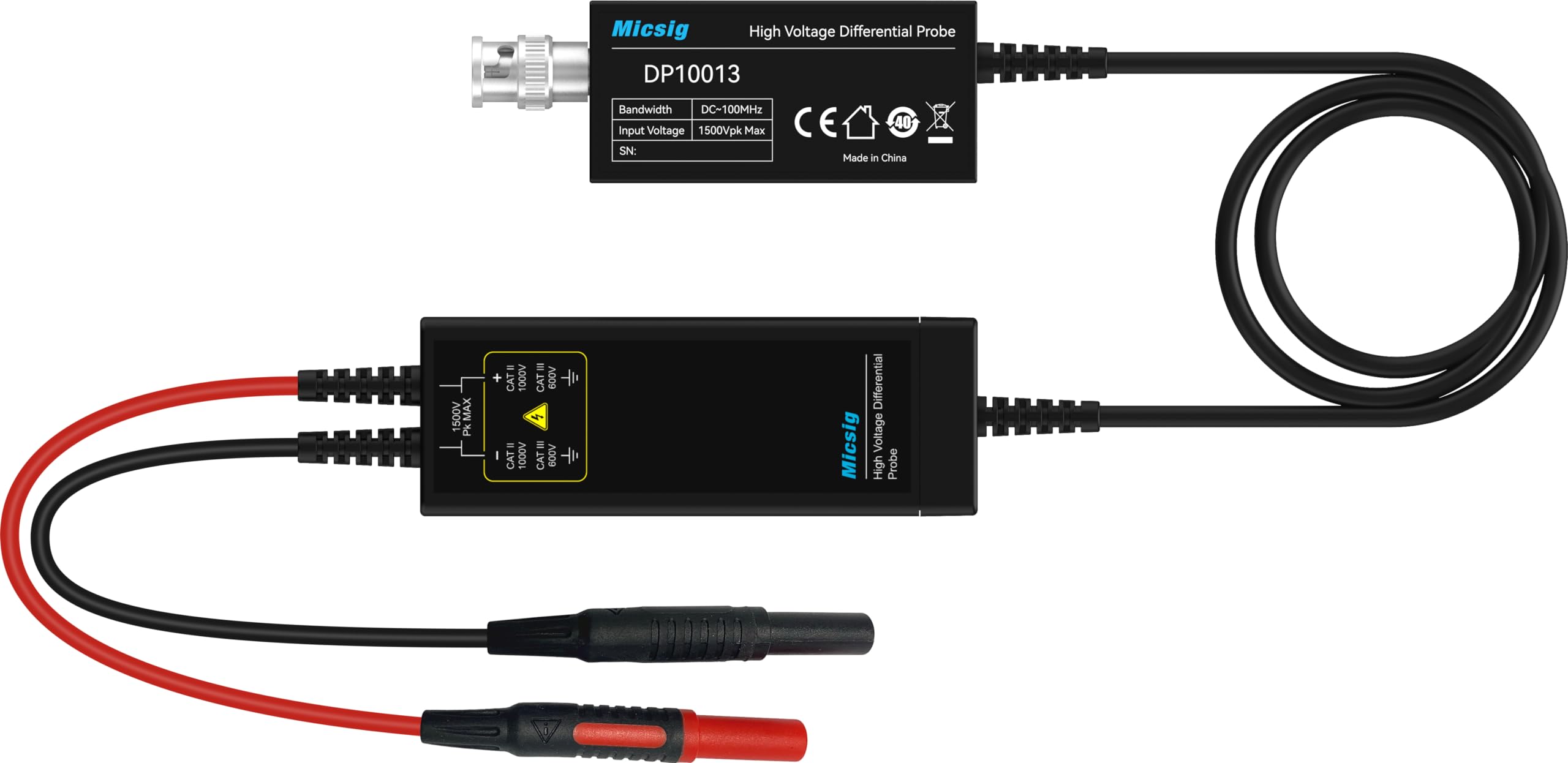

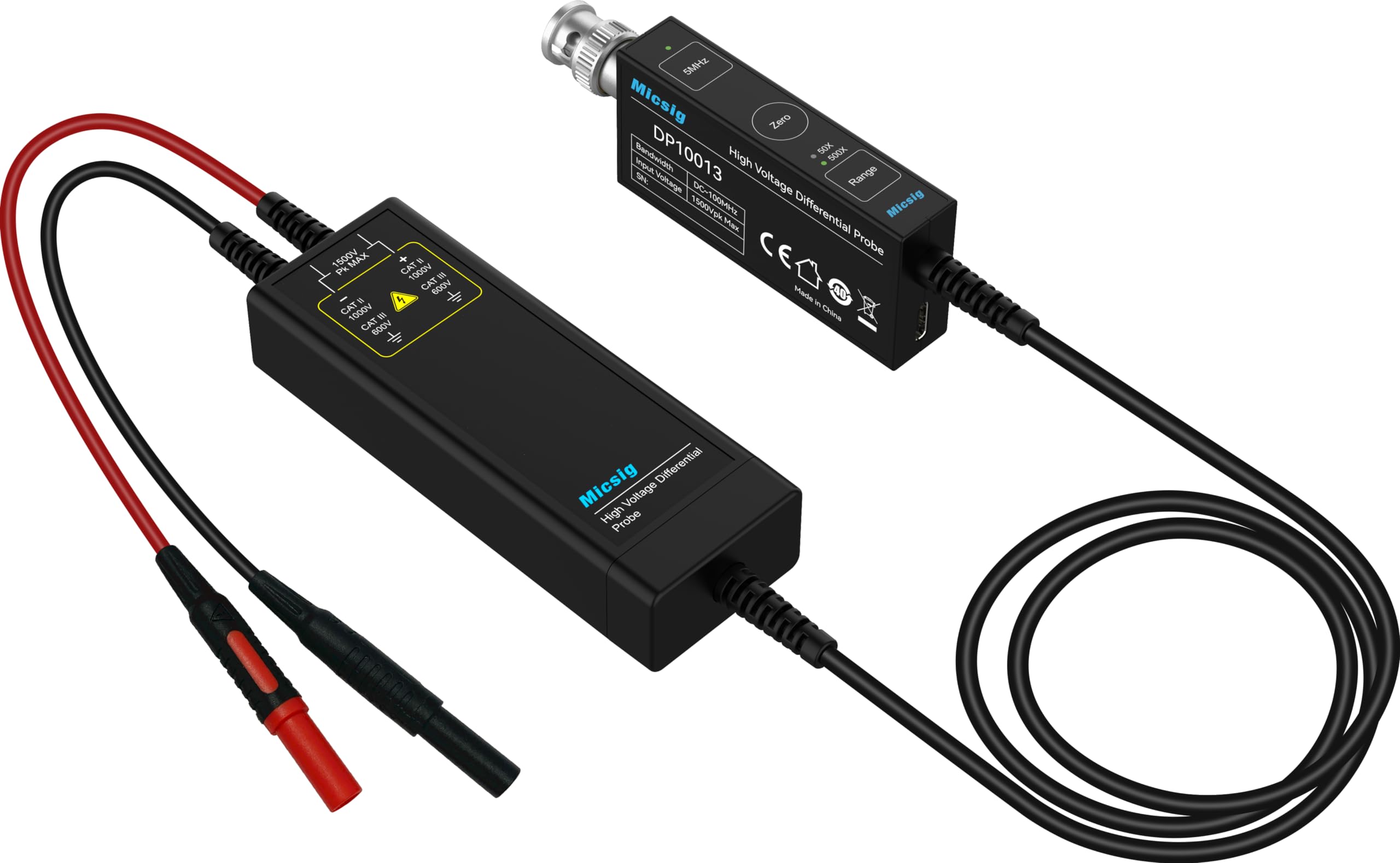

Micsig DP10013 High Voltage Differential Probe 1300V 100MHz 3.5ns Rise Time 50X/500X Attenuation

Brand: Micsig

Color: Black

Features:

• Lightweight and portable, easy to carry.
• Designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.

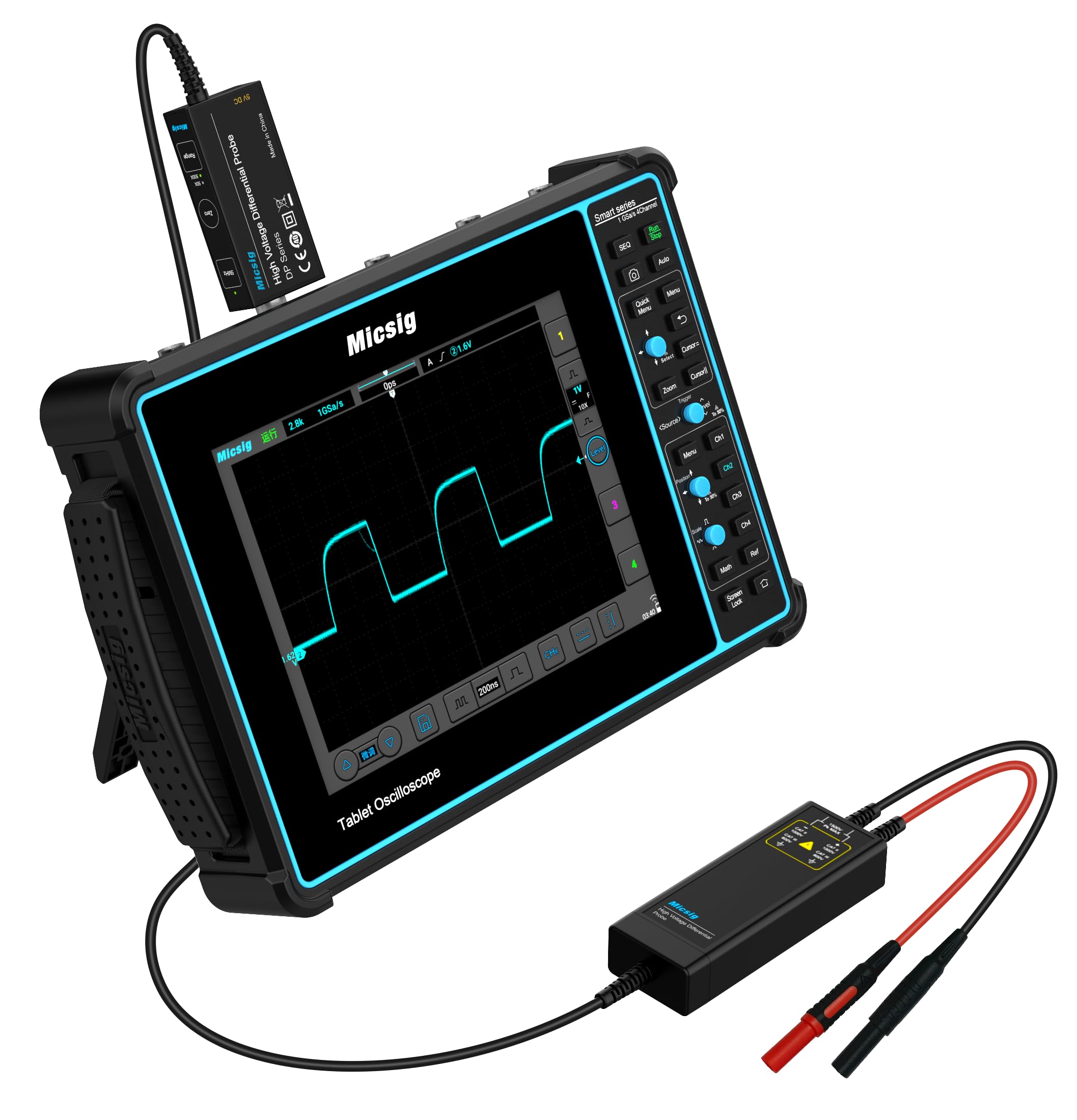

• Power supply USB DC 5V output, more portable while Oscilloscope has USB interface.
• Simple design, it is easy and safe to use.

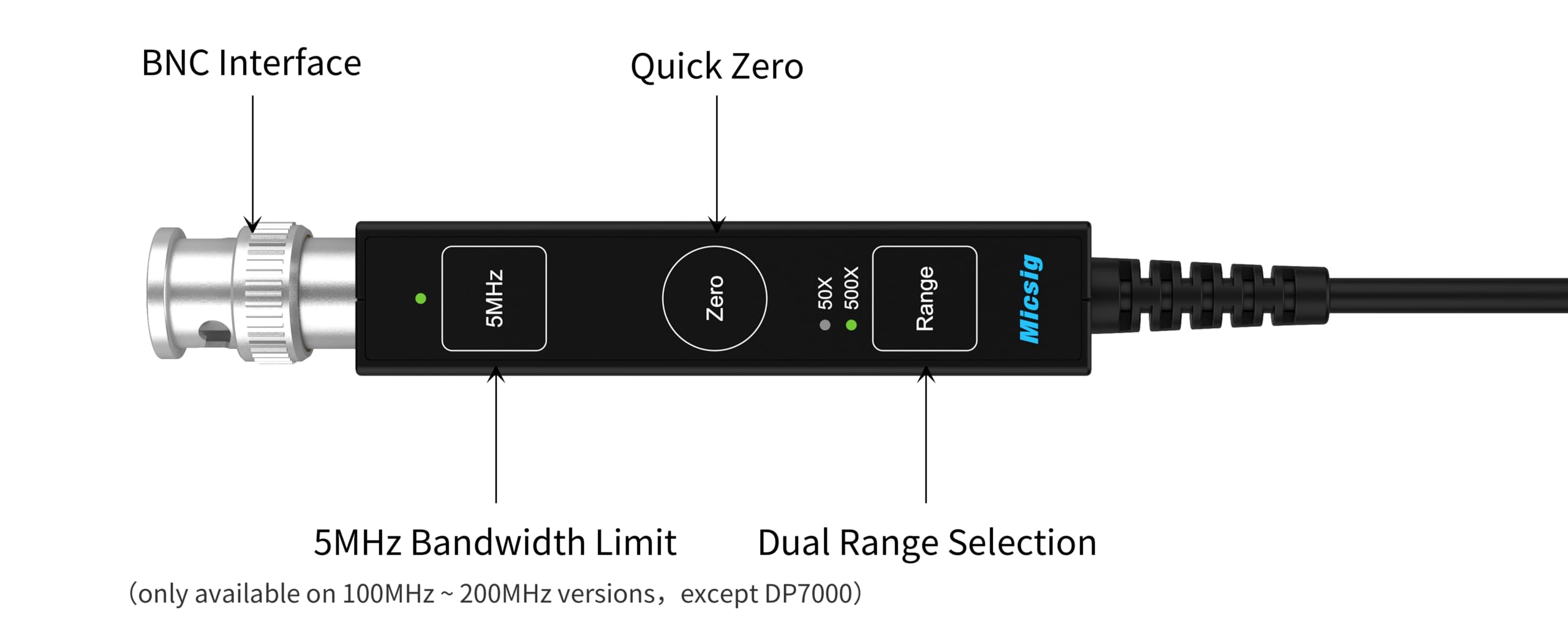

• Maximum differential test voltage (DC+ACPK-PK): 130V (50X), 1300V (500X)

Package Dimensions: 57x295x910

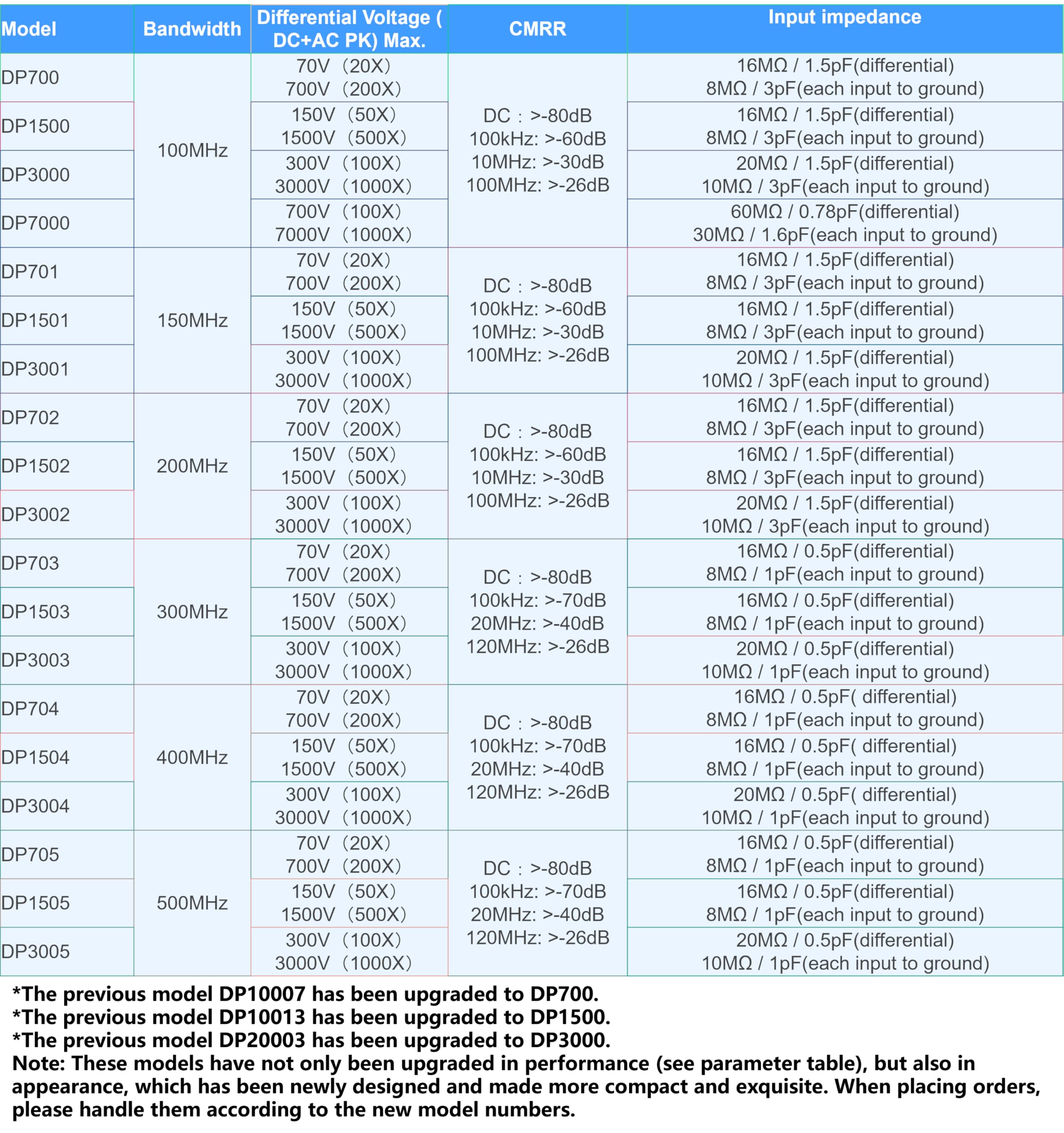

Details: Floating measurements Typical applications: switching power supply design, motor control, voltage converters… Bandwidth : 100MHz Rise Time : 3.5ns Attenuation : 50X / 500X Gain accurecy : ±2% Maximum Differential Test Voltage (DC+AC PK-PK):130V（50X）- 1300V（500X） Maximum input common mode voltage (DC+AC PK-PK) : 130V（50X）- 1300V（500X） Input referred noise : ≤40mVrms（50X）- ≤230 mVrms（500X) Common Mode Rejection Ratio : ＞80dB（DC) – ＞60dB (100KHz）- ＞50dB（1MHz） Input Impedance : 10MΩ/1pF (differential) 5MΩ/2pF (single-ended to ground） Output Voltage : ≤3V Overrange Alarm : Button light flashes Power Supply : DC 5V，USB Supply Power : 0.85W Dimension : 14.5cm*6cm*2.7cm Garranty 1 year

UPC: 193287345749
