MH 7 Boat Gauge Set – 3-3/8″ GPS Speedometer, Tachometer, 2-1/16″ Oil Pressure Gauge,Fuel Level,Water Temperature,Voltmeter,Trim Marine Meter Kit Waterproof 7 Color for AUTO (Black)

Brand: MH

Color: Black

Features:

n
• 【7 Gauge Set】Range- GPS Speedometer: 120 MPH, Tachometer: 0 – 8000 RPM, Oil Pressure: 0 – 145 PSI (0 – 10 BAR), Fuel Level: E – 1/2 – F (signal: 240-33 ohms), Water Temperature: 100 – 250 °F (40 – 120 °C), Volt: 8 – 16 V, Trim Gauge: 0-190ohms

n

• 【Included all Sensor】MH Boat Gauge Set comes with all sensors, no need to buy other sensors. Sender-Tachometer Sensor, Oil Pressure Sender (Thread Size: 1/8 NPT), Fuel Level Sending Unit (signal: 240 – 33 ohms), Water Temperature Sender (Thread Size: 1/8 NPT), GPS Antenna, , Tirm Sensor (0-190 ohms)

n

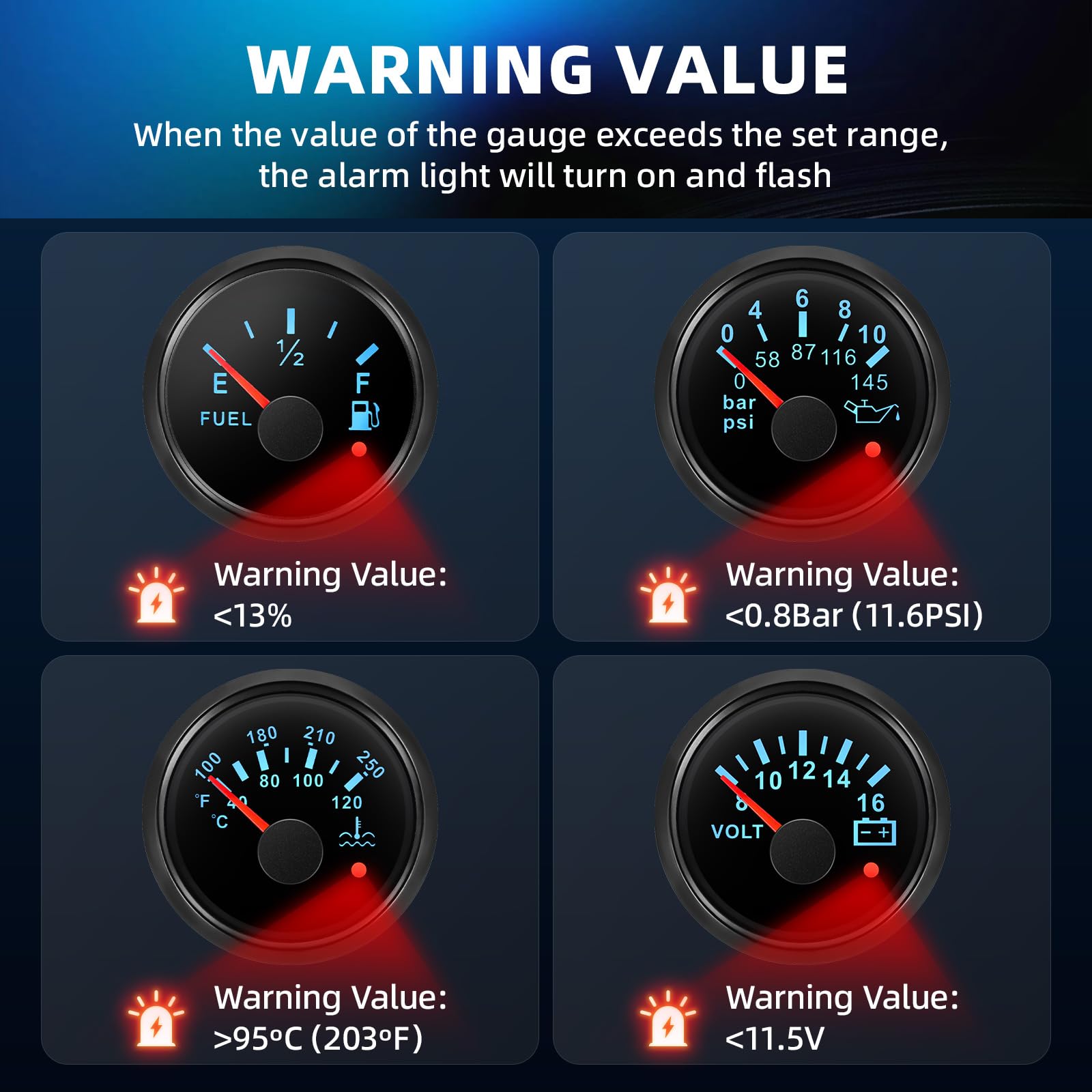

• 【Warning Value】Fuel Guage Warning Value：<13%, Oil Pressure Gauge Warning Value：<0.8 Bar (11.6PSI), Water Temp Warning Value：>95ºC (203ºF), Voltmeter Warning Value：<11.5V. When the value exceeds the alarm threshold, the alarm light will flash to alert the driver of the driving status, making driving safer

n

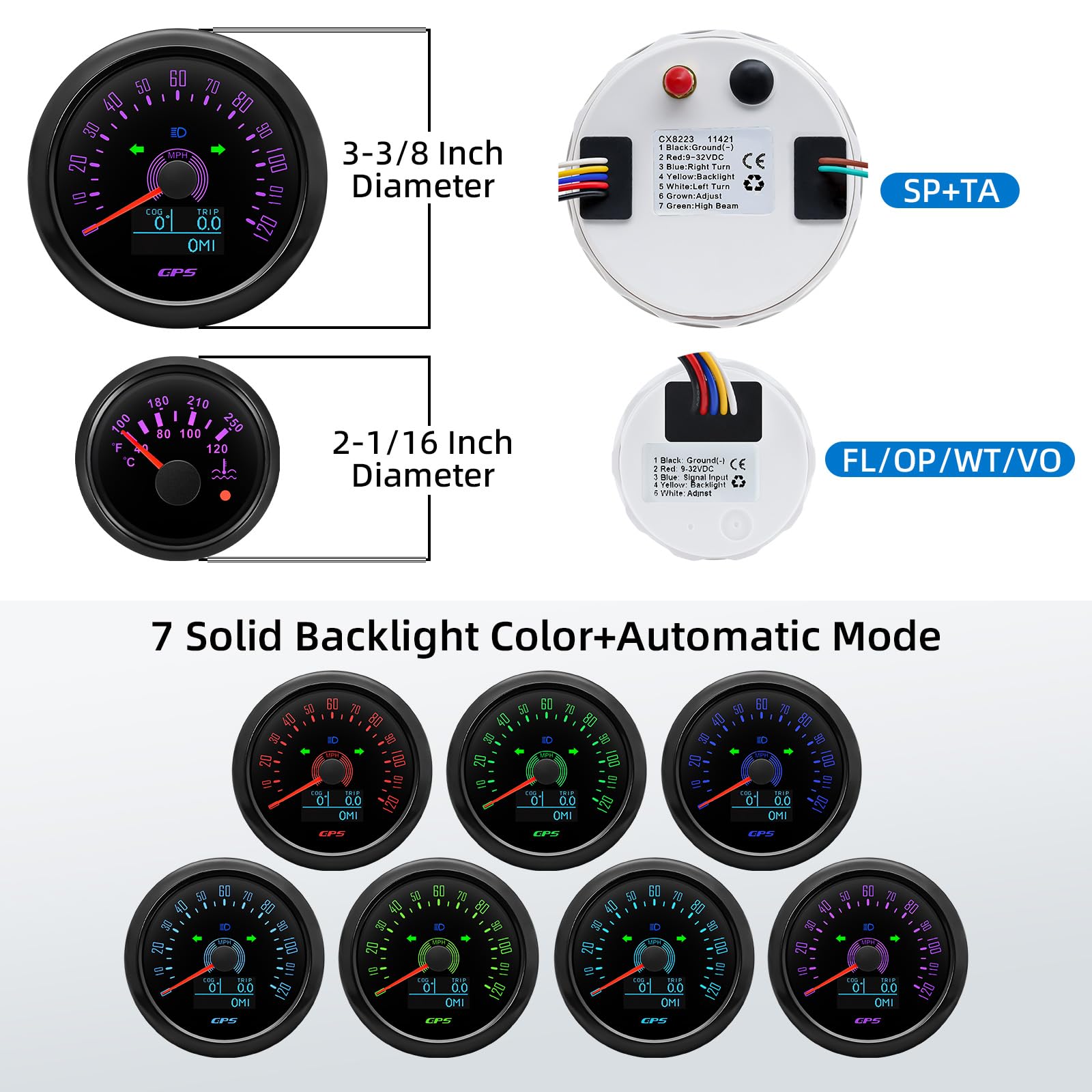

• 【7 Gauge Sizes】85mm (3-3/8″) Gauge – GPS Speedometer & Tachometer. 52mm (2-1/16″) Gauge- Fuel Level Gauge, Oil Pressure Gauge, Water Temperature Gauge, Voltmeter and Trim Gauge. Tachometer fits almost 2 to 12 Cylinder Gas Powered Engine

n

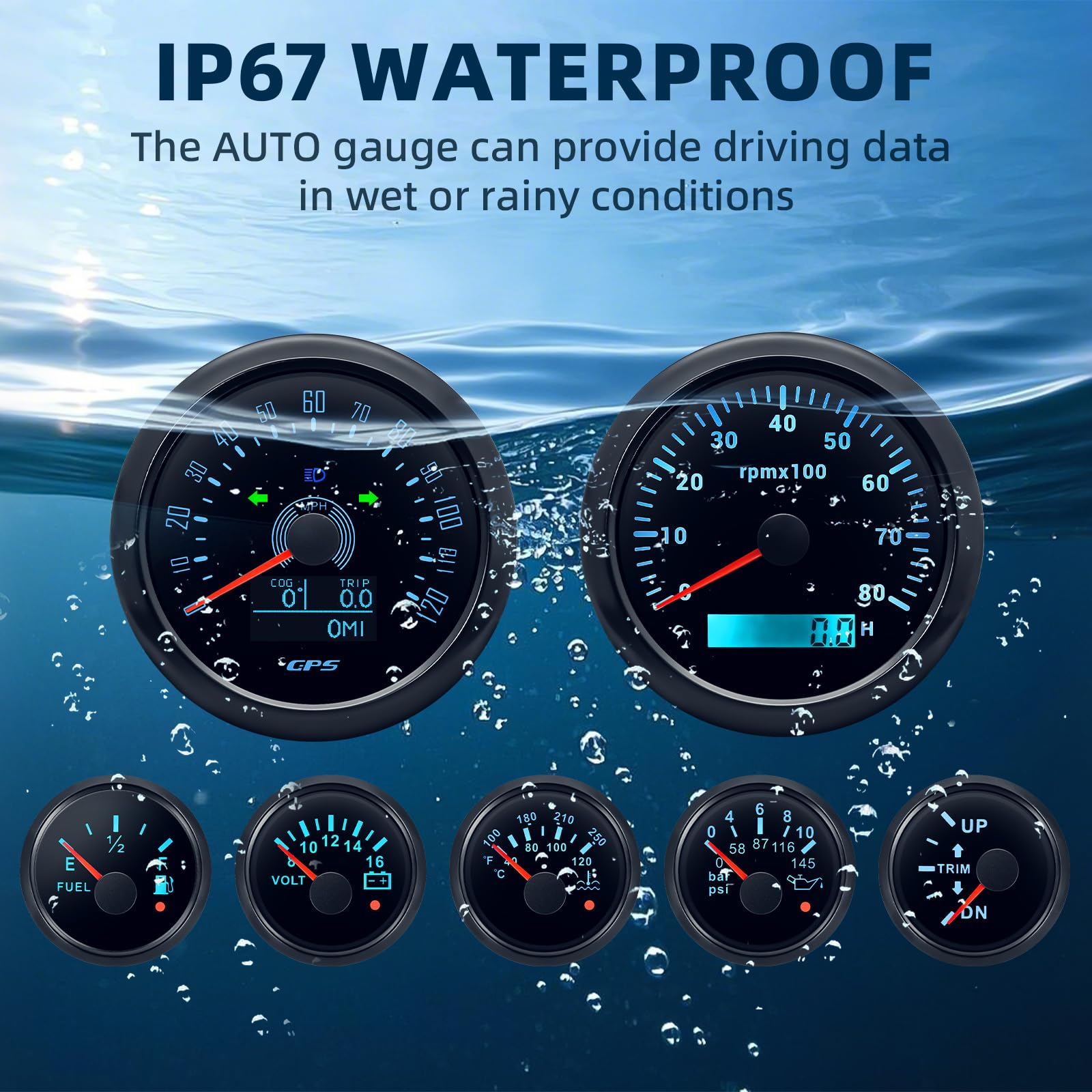

• 【Features】These AUTO Gauges made of 316 stainless steel Bezel, ABS Plastic Housing, with IP67 Waterproof, Rustproof, Anti-Fog and UV-Resistant. 7 different background light. The Boat Gauges Set suitable for most 12 / 24V AUTO, car, truck, boat, marine

n

Part Number: MH-Set7A-0007B

Package Dimensions: 15.6 x 8.2 x 4.3 inches
