Mastercool 63010 50 lb Refrigerant Recovery Cylinder, DOT-Approved, 1/4″ FL-M Connections, HP325/HP345 Steel, Yellow/Gray (No Refrigerant Included)

Brand: Mastercool

Color: Gray/Yellow

Features:

n
• 50 lb empty recovery cylinder constructed with high-strength HP325 or HP345 steel (refrigerant not included).

n

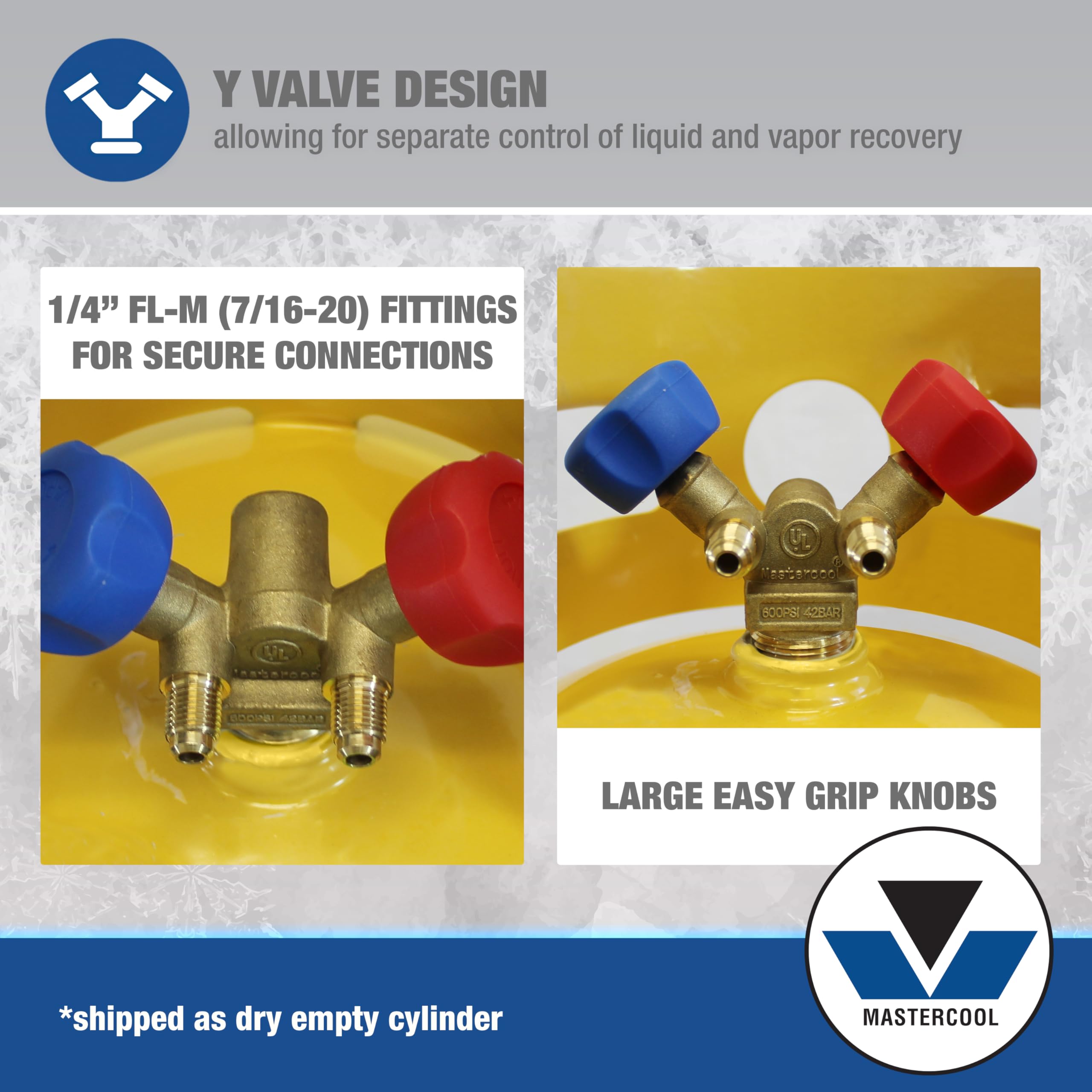

• Features a Y-valve design with 1/4″ FL-M (7/16-20) fittings for secure connections, allowing for separate control of liquid and vapor recovery to enhance efficiency and safety.

n

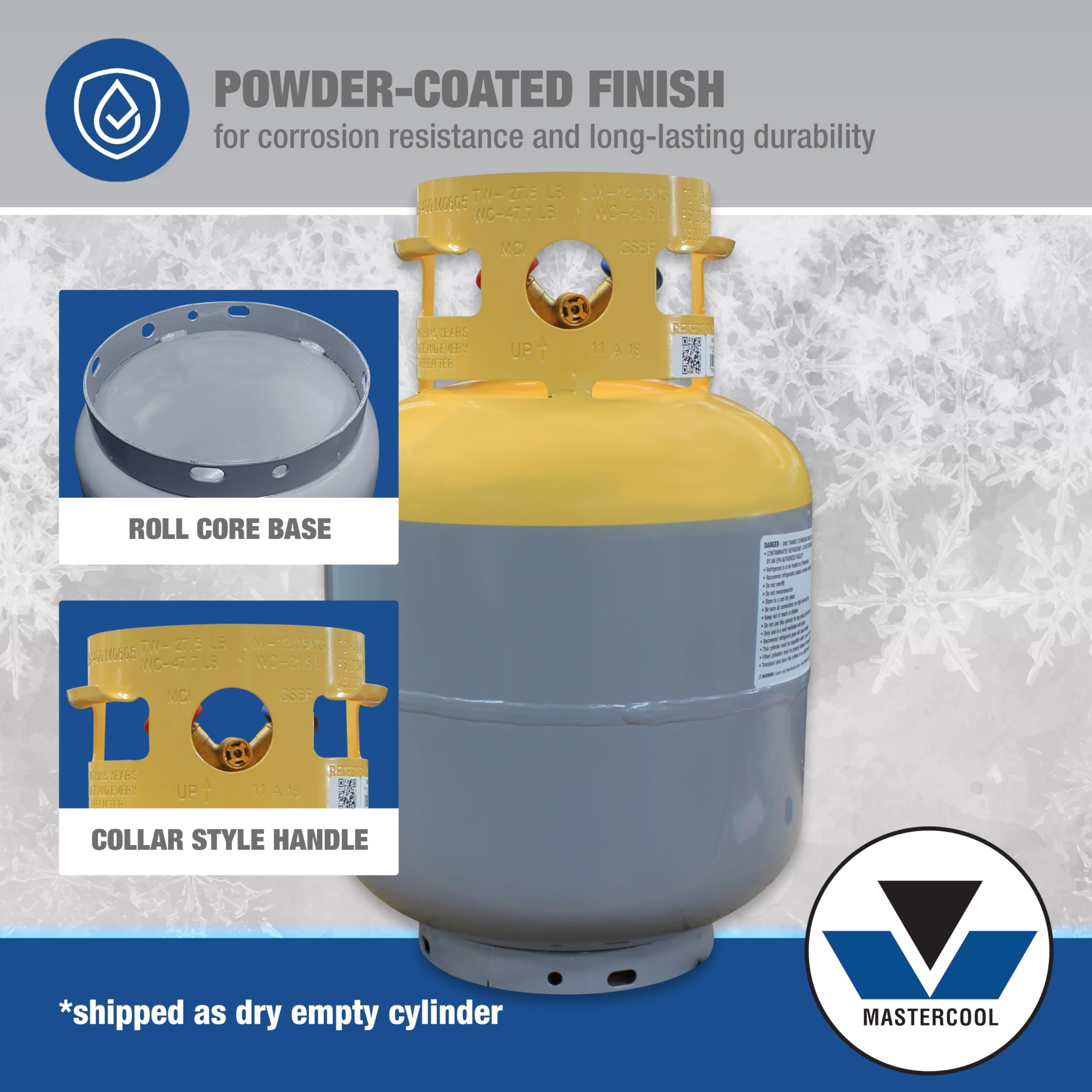

• Finished in yellow/gray, with a powder-coated surface for enhanced durability and corrosion resistance.

n

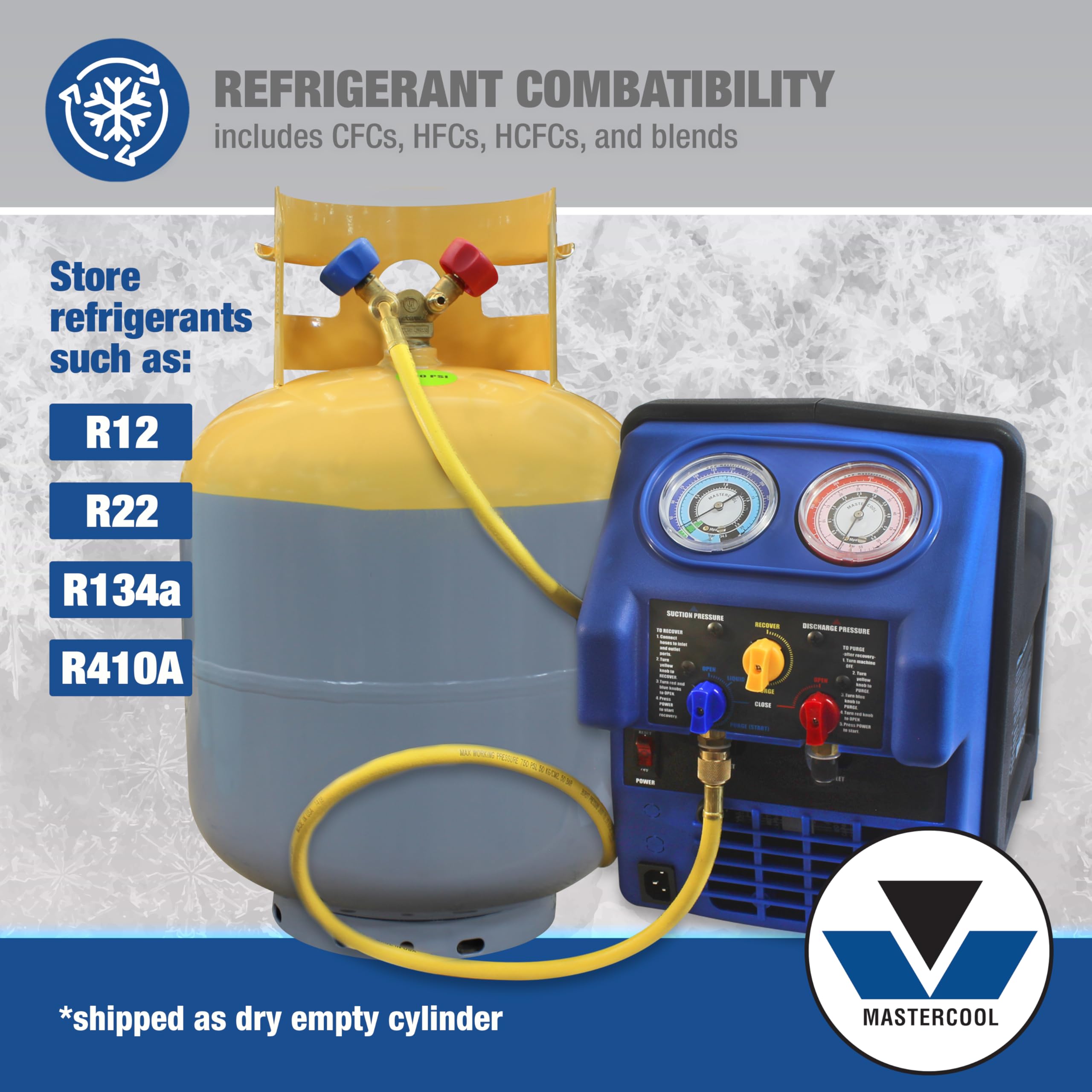

• Compatible with all types of refrigerants, including CFCs, HFCs, HCFCs, and blends, such as R12, R22, R134a, and R410A.

n

• DOT-4BA400 and CAN/CSA-B339-02 certified for safe refrigerant storage and transport​. 100% U. S. assembled and tested

n

• 50 lb. Refrigerant Recovery Tank without Float Switch and 1/4″ FL-M (7/16-20)

n

• Conforms to DOT-4BA400 specs

n

• Y valve liquid and vapor

n

• Reusable

n

• AUS and TC approved

n

Binding: Automotive

Release Date: 26-09-2014

model number: 63010

Part Number: 63010

Details: FEATURES:
n• Powder coated cylinder for high gloss, durable finish.
n• Y-valve for liquid and vapor
n• 3/4” NPT opening accepts 80% fill float switch shut-off device
n• 1/4” opening for air purge valve
n• Collar design for ease of handling
n• Reusable and conforms to DOT-4BA400 specifications and ARI guidelines
n• Pre-charged cylinder provides a clean, dry interior
n• Storage and transport of recovered refrigerant gases
n• Valve & float switch UL listed
n• TC Canandian approved
n• NOT FOR USE WITH NITROGEN
n• All cylinders are pressure and leak tested directly at factory headquarters
n
nSPECIFICATIONS:

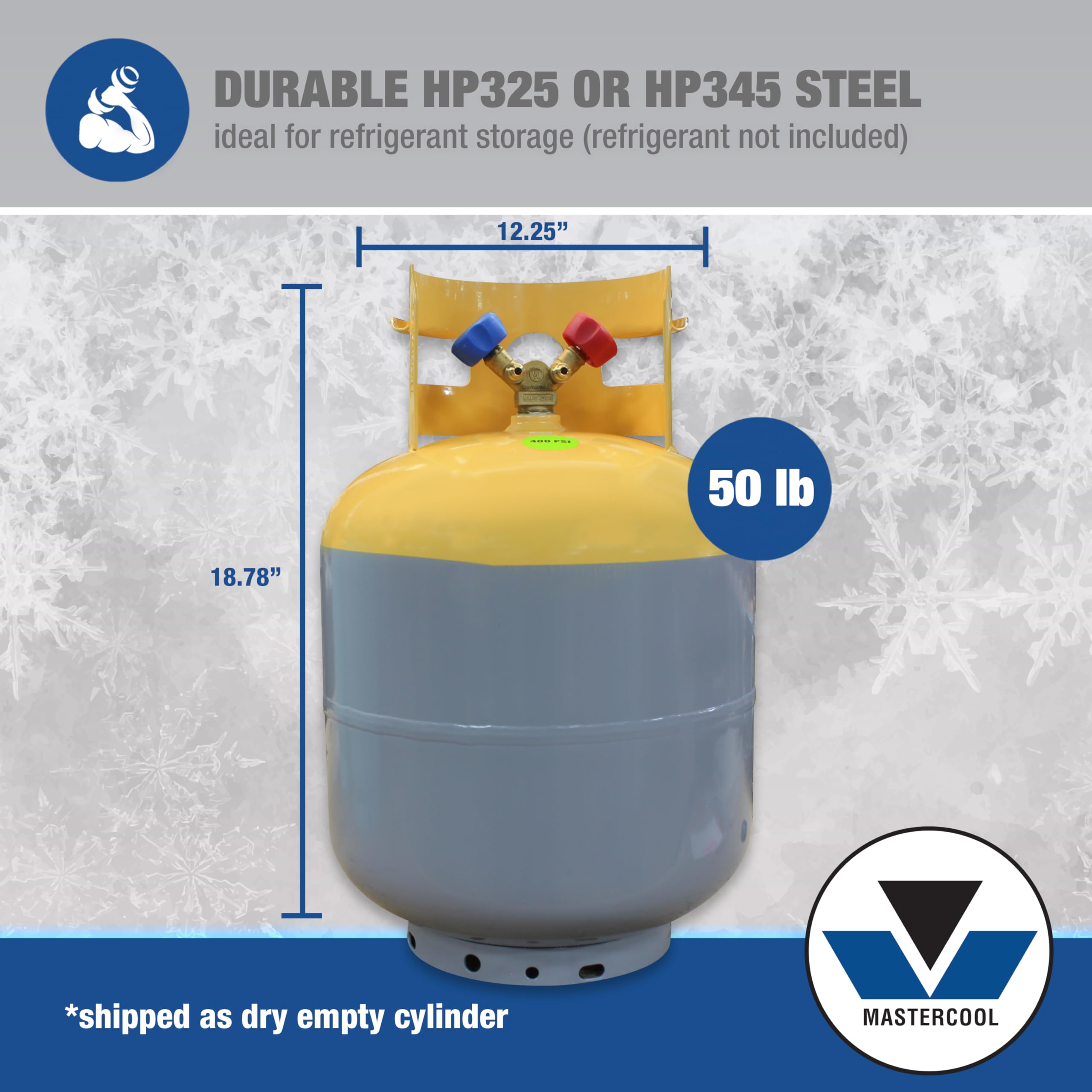

n• Size (w x h): 12.25″” x 18.78″
n• Tare Weight: 28.71 lb.
n• Standard Specification: DOT-4BA400
n• Nominal Water Capacity: 47.7 lb. / 21.6 L
n• Service Pressure: 400 PSI / 2.7 MPa
n• Tank Test Pressure: 800 PSI / 5.5 MPa
n• Relief Valve Pressure: 600 PSI / 4.1 MPa
n• Air Tightness Pressure: 400 PSI / 2.7 MPa
n• Body Material: HP325 or HP345

EAN: 0686109000525

Package Dimensions: 18.7 x 15.7 x 14.1 inches
