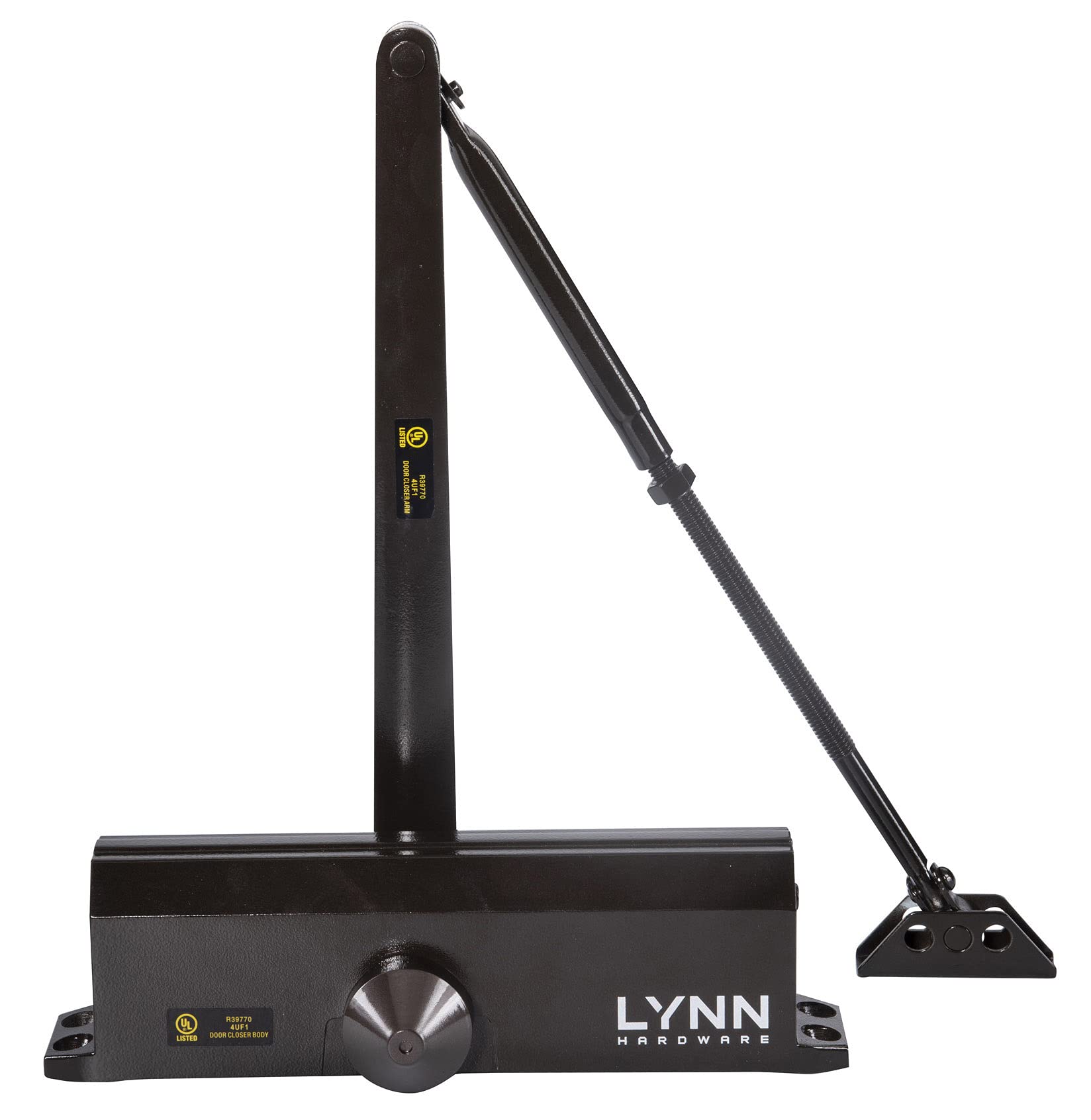

LYNN HARDWARE Medium/Heavy Duty Commercial Door Closer – DC7016 Surface Mounted, Grade 1- ADA & UL 3 Hour Fire Rated, Adjustable Size 1-6 for entrances & Aluminum storefronts- US10B Dark Bronze

Brand: LYNN HARDWARE

Color: Dark Bronze

Features:

n

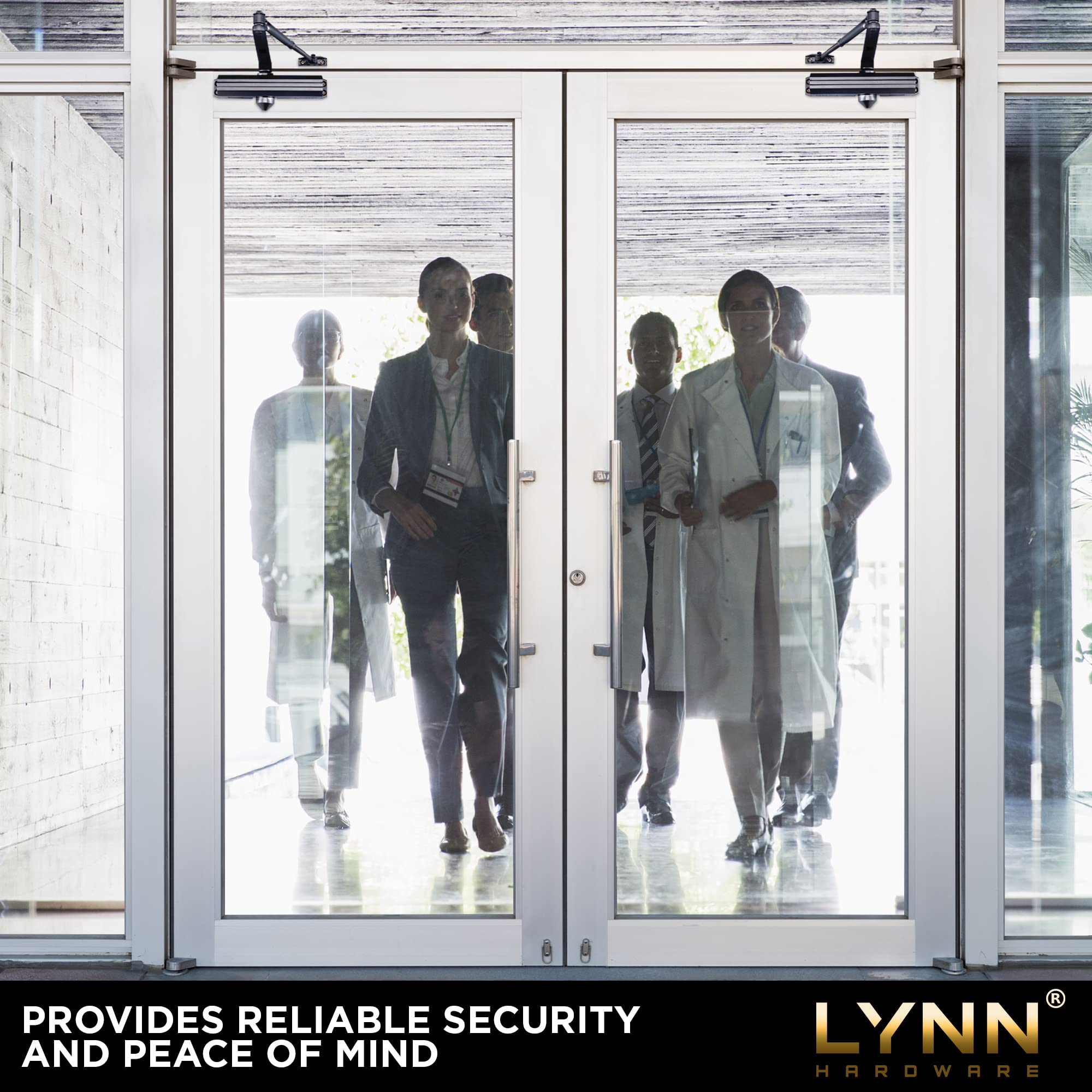

• DOOR CLOSERS COMMERCIAL USAGE: The DC7016 Automatic Door Closer from LYNN HARDWARE suits high-traffic entrances, such as aluminum storefronts, factories, schools, restaurants, and other public places. This is a door automatic closer for doors that weigh up to 150kg (330lbs max) and are (800-1500mm, 31-60 inch) wide. Also, it is a non-handed closer that will work on left- or right-handed doors exposed to extreme temperatures.

n

• MATERIAL: It is Grade 1- ADA & UL 3 Hour Fire Rated, Surface Mounted and crafted from durable Aluminum. This closer is adjustable from size 1-6 and has a precise cast aluminum body, forged steel arm and heat treated piston that can support doors weighing up to 330 lbs. Offers superior protection against harsh weather conditions and corrosion because it has Powder Coated Finished Body with brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm.

n

• CERTIFICATIONS: Our UL Fire Rated Listed product is designed for superior durability and strength. This high grade BHMA/ANSI 156.4 product has been tested to hold up to 2,000,000+ cycles and is fire rated to last up to 3 hours. Our UL Fire Rated Listed product is ideal for commercial and industrial applications. The product is designed to provide long lasting performance. With our product you will have peace of mind in knowing that you have a durable, safe, and long lasting product.

n

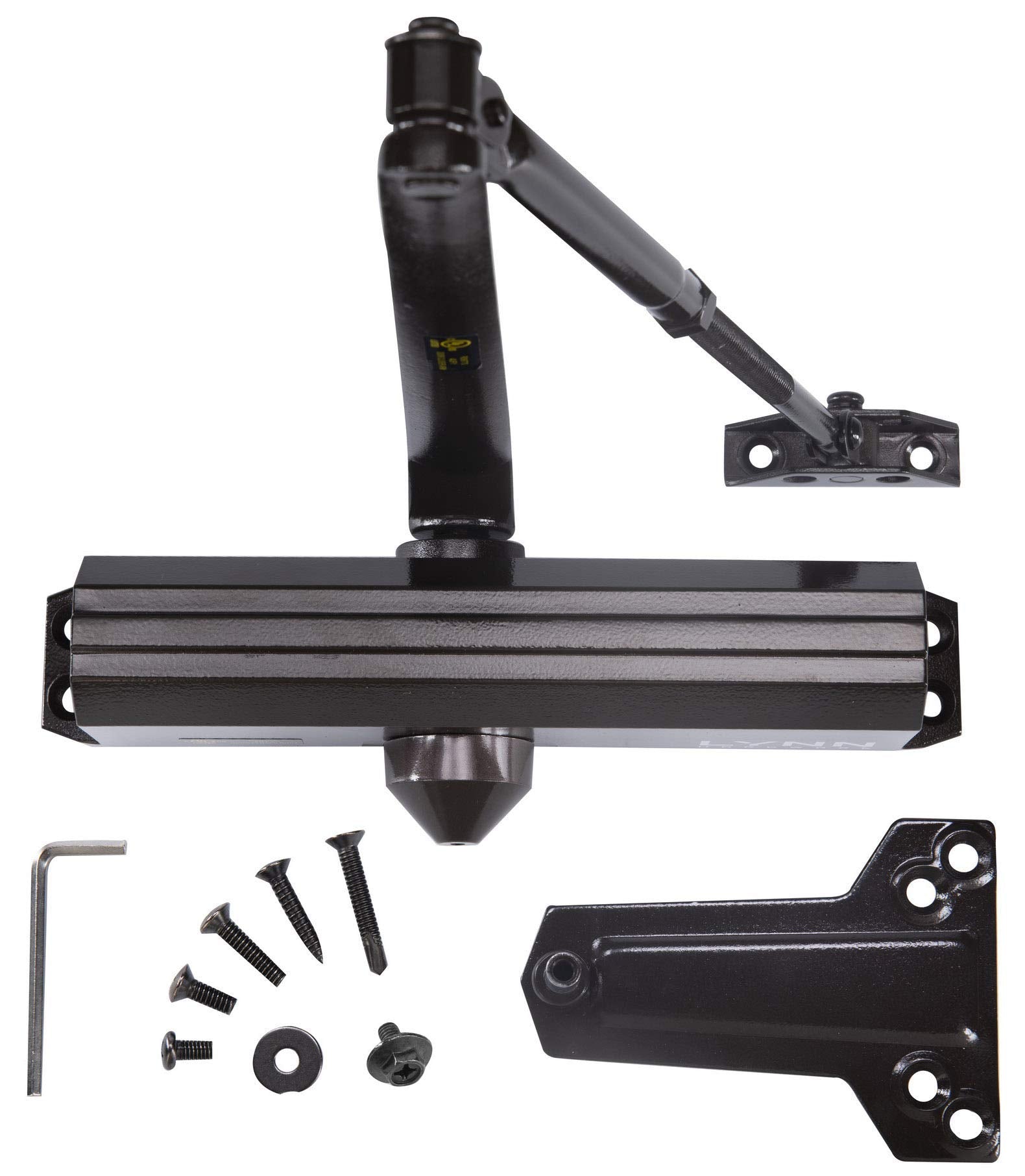

• INSTALLATION: Every pack of commercial door closer contains all the necessary hardware, such as brackets and soffit plate, for installation using any of the 3 mounting types. The mounting options for our surface-mounted door closer are regular arm mounting, top jamb mounting, and parallel arm mounting. With the flexibility to choose the best fit for your door make this the ideal choice for businesses looking to upgrade their security. Say hello to a seamless and efficient installation process!

n

• SPECIFICATIONS: This door closer weighs 6.3 pounds. Its screw/bolt pattern is 9-1/16″ c-c wide and 3/4″ c-c high. It has a footprint height of 1-3/4″ (44 mm) and a width of 9-5/8″ (244 mm). This automatic door closer’s projection is 2-3/4″ (70 mm). It can deliver a fixed spring force #1-6 of 2-14 pounds or more of closing force.

n

Binding: Tools & Home Improvement

model number: LYNN-DC7016-BC-DURO

Part Number: LYNN-DC7016-BC-DURO

EAN: 0037182315837

Package Dimensions: 12.8 x 5.6 x 3.4 inches
