LuxHeat 35 Sqft Mat Kit (240v) Electric Radiant Floor heating System for Under Tile & Laminate. Underfloor Heating Kit Includes Heat Mat, Alarm & UTN4 OJ Microline Non Programmable Thermostat w/GFCI

Brand: LuxHeat

Color: Red

Features:

n

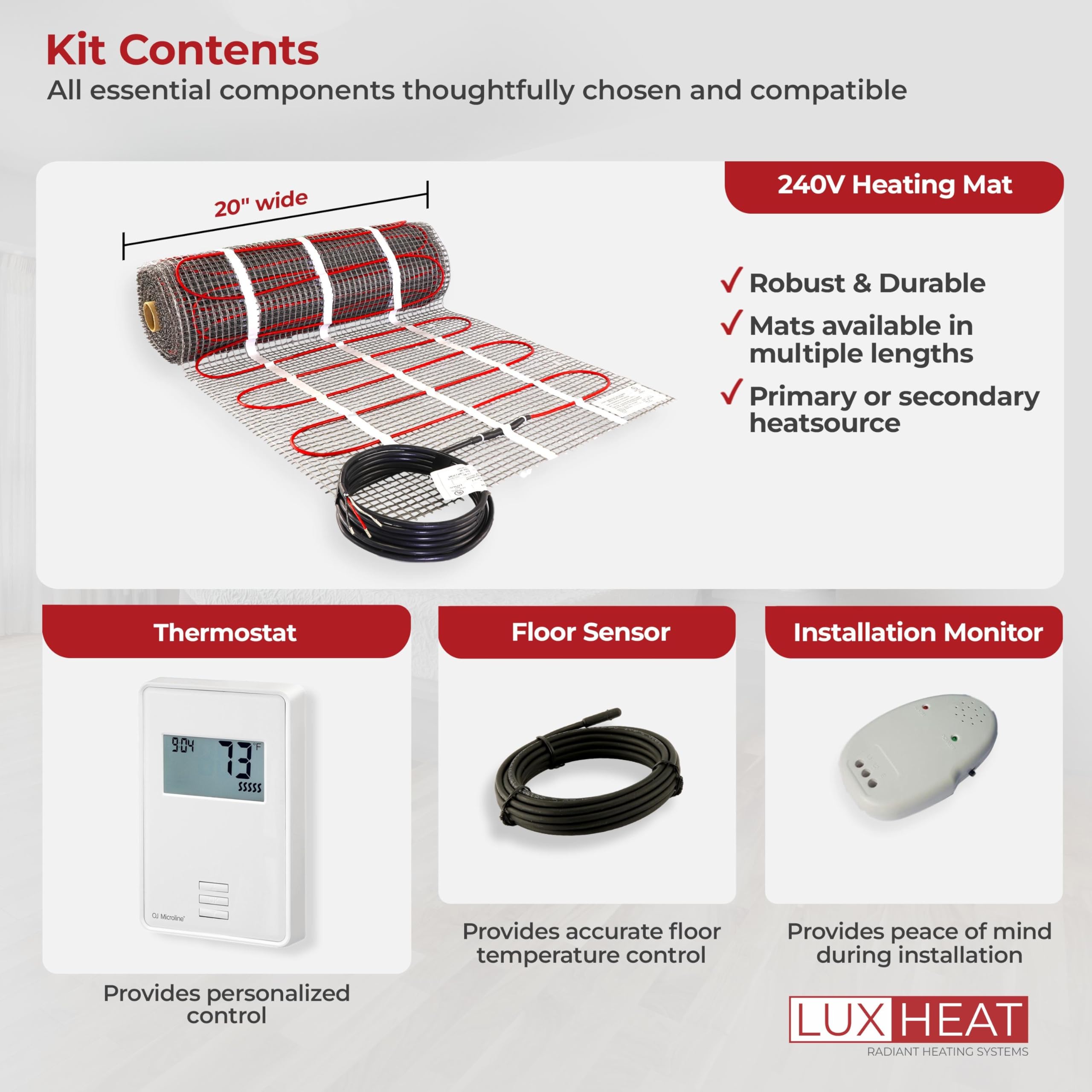

• LUXURY AND COMFORT – Enjoy the Warmth of LuxHeat’s easy-to-install Electric Floor Heating System. Heating Kit Includes: 35 Sqft (240 volt) Self-Adhesive Heating Mat, Cable monitor/Alarm, OJ Microline UTN4-4999 Non-Programmable Thermostat with Floor Sensor and Built-in GFCI (Ground Fault Protection). For installation under Tile, Laminates and more.

n

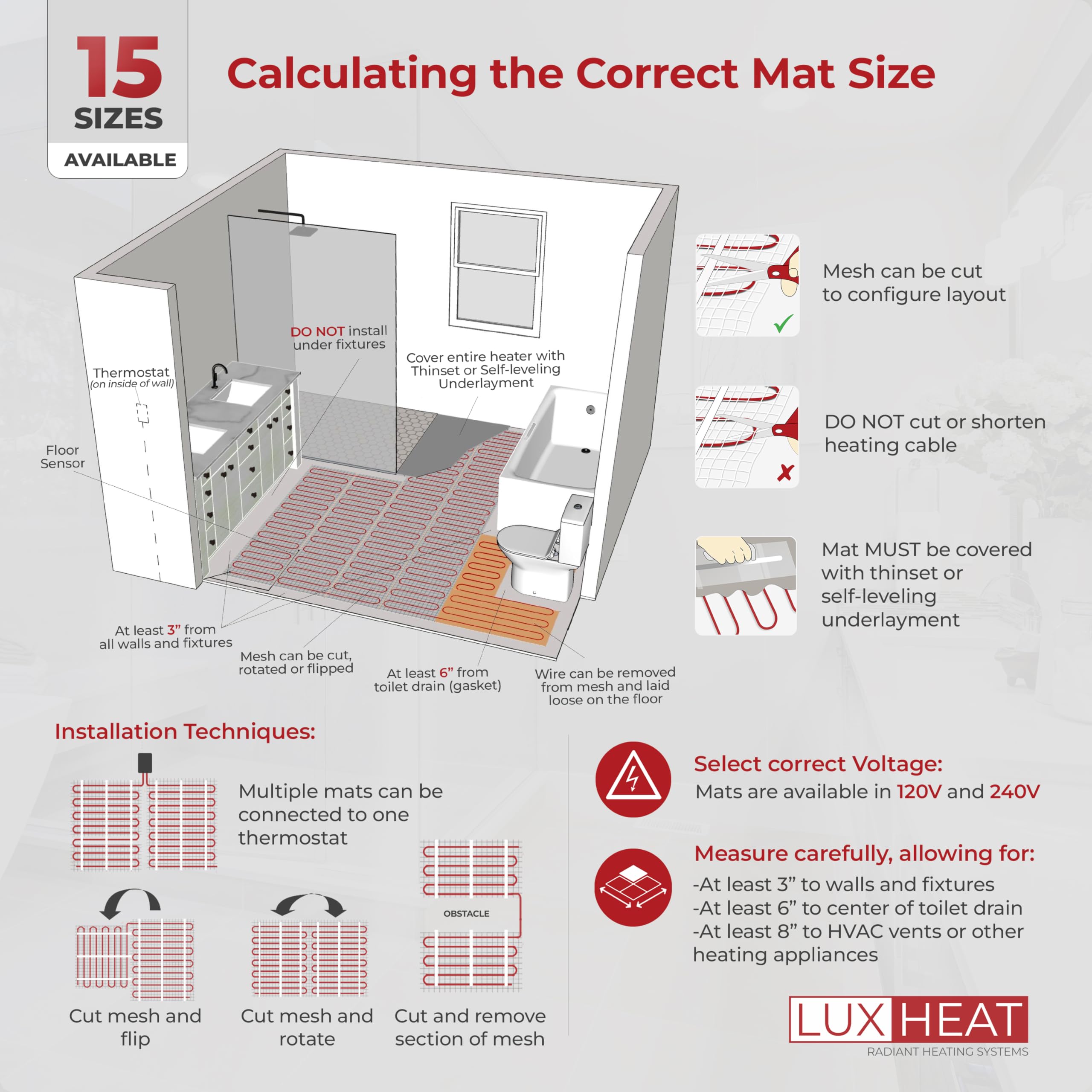

• EASY TO INSTALL – The 3″ Pre-spaced Electric Floor Heating Mat can be cut & turned, flipped or rotated – providing warmth where needed. With Self-adhesive mesh on one side and double sided tape on the other, the mat adheres to the sub-floor and lays flat even when flipped. DO NOT CUT or shorten red heater wire. Heating wires MUST be embedded in a self-levelling underlayment, thinset or mortar.

n

• QUALITY & EXPERIENCE – With an overall experience of 50 years in the floor heating industry, the LuxHeat team offers a wide range of heating products backed by unparalleled customer service. The LuxHeat 25 Year limited warranty provides peace of mind and assurance of performance for many years to come.

n

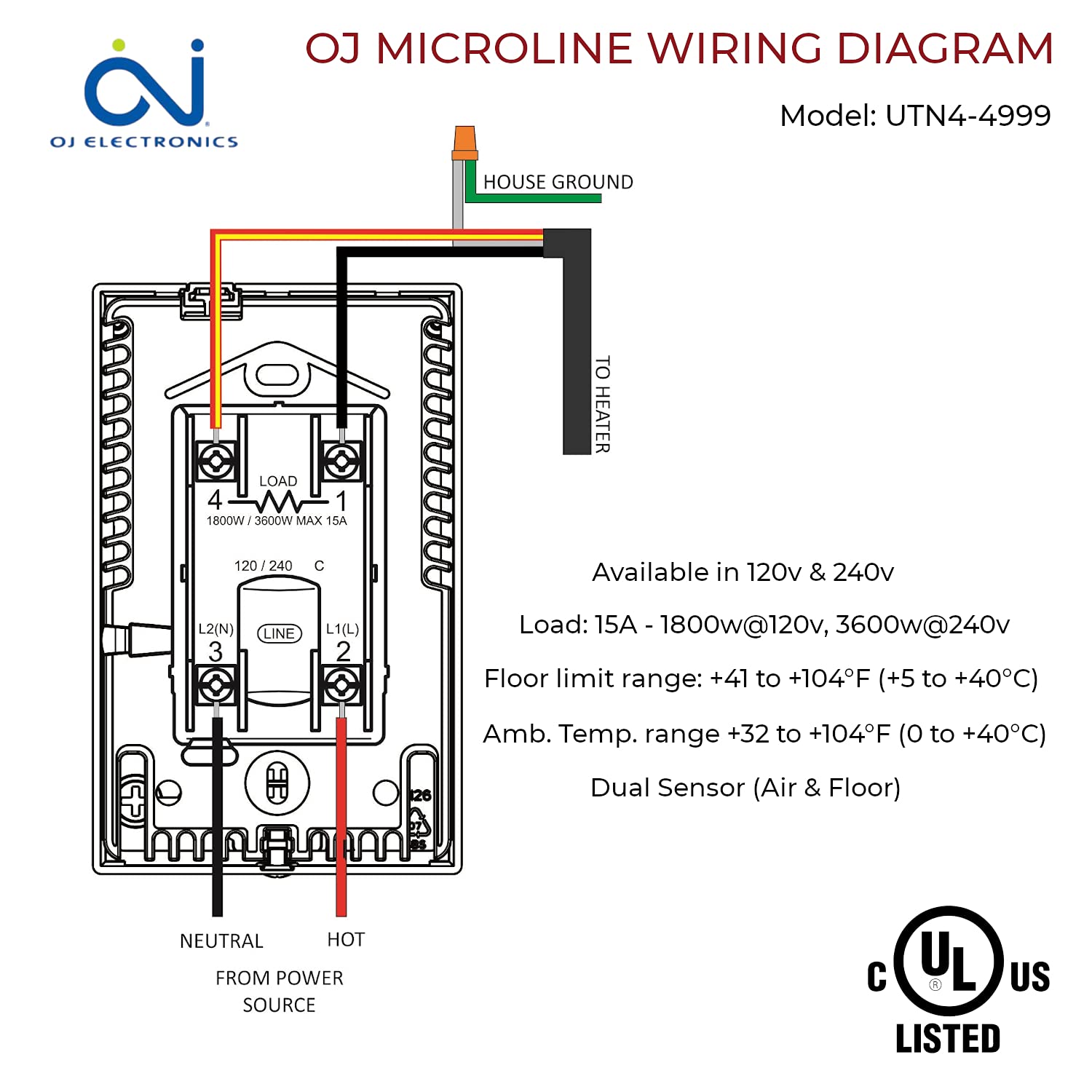

• OJ MICROLINE’S UTN4-4999 NON-PROGRAMMABLE THERMOSTAT – Offers a sleek, modern design with intuitive control, making it easy to install and easy to use – The UTN4 is ideal for those who like to keep it simple. The 240 Volt, 15 amp, thermostat includes an integrated Class A GFCI (ground fault protection) and offers Dual sensing (Air/Floor). OJ Thermostats come with a 3-year Factory Warranty and are cULus approved for USA & Canada. Box includes 10Kohm Floor Sensor.

n

• TECHNICAL INFO – Mat Size: 35 Sqft (20″wide x 21.3ft long). Voltage: 240, Amps: 1.75, Watts: 420 @ 12w/sqft. The LuxHeat Dual wire technology with aluminium shield, reduces electromagnetic fields (EMF) to ultra-low levels. All LuxHeat Cables are UL certified and listed as Safe for Wet locations. Heating wires are 1/8″ in diameter, ensuring minimal effect on finished floor level.

n

model number: L1-H1-MC3-240-0420

EAN: 0677355312272

Package Dimensions: 24.0 x 8.0 x 6.0 inches
