LuxHeat 10sqft Electric Radiant Floor Heating System – 120v Heated Floor System Includes UWG4 WiFi Programmable Thermostat w/GFCI, Uncoupling Membrane for Under Tile, Cable, Monitor & Sensor

Brand: LuxHeat

Color: Red

Features:

n

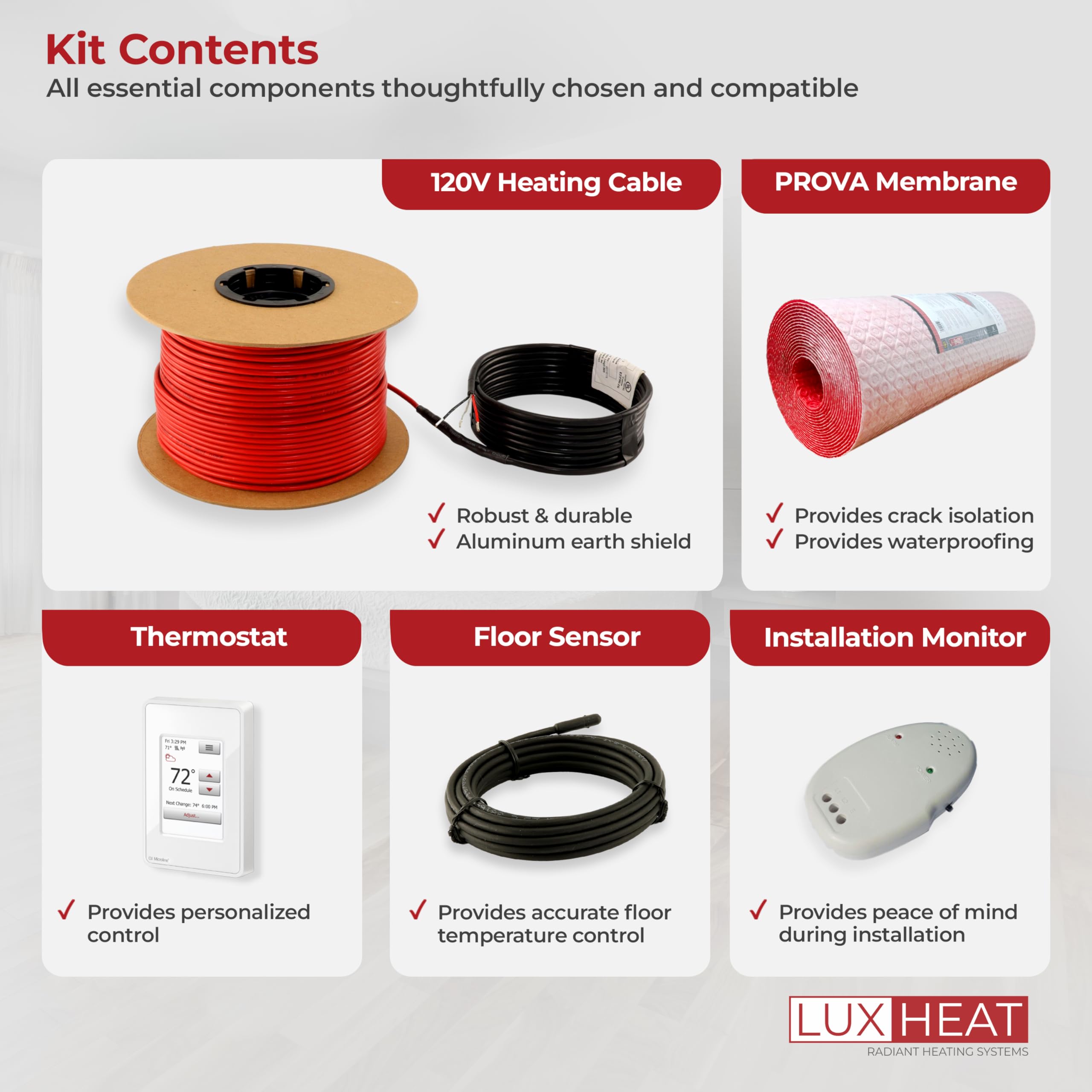

• LUXURY AND COMFORT – Enjoy the warmth of LuxHeat’s easy to install electric floor heating system. Electric floor heating promotes individual room control, ensuring personal comfort. Kit includes: 1x LuxHeat 10sqft (120volt) heating cable, 1x 15sqft Prova Flex-Heat uncoupling membrane, 1x Wi-Fi Programmable Touchscreen thermostat (UWG4-4999), 1x alarm, 1x floor sensor (included with Thermostat), and 1x wood float, for decoupling membrane install.

n

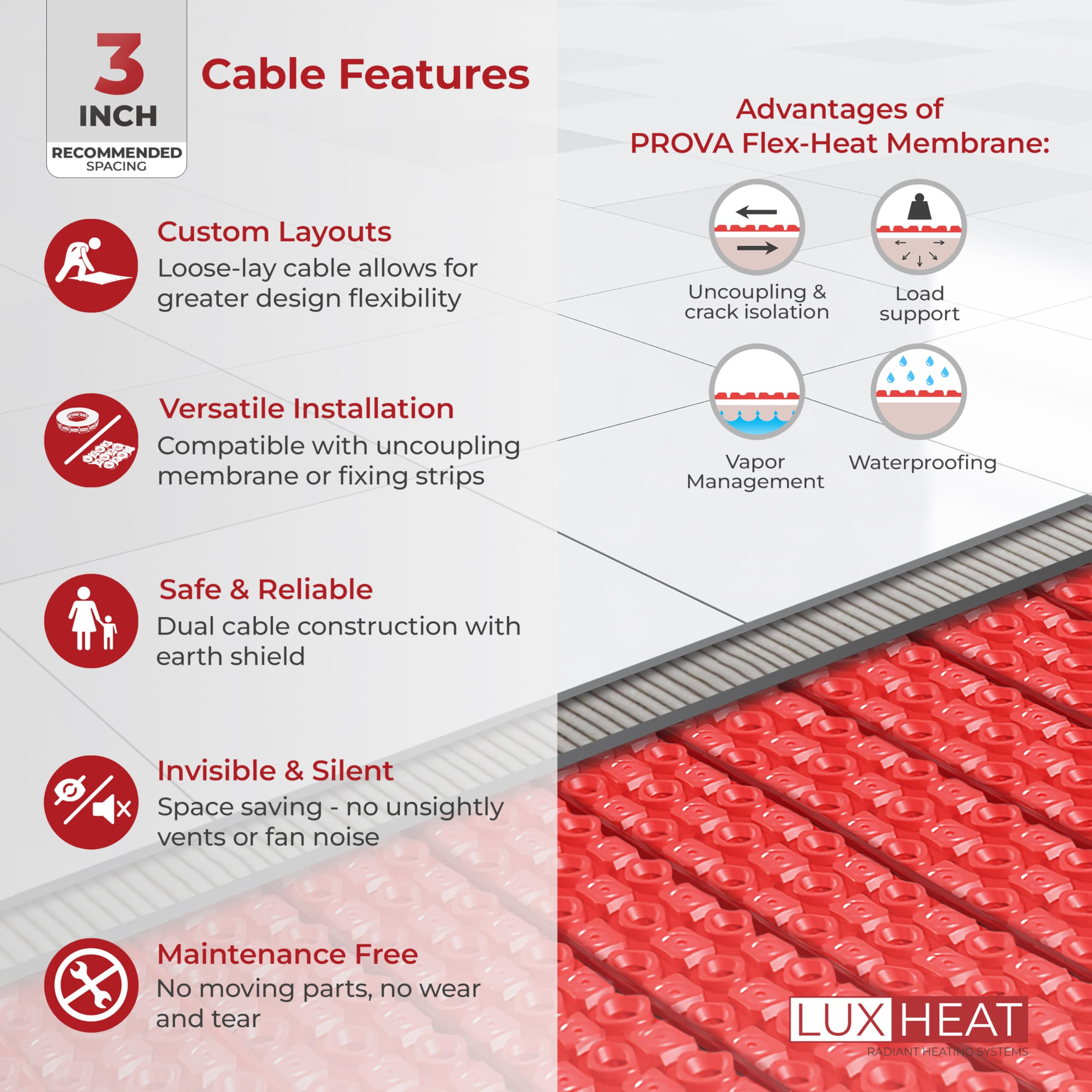

• DESIGN FLEXIBILITY – LuxHeat’s floor heating cable with Prova Flex-Heat membrane, provides the ultimate 3 in 1 solution – Heated floor, crack prevention, waterproofing and load support. The ideal flooring underlayment for tiles. The uncoupling membrane offers design flexibility, allowing for custom configurations and easy installation. Ideal for bathroom, kitchen, living room, basement and more. Heating wires MUST be covered with a self leveler or thinset. DO NOT cut or SHORTEN the heater wire.

n

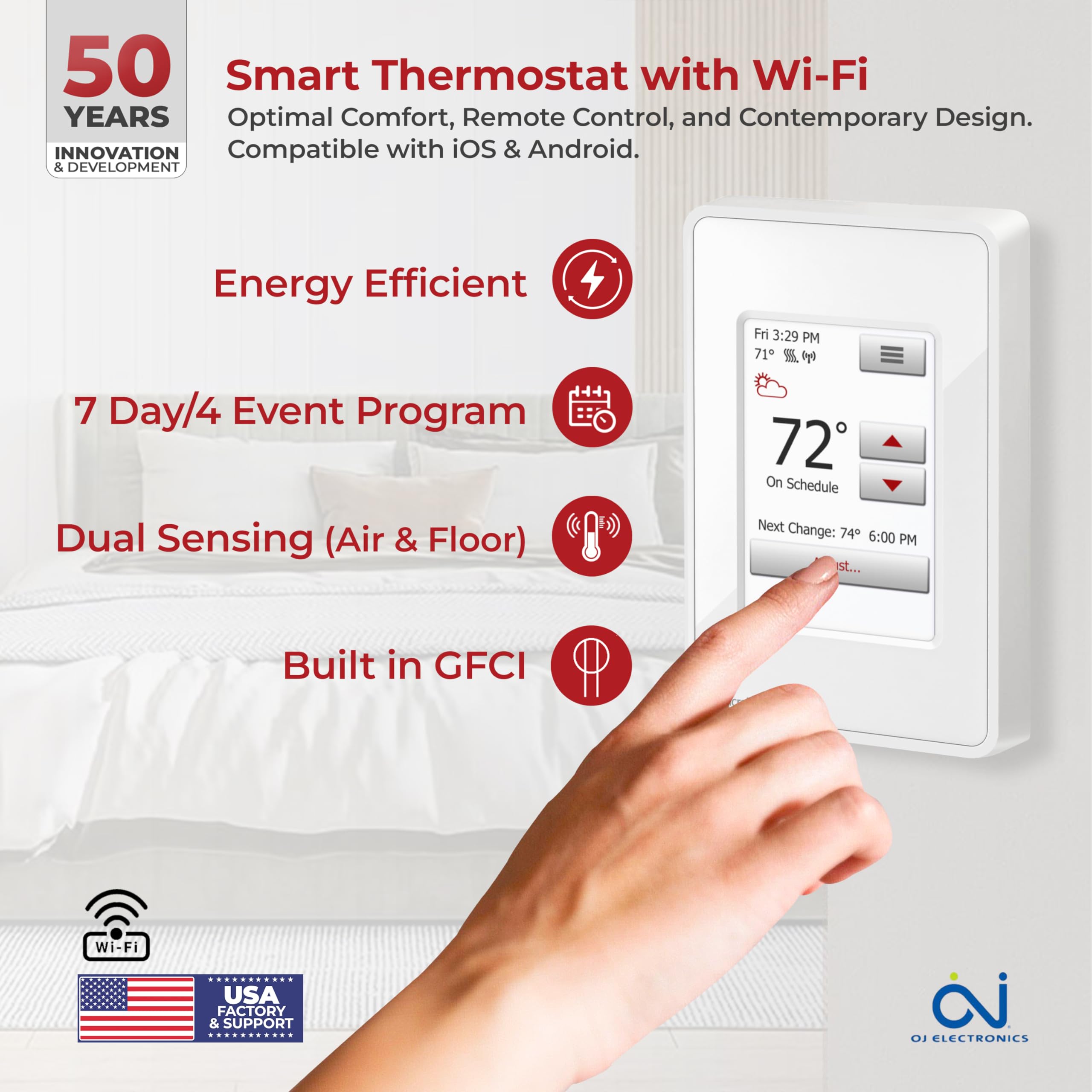

• CONTROL – OJ Microline’s Wi-Fi programmable touchscreen (UWG4-4999) thermostat offers a sleek, modern design with intuitive control. The 120 Volt, 15-amp thermostat includes an intergrated Class A GFCI (ground fault protection), a must to any heated flooring system. OJ’s Wi-Fi connection offers remote monitoring & control from any Android or IOS device. Thermostat features include: 7-Day, 4 event program, child lock, power logging & more. Putting the control where it belongs. ID Code: 20061

n

• QUALITY & EXPERIENCE – With a combined experience of 50 years in the floor heating industry, the LuxHeat team offers a wide range of heating products backed by unparalleled customer service. LuxHeat’s 25-Year, and Prova’s 50-Year warranty provides peace of mind and assurance of performance for many years to come. Our technical support team is available Monday to Friday, should you have any queries, please feel free to reach out.

n

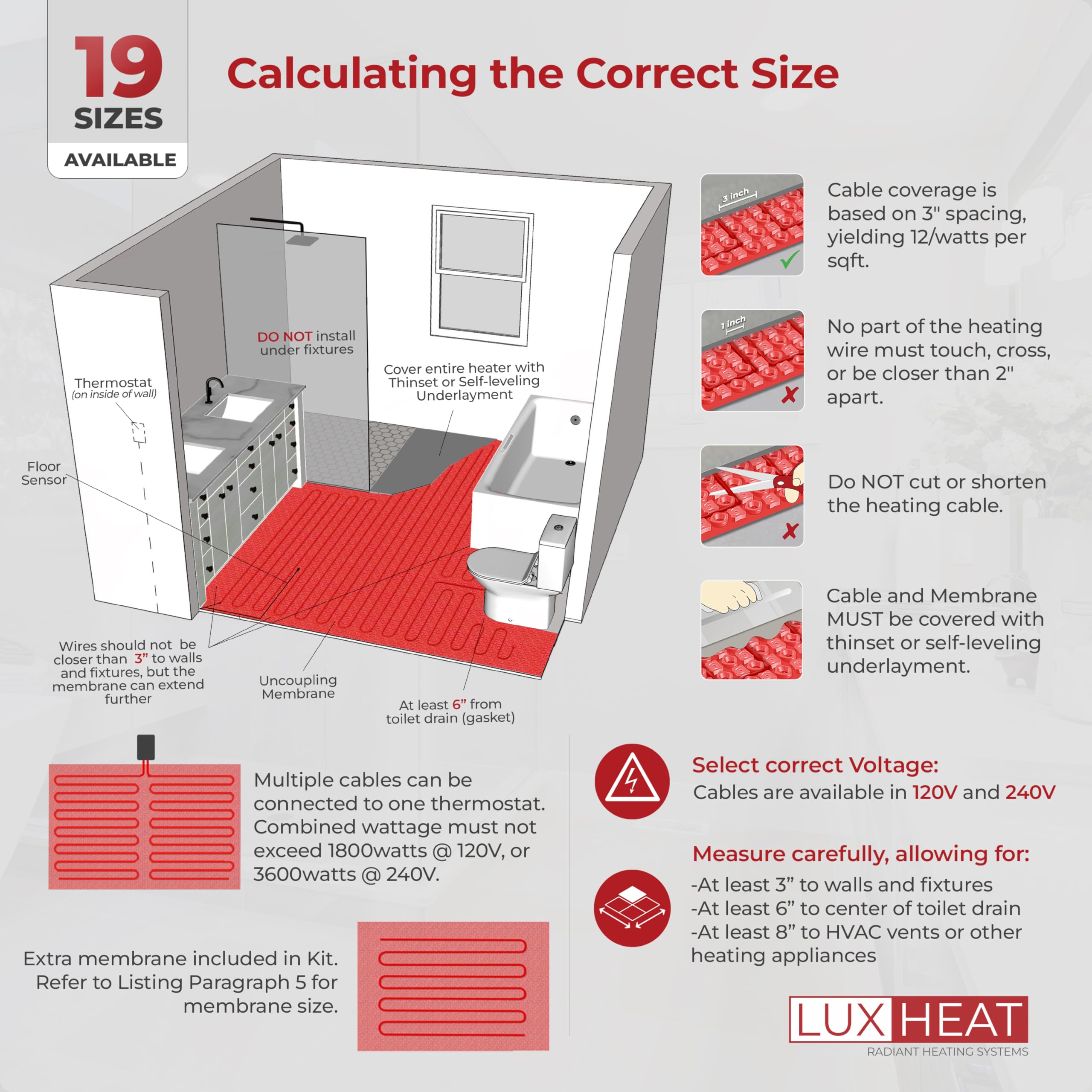

• TECHNICAL INFO – Cable length: 40 linear ft, Voltage: 120, Amps: 1.0, Watts: 120, cable coverage: 10sqft at 3inch spacing (12w/sqft). The LuxHeat Dual wire technology with aluminum shield, reduces electromagnetic fields (EMF) to ultra-low levels. All LuxHeat Cables are cULus certified for USA and Canada, and listed as Safe for Wet locations. Prova membrane: Width: 3.24ft, Length: 4.6ft, Membrane sqft: 15. Thickness: 0.26inch (6.5 mm). Prova membrane is ANSI and TCNA Approved.

n

EAN: 0769701064703

Package Dimensions: 48.0 x 10.0 x 10.0 inches
