JKBMS Inverter BMS 8S-16S 24V-48V 100A Home Energy Storage BMS 1A Active Balance Built-in Bluetooth with RS485 CAN for Solar System (JK-PB1A16S10P)

Brand: JKBMS

Features:

n

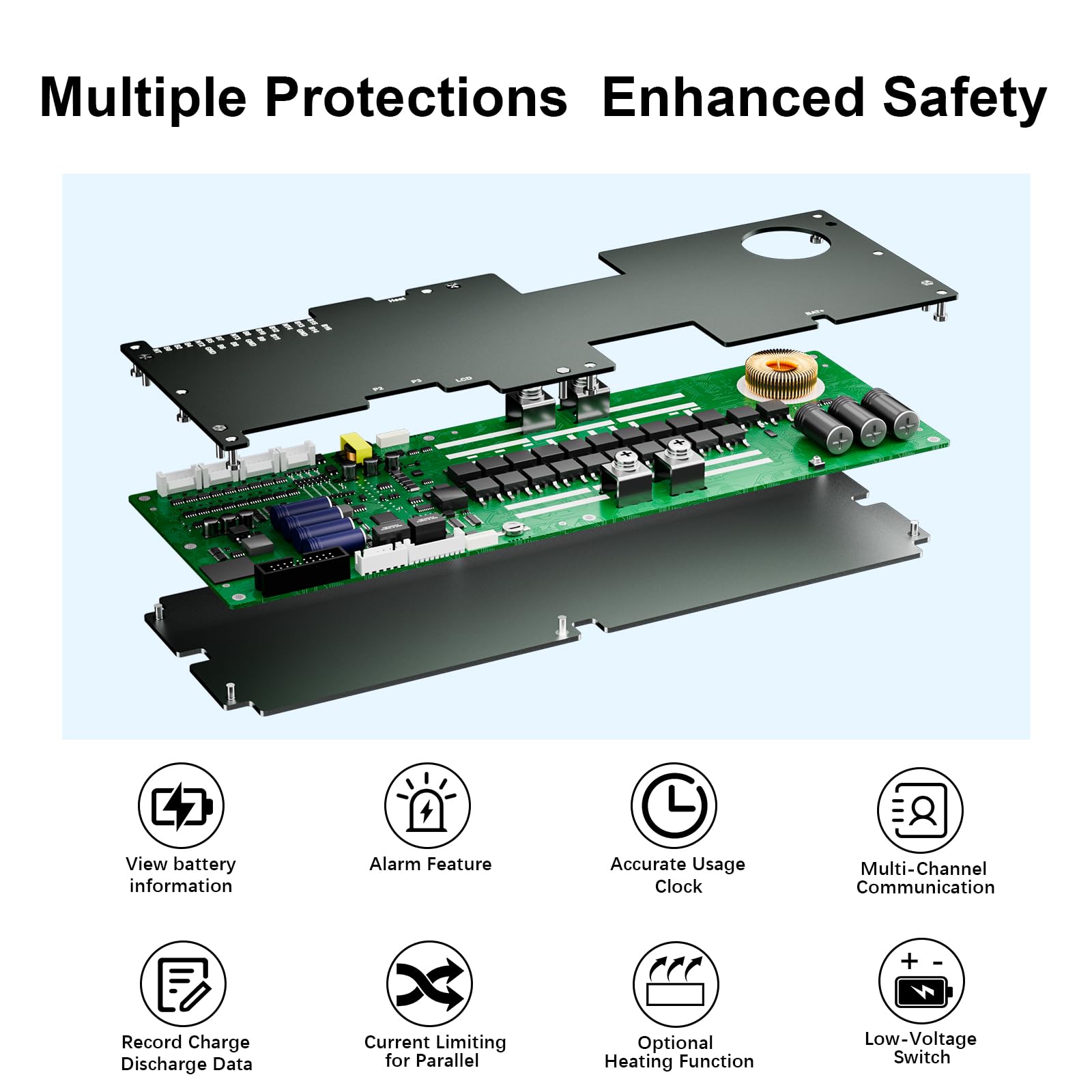

• Multiple Protection:This BMS Offers overcharge,over-discharge,short circuit,and overcurrent protection. Includes reverse connection protection to prevent damage from incorrect wiring,ensuring system reliability

n

• Wide Application:Inverter BMS Suitable for home energy storage,communication base stations,building energy storage,and backup power. Provides high compatibility and reliability for various application environments

n

• Communication Protocols:JK Inverter BMS Compatible with major inverter brands,supporting CAN,RS485,RS232,and UART modes. Easily configurable via mobile app,host computer,or home storage display,ensuring seamless integration with various devices and systems

n

• Parallel Protection Technology:This Home Storage BMS features integrated 10A current limiting to safely expand battery capacity. Supports parallel connection of multiple battery packs,ensuring reliable and secure operation

n

• After-Sales Support: Download the “JK BMS” app for 24/7 assistance. We’re here to help with any questions or issues, and we offer a 1-year support period

n

Binding: Electronics

model number: JK-PB1A16S-10P

Part Number: JK-PB1A16S10P

Details: Specification：
nBrand: JKBMS
nModel: JK-PB1A16S10P
nDimensions: 300*100*18 mm
nCompatible With: LiFePO4, Li-ion, and LTO
nPackage Contents: Protection board, interface board, communication cables, balancing cables, activation switch, etc.
n
nFunctional Characteristics:
nActive Balancing Function
nLED Status Indicator
nRemote Operation via APP
nOvervoltage and Overcurrent Protection
nPC-based Operations Supported
nInformation Screen Display
nRS485, RS232 and CAN Communication Support
nHigh Precision Voltage Acquisition
nBattery Capacity Estimation
nHigh Precision Current Acquisition
nAccurate Time Logging
nIsolated Power Circuit
nShort Circuit Protection
n4-Channel Temperature Protection
nMOSFET Temperature Protection
n
nTechnical Specifications:
nActive Balance Current: 1A
nBattery Strings Supported: Li-ion: 7-16S, LiFePO4: 8-16S, LTO: 14S-16S
nContinuous Discharge/Charge Current: 100A
nMaximum DischargeCurrent(MAX2min): 200A
n

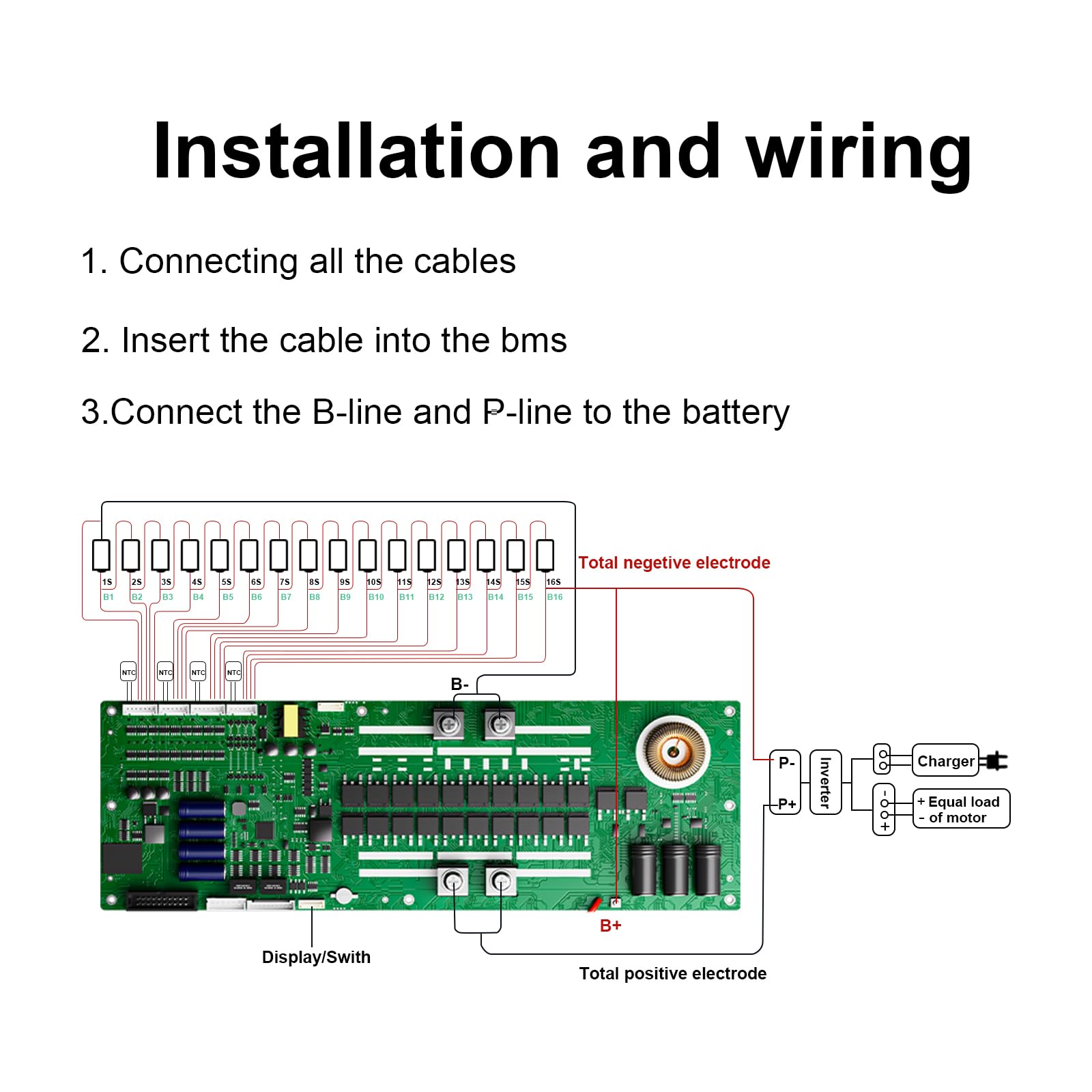

nConnection Instructions:
n
nWiring Sequence:
n
nSolder B- and P- terminals first.
n
nFollow with B+ and P+ terminals.
n
nConnect battery sampling wires in ascending voltage order.
n
nSystem Activation:
n
nPower up the system and press the button to activate.
n
nDisconnecting:
n
nRemove charger or load first.
n
nDisconnect battery sampling wires in descending voltage order.
n
nRemove B+ and P+ terminals, then B- and P- terminals.

Package Dimensions: 13.1 x 4.8 x 2.6 inches

Languages: English
