Jecoupoon 1200 W Electric Hydraulic Hole Punch Hydraulic Hole Punching Tool Metal punch Compatible with Steel Copper Aluminum Iron Alloy (Base Version)

Brand: Jecoupoon

Color: Base Version

Features:

• Product data: Electrohydraulic punching machine 1.2HP, 110V, 11.5A, 60HZ, punching speed 1-3 seconds, maximum hydraulic pressure: 10 tons, punching thickness: steel plate: 5/64 inch ~ 1/4 inch, copper/aluminum plate: 5/64 inch ~0.31 inch, Angle iron: 5/64 inch ~ 1/4 inch.

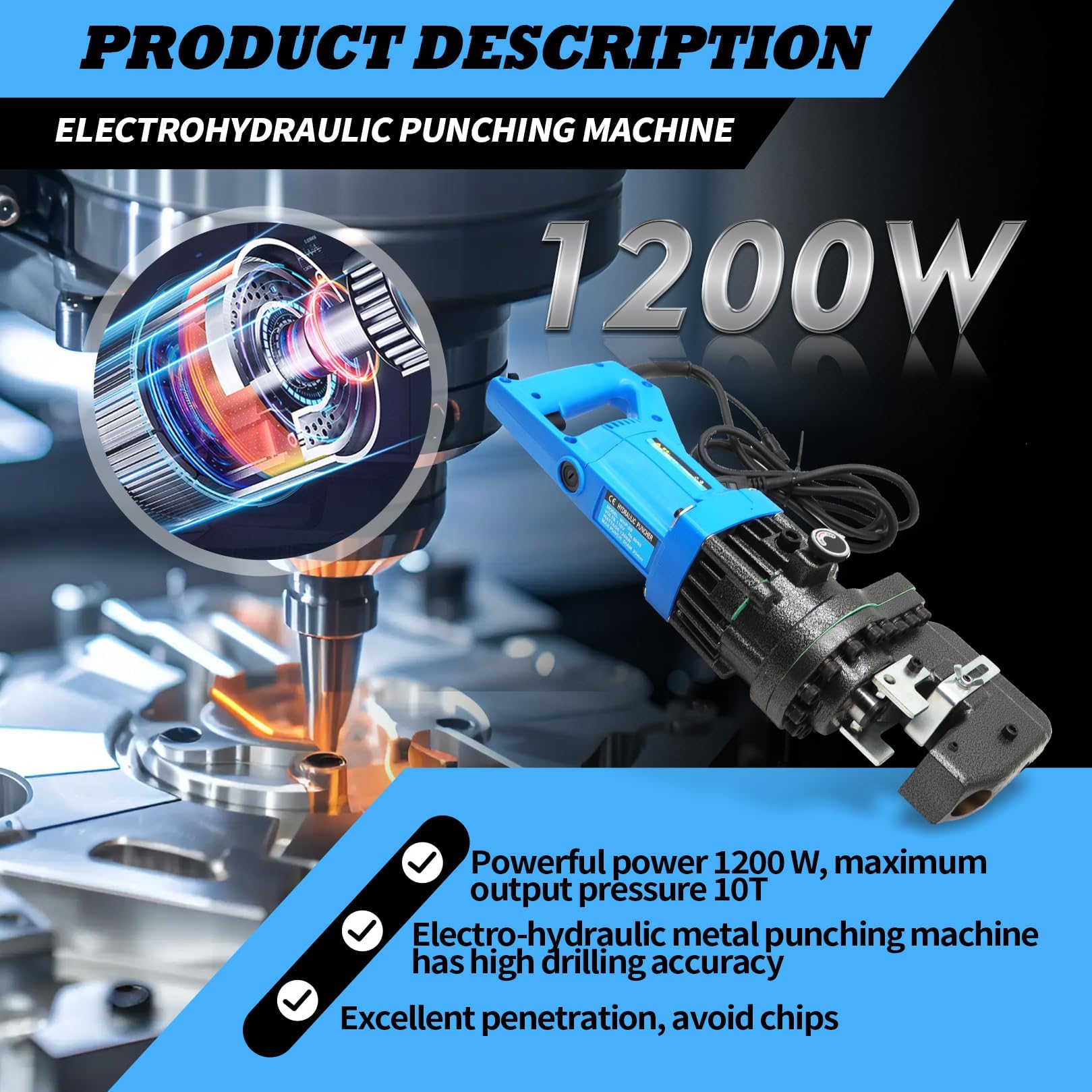

• Hydraulic system: The perforator is equipped with an electric drive and hydraulic system, with a powerful power of 1200 W and a maximum output of 10 tons of pressure. The hydraulic system provides powerful power, reduces the vibration and noise that may occur in traditional mechanical drilling, and effectively improves the comfort and safety of the work scene.
• Widely applicable: Whether it is aluminum, steel, stainless steel and other common metals, or harder alloy materials, this punching machine can easily cope with, through different specifications of the mould, we are equipped with Φ0.25in, Φ0.35in, Φ0.5in, Φ0.67in, Φ0.8in punching mould, you can choose the appropriate punching diameter according to specific needs.

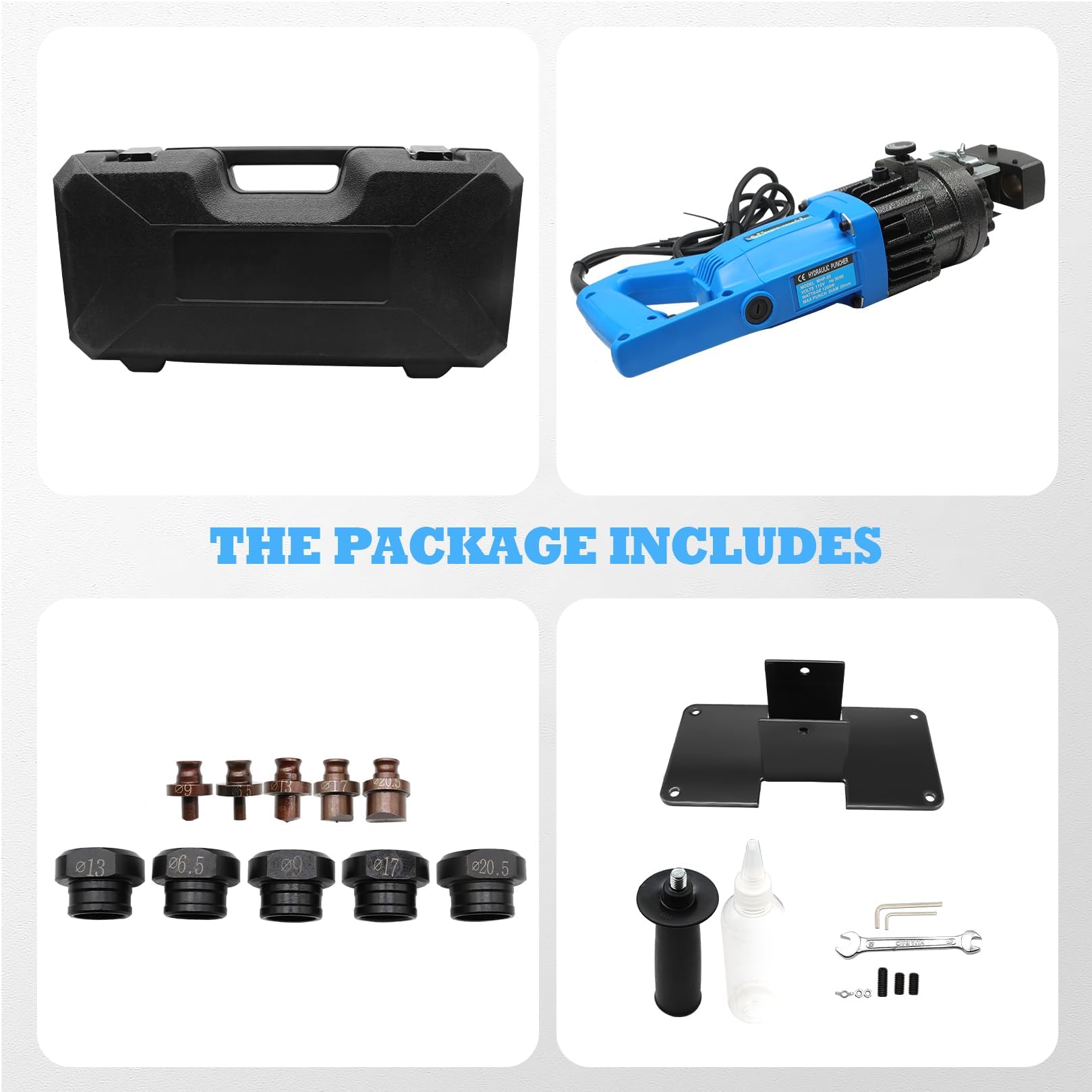

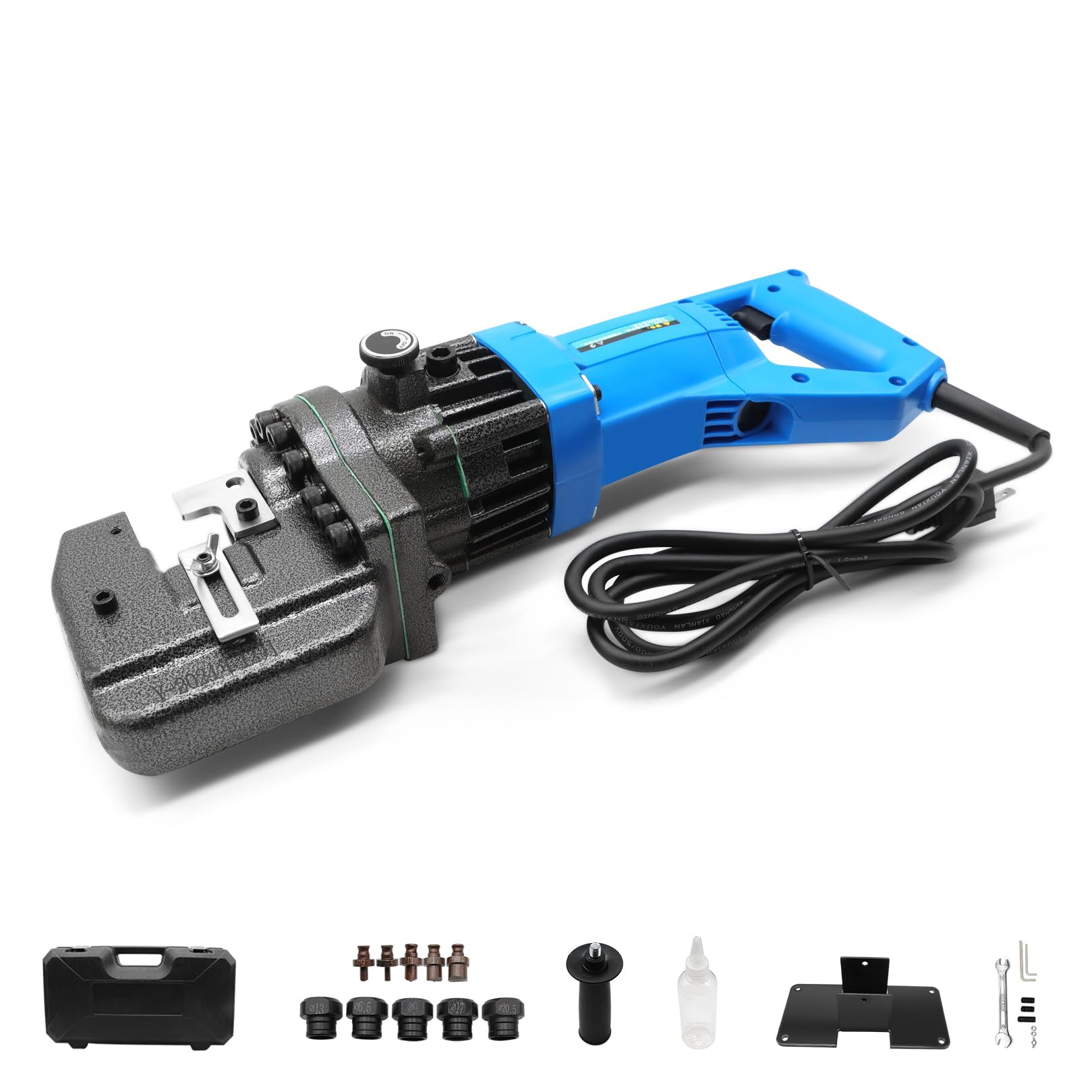

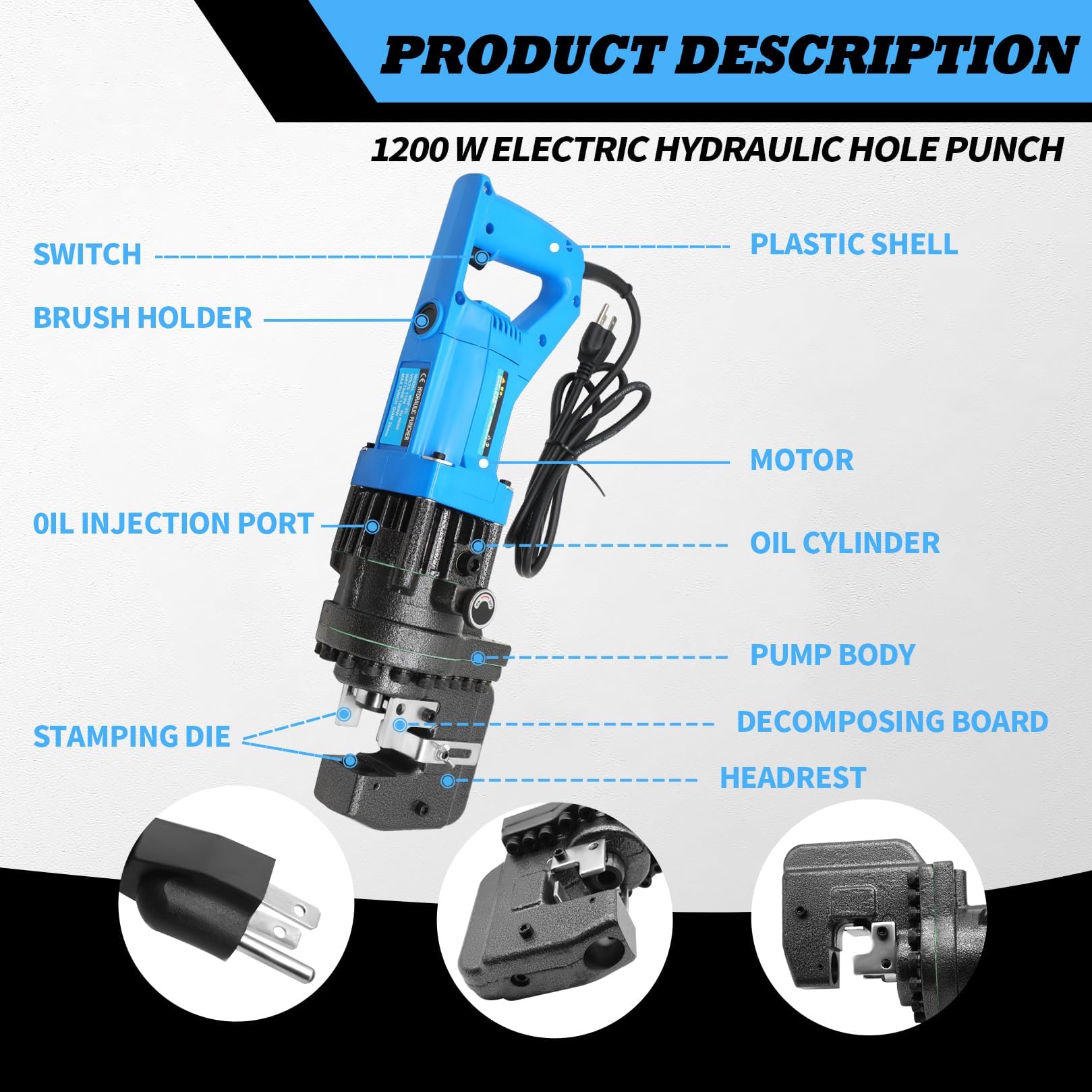

• Product configuration: The upgraded punching machine is equipped with an auxiliary handle, which can be manually operated to facilitate different angles of work; Can also be installed on the base, working on the platform steel punching machine positioning accurate, drilling without deviation; The hydraulic press will maintain excellent penetration and avoid chips.
• Efficiency and accuracy: The electrohydraulic metal punch has a high precision of drilling, which can quickly complete the task and greatly save time. The combination of the electric control system and hydraulic punching technology makes each punching process very smooth, even in high-intensity working scenarios without error.

Package Dimensions: 150x540x15000

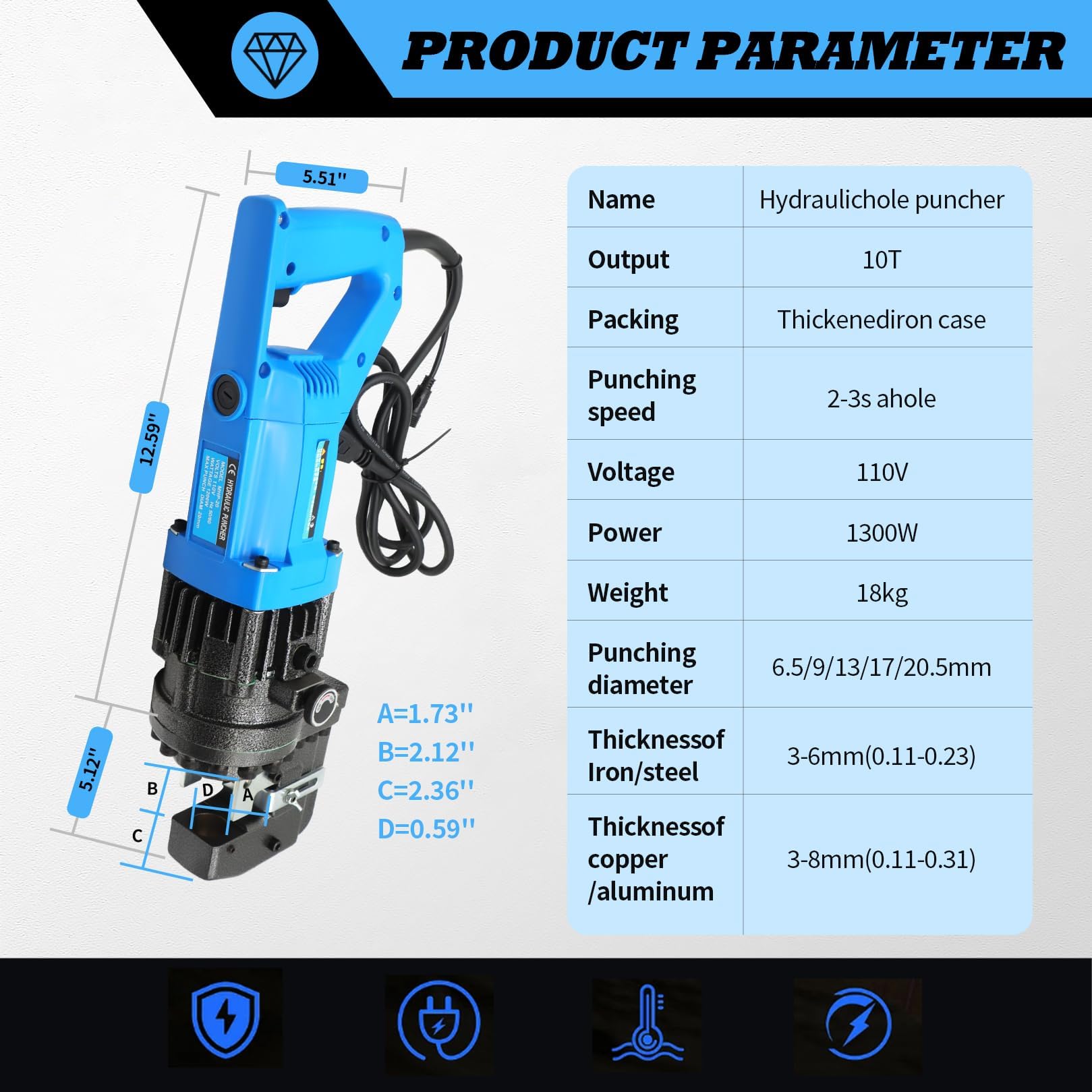

Details: Technical specification:
1.Maximum hydraulic pressure: 10 tons, ensuring strong punching force.
2.Suitable for common metal thickness: up to 0.8mm (0.31″), suitable for different thickness of metal materials.
3.Power requirements: 110V, in line with common power configurations, suitable for most working scenarios.
4.Drilling range: Φ0.25in, Φ0.35in, Φ0.5in, Φ0.67in, Φ0.8in to meet various drilling needs.
5.Motor power: 1.2kW, strong power to support continuous.
6.Punching speed: 15 to 30 times per minute, depending on the needs of different materials and apertures.

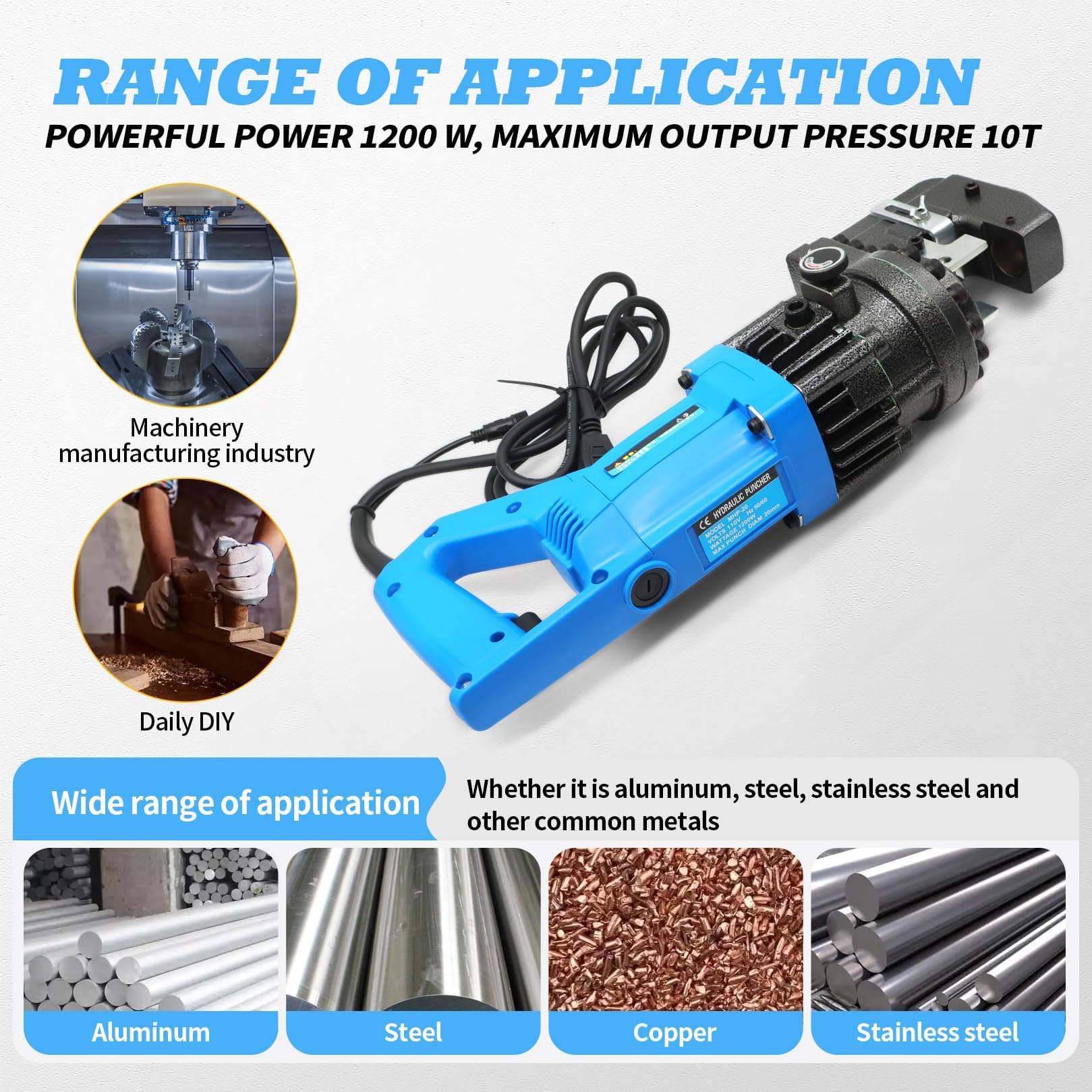

Application field:
1. In the construction industry, especially in the connection and fixing process of steel structure, aluminum alloy and other metal sheets, the punching machine can quickly and accurately complete the task of steel plate punching to ensure the progress and quality of the project.
2. Machinery manufacturing and maintenance In machinery manufacturing, the punching machine can efficiently punch a variety of precision machinery parts, especially in the automotive, aviation, shipbuilding and other industries, efficient punching tools are crucial to production.
3. Metal processing and assembly For metal processing plants requiring large-scale drilling, this hydraulic drilling machine is an indispensable tool, especially suitable for rapid metal drilling in the assembly line.
4.DIY projects Whether it is a personal workshop or a home workshop, lovers who want to make metal furniture or crafts will find this electro-hydraulic punch to be the ideal tool for high-precision DIY projects.
