HD Ripsaw Rotating Hydro Excavation Turbo Nozzle (8.0) – Old Part Number 1002719-080 / New Part Number 20022384

Brand: American Pressure Inc.

Color: Green

Features:

n
• New heavy duty coating – a special formulation designed for use in extreme environments including frost, shale, and other rocky conditions

n

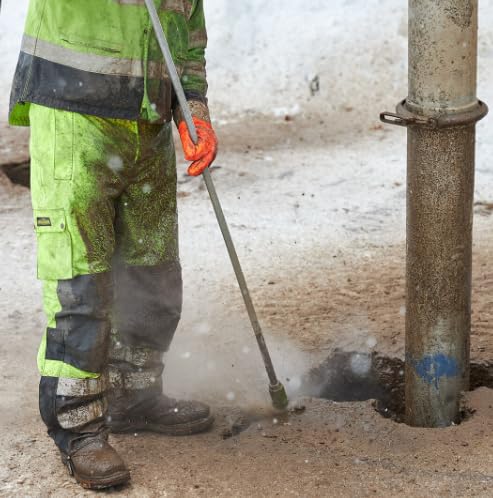

• Heavy-duty design engineered for the rugged demands of the hydro excavation industry

n

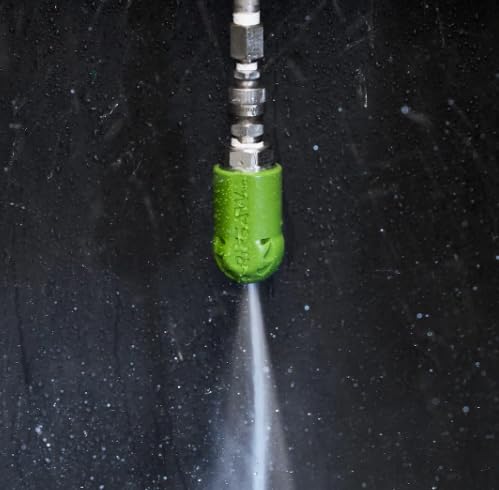

• Blasts a 0 degree straight water stream while rotating at a high speed to form an 18 degree cone

n

• Constructed with stainless steel housing and tungsten carbide wear surfaces for long life

n

• Non-conductive urethane coating on nozzle body protects user and sensitive underground utilities

n

Binding: Tools & Home Improvement

model number: 1002719-080

Part Number: 1002719-080

Details: The Ripsaw Rotating Turbo Nozzle is designed for performance and efficiency, allowing operators to complete jobs faster while using dramatically less water. The Ripsaw HD blasts a 0° straight water stream at up to 3200 PSI while rotating at a high speed to provide an 18° cone of coverage. It’s optimized stream quality results in greater impingement – allowing the operator to use a smaller nozzle size while getting the same impact as nozzles with higher GPM flow rates. These heavy-duty, high-impact nozzles are constructed with stainless steel housings and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than ceramic nozzles. Non-conductive urethane coating on the nozzle body also protects the user and sensitive underground assets. Repair kits are available for extended life and lower overall operating costs. Inlet Pressure (Min/Max): 1,000 PSI – 3,200 PSI. Maximum water temperature: 180 degrees F. Inlet connection thread: ½” FNPT. Tungsten carbide nozzle tip. Stainless steel housing. Urethane coating.

Package Dimensions: 5.5 x 5.4 x 2.8 inches
