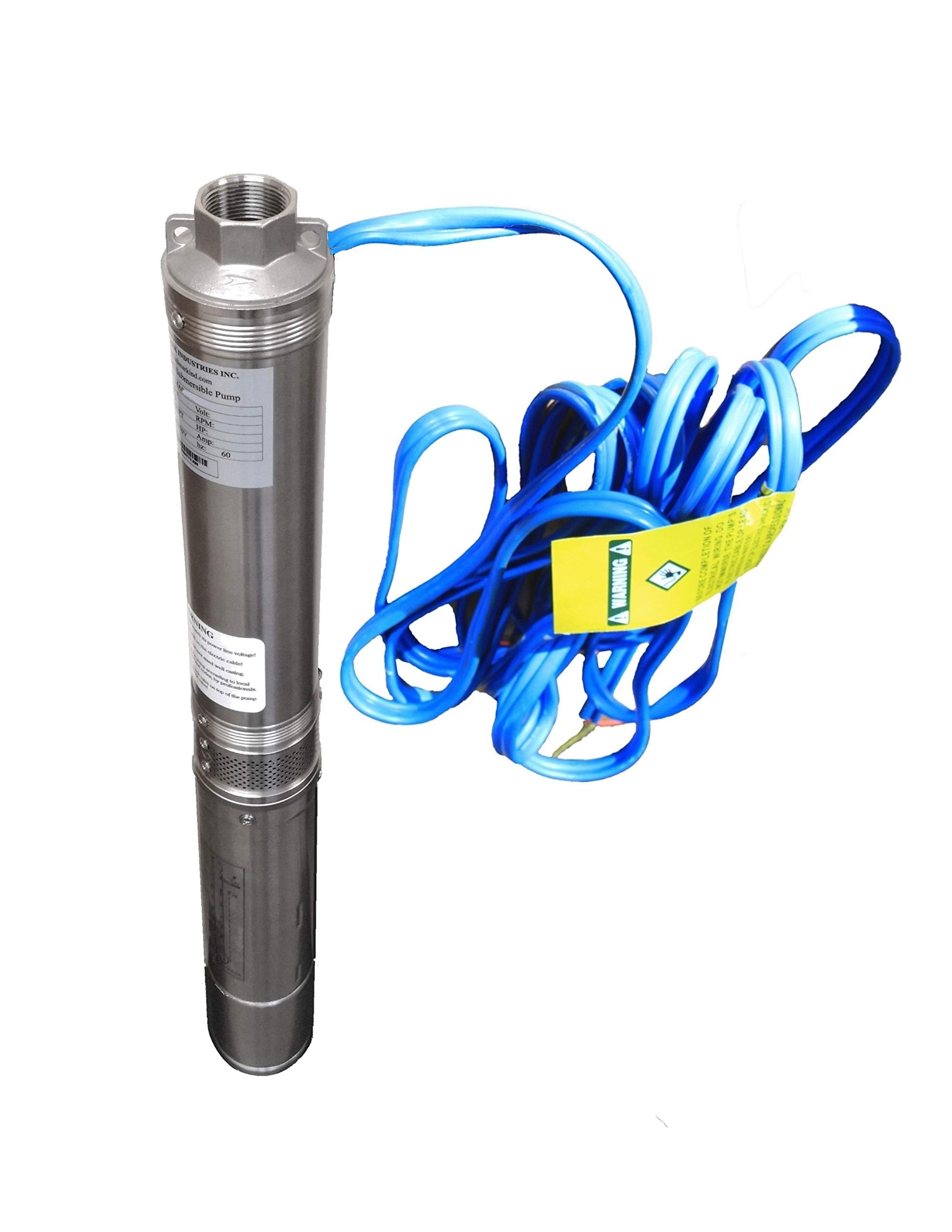

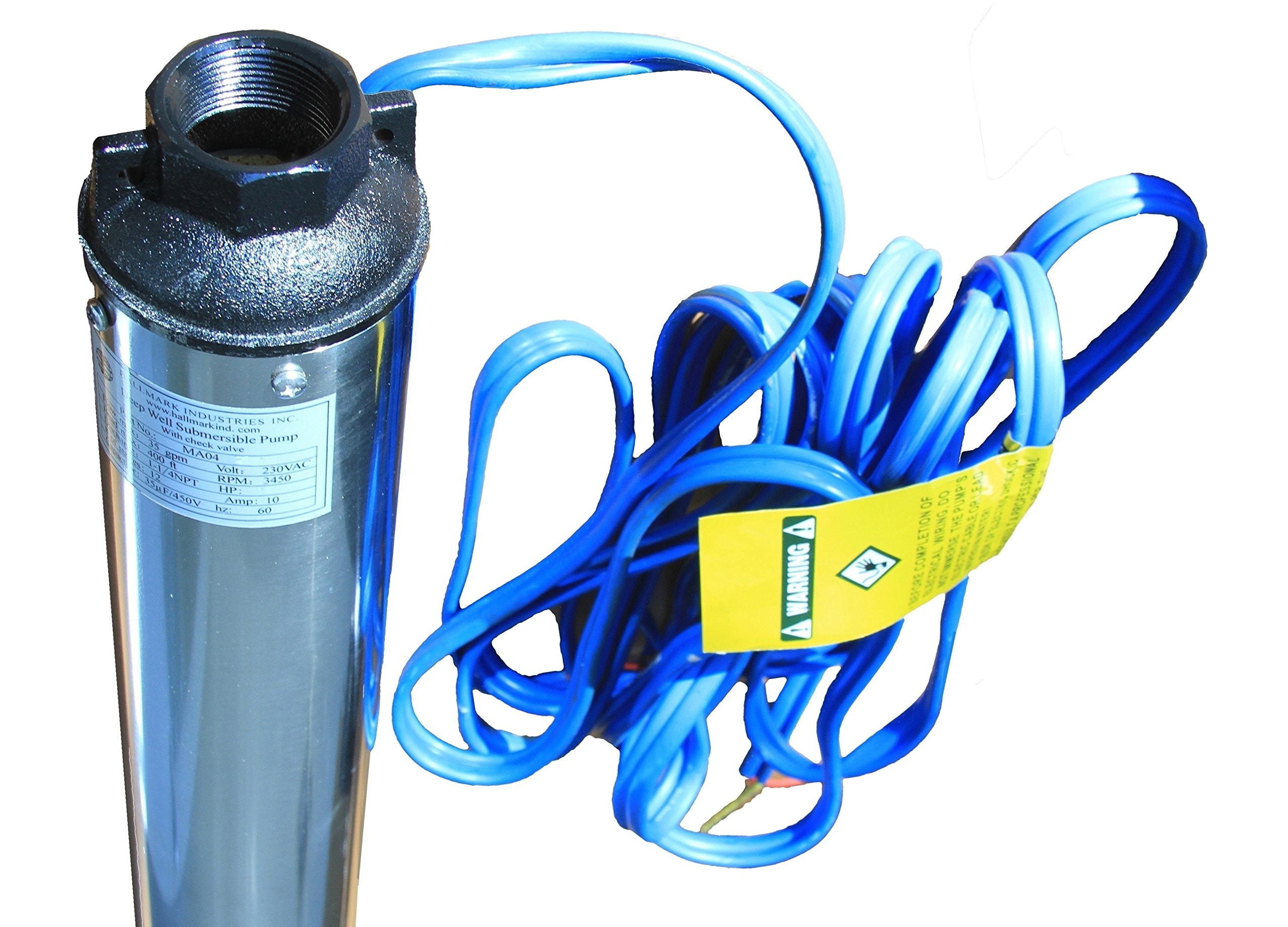

Hallmark Industries MA0414X-7 Deep Well Submersible Pump, 1 hp, 110V, 60 Hz, 33 GPM, 207′ Head, Stainless Steel, 4″

Brand: Hallmark

Color: Stainless Steel

Features:

n
• American company

n

• Pump, Deep Well Submersible Pump, 1HP, 110V 60HZ, 33 Gpm, Stainless Steel, for 4″ or bigger well, long life

n

• 2 wire pump with built in control box- DOES NOT require external control box; Industrial grade heavy duty, good for home usage; Built in thermal protection

n

• 207′ Head, Stainless

n

model number: MA0414X-7

Part Number: MA0414X-7

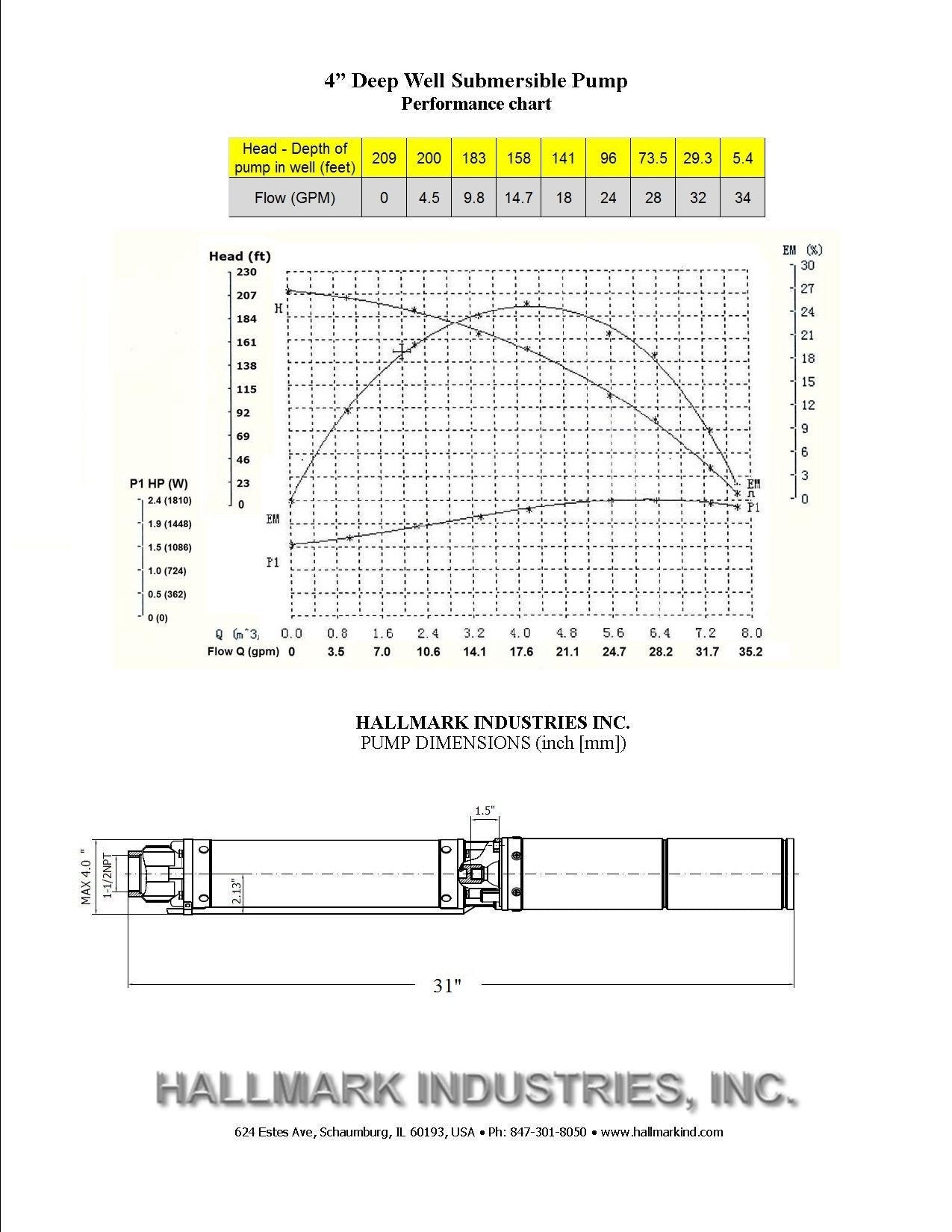

Details: Hallmark Industries 1HP, 110V/60HZ/1PH, 3.8″ max OD, 33 GPM Max, 207 feet head, all S.S., 1-1/4NPT discharge. Specifications: 3.8″ deep well submersible pump. 1 HP, 115 (110)V, 10.3 Amps, 8 stages, 1-1/4NPT discharge; Max OD 3.8″. Fits a 4″ or larger well casing; All stainless-steel exterior to ensure corrosion resistance; High efficiency motor has a built-in capacitor start, and thermal protection for longer life; Built in starer box. DOES NOT require an external starter box! This is a 2-wire pump (2 wires + ground) with 10′ long electric cord that meet UL standard; Some other brands may have 30’ under sized wires (i.e. 18 GA for 1HP). They are useless and will harm the pump and whole house electrical systems. Submersible design creates quiet operation, with its unique design reduces its noise; 207 feet max total head = to open water. Refer to the ‘Pump Selection Guide’ (posted here) for the pressure tank applications; Include prime copper splice kit, thermal shrink kit, and waterproof tape kit for wiring; Please use Hallmark Industries’ copper 1.25”NPT check valve for your pressure tank; Free phone support for installation and troubleshooting; Warranty: 12 months limited manufacturer’s warranty, and lifetime technical support.

Package Dimensions: 35.8 x 6.2 x 5.5 inches
