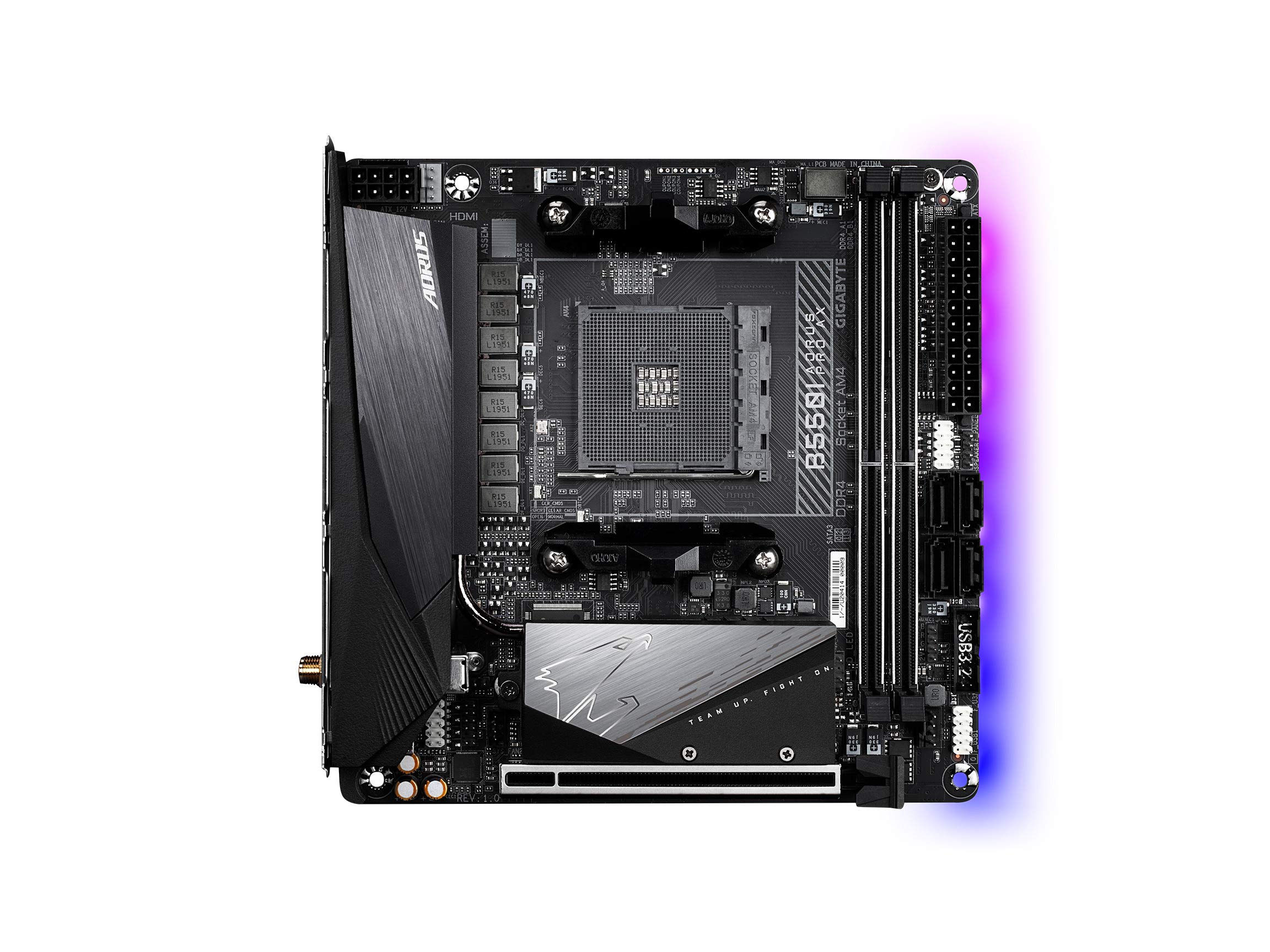

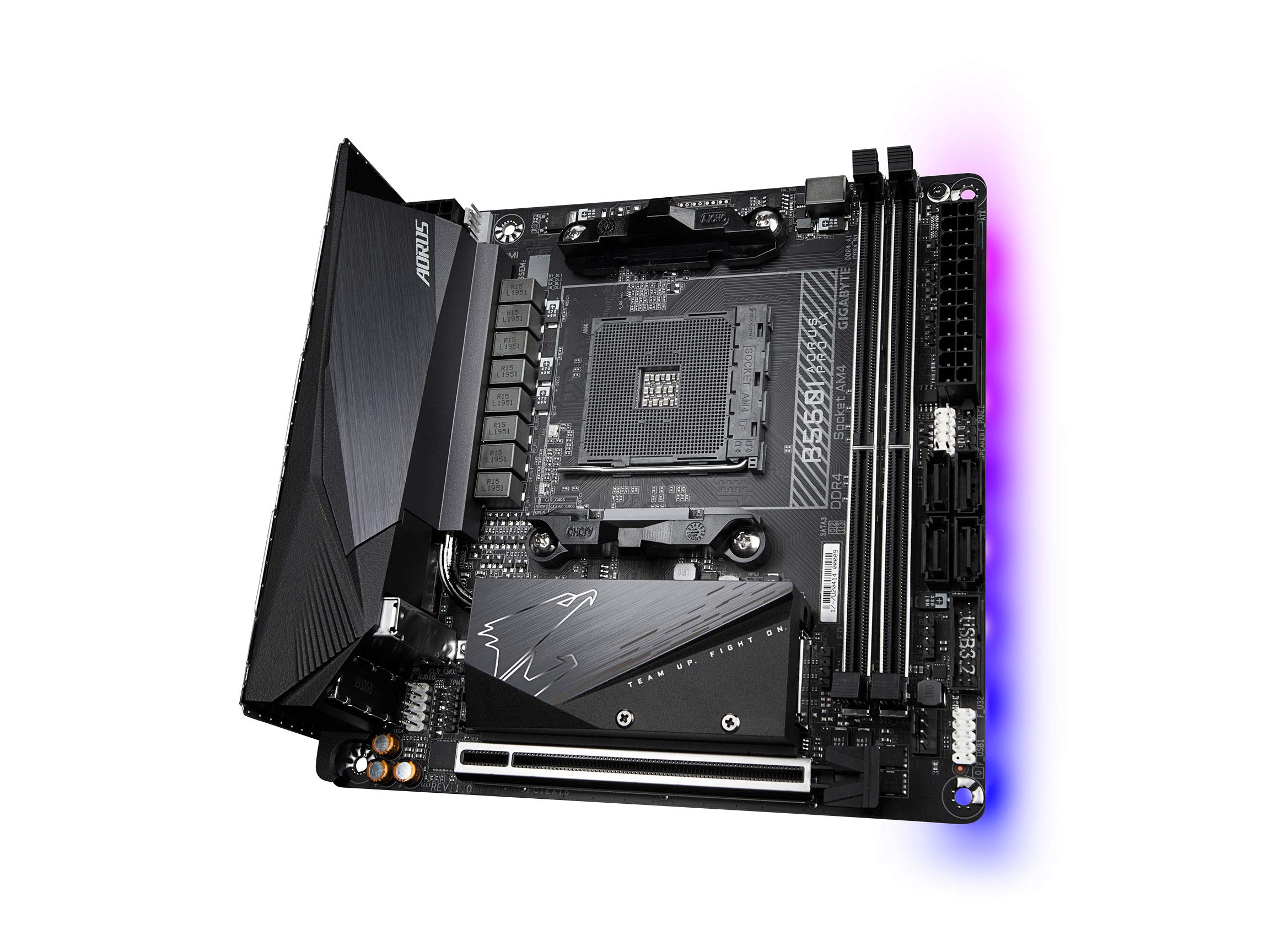

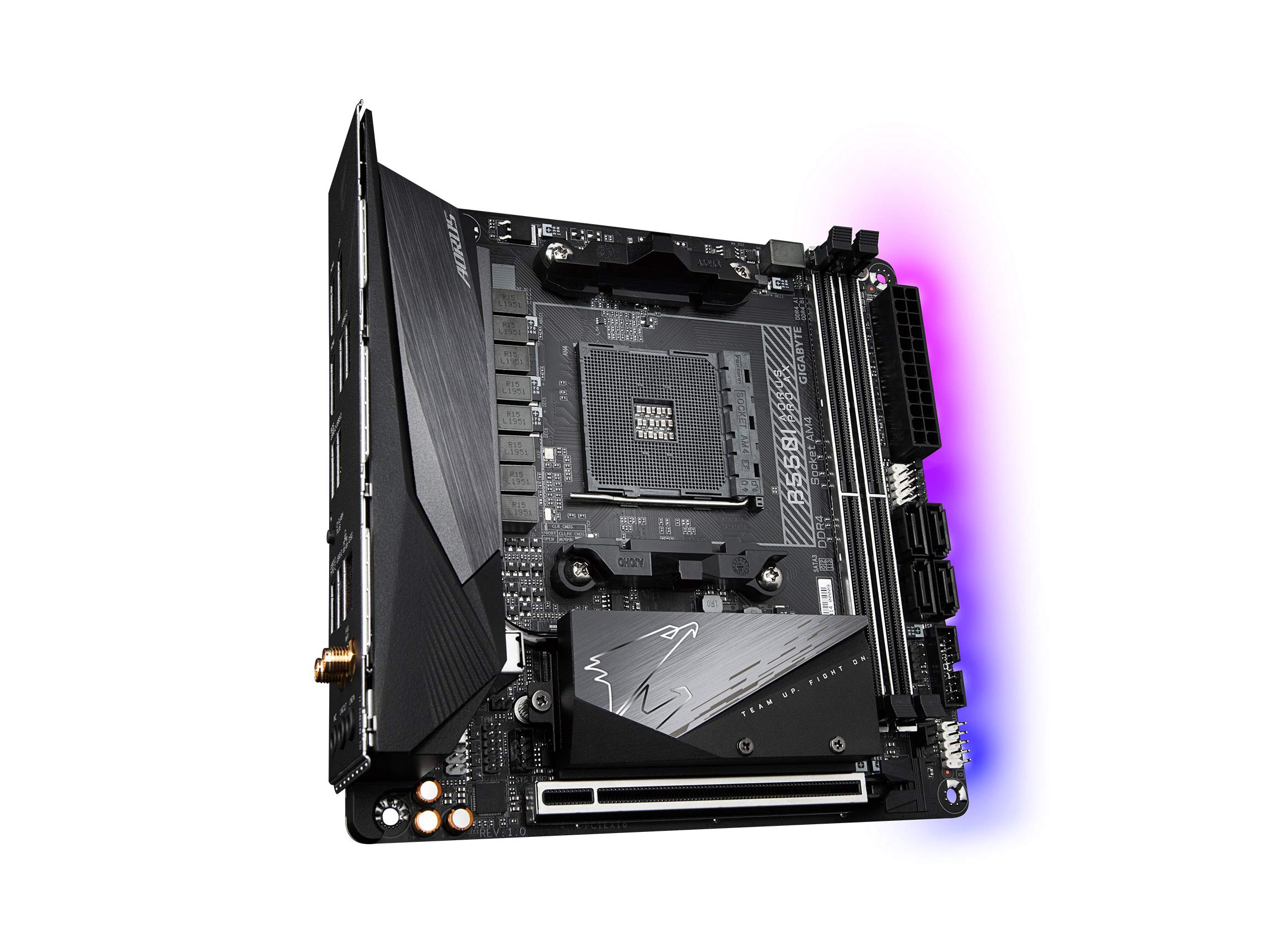

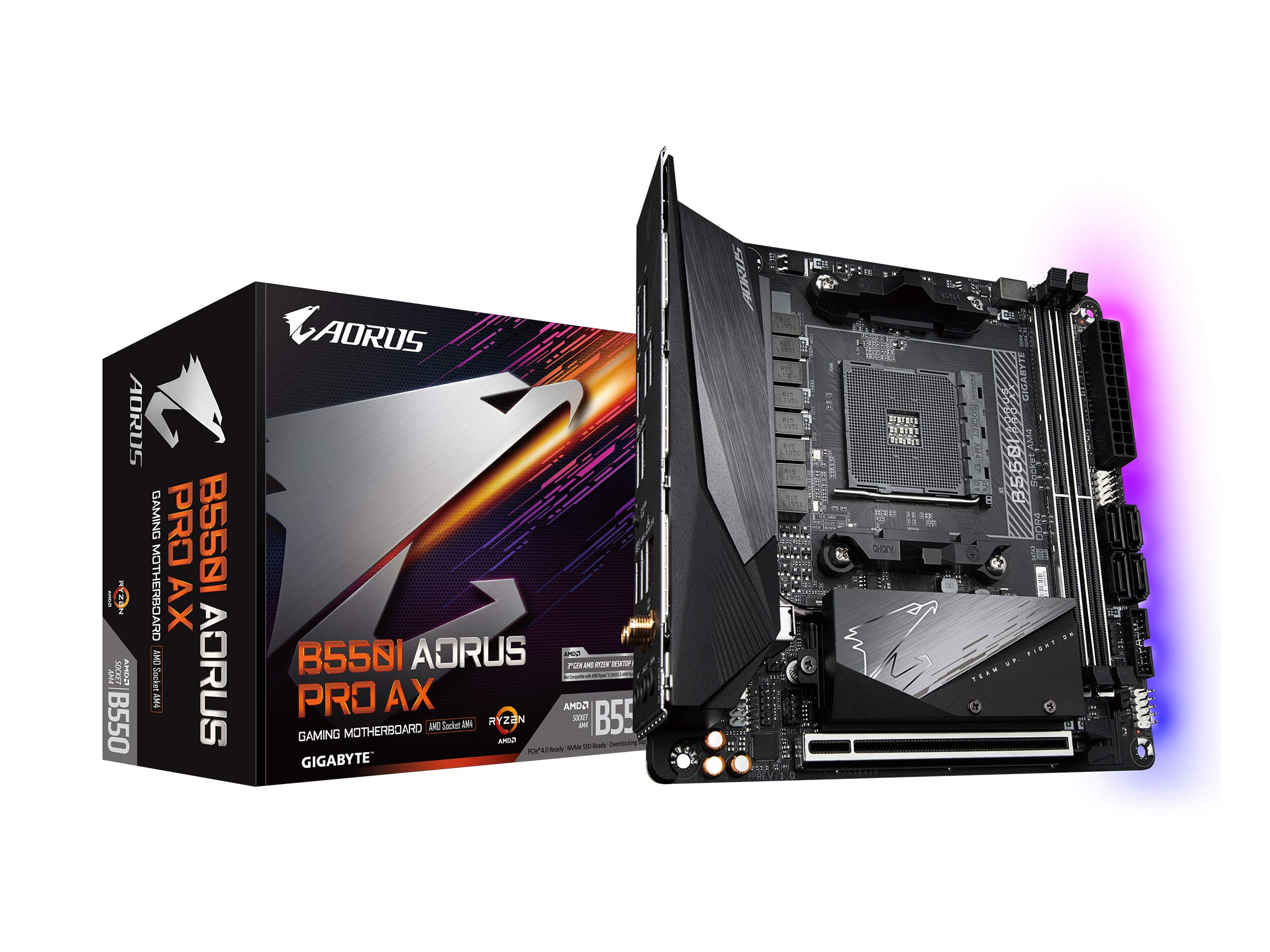

GIGABYTE B550I AORUS PRO AX (AM4 AMD/B550/Mini-Itx/Dual M.2/SATA 6Gb/s/USB 3.2 Gen 1/WiFi 6/2.5 GbE LAN/PCIe4.0/Realtek ALC1220-Vb/DisplayPort 1.4/2xHDMI 2.0B/RGB Fusion 2.0/DDR4/Gaming Motherboard)

Brand: GIGABYTE

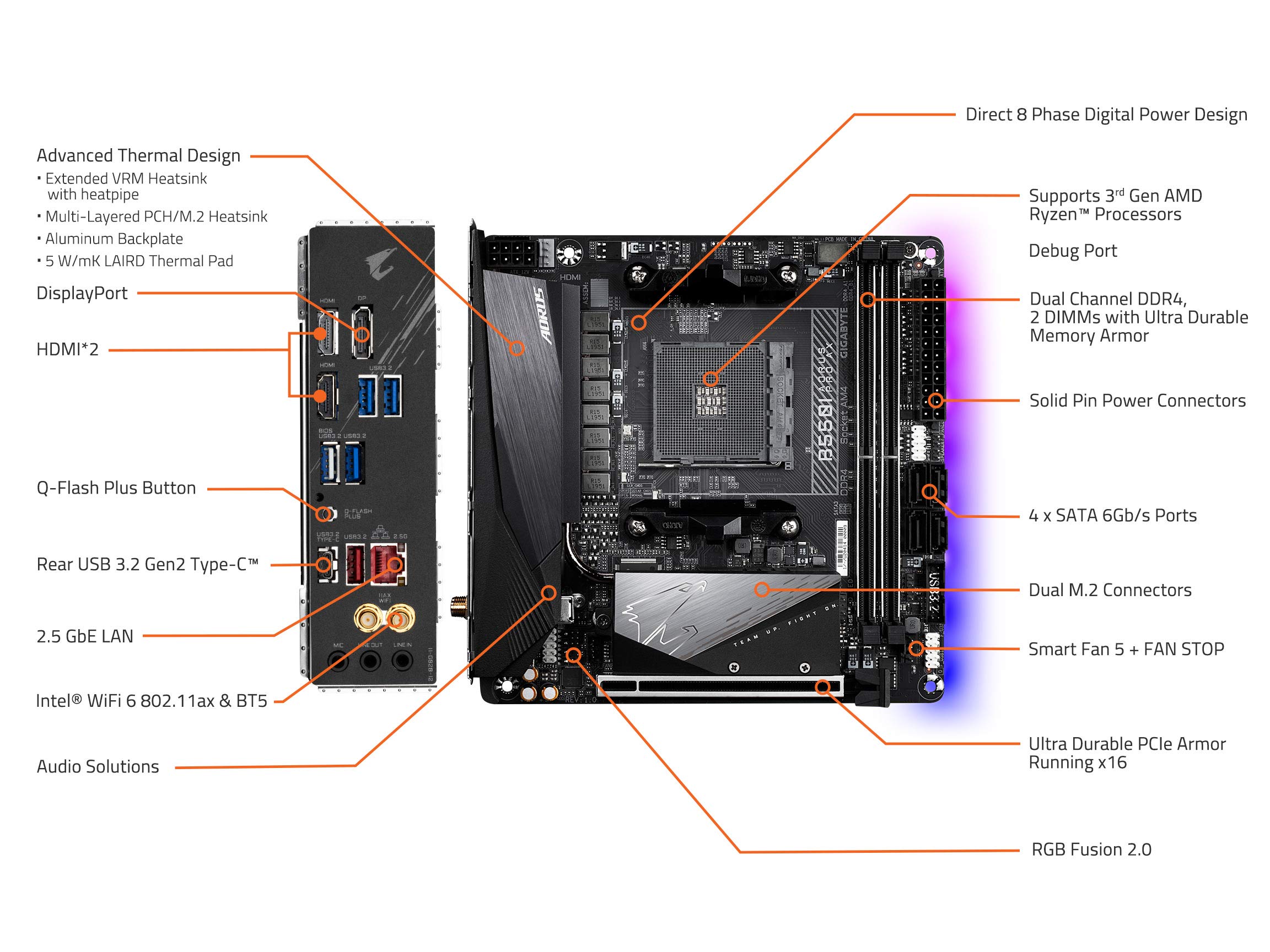

Features:

• Supports 3rd Gen AMD Ryzen Processors.Wireless Communication module: Bluetooth 5
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Direct 8 Phases Digital Power with 90A Smart Power Stage
• Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
• Ultra Durable PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x 4M. 2 with Thermal Guard
• Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
• AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
• Blazing Fast 2.5GbE LAN with Bandwidth Management

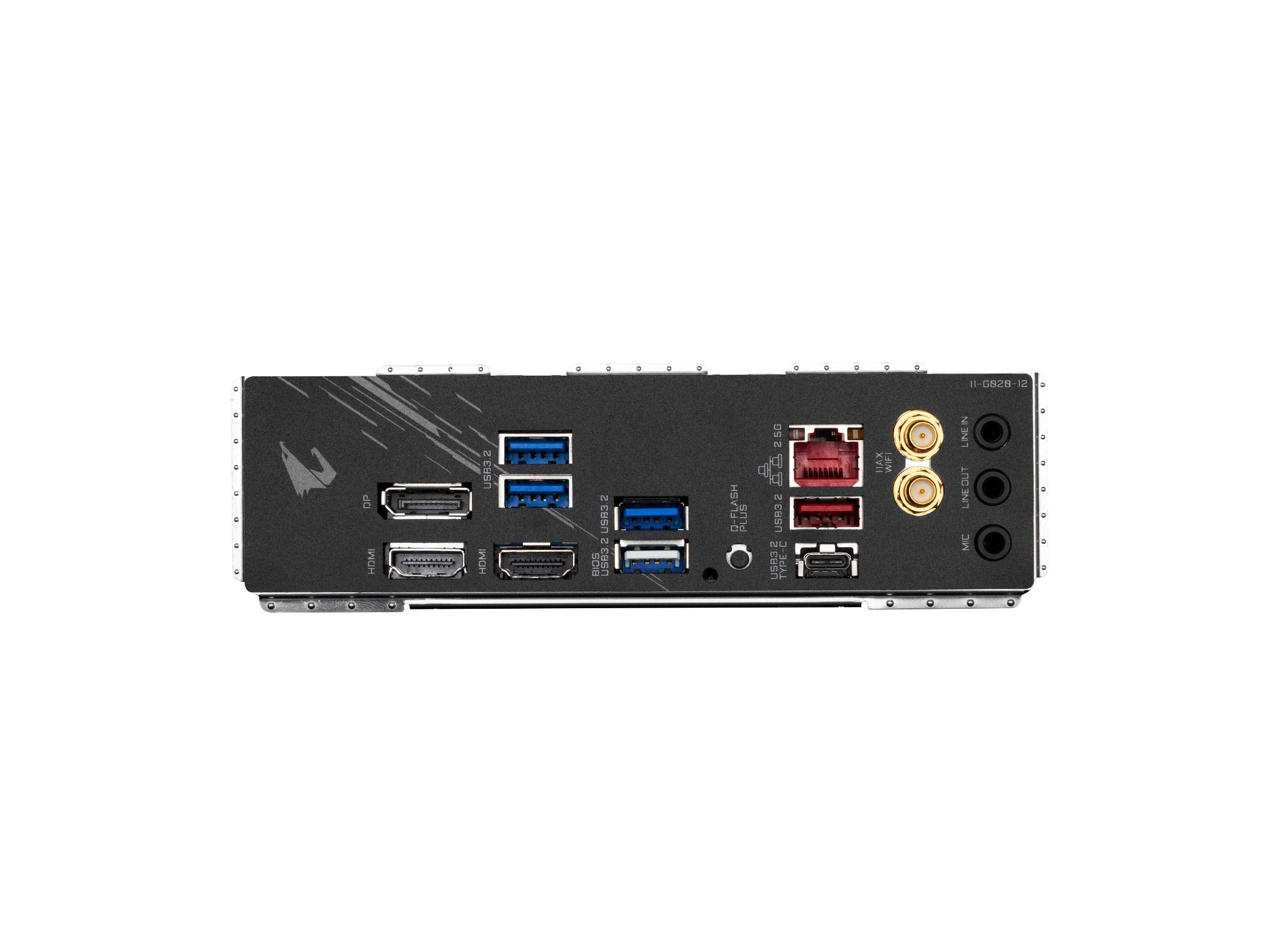

• USB 3.2 Gen2 Type-C & DisplayPort plus Dual HDMI Support

Package Dimensions: 99x270x1229

Release Date: 16-06-2020

Details: Supports 3rd Gen AMD Ryzen Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS) Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate Ultra Durable PCIe 4. 0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4. 0/3. 0 x4 M. 2 with Thermal Guard Onboard Intel WiFi 6 802. 11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR Blazing Fast 2. 5GbE LAN with Bandwidth Management USB 3. 2 Gen2 Type-C & DisplayPort + Dual HDMI Support RGB FUSION 2. 0 with Multi-Zone Addressable LED Light Show Design Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU Pre-installed IO Shield for Easy and Quick Installation.

UPC: 889523022986
