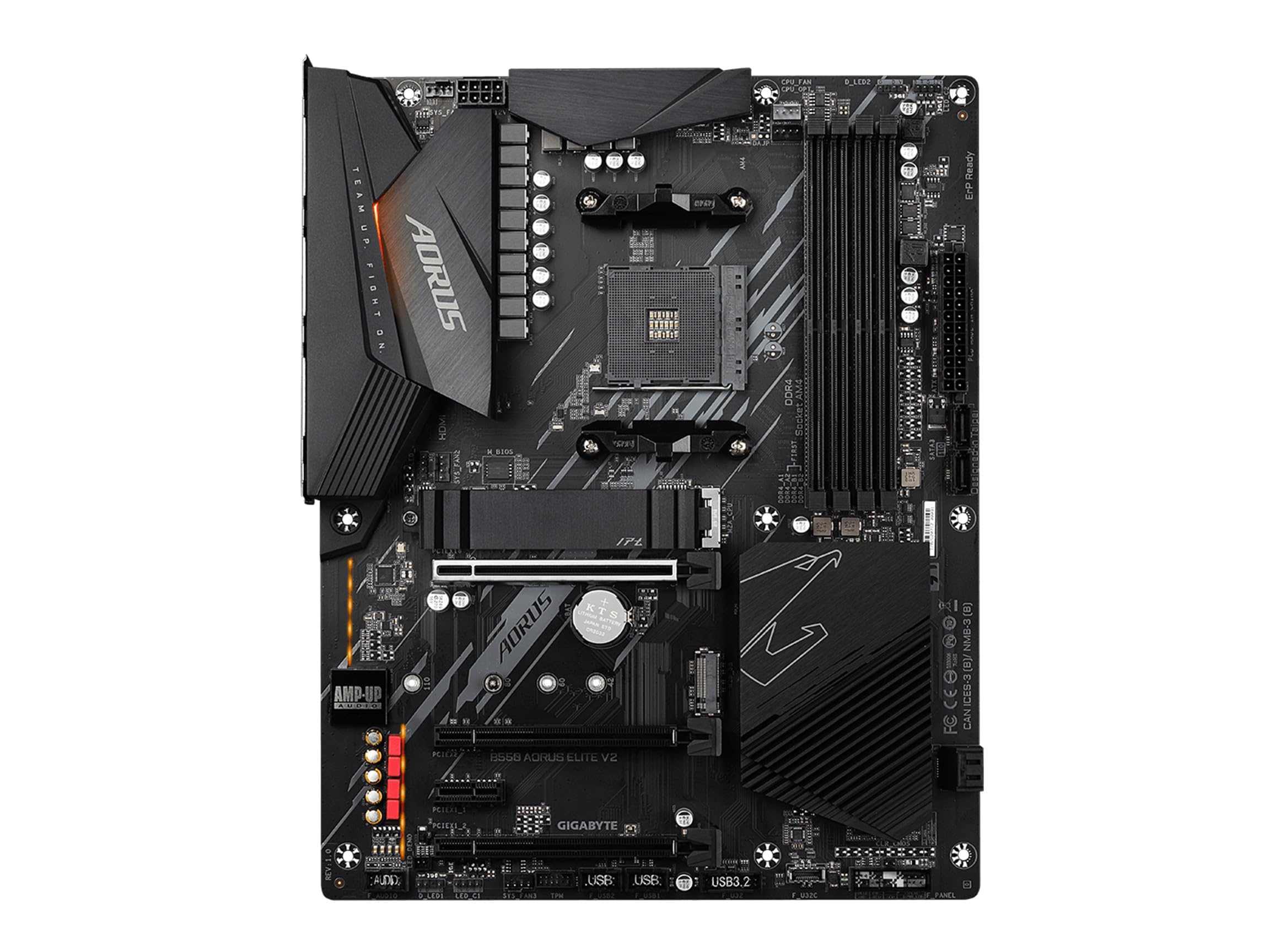

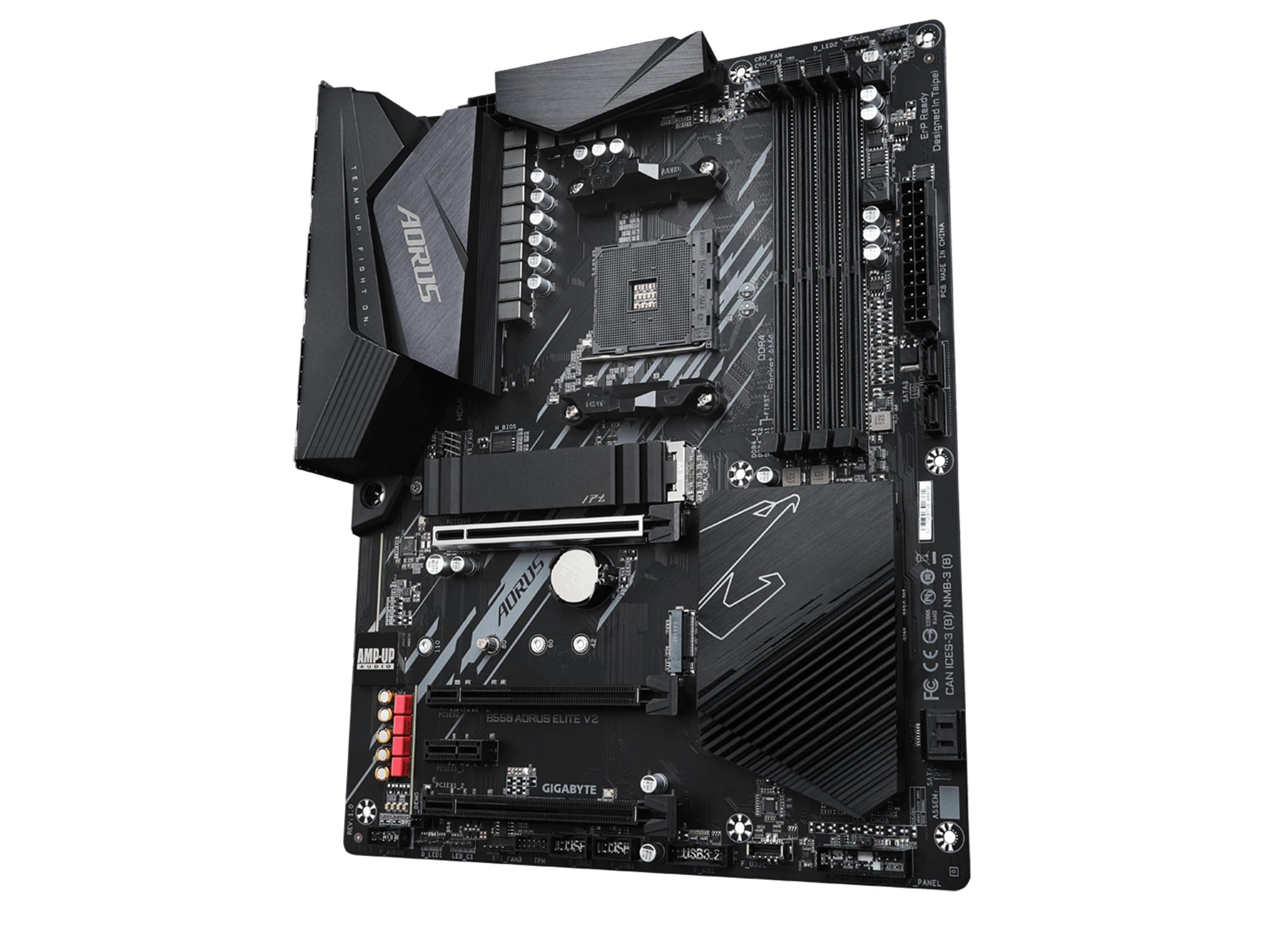

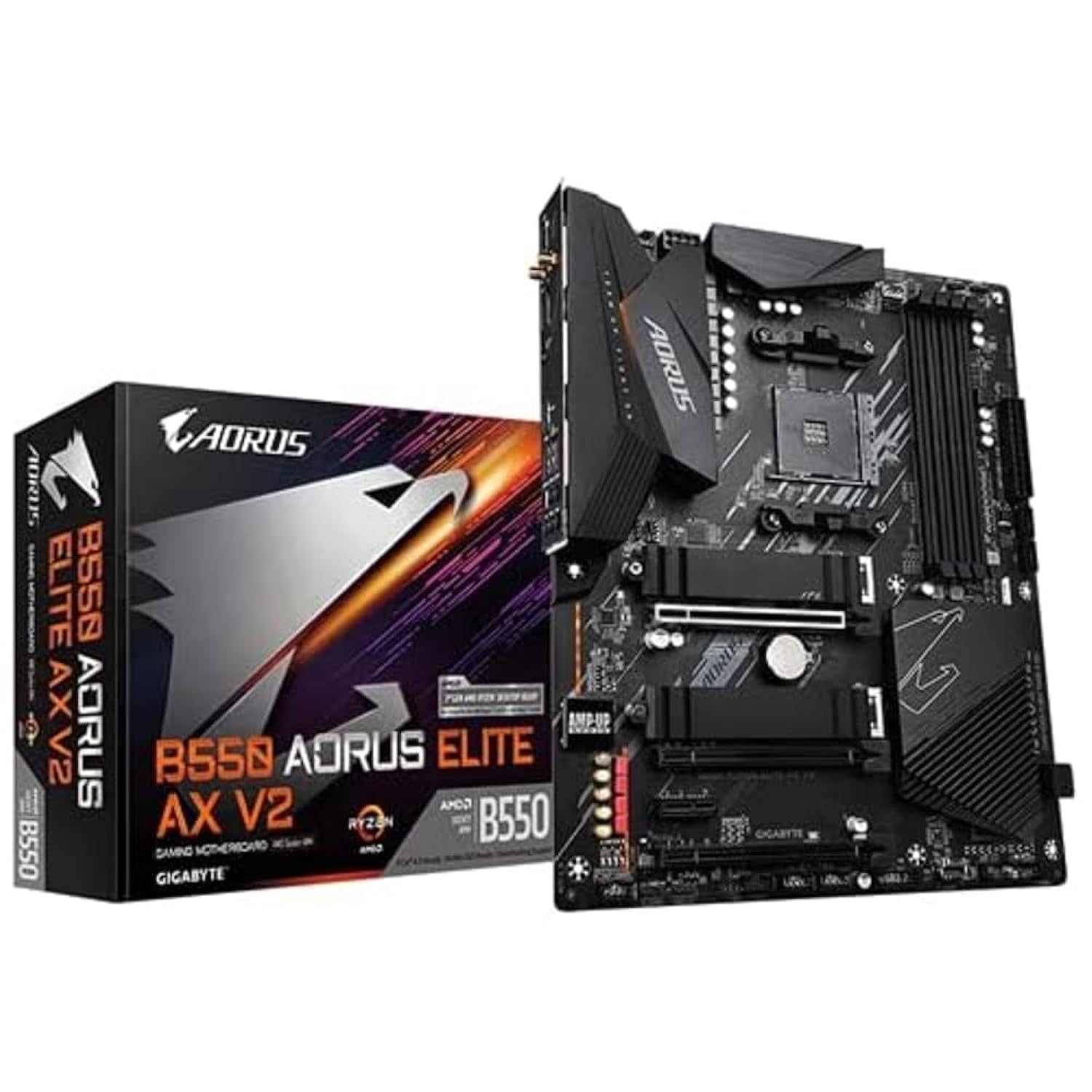

GIGABYTE B550 AORUS ELITE AX V2 Motherboard, Supports AMD AM4 Ryzen 5000 Processors, ATX, DDR4, Dual M.2, SATA 6Gb/s, 2.4/5 GHz Dual-Band, 2.5 GbE LAN, PCIe 4.0

Brand: GIGABYTE

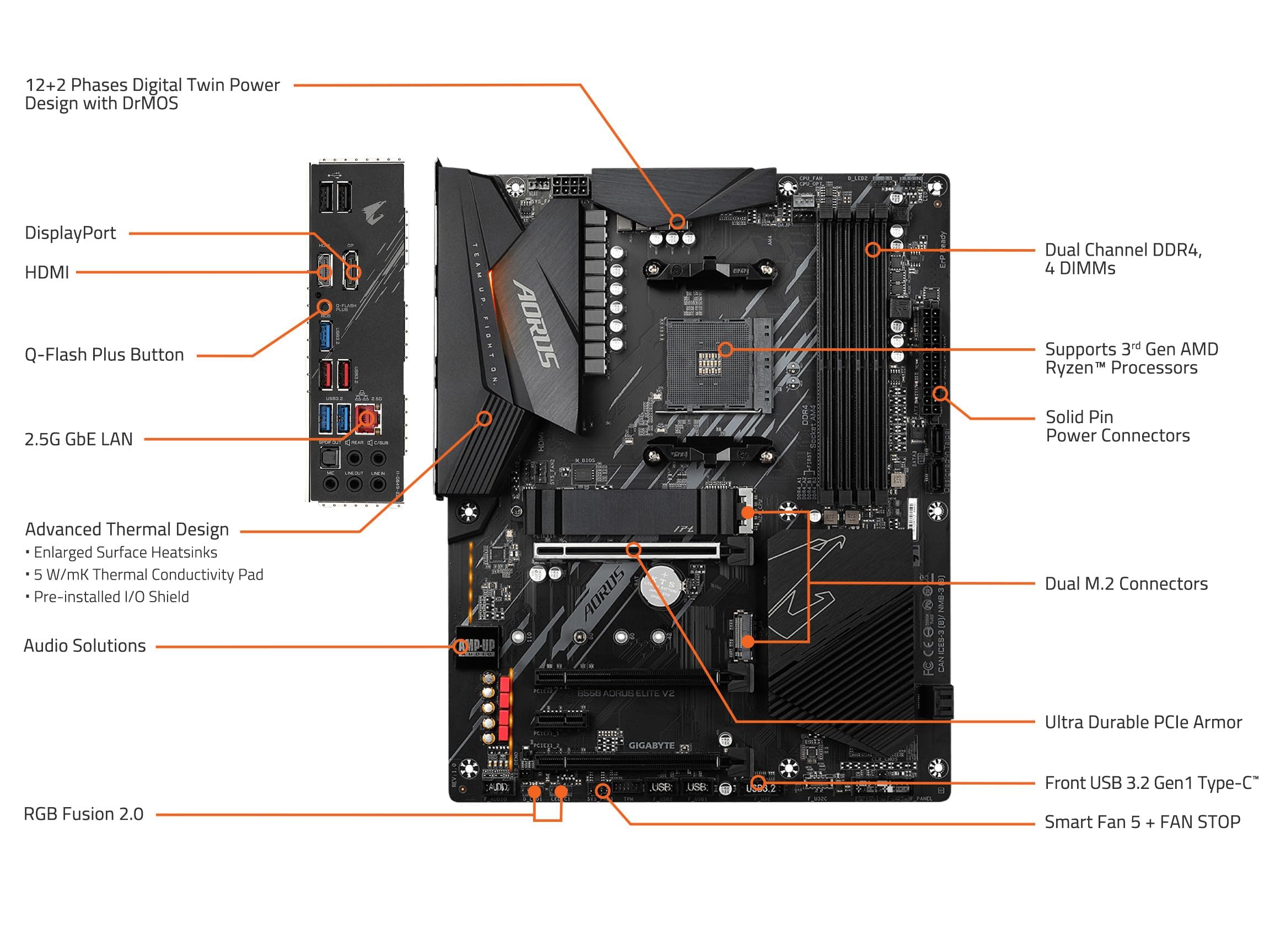

Features:

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12plus2 Phases Digital Twin Power Design with 50A DrMOS
• Advanced Thermal Design with Enlarged Surface Heatsinks
• Ultra Durable PCIe 4.0 x16 Slot

Package Dimensions: 87x339x1660

Release Date: 30-09-2020

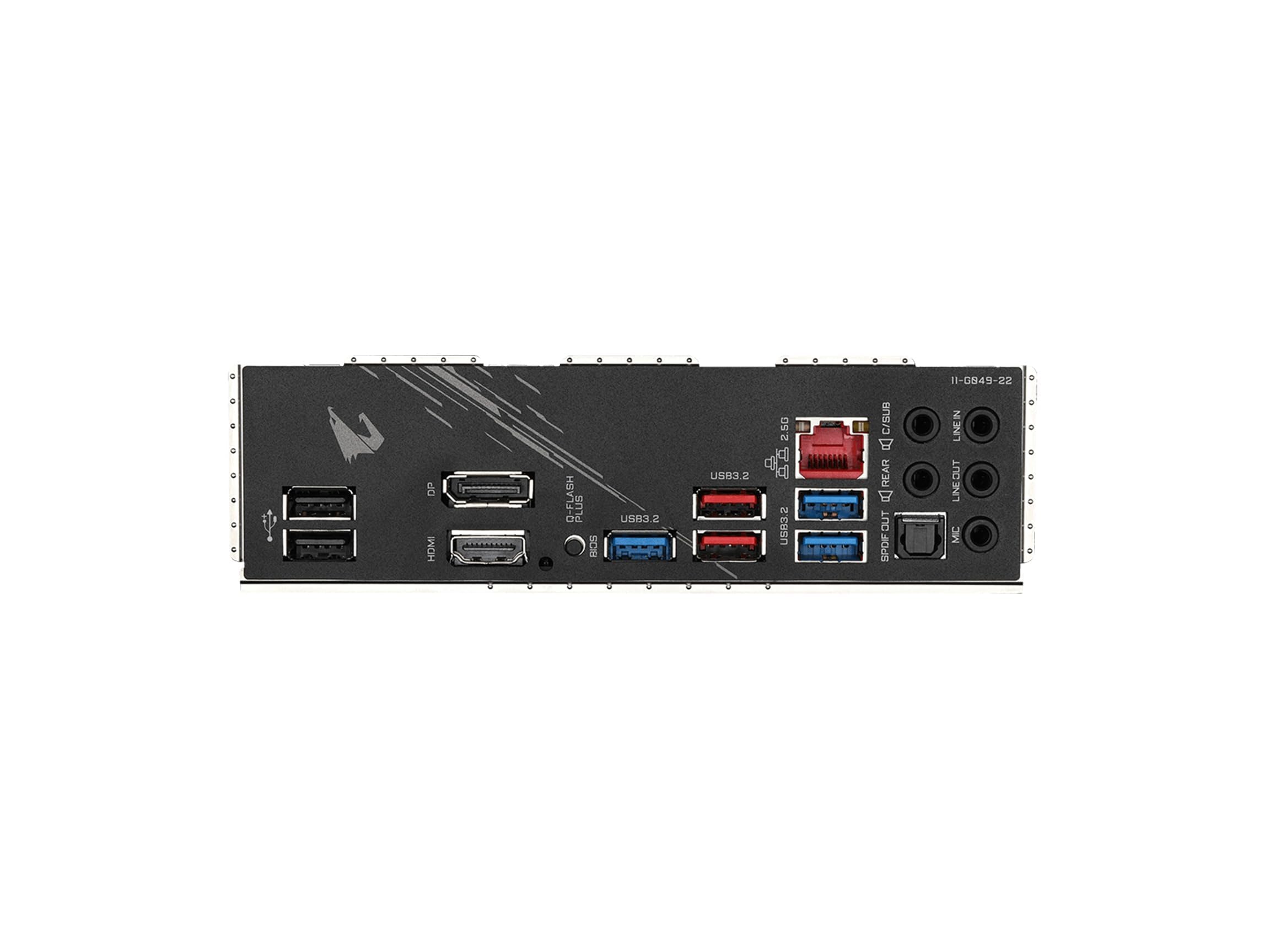

Details: Supports 3rd Gen AMD Ryzen Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12plus2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation.

UPC: 889523023969
