Draw-Tite 41004 Class 4 Trailer Hitch, 2 Inch Square Receiver, Black, Compatible with Ford F-100, F-150, F-250, F-350 (Verify Vehicle Application)

Brand: Draw-Tite

Color: Black

Features:

n
• VEHICLE APPLICATION: 1980-1983 Ford F-100 Except w/Custom Fascia, 1980-1986 Ford F-150 Except w/Custom Fascia, 1987-1996 Ford F-150, 1980-1986 Ford F-250 Except w/Custom Fascia, 1978-1996 Ford F-250, 1997 Ford F-250 HD, 1980-1986 Ford F-350 Except w/Custom Fascia, 1987-1996 Ford F-350 and 1997 Ford F-350 Heavy Duty

n

• CUSTOM DESIGNS: DRAW-TITE Class 4 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.

n

• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.

n

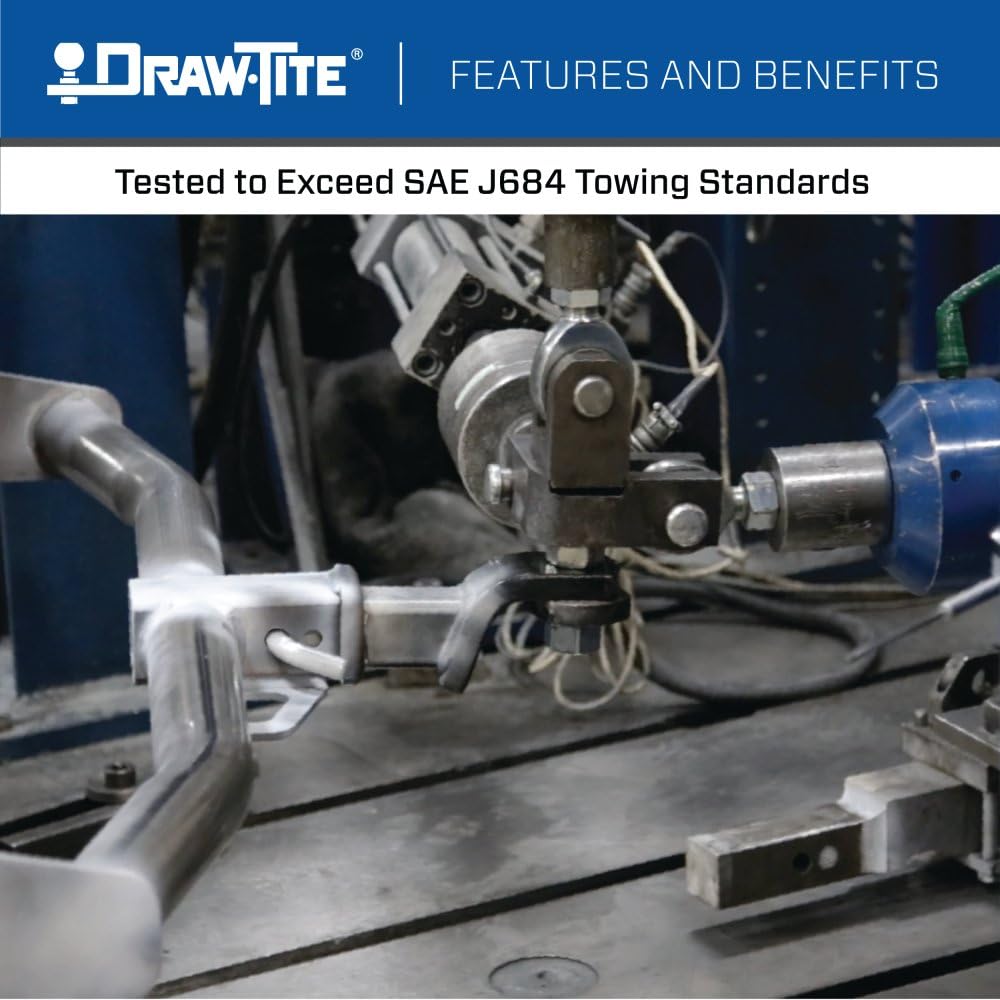

• TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.

n

• CAPACITY: Rated for up to 6,000 lbs. GTW and up to 600 lbs. TW. Also suitable for use with Weight Distribution systems of up to 10,000 lbs. WD and 1,000 lbs. WDTW.

n

Binding: Automotive

Release Date: 23-12-2014

model number: 41004

Part Number: 41004

Details: Draw-Tite Max-E Loader Hitch is a great heavy-duty solution for weight-distributed towing. The long side bracket design distributes the towing load over a greater portion of the tow vehicle frame, making the Max-E Loader the ideal receiver for maximum duty towing. Rated at up to 6,000 lbs. Gross Trailer Weight (GTW) weight carrying (WC) capacity and rated up to 10,000 lbs. (GTW) with weight distributing (WD) installation, the Max-E Loader offers a rugged solution for your heavy-duty applications. Draw-Tite begins with solid, all-welded construction for maximum strength and safety and an all-frame attachment for maximum weight distribution. Every Max-E Loader receiver is custom built according to manufacturer and model year using Computer-Aided Design (CAD) for a perfect fit and top towing performance. Purchasers can expect many years of reliable performance under rugged conditions. The 2″ square receiver tube is shipped pre-drilled for j-pin. The a-coat base w/ black powder coat finish is designed to withstand corrosion while looking good for years to come. Removable drawbar, pin and clip are sold separately. Draw-Tite is the premier brand of custom trailer hitches. Established in 1946, Draw-Tite was born out of a passion for outstanding performance and has come to represent one of the best custom-fit vehicle products available today. Each hitch designed must pass rigorous tests to become tested tough. With increased tongue weight capacity and integration of hitch match, an all-new accessory pairing guide, Draw-Tite is the brand of choice for years of dependable service.

EAN: 0742512410044

Package Dimensions: 47.0 x 31.0 x 15.0 inches
