DPTOOL Engine Camshaft Locking Timing Tool Kit Compatible with Buick Envision Cadillac XT4 2.0LT LSY Replacement for Chevrolet Silverado 2.0L LSY Engine Replace EN-52436 EN-52461 EN-52462 EN-52476

Brand: DPTOOL

Features:

n
• Application: Compatible with Cadillac (2019+) XT4 CT6 with 2.0L 2.0T LSY engine, Compatible with Buick Angkewei 2.0 LSY, Compatible with Chevrolet Silverado 2.0LT (rpo LSY) engine. Note: This kit is NOT fit 2.7L engine

n

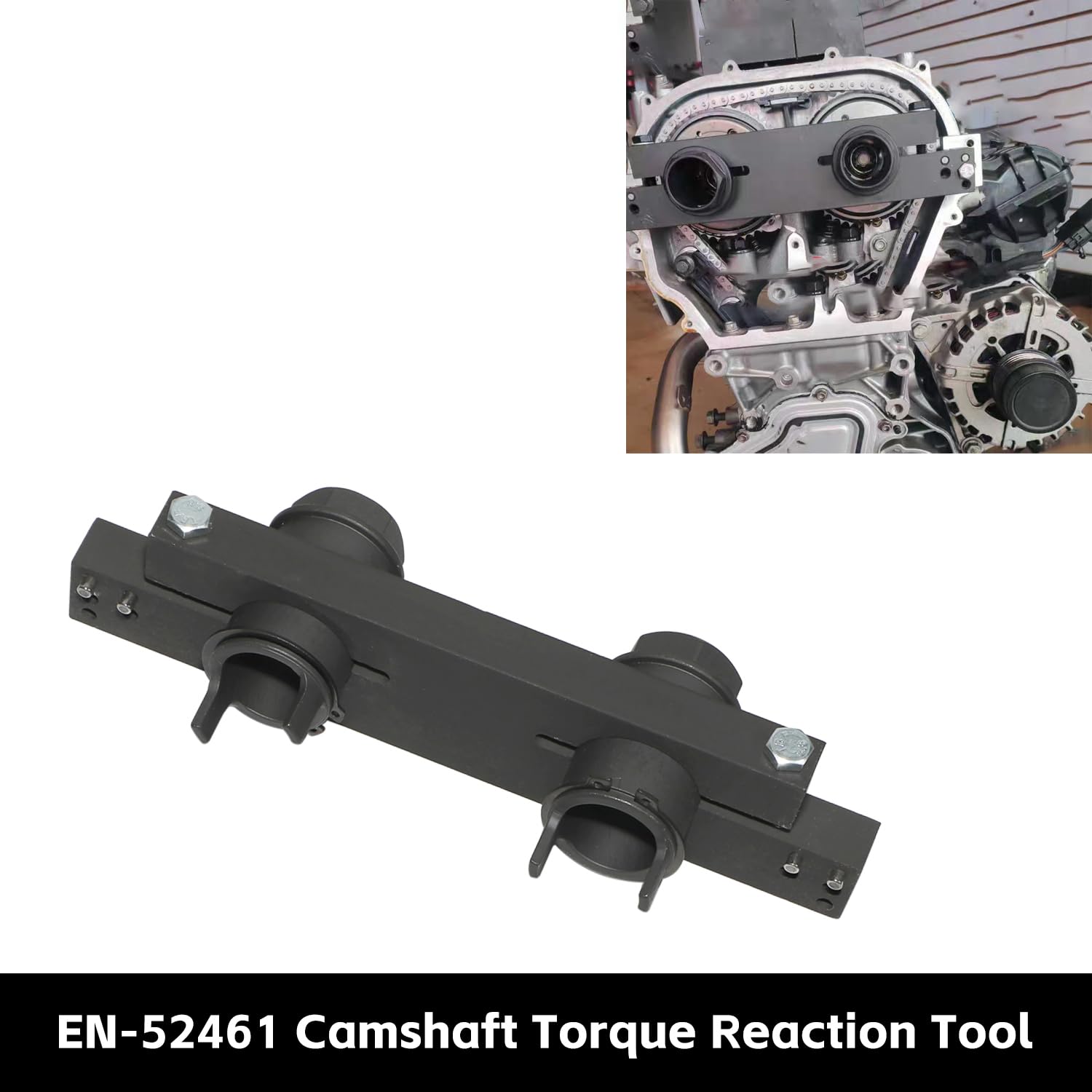

• Function: When camshaft timing or actuator service is required, the actuators must be held in order to remove and install the oil control valves (OCV), which act as fasteners to attach the camshaft actuators to the camshafts. EN-52461 ensures the actuators are held in the timed position for OCV service, and are used to remove all slack from the timing chain prior to timing chain, actuator, or camshaft service

n

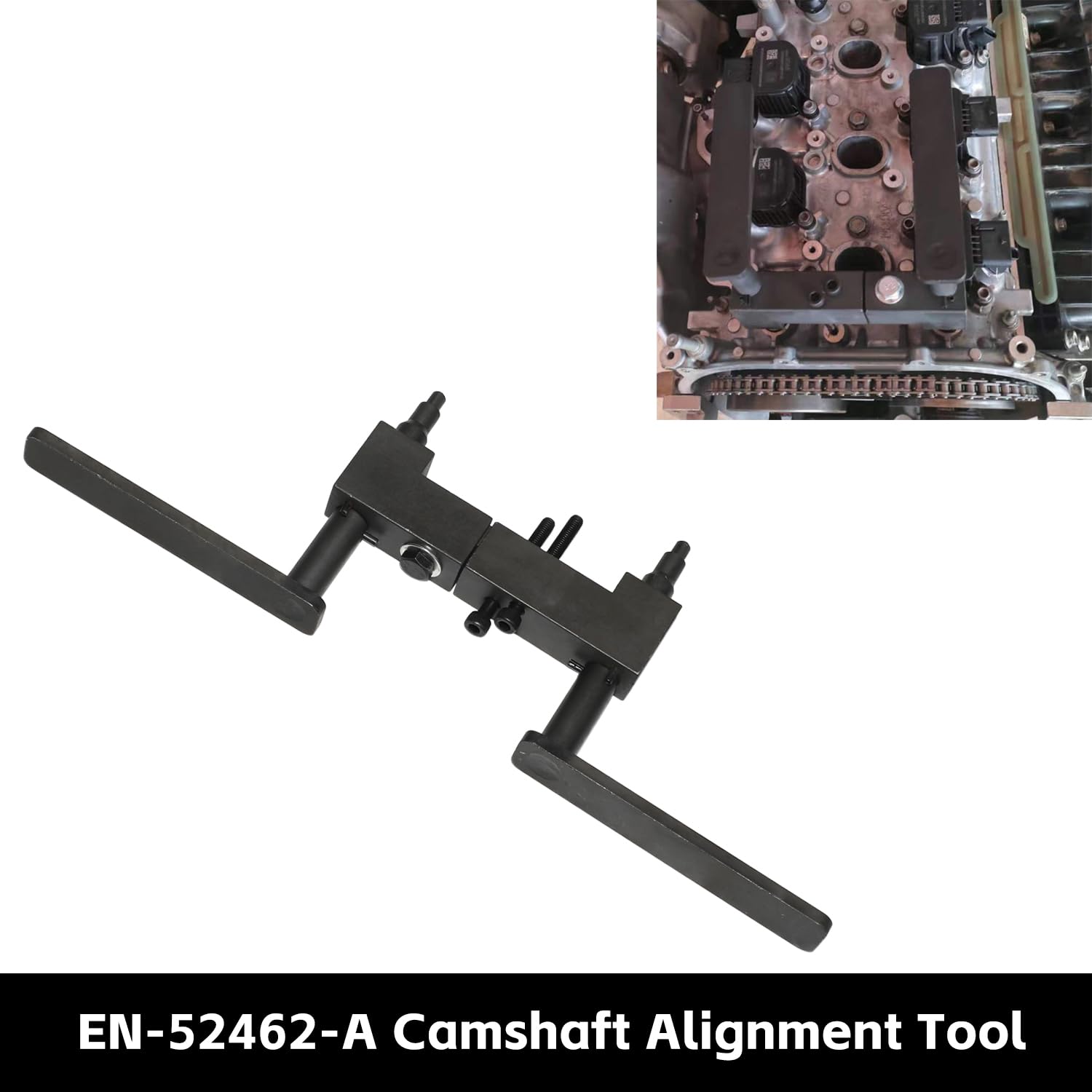

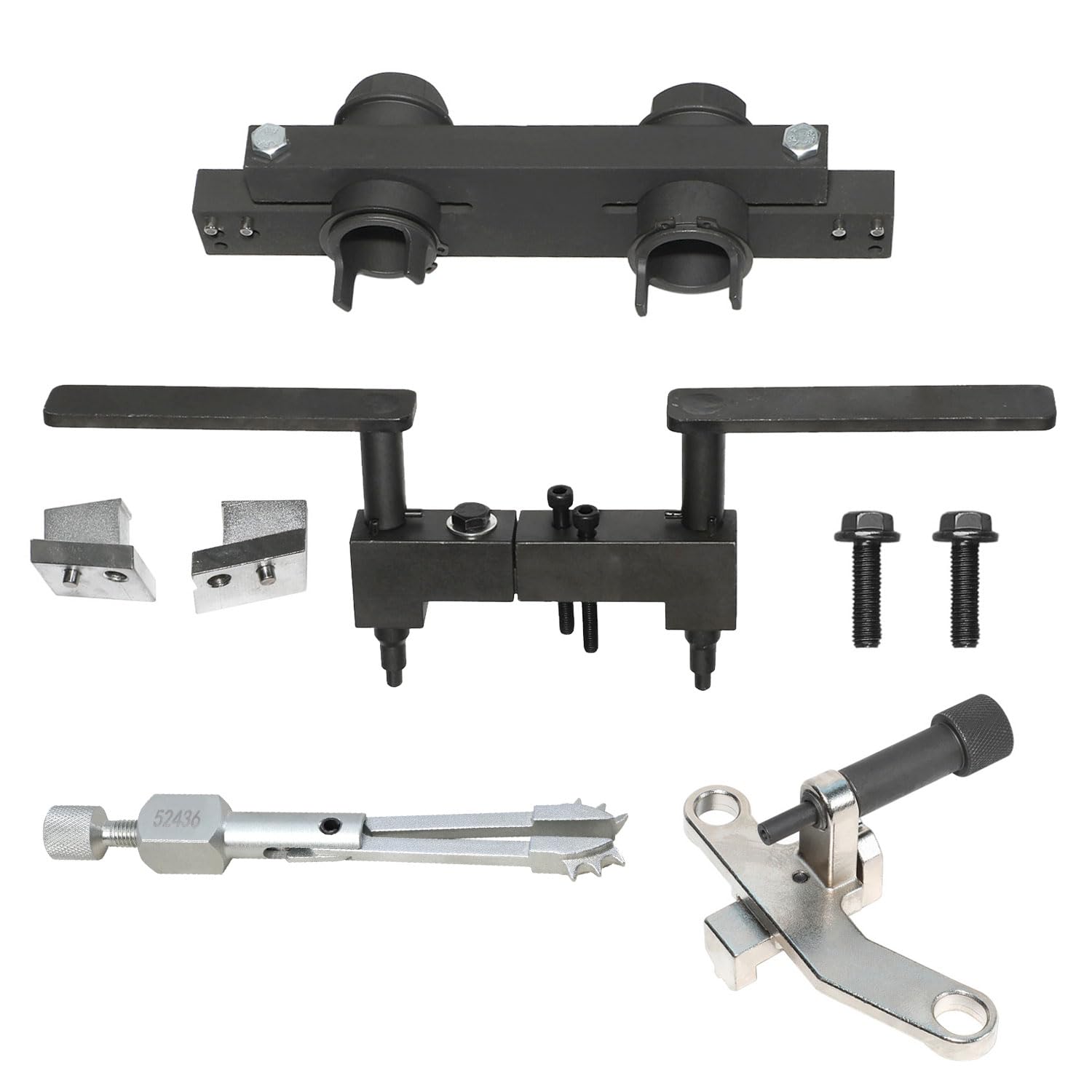

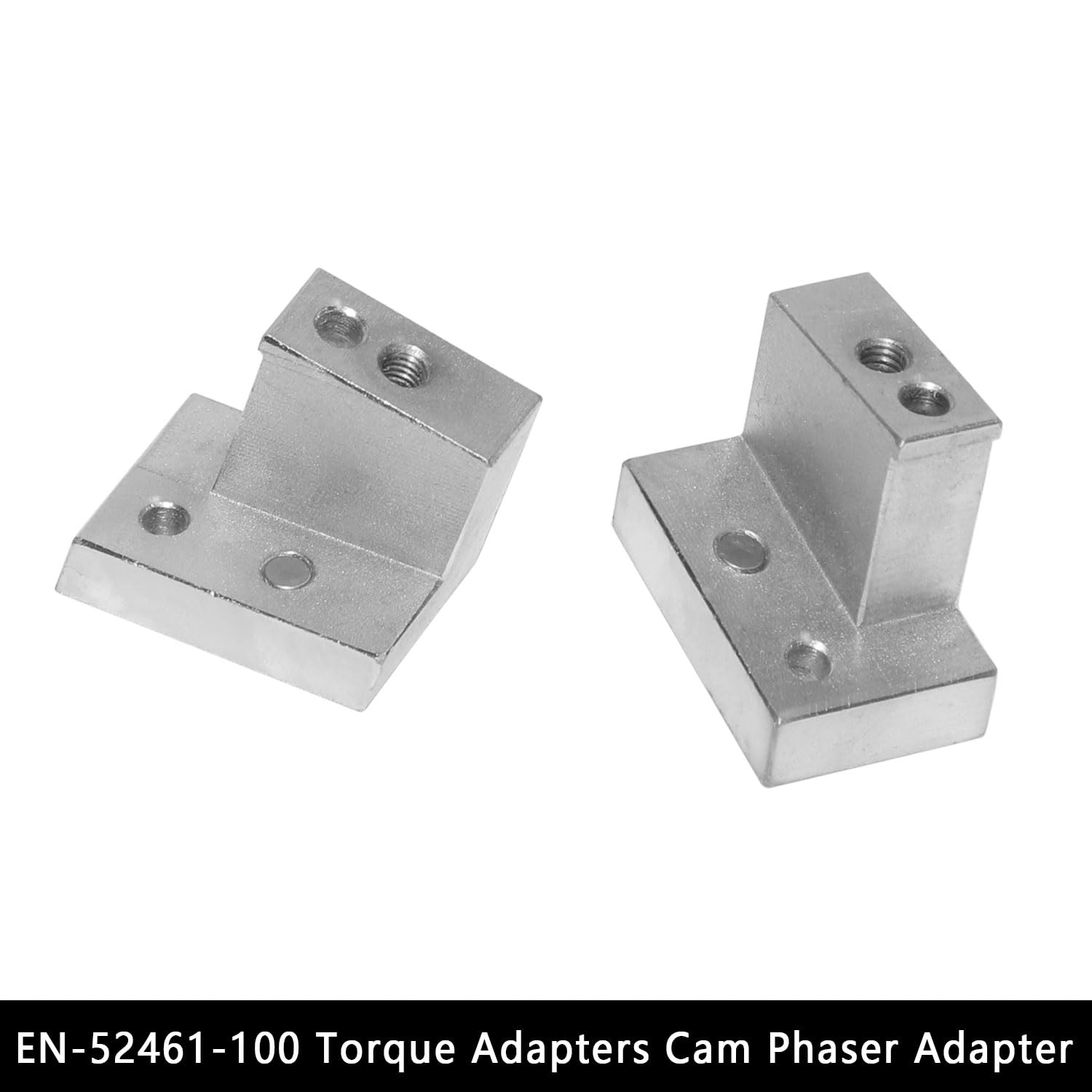

• OEM Equivalent Part Number: EN-52436, EN-52461, EN-52461-100, EN-52462, EN-52476. This timing tool set includes EN-52436 timing chain tensioner retention tool, EN-52461 camshaft torque reaction tool, EN-52462-a camshaft alignment tool, EN-52476 flywheel locking tool and EN-52461-100 torque adapters cam phaser adapter

n

• How To Use: EN-52476 installs in place of the starter and ensures that the flywheel is in the timed position for timing chain service. It also locks the flywheel ring gear teeth to allow flywheel bolt, balancer bolt, and camshaft actuator installation and torqueing. Once the body of EN‑52476 is installed in place of the starter, the flywheel is turned until the spring-loaded lock pin engages into the timing hole in the flywheel

n

• Tips for Use: The timing pin must be retracted before torqueing any fasteners. Torqueing fasteners with the timing pin engaged in the flywheel timing hole will damage the timing pin on EN-52476

n

model number: HKDL2ST

Part Number: EN52461

Package Dimensions: 10.2 x 10.2 x 3.1 inches
