DC HOUSE Hydraulic Power Unit 15 Quart Double Acting Hydraulic Pump DC 12V Power Unit Metal Reservoir for Dump Trailer Car Lifting

Brand: DC HOUSE

Color: Silver-black

Features:

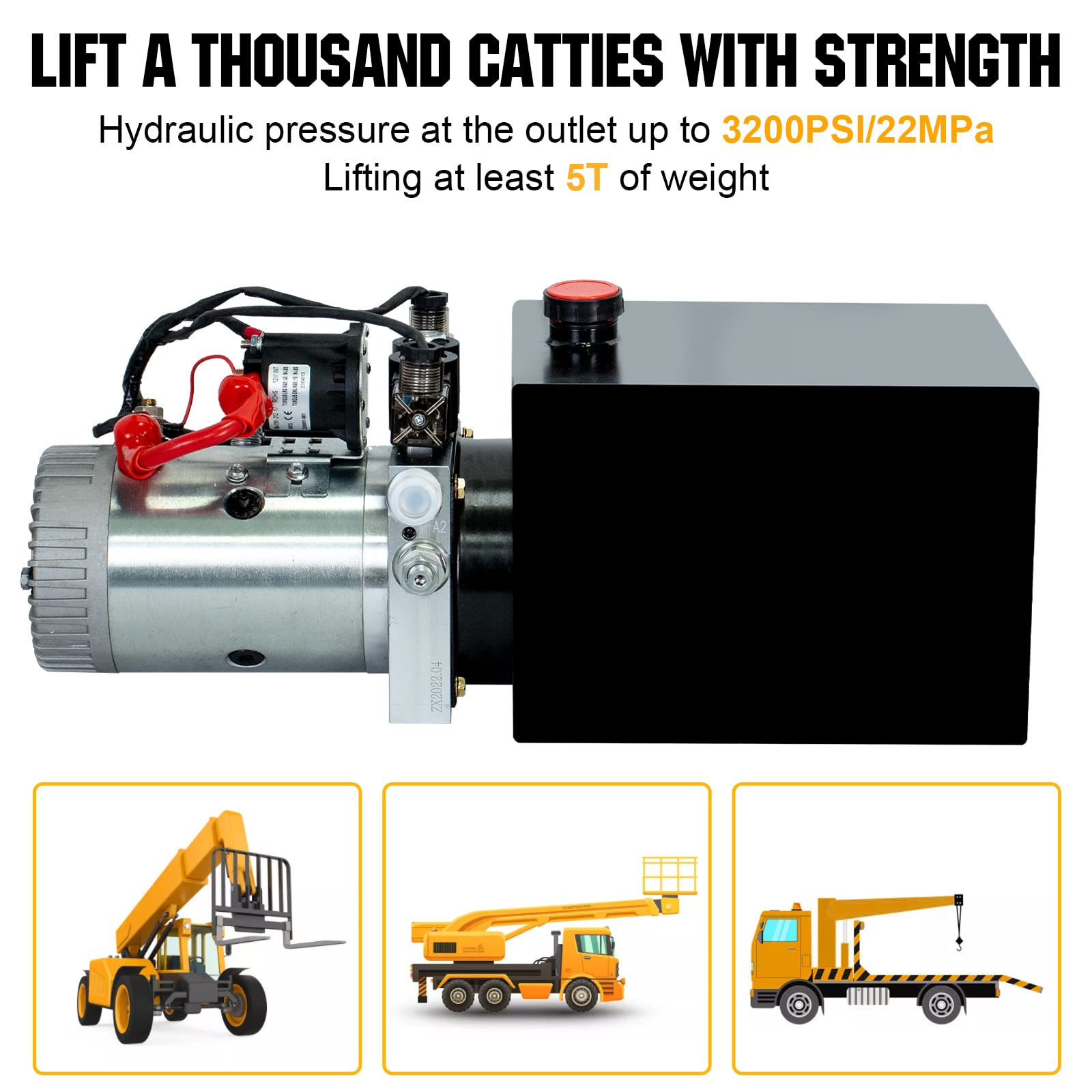

• One Force Lifts a Thousand Pounds: The hydraulic pump is equipped with a 12V DC motor (rated at 1.6KW) and a 15 quart/15-liter oil tank. The maximum pressure at the outlet can reach 3200PSI/22MPa with your double-acting cylinder can easily lift at least 5 tons of weight.

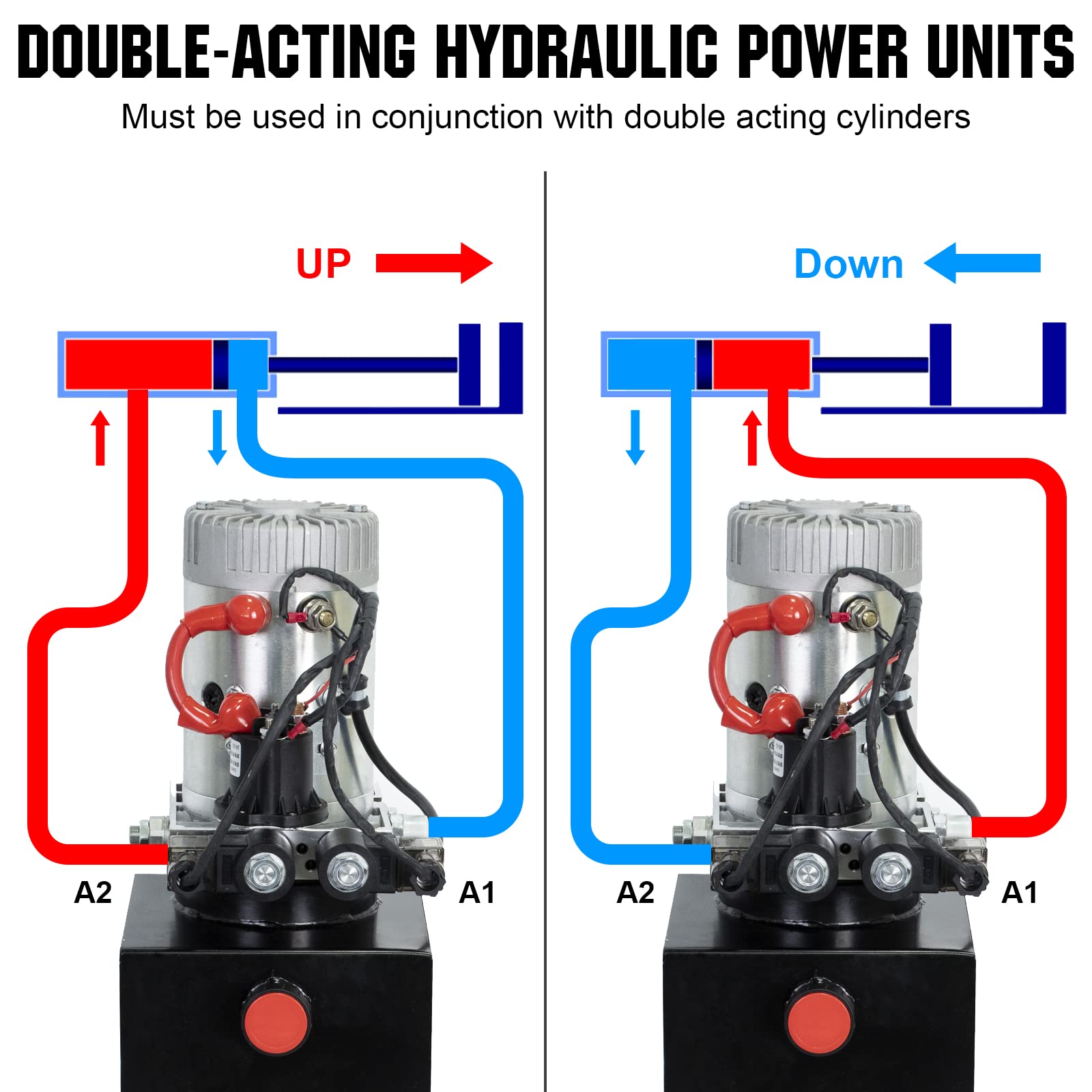

• Double-Acting Hydraulic Power Units: This double-acting hydraulic pump must be used with a double-acting cylinder. The hydraulic pump will have an outlet and return port when controlling your cylinder up and down (for up: A2 for outlet and A1 for return; for down: A2 for return and A1 for outlet), so your cylinder must also have two ports to work.
• The King of Cost Performance: This brand new hydraulic pump is perfect for replacing your dump trailer pump, and you get a great performing hydraulic power unit for half the cost of a dump truck pump store. It can also be used as a power unit for other hydraulic systems such as garden tractors, forklifts, stackers, small or medium-sized lifting platforms, etc.

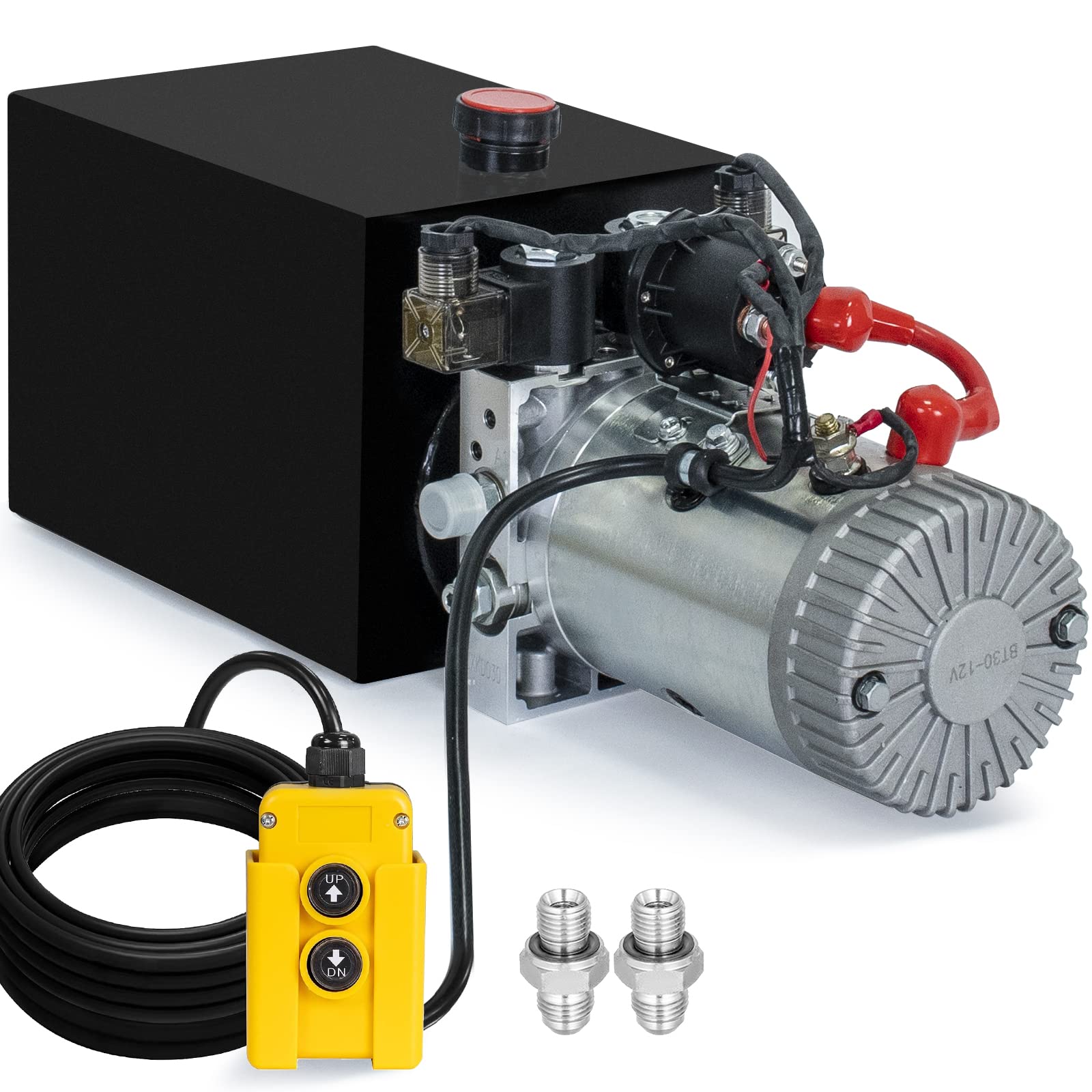

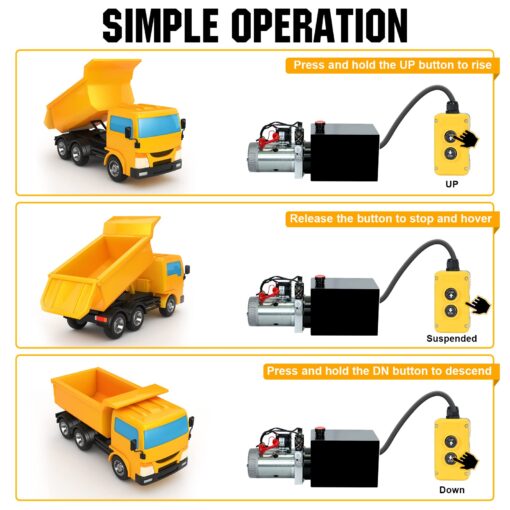

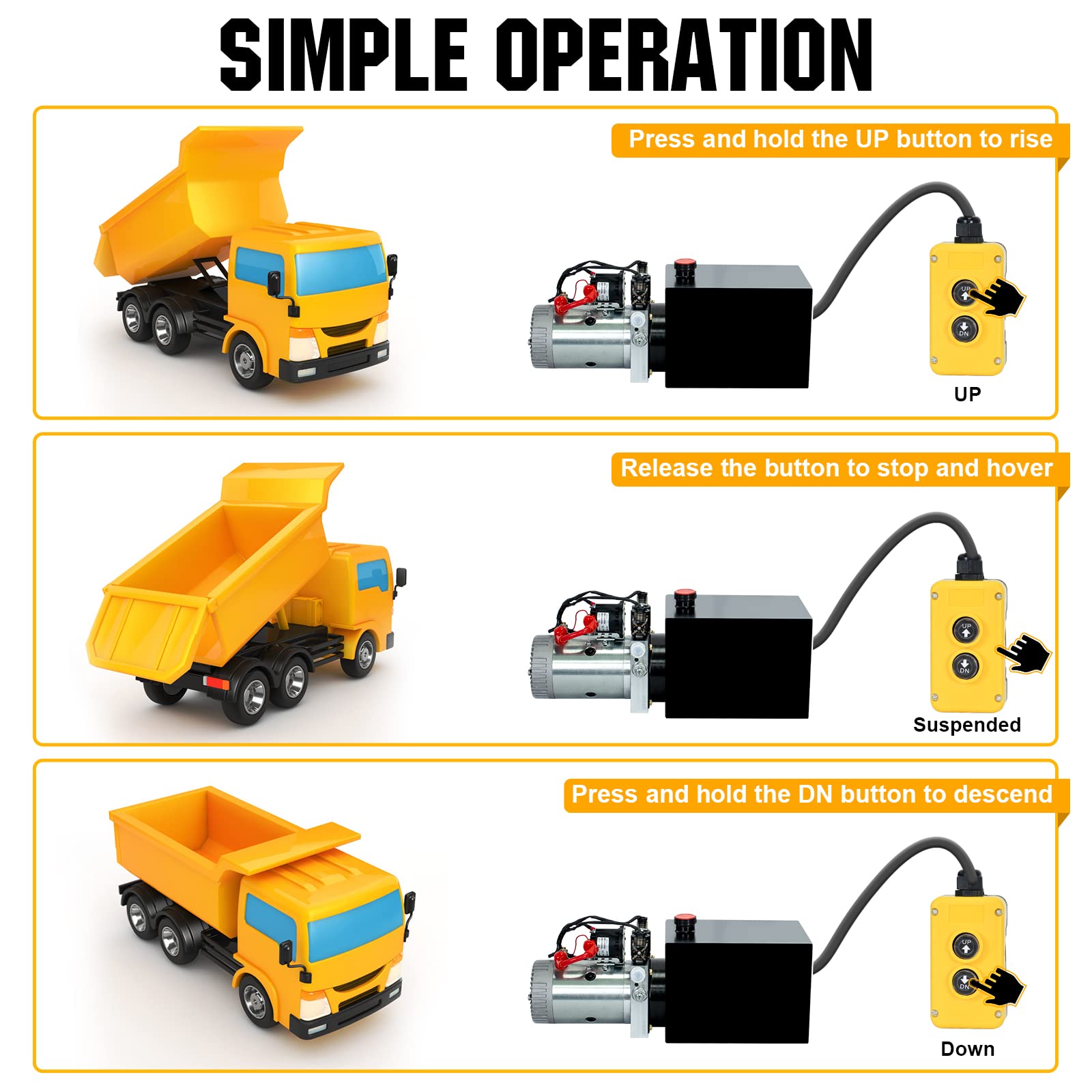

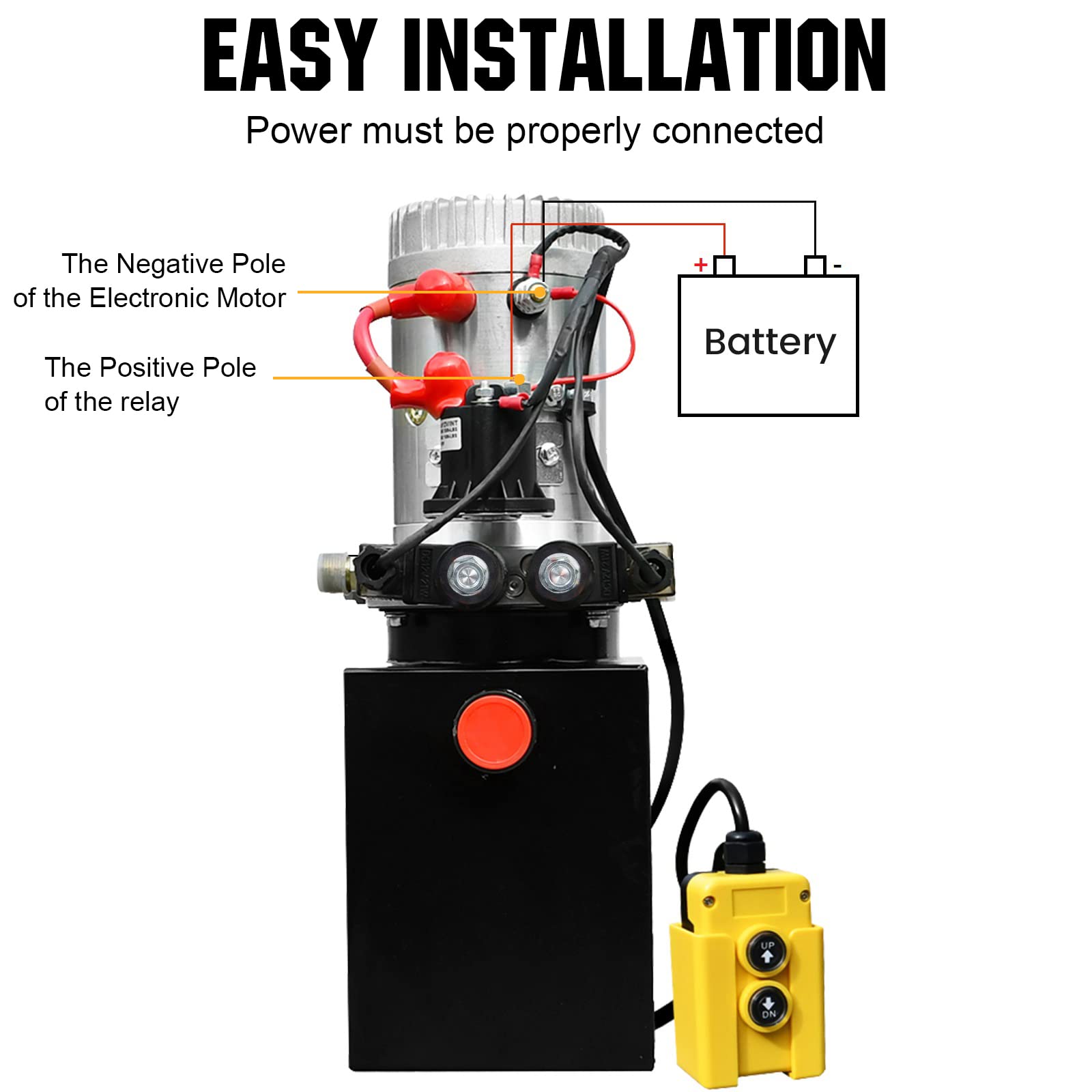

• Easy to Use: This hydraulic power unit can be used directly with the controller (included) after connecting your cylinder with the oil pipe (not included) and connecting the 12V DC power supply (not included) according to the instructions. The interface type of the oil port is (9/16″)SAE#6, and the suitable hydraulic oil viscosity range is 22-46mm²/s.
• Friendly Service: This product provides 30 days of quality assurance. If there are any quality problems, they can be unconditionally replaced. Please leave us a message if you have any questions during use.

Package Dimensions: 284x654x15821

UPC: 752413654829
