Ciezeical CAN-212 Ethernet to CAN Gateway, CAN-Bus Network Diagnosis and Testing, Industrial Ethernet Connection to CAN Network, Industrial Control Equipment

Brand: Ciezeical

Features:

n

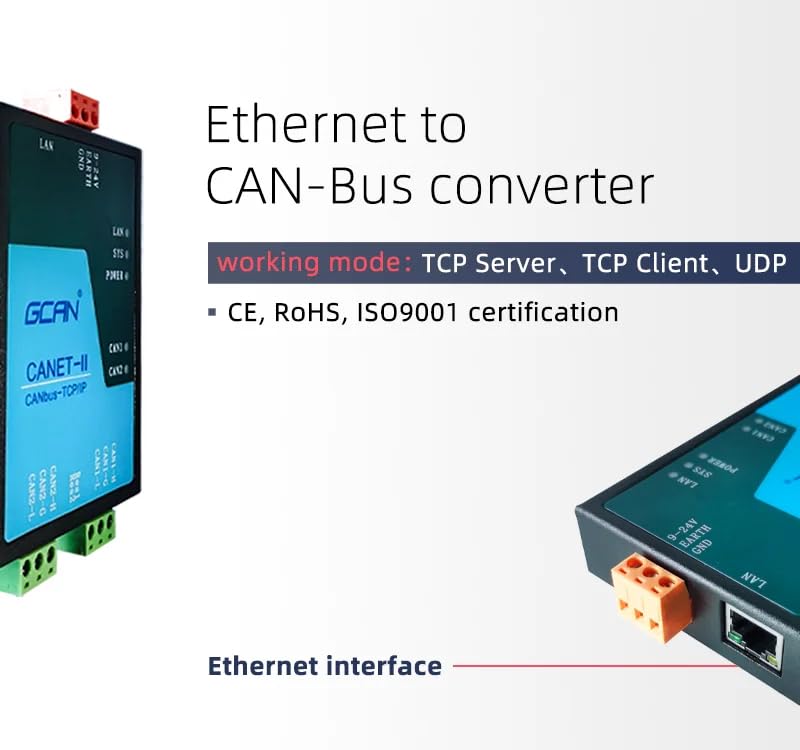

• CAN-212 (CANET-II) is a high-performance CAN-bus communication interface card with 2 CAN interfaces and 1 Ethernet interface. With the GCAN-212 high-performance CAN interface card, users can easily interconnect the CAN-bus network and the Ethernet network, further expanding the scope of the CAN-bus network

n

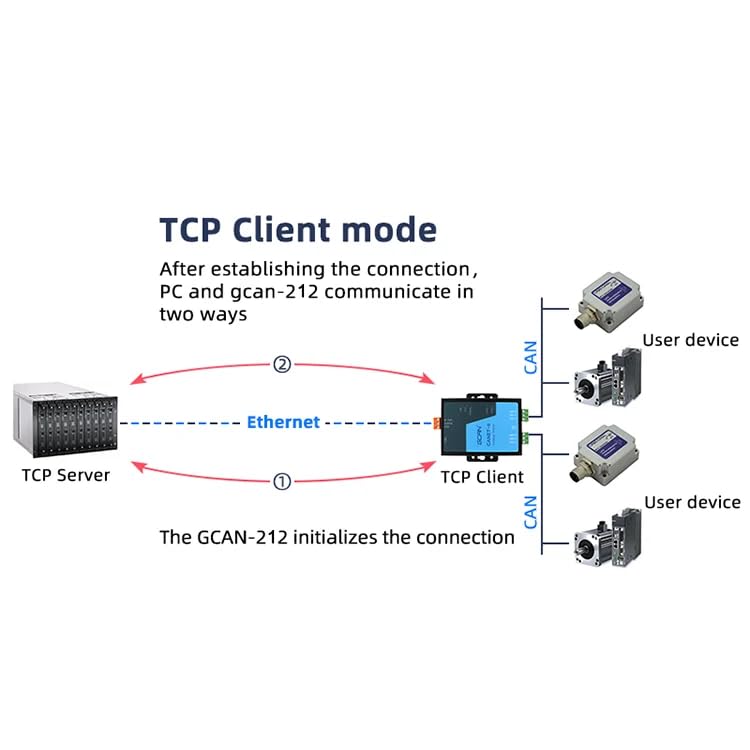

• The CAN-212 high-performance CAN interface card is a powerful tool for CAN-bus product development and CAN-bus data analysis. The PC can be quickly connected to the CAN-bus network through the Ethernet interface to form a CAN-bus network control node for data processing and data acquisition in CAN-bus network fields such as fieldbus laboratories, industrial control, smart communities, and automotive electronic networks. At the same time, the device has the characteristics of small size and plug-and-play, and is also the best choice for portable system users.

n

• The CAN interface electrical isolation protection module has been integrated on the CAN-212 to prevent damage to the device due to instantaneous overcurrent/overvoltage, and enhance the reliability of the system in harsh environments.

n

model number: 212 Gateway

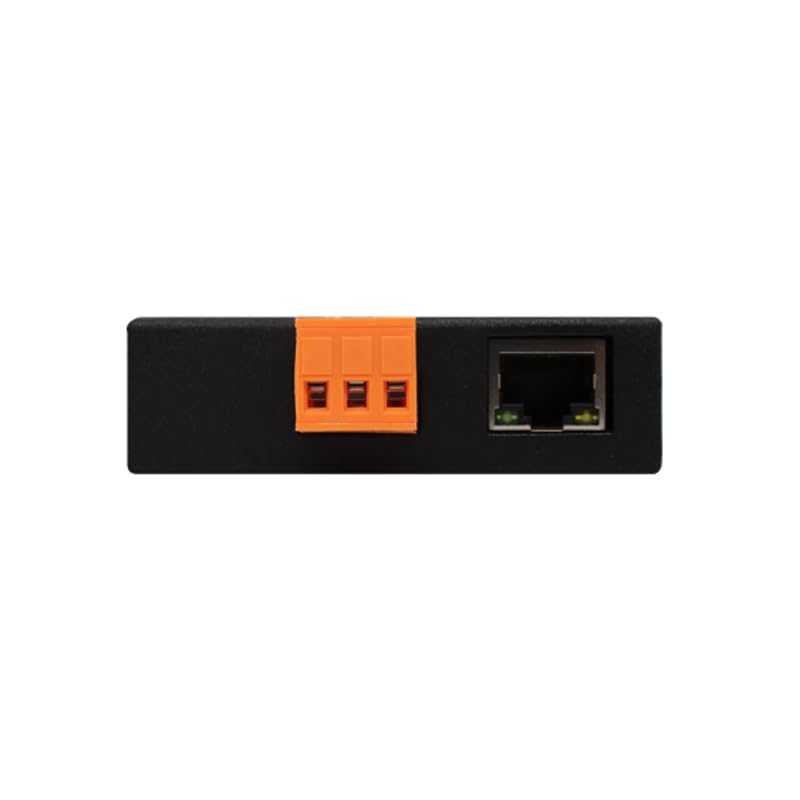

Part Number: CAN Bus Gateway

Details: The device parameters of the CAN-212 Ethernet to CAN converter include: (1) High-speed 32-bit industrial-grade processor; (2) Embedded hardware watchdog timer; (3) The module has built-in FLASH memory to store parameters; (4) Powered by an external power supply (DC+9~24V) (5) Power supply current: 50mA (24V DC); (6) Electrostatic discharge immunity level: contact discharge ±2KV, air discharge ±15KV; (7) Electrical fast transient pulse group immunity level: ±1KV; (8) Surge immunity level: ±1KV; (9) Operating temperature range: -40℃~+85℃; (10) Operating humidity range: 5%~95%RH without condensation; (11) Screw-fixed installation method, specially designed for industrial use. (12) Integrated 2-way CAN-bus interface, using Phoenix terminal wiring method; (13) CAN-bus signals include: CAN_H, CAN_L, CAN_GND; (14) CAN-bus supports CAN2.0A and CAN2.0B frame formats, in line with ISO/DIS 11898 specifications; (15) CAN-bus communication baud rate is arbitrarily programmable between 5Kbps and 1Mbps; (16) CAN-bus interface uses electrical isolation, isolation module insulation voltage: DC 1500V; (17) 32 hardware FIFO receive buffers, maximum send data flow: 8000 frames/second; maximum receive data flow: 14000 frames/second; (18) The CAN end receives the message timestamp accuracy up to 1us. (19) Use standard Ethernet interface, RJ45, support 10/100M adaptive; (20) Support heartbeat and timeout disconnection functions; (21) The working port, target IP and target port can be set; (22) Automatically restore connection resources after network disconnection and reliably establish TCP connection; (23) Compatible with SOCKET working mode (TCP Server, TCP Client, UDP, etc.), the host computer communication software is written in accordance with standard SOCKET rules. Application areas (1) CAN-bus network diagnosis and testing (2) Industrial Ethernet connection to CAN network (3) Power communication network (4) Industrial control equipment (5) High-speed, large data volume communication

EAN: 0735153341013
