CHINLY 8pcs DMX512 DMX Dfi DJ 2.4G 7 Charging Wireless Receiver Built-in Battery & 1 Transmitter LED Lighting Control for LED Stage Par Party Light

Brand: CHINLY

Color: 1 Transmitter & 7 Receivers(battery)

Features:

n
• Latest design wireless DMX512 receiver have a built-in battery, don’t need power adapter any more when it works. 2 hours full charging time, can lasts about 8 hours of work， Users also can use the product while charging.(Transmitter does not contain charging function)

n

• Work frequency section: 2.4G ISM ; No time delay when signal data is transmitting, signal data is real time and reliably.

n

• DMX512 wireless transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.

n

• Metal Black Shell. 7 groups ID code settable, user can use 7 groups individual wireless net without any interfere each other in the same place.

n

model number: SR5602

Part Number: SR5602

Details: Products Performance:

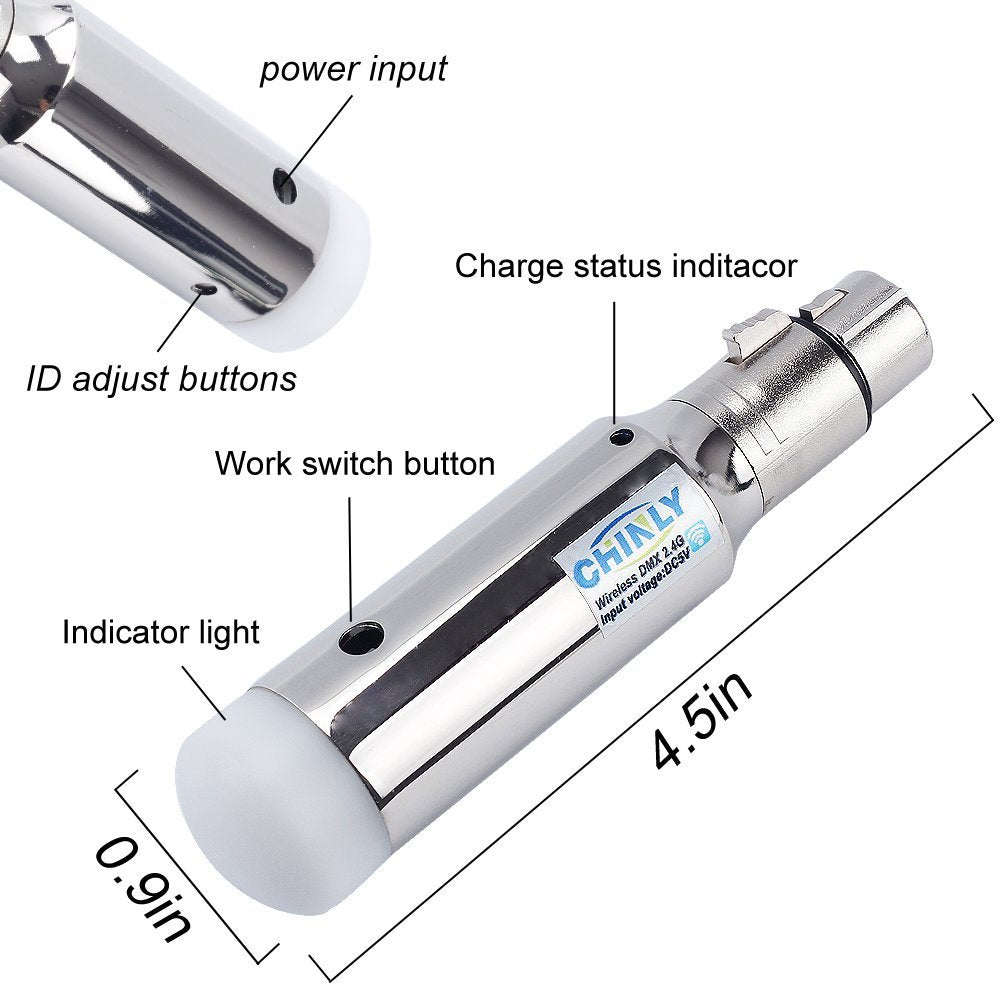

n1. 2.4G wireless DMX512 receiver
n2. 126 channels jumping frequency automatically，high anti-jammingability.to ensure works reliability
n3. Material: zinc alloy + plastic
n4. Input voltage: 5VDC 500mA MIN
n5. Communication distance: 400M (visible distance)
n6. Work frequency section:2.4G ISM,126 channels frequency section
n7. 7 groups ID code settable，user can use 7 groups individual wireless net without any interfere.
n8.
n
nEstablishing Communication:
n1. Power on DMX512 wireless received boardfirst and then following to power up the transmitted board.
n2. Press “Key” button to setsame ID value of transmitted board and received board. Please use different IDvalue if you need use more than 1 group wireless universals at same time insame place.
n3. The red LED flashes when transmittertransmits DMX data by no interfered frequency section, then receiver changescommunicated frequency section. Green LED flashes til received corrected sameID value, LED flashes faster once DMX data faster.
n4. Communication was establishedcorrectly.
n
nPrecautions：
n1.Please use the original charger（DC 5V 500mA min output）. need about 2 hours to fully charge the battery，the fully charged battery can lasts about 8 hours of work，and users can also use the product while charging.
n
nBefore using the product, please read themanual carefully. If you face any problems, please feel free to contact us.
n

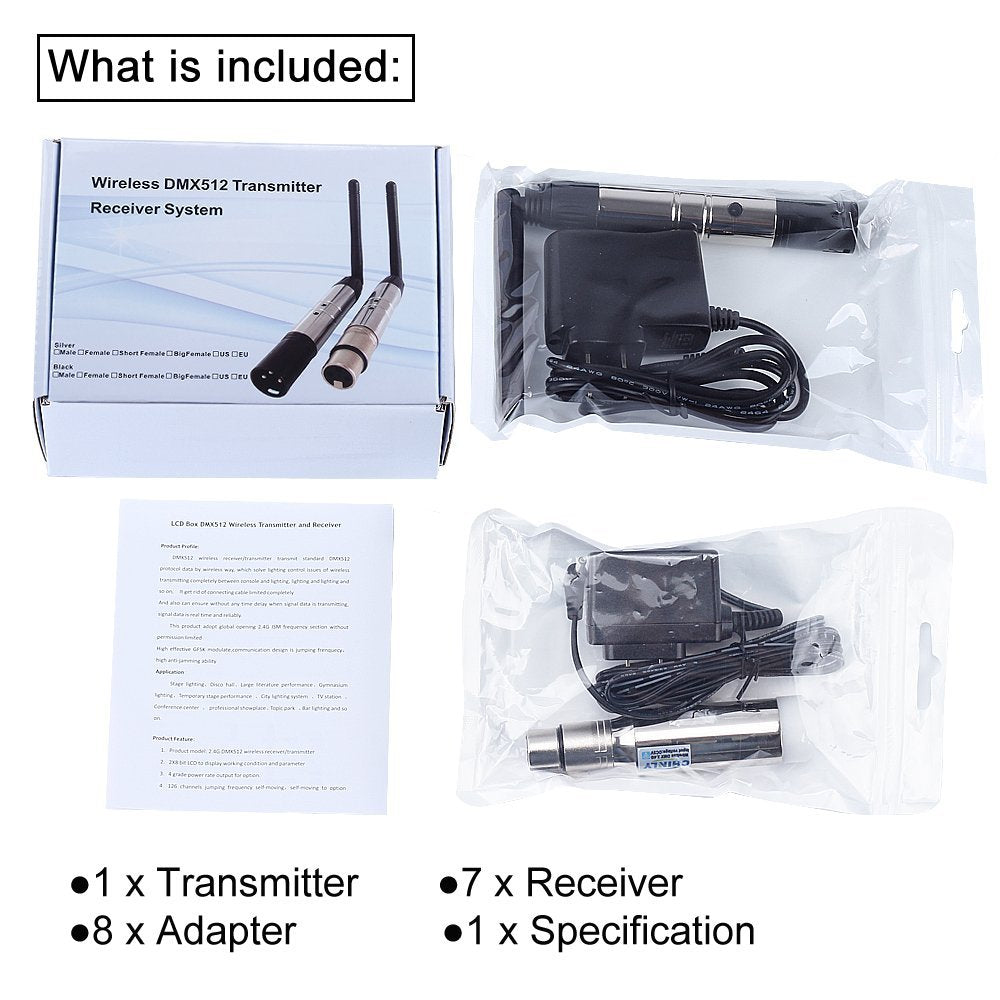

nPackage Included:
n7 X Charging DMX512 Wireless Receiver (built-in battery）
n1 X DMX512 Wireless transmitter（no built-in battery）
n8 X Adapter
n1 X Instruction book

EAN: 0604270810163

Package Dimensions: 7.2 x 5.4 x 4.3 inches
