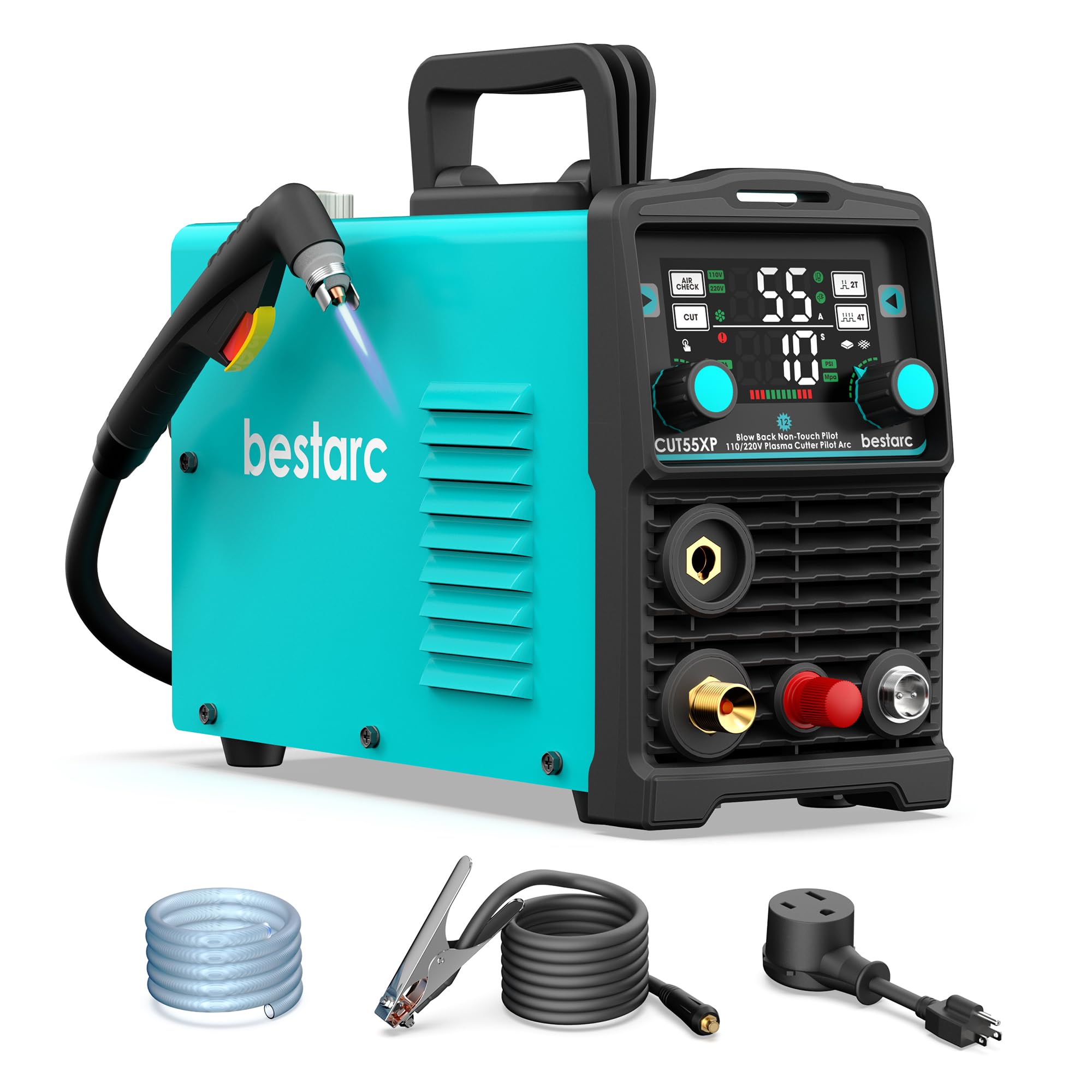

bestarc 55Amps Plasma Cutter, Blow Back Pilot Arc With [Air Sensor Technology], 110V/220V Dual Voltage Non-HF Plasma Cutting Machine, Digital Screen Display (CUT55XP 110V/220V)

Brand: bestarc

Features:

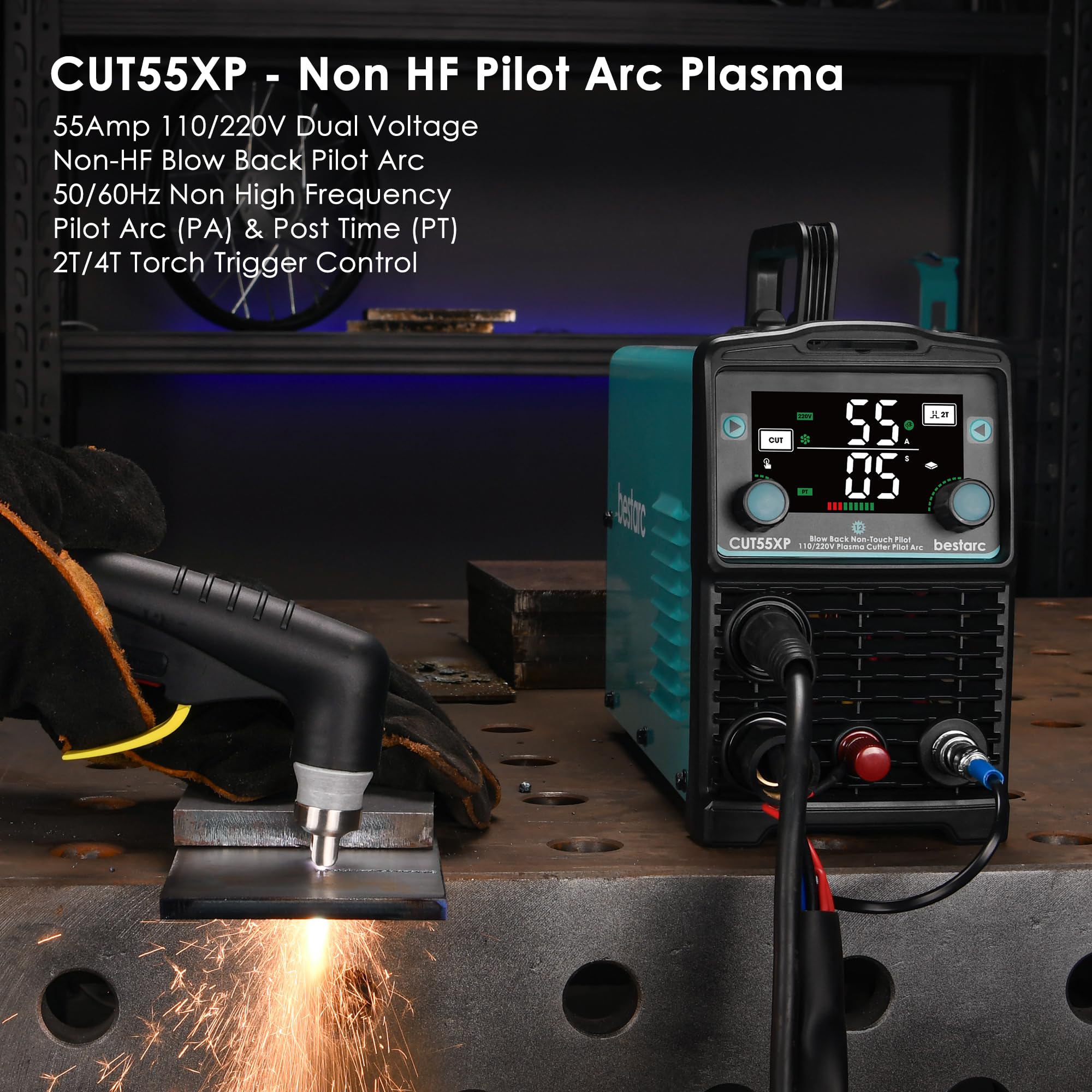

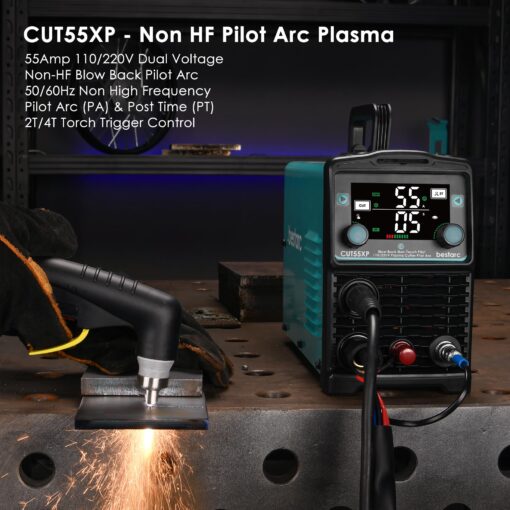

• [Blow Back Pilot Arc]: bestarc plasma cutter features a blow back technology, Non-high-frequency pilot arc prevents hf signal interference and improves cutting stability. Blow-back pilot arc technology initiates the arc without touching the metal, while low-frequency arc maintenance reduces electrode burn during non-cutting, extending electrode and nozzle life.

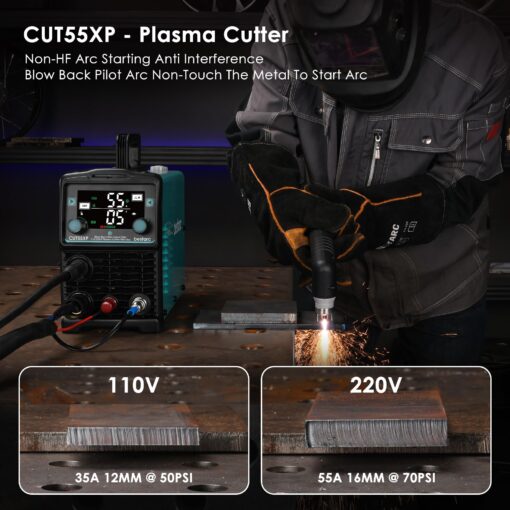

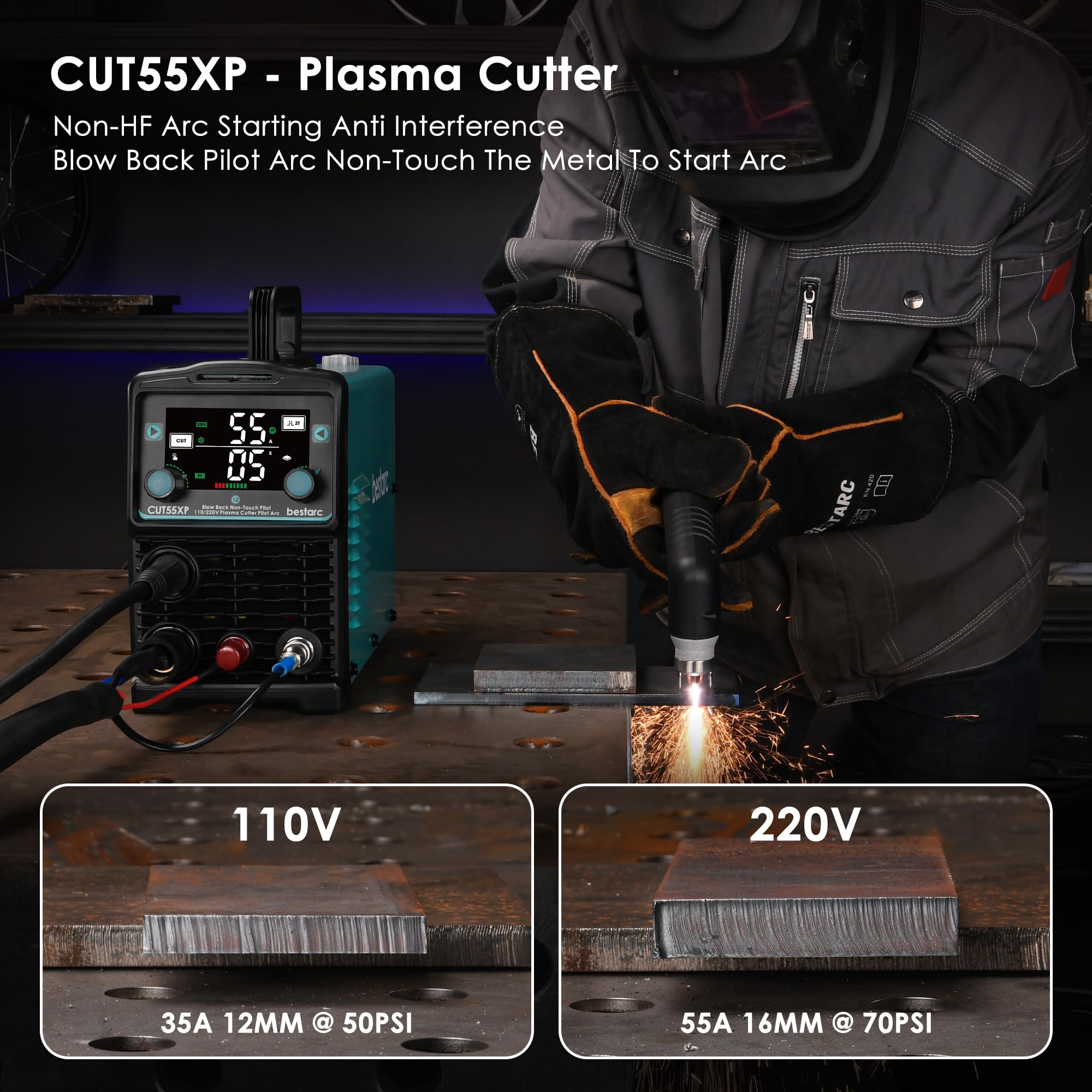

• [Cutting Thickness]: Non-HF blow back pilot arc plasma cutter boasts an automatic detection feature for input voltages of both 110V and 220V, 50% duty cycle single phase. It is recommended for cutting thicknesses up to 12mm at 35A on 110V with 50PSI, 16mm at 50A on 220V with 70PSI. The circuit breaker specifications require a 40A unit for 110V operation and a 30A unit for 220V. This versatile plasma cutter is ideal for use on materials including stainless steel, alloy steel, mild steel, copper, aluminum, Good for Home DIY and CNC cutting table
• [Digital Screen Display]: The plasma cutter’s digital screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations promptly, improving operational efficiency. If blow back plasma cutter can not work, the screen has an error code system, making it easy to find out the problems

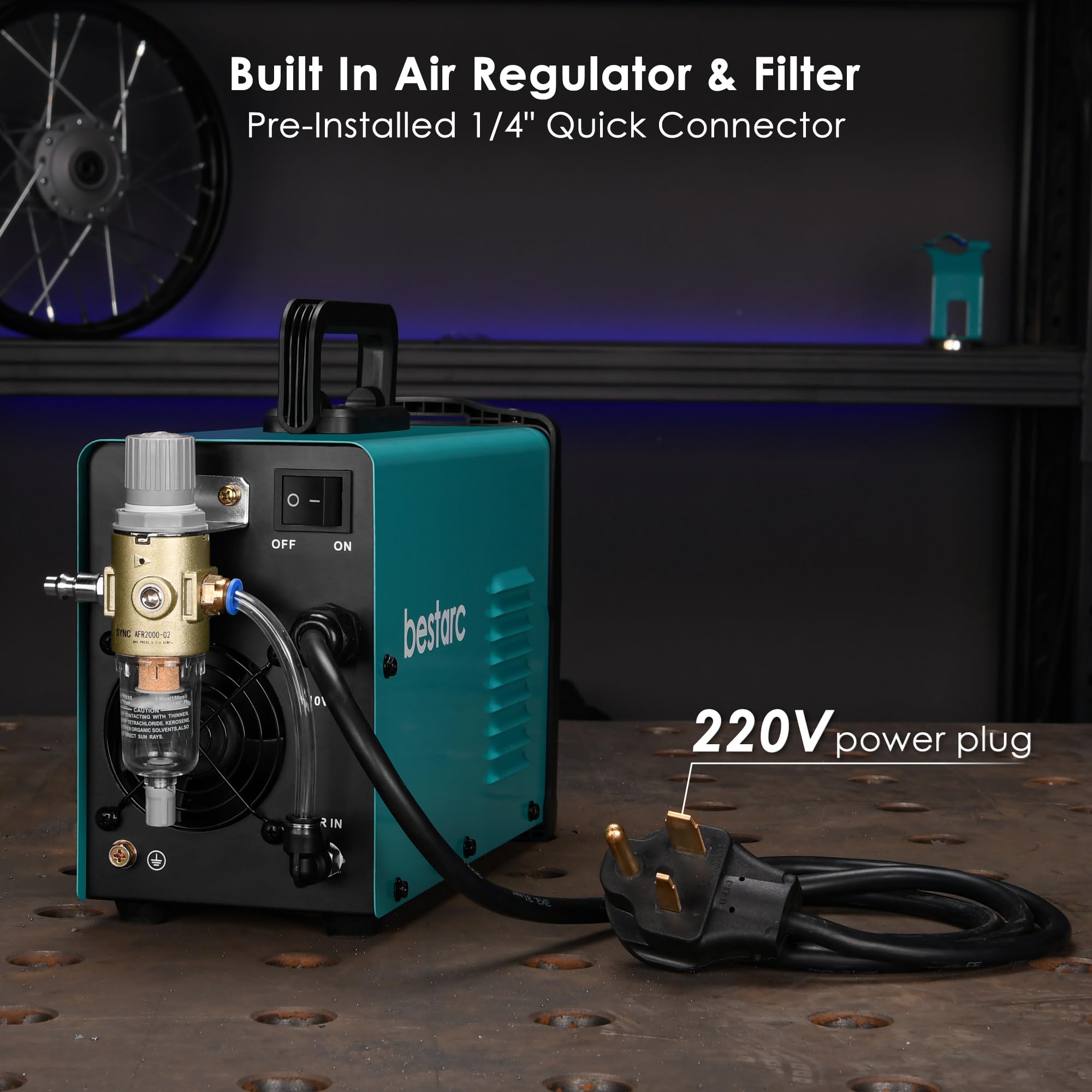

• [Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute
• [PT/2T/4T/PA Function]: Post-flow cooling time ranging from 3 to 15s extends the torch head and consumables life. The 2T mode on the plasma cutter provides semi-automatic control torch trigger, while the 4T mode enables automatic trigger, free your finger. PA adjusted the time for the pilot arc. This bestarc plasma cutter CUT55XP also includes a mesh cutting mode to solve the problem of arc breaking when cutting mesh

Package Dimensions: 251x432x7598

UPC: 792671286394
