ASUS ROG Strix Z690-E Gaming WiFi 6E LGA 1700(Intel 12th Gen)ATX motherboard(PCIe 5.0,DDR5,2.5 Gb LAN,Thunderbolt 4,5xM.2,1xPCIe 5.0 M.2,ROG Hyper M.2 Card,Front panel USB 3.2 Gen 2×2 Type-C)

Brand: ASUS

Features:

n
• Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors, support PCIe 5.0,DDR5 and out of box Windows 11 ready.Wireless and Bluetooth: Bluetooth v5.2.Wireless and Bluetooth : 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band.

n

• AI Motherboard : AI Overclocking, AI cooling, AI networking(GameFirst VI) and AI noise cancellation

n

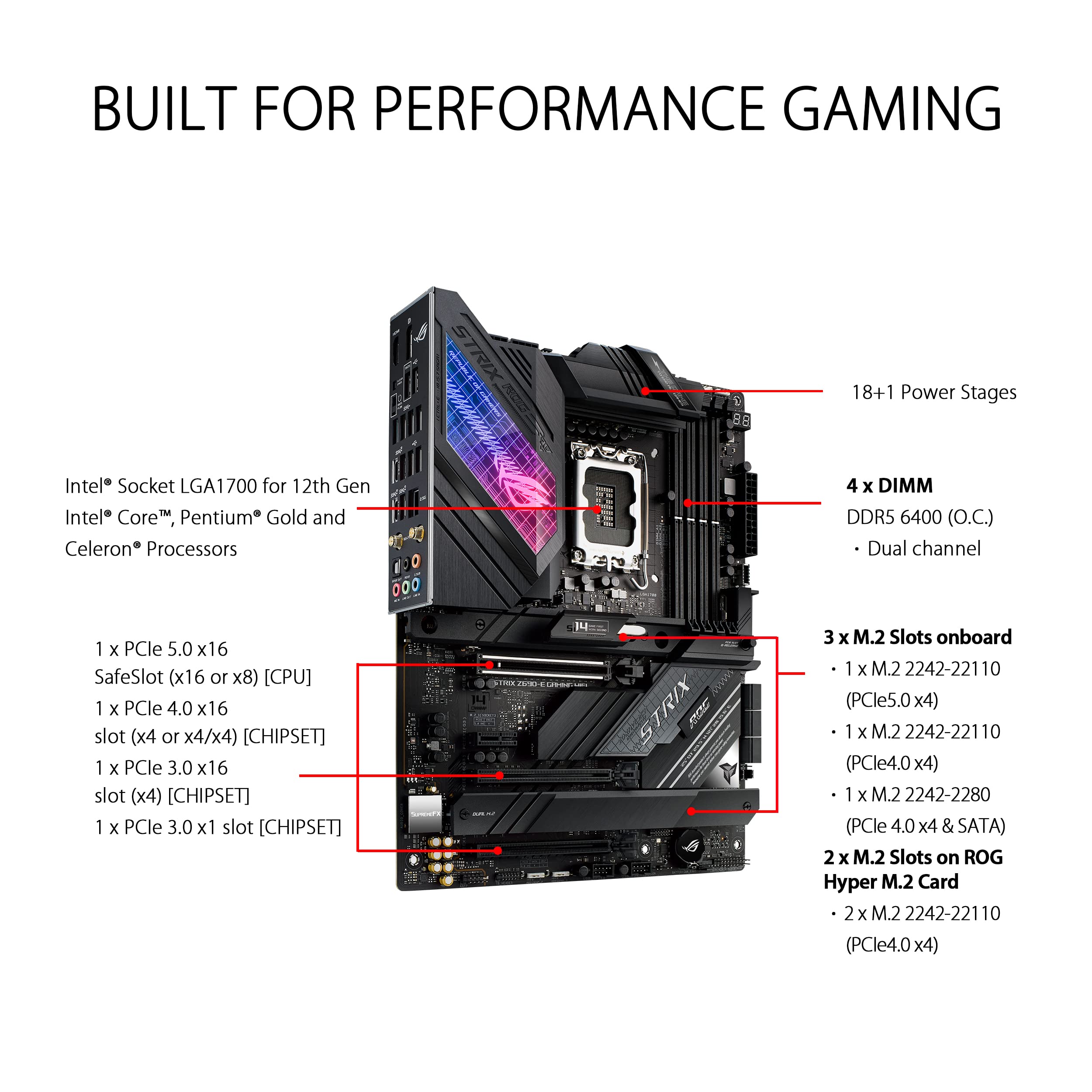

• Robust Power Solution: 18plus1 90A power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

n

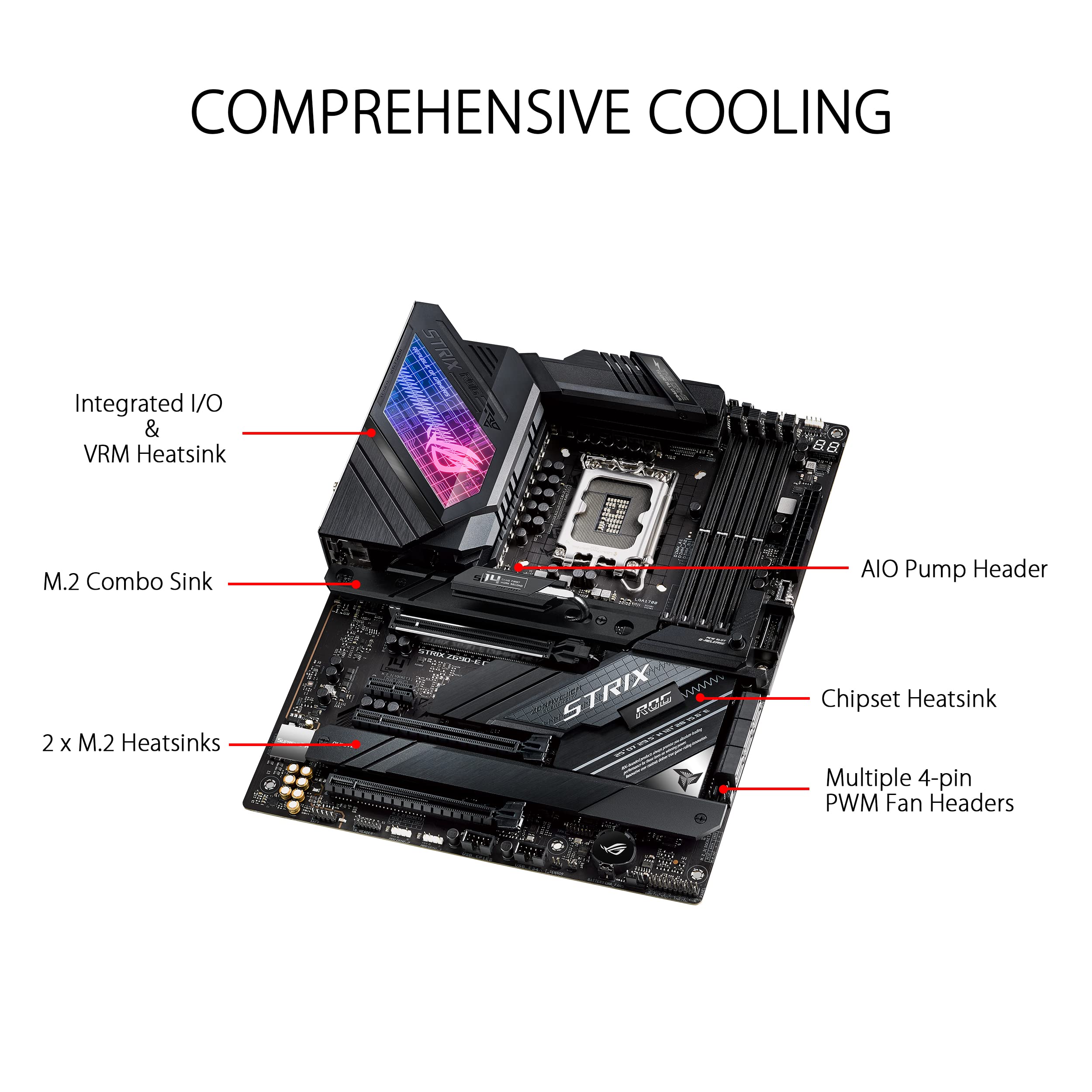

• Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility

n

• High-performance Gaming Networking: On-board WiFi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard

n

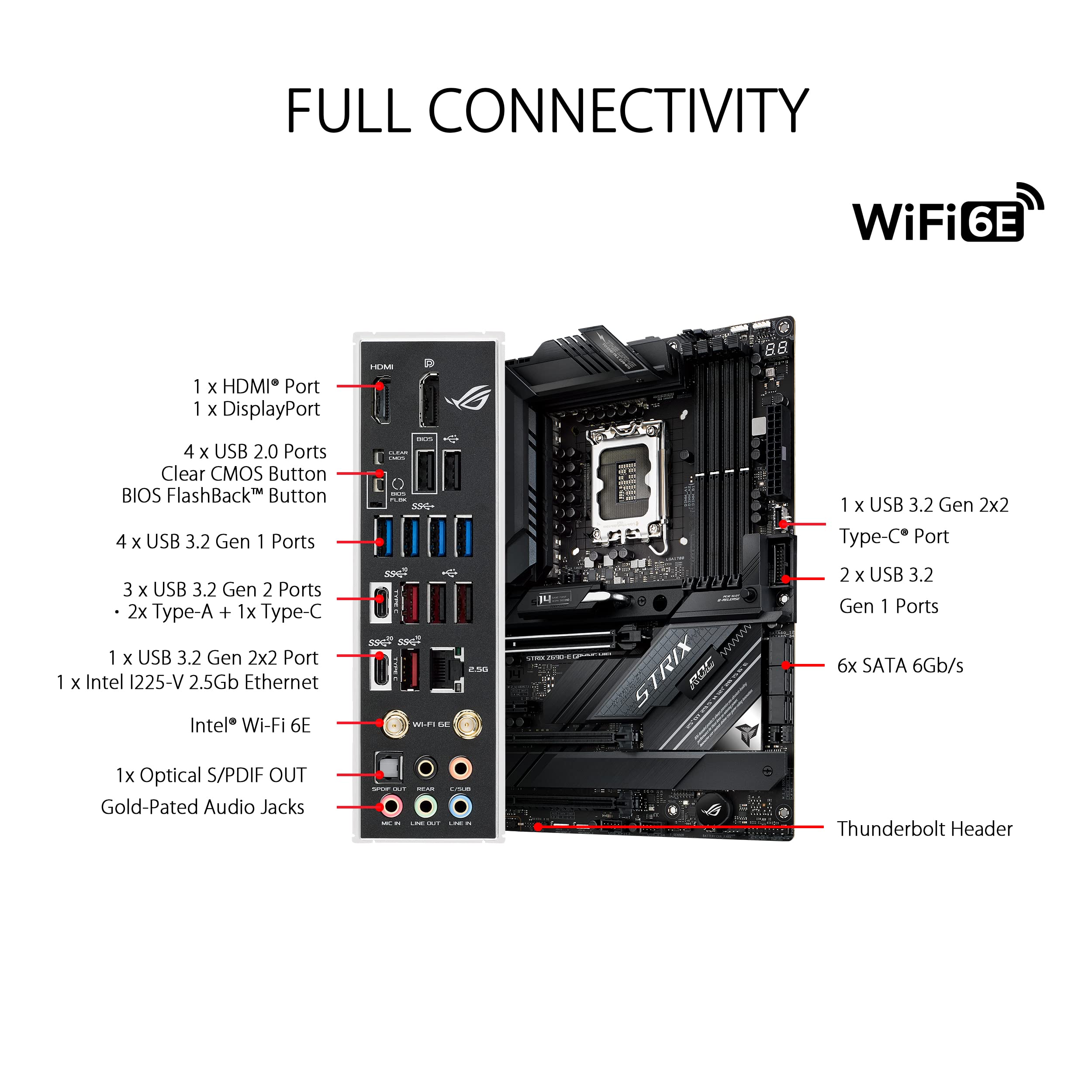

• Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, and support up to 5xM.2 slots, 1x PCIe 5.0 M.2 , bundled with ROG Hyper M.2 card and USB 3.2 Gen 2×2 Type-C and Type-A and Front panel USB 3.2 Gen 2×2 Type-C connectors

n

• PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, Pre-mount I/O shield, BIOS FlashBack, Clr CMOS button, Q-Code and FlexKey (Reset, Aura on/off, Direct key)

n

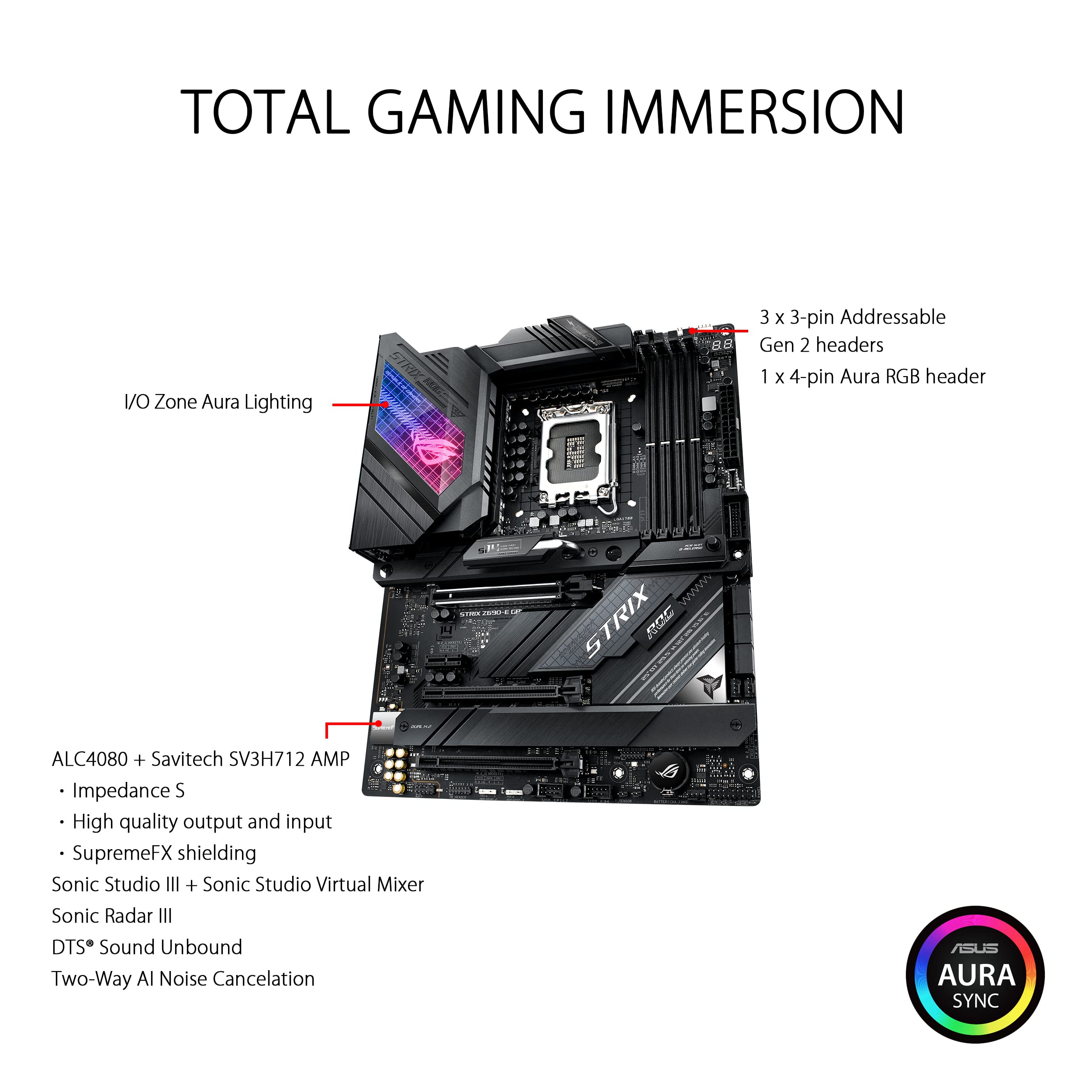

• Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III

n

• New ROG Strix Aesthetics: New ID design, Illuminated Acrylic Display, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

n

Binding: Personal Computers

Release Date: 04-11-2021

model number: ROG STRIX Z690-E GAMING WIFI

Part Number: ASUS ROG STRIX Z690-E GAMING WIFI

Details: The ASUS ROG Strix Z690-E WiFi 6E Gaming motherboard is designed with 18+1 power stages and optimized cooling to cope with the demands of powerful 12th Gen Intel® Core™ processors. Along with the latest Wi-Fi 6E, DDR5 Memory and PCI Express® 5.0 for superfast data transfer, memory and storage performance, ROG Strix Z690-E Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.

EAN: 0195553494632

Package Dimensions: 14.4 x 12.2 x 4.3 inches
