ASUS Prime B760M-A D4 Intel® B760 (LGA 1700)(13th and 12th Gen) mATX Motherboard, PCIe 4.0, 2xM.2 Slots,2.5Gb LAN, DisplayPort,Dual HDMI,Rear USB 3.2 Gen 2, Front 1 Type-C®, Aura Sync

Brand: ASUS

Features:

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

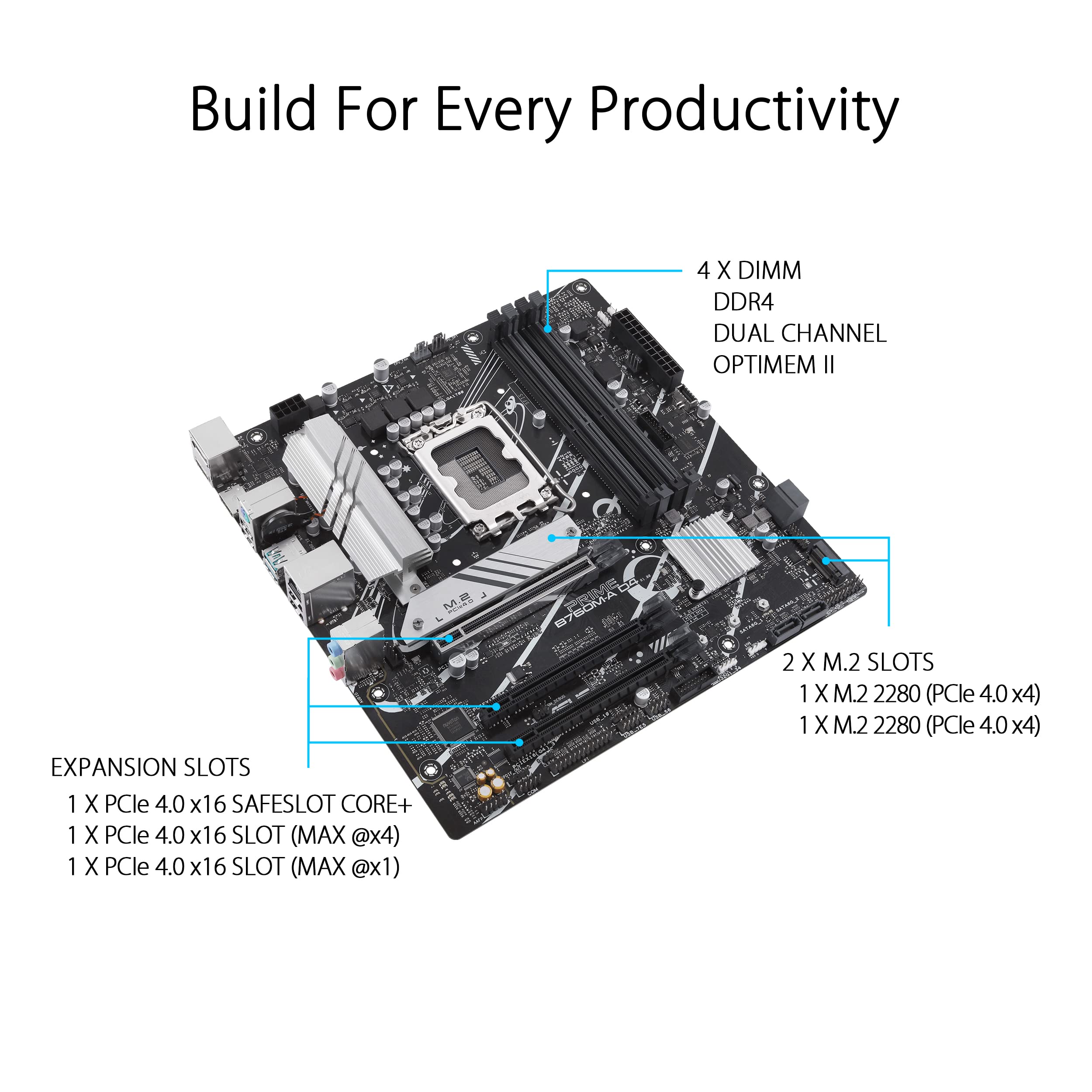

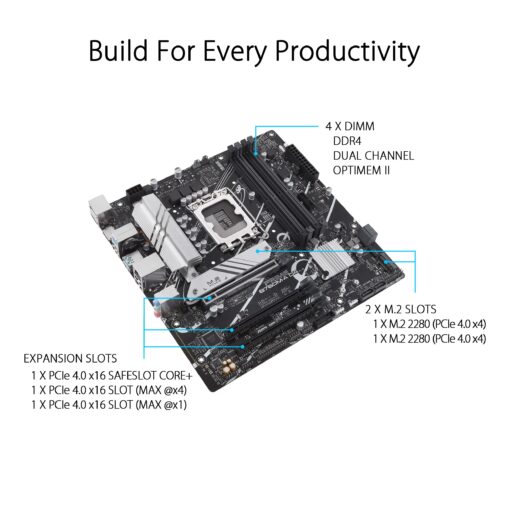

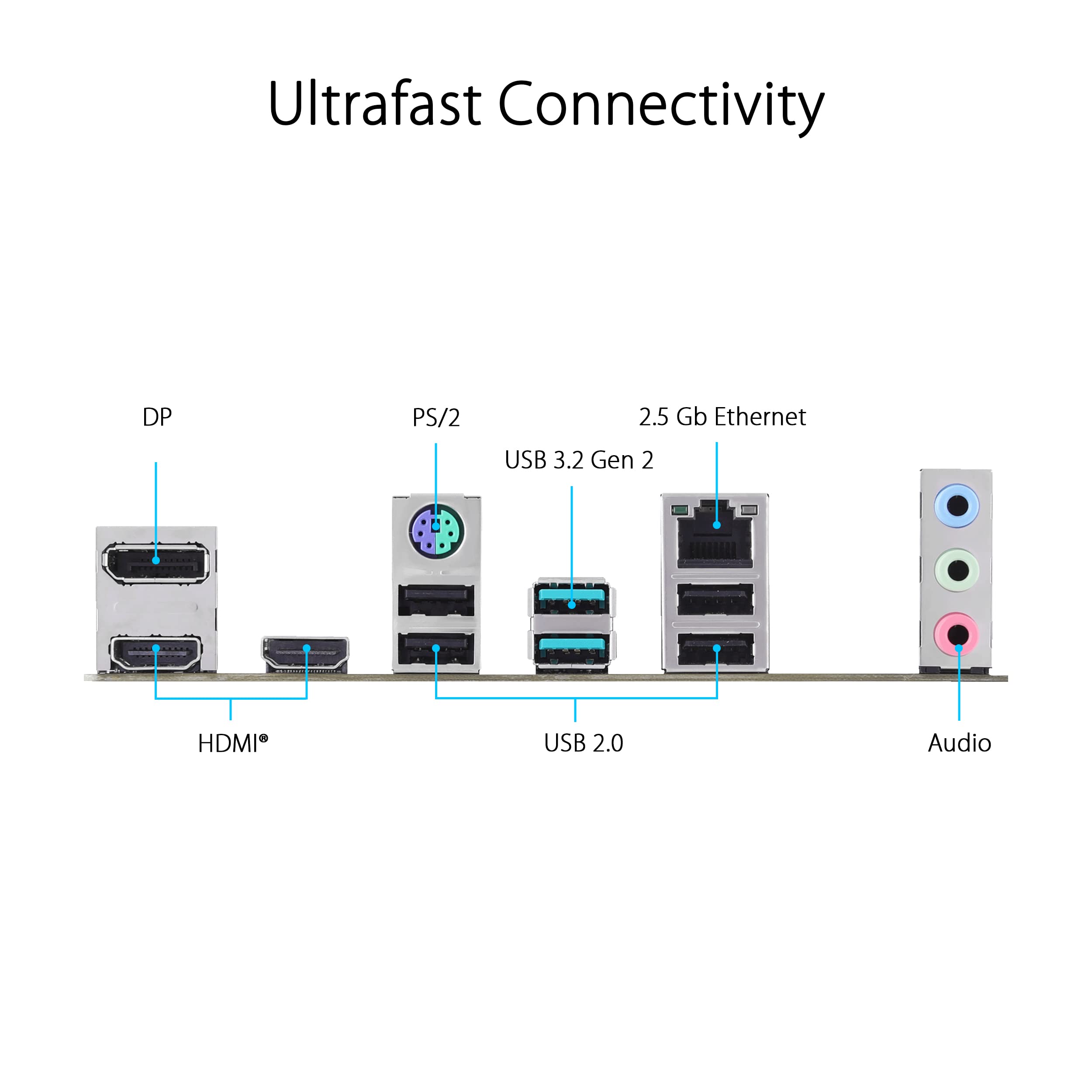

• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

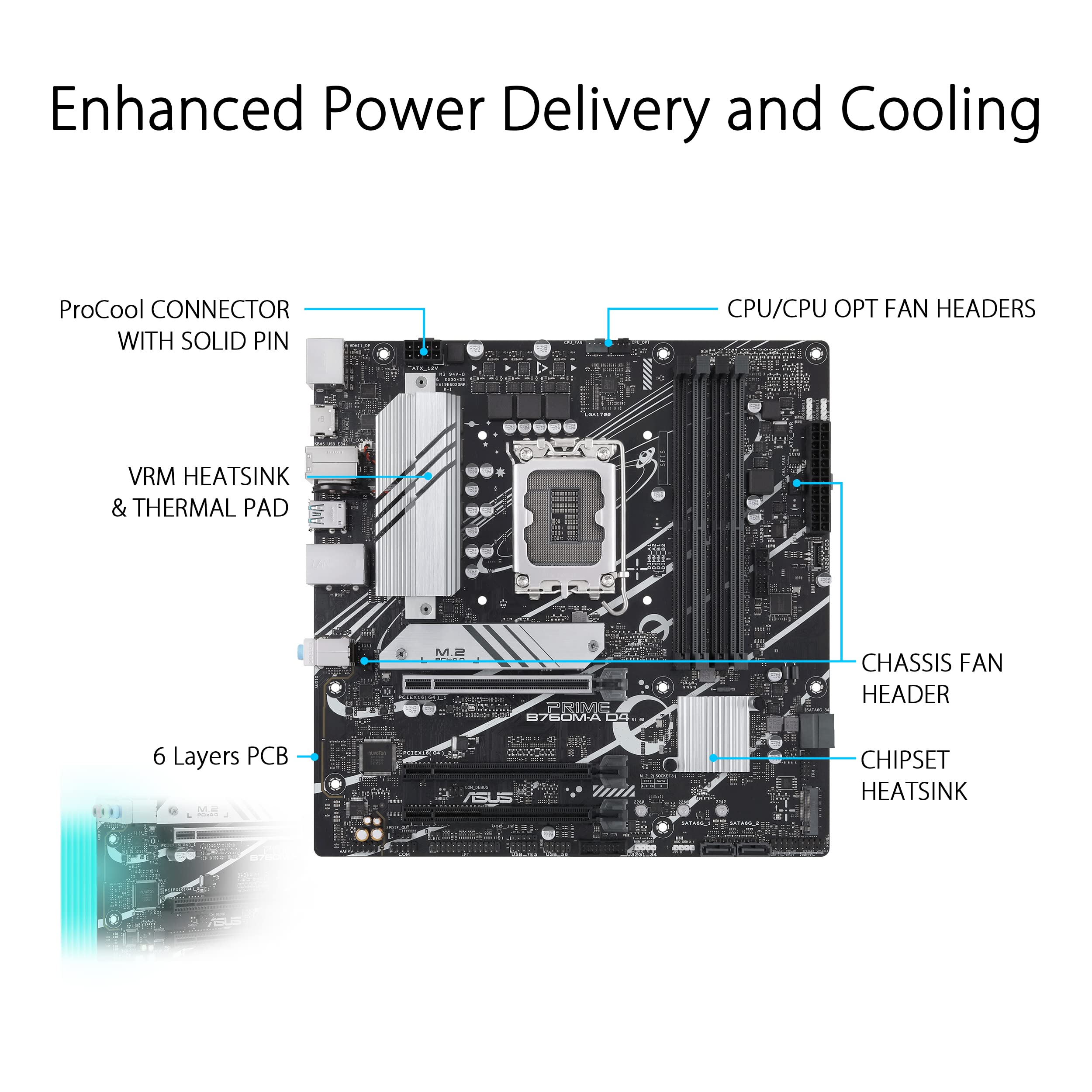

• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

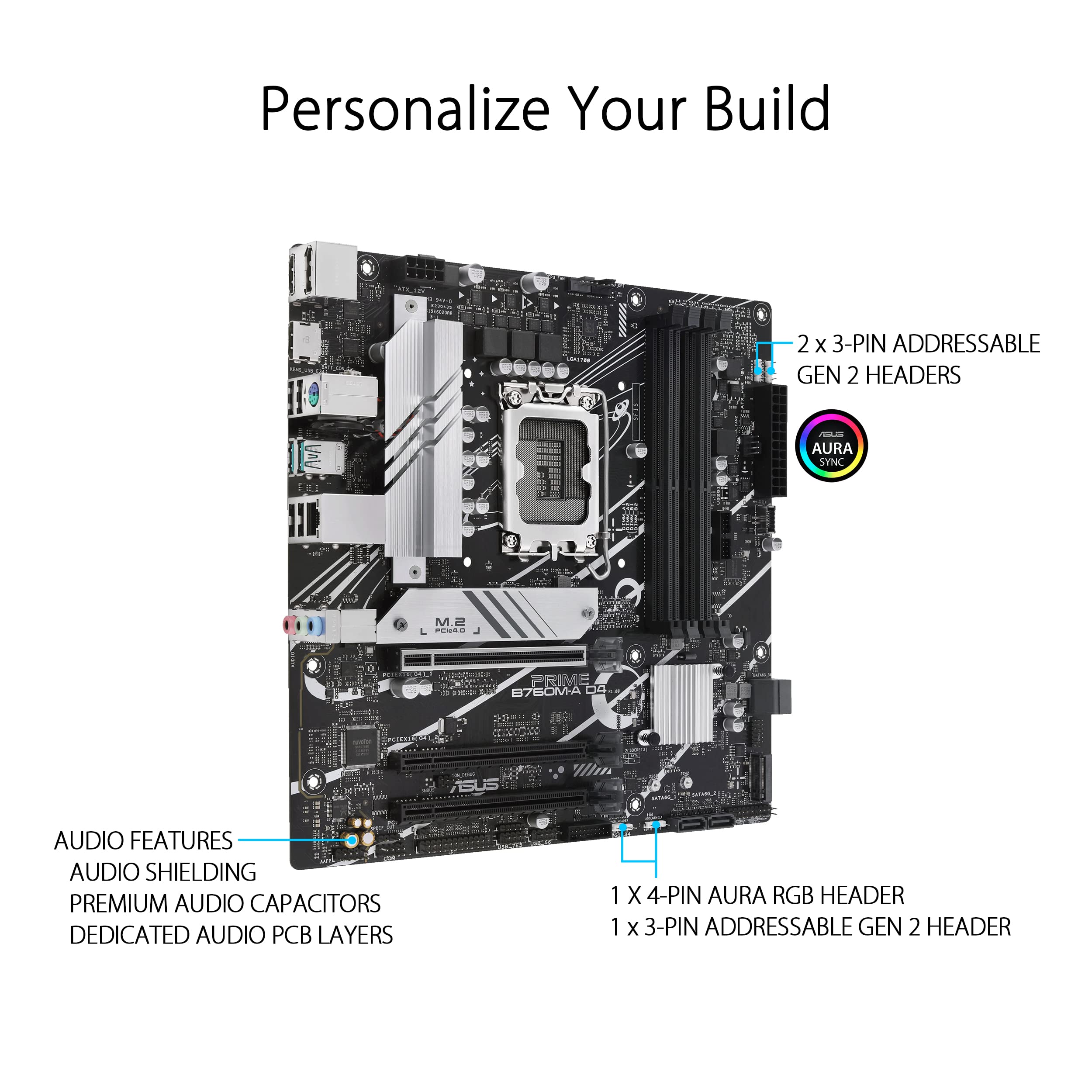

• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Package Dimensions: 54x273x1012

Release Date: 03-01-2023

Details: The ASUS PRIME B760M-A D4 is built for productivity, with robust power design, comprehensive connectivity and intelligent tuning options to unleash the full potential of 13th Gen Intel® Core™ processors. equipped with outstanding features, including PCIe 4.0 support, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, DisplayPort/Dual HDMI®, Addressable Gen 2 headers, Aura RGB header, Aura Sync, Q-LED Core, ASUS OptiMem II, Fan Xpert 2+, Power Saving, Armoury Crate, ASUS 5X PROTECTION III, SafeSlot Core+.

UPC: 195553984034
