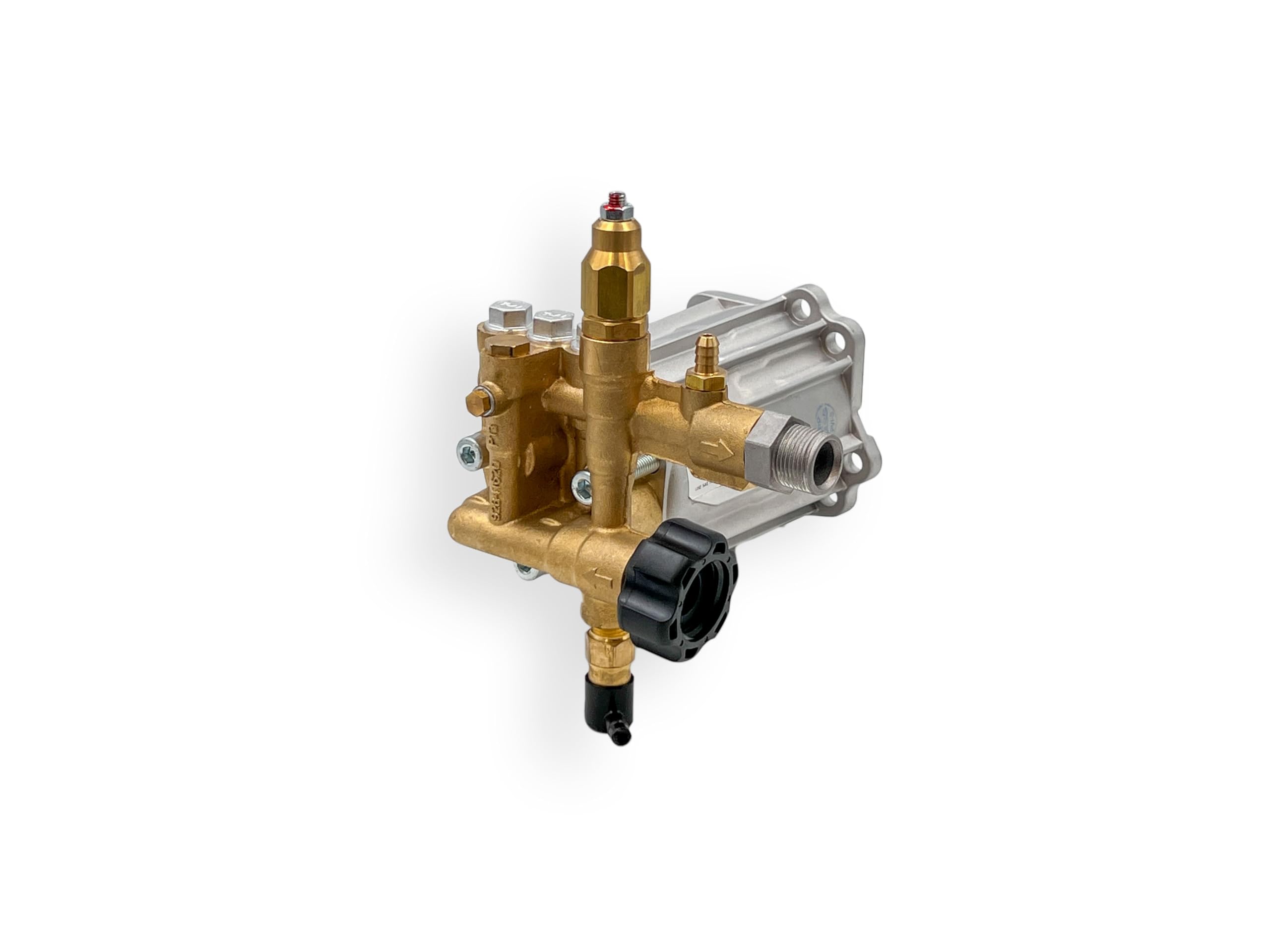

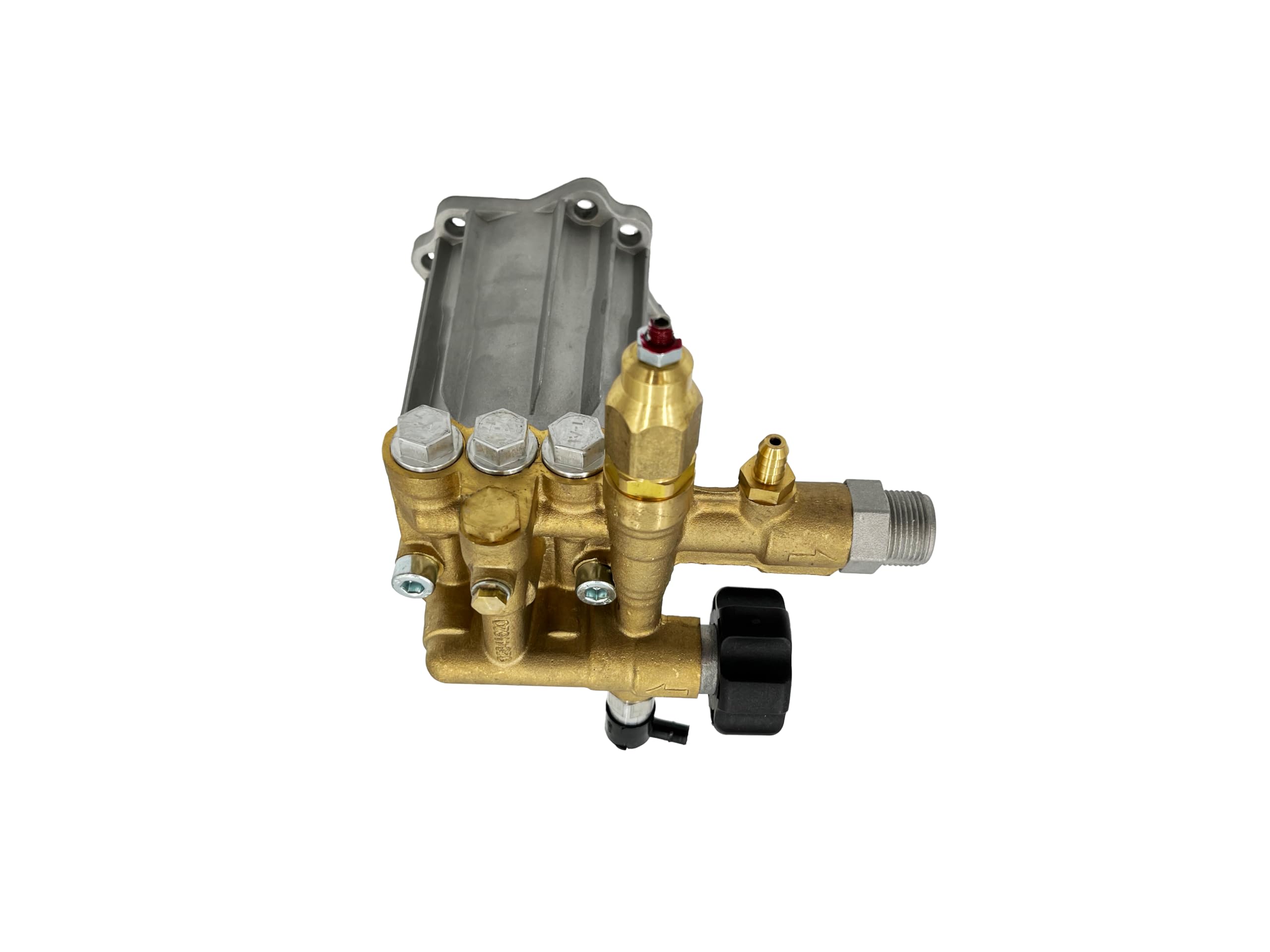

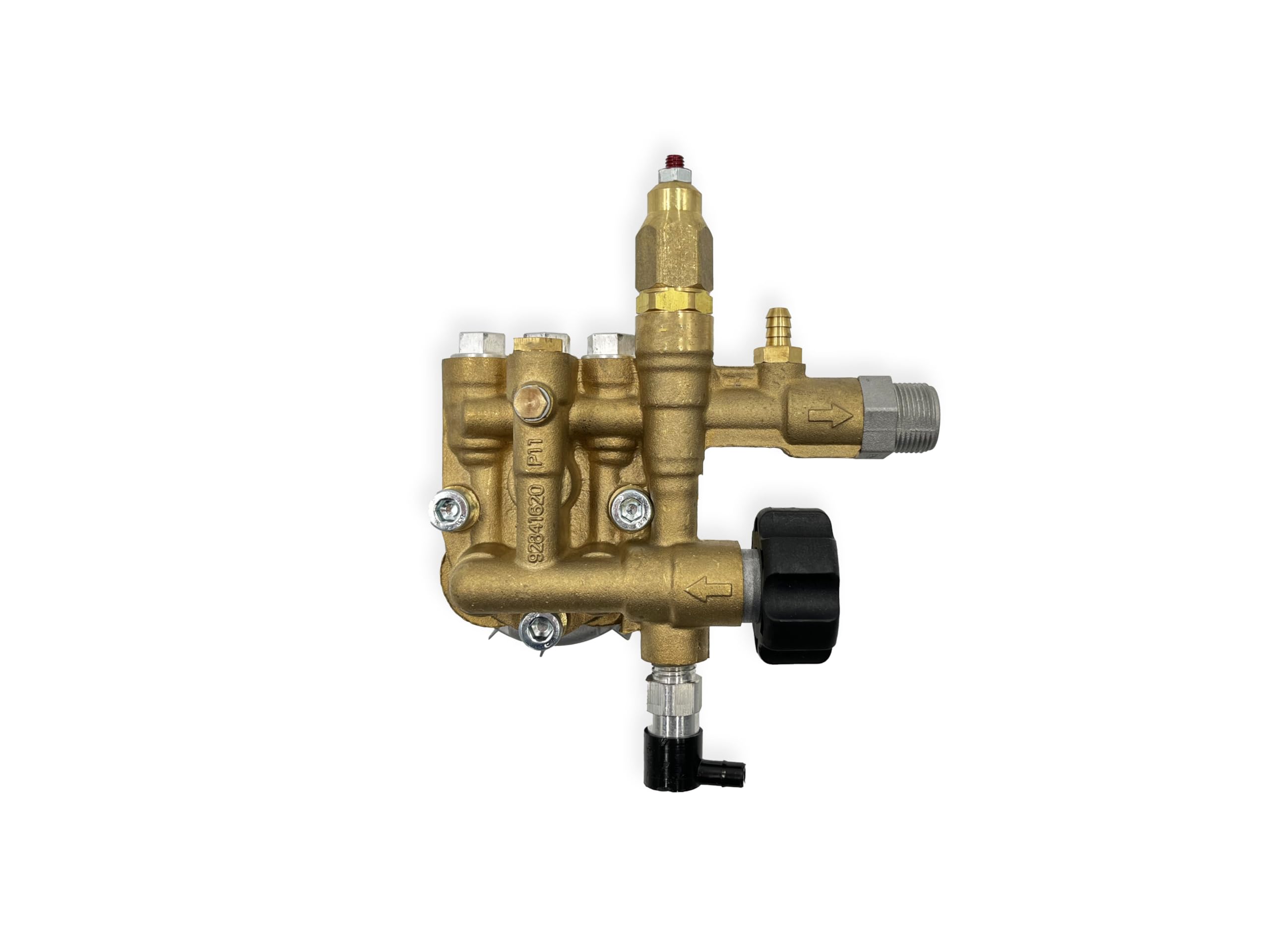

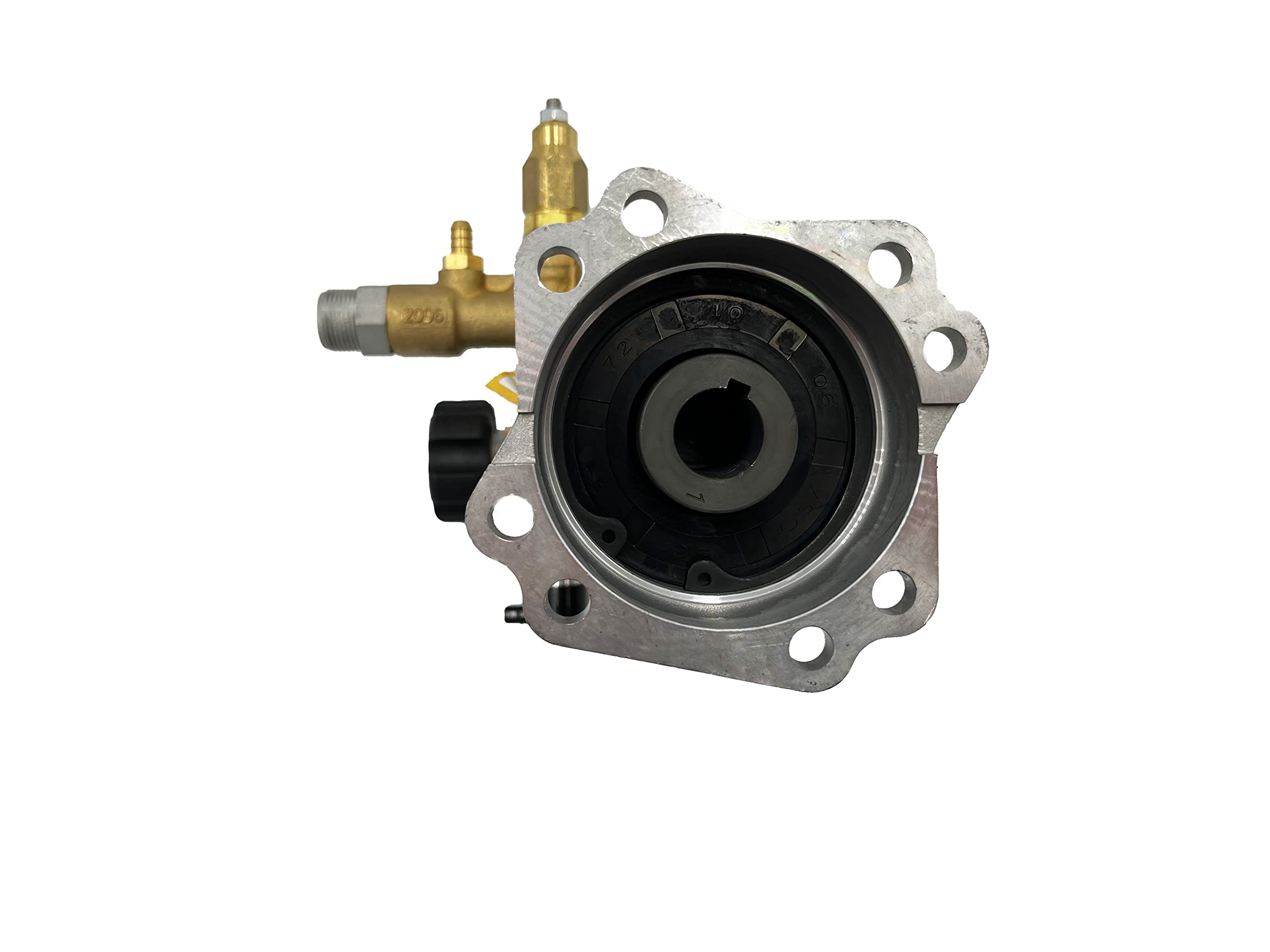

AR ANNOVI REVERBERI, RMV25G30D-EZ-PKG, Replacement High Pressure Pump Package, 3000 PSI, 2.5 GPM EZ Start, Shaft Size 3/4″, 3400 RPM

Brand: AR ANNOVI REVERBERI

Color: Metalic

Features:

n
• RMW 3400rpm

n

• D Version 3/4-Inch

n

• Vertical Gas Engine Flange

n

Package Dimensions: 193x241x3729

Details: Annovi Reverberi AR RMV25G30D-EZ-PKG with thermal relief valve and detergent tube with filter. 2.5 GPM at 3,000 PSI, spins at 3,400 RPM in a direct drive system coupled with a gasoline engine. Economy Axial Radial Drive Pump. Featuring – Manifold: Aluminum precision die cast special anticorrosion finish. Bolts: Three 6mm cadmium plated steel. Plungers: hardened stainless steel. Crankcase: Precision die cast, large coupling fins. Bearings: Premium oversized ball and needle bearings. Valves, Seats and Springs: Plastic poppet under 2300 psi, stainless steel poppet over 2300 psi, seat and cage, stainless steel spring. Seals: buna-N 2000 and 2400 psi single seal, 2500 psi to 3000 psi dual seals. SX suffix port rotated 180 degrees from standard. RMV25G30D-EZ – Pump TPP140-1/4A – Thermal Relief Valve AR1269120 – Detergent Tube with Filter Max GPM 2.5 Max PSI 3000 RPM 3400 Shaft Size 3/4″ Pump RMV25G30D-EZ Flange Gas Engine Flange Thermal Relief Valve TPP140-1/4A Detergent Tube w/Filter AR1269120 Applications EZ Start Valve

UPC: 192216921788
