ANCEL PB500 Power Circuit Probe Tester Kit – Automotive Circuit Tester for Faster Troubleshooting AC/DC Voltage, Resistance, Diode, Signal Frequency, Duty Cycle, Fuel Injection

Brand: ANCEL

Color: PB500

Features:

n

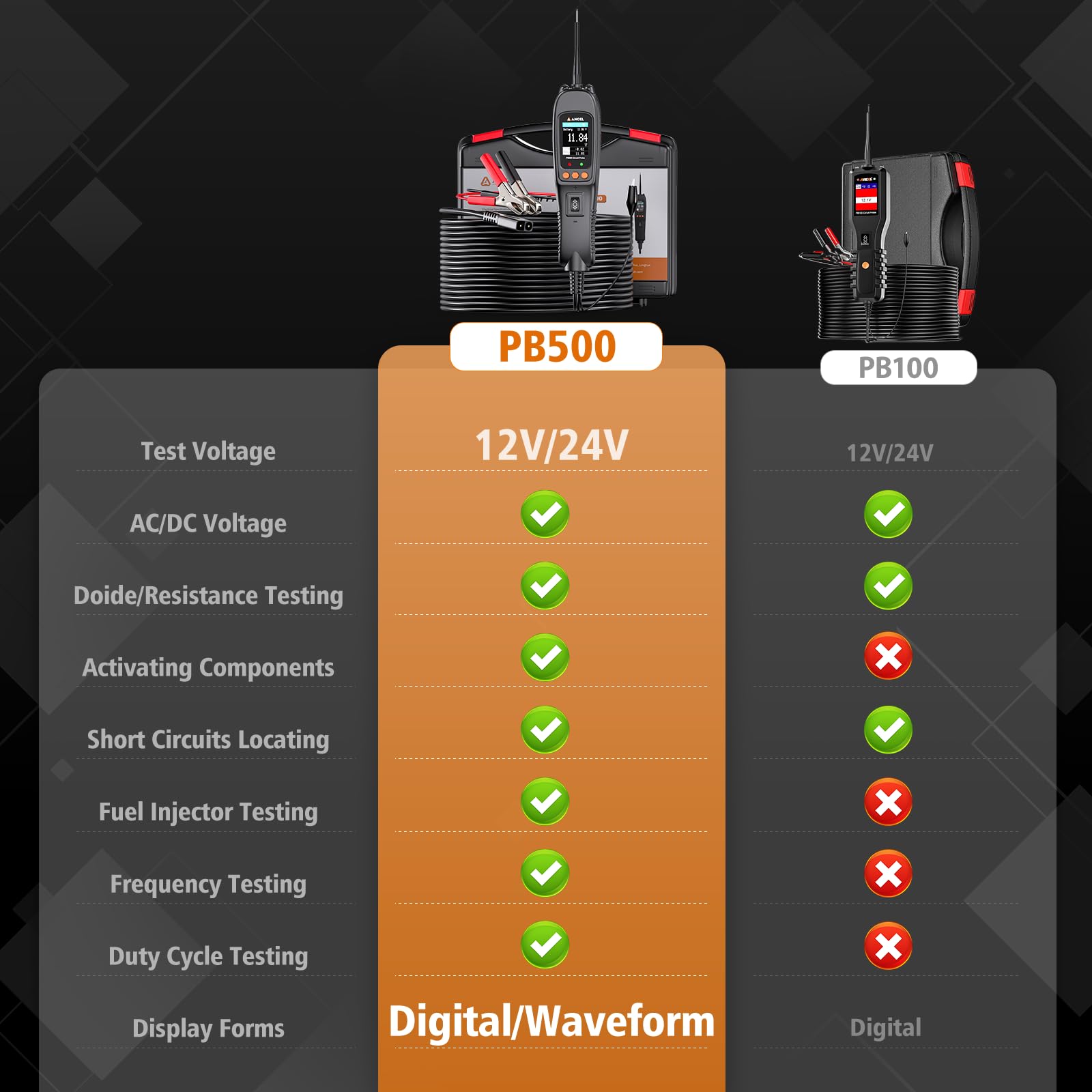

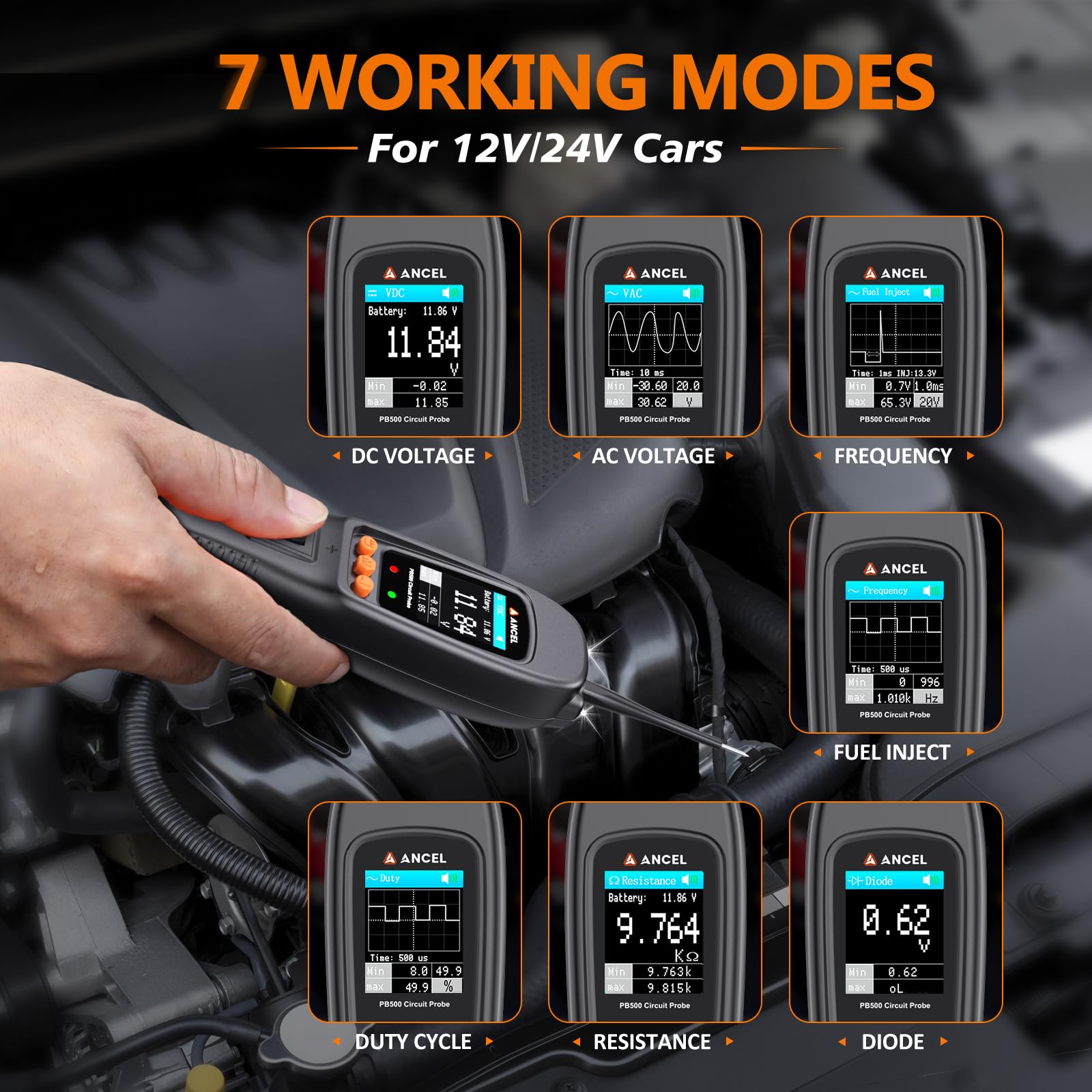

• 【Pro – Level automotive circuit tester-7 Powerful Test Modes】The ANCEL PB500 Power Circuit Probe Kit is an upgraded version of the PB100, offering 7 advanced test modes, including ✅DC Voltage, ✅AC Voltage, ✅Resistance, ✅Diode, ✅Frequency, ✅Duty Cycle, and ✅Fuel Injection tests. This versatile tool helps you pinpoint problematic circuits while ruling out good ones, significantly speeding up the diagnostic process and revealing the root cause of electrical issues with ease.

n

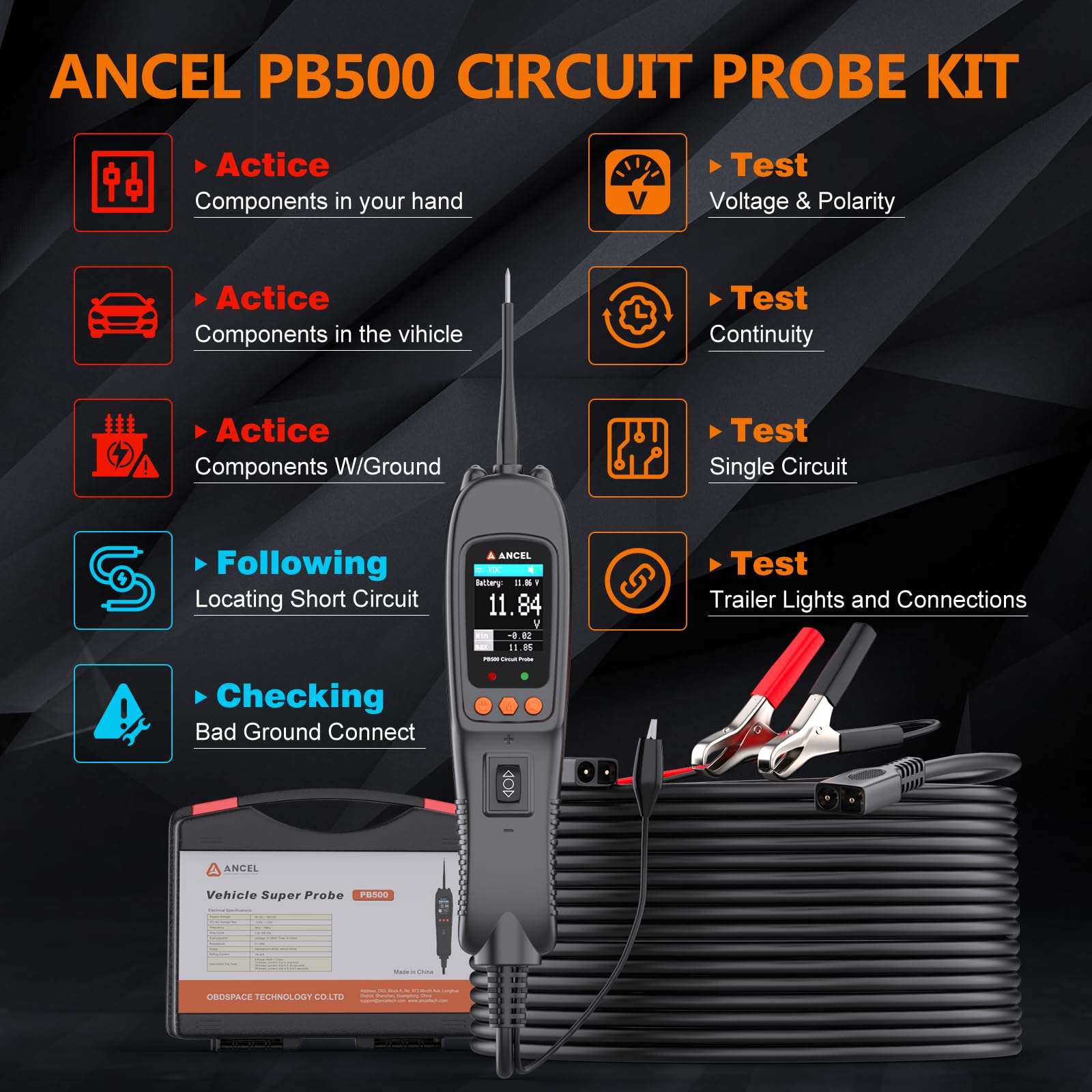

• 【ALL-IN-1 Power Circuit Probe Tester-Answers to all your questions】ANCEL PB500 automotive circuit tester covers all circuit tests, including ✅Circuit breaker/open test ✅DC Voltage test (Resolution 0.1V) ✅AC Voltage test ✅Resistance test ✅Doide ✅Polarity test ✅Continuity test ✅Ground test ✅Component activation ✅Signal circuit test ✅Duty Cycle ✅Fuel Injection ✅Relay Test ✅Fuse Test. It is simple to operate and easy to use, Intuitive interface with ergonomic design makes it be best gif.t for all novice drivers or pro circuit repairers!

n

• 【Accurate Fuel System Diagnostics-Specialized Fuel Injection Tests】Struggling with the vehicle starting problems, poor acceleration, or fuel inefficiency? The PB500 Fuel Injection Test Mode is designed for fast, precise diagnostics of the fuel injection circuit. It quickly analyzes the fuel delivery process, ensuring that each injector is firing precisely as it should. Plus, the addition of Frequency and Duty Cycle modes allows you to dig deeper into your vehicle’s performance, uncovering issues that standard diagnostic tools can’t detect, and giving you the insights you need to make accurate repairs and get your vehicle running at its best.

n

• 【Quickly Find Shorts Locate – Short Circuits with Overload Protection】This ANCEL Electrical System Tester is like a detective for your car’s wiring. Using its highly sensitive probes, it can quickly and accurately troubleshoot the car wiring circuit, zeroing in on faulty wires and their exact fault points. Say goodbye to hours of head-scratching and hello to efficient repairs. And with its built-in short – circuit protection, if there’s an overload, the internal circuit breaker will trip, safeguarding both you and the tester. It’s like having a built-in bodyguard for your testing adventures.

n

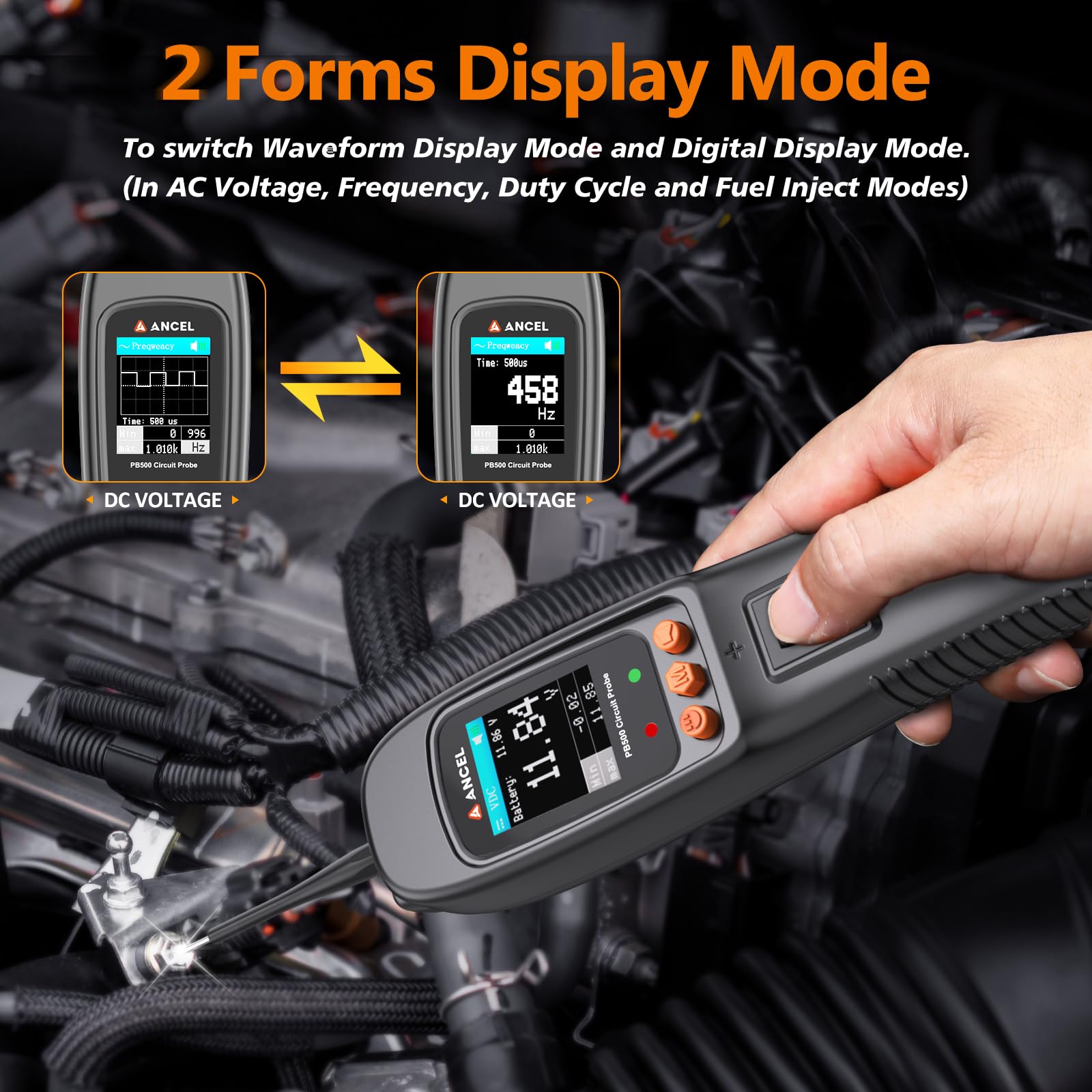

• 【Switch Easily Between Test Modes-Clear Waveform & Digital Display for Faster Diagnosis】Featuring a user-friendly interface that seamlessly switches between test modes at the push of a mode button, the PB500 can be quickly adapted to the specific needs of the circuit being analyzed. At the same time, the PB500 provides vivid and detailed real-time waveforms and readings, giving you a clear and accurate view of what’s going on inside your vehicle’s electrical system. Whether you’re an experienced mechanic or a novice DIYer, the intuitive display lets you analyze complex circuits with ease and confidence.

n

• 【Built-In Diagnostic Power – Component Activation & Test】 This ANCEL automotive power circuit probe tester can activate components on/off-board electrical systems/ equipment and is designed for car technicians or car enthusiasts. By activating the signal generated by the component, you can accurately judge whether the component is intact, such as the blower motor, power window motor, windshield wiper, rear window defroster, lights, radiator fans, fuel injectors, etc. ANCEL circuit tester automotive tool can activate components in your hand/ in the vehicle/ with ground etc.

n

• 【Intelligent feedback – Identify Faulty Wiring in Seconds 】ANCEL car circuit tester instantly checks component continuity and quickly identifies positive, negative, and open circuits. When the positive terminal is connected, a red LED lights up with beep sounds. When the negative terminal is connected, a green LED lights up with a low tone. If an open circuit, neither of the LED lights will not light. The built-in LED indicator provides clear, real-time feedback, making your diagnostics smooth and efficient.

n

• 【Signal Circuit Test & Continuity Test】When you extract Diagnostic Trouble Codes (DTCs) from the vehicle’s ECU, this Electrical System Probe Tester can test a variety of sensors and circuits to help you find out the root problems of the car’s electrical system! Two ways to test continuity: ✅1: In resistance mode, if the resistance is 0.0Ω and the LED lights up, it means continuity. ✅2: Power up the connection using the power switch, if the circuit breaks trips, that means the resistance is low and there is continuity.

n

• 【Rich Accessory Gift Package】 When you purchase PB500, you will receive a free accessory gift package worth $30, which includes a $10 probe (Besides the probe that comes with PB500) and a $20 Crochet Hook. No longer have to worry about losing the probe and being unable to use the product properly. In addition, you can also enjoy a high-end hard plastic storage box, which allows you to better store and organize the product.

n

• 【Recommended By Electrical Master Mechanics, 1 Year Warranty】The ANCEL automotive electrical tester is a must – have addition to any toolbox. Recommended by millions of automotive electrical specialists, it does everything those high – end P.P.3/P.P.4 tools do, but at half the cost. In fact, some say it’s even better than the sna.p-on tool! And with a 12 – month warranty, 24/7 online support, 30 – day hassle – free returns, and lifetime after – sales service, you’re covered. If you have any questions or concerns, just shoot us an email or send a message. We’re here to help you every step of the way!

n

model number: PB500

Part Number: PB500

Package Dimensions: 10.2 x 8.9 x 3.0 inches
