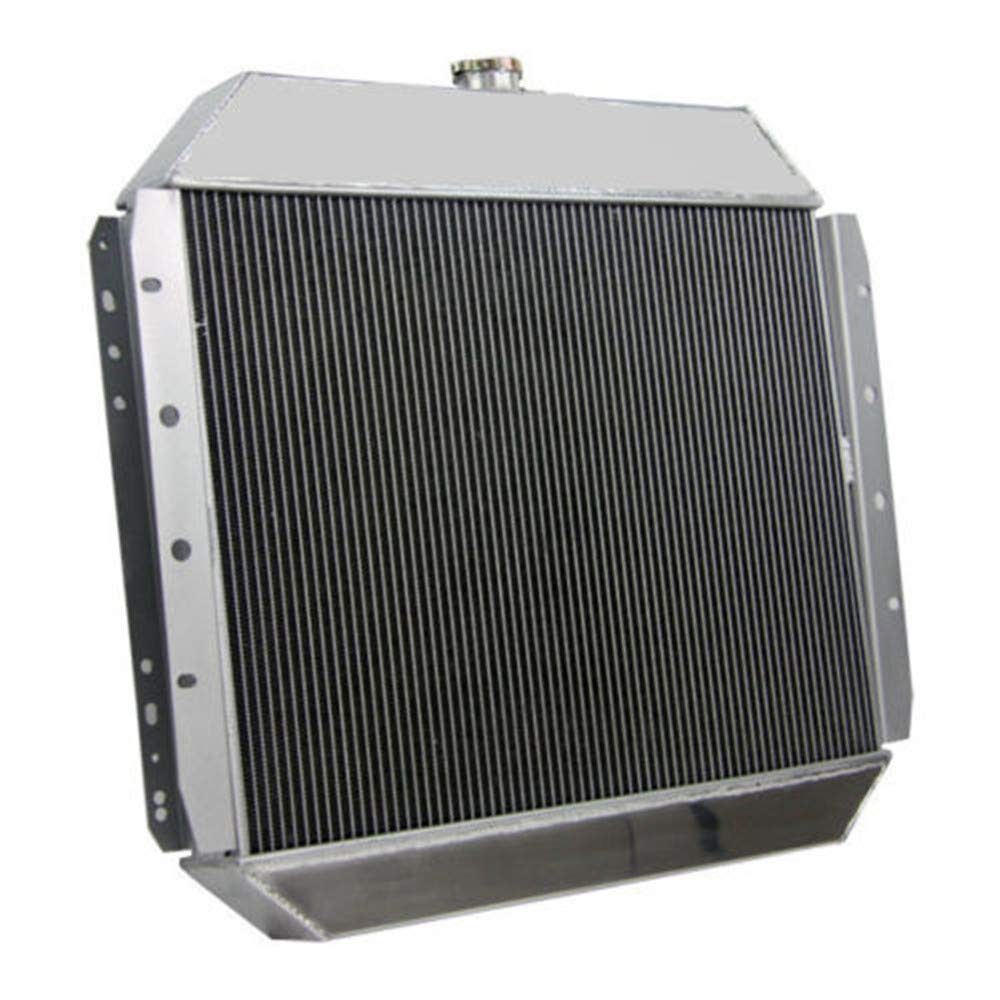

ALLOYWORKS 3 Row Aluminum Radiator for Ford Trucks F100 F150 F250 F350 1966-1979 Bronco Pickup Truck 66 67 68 69 70 71 72 73 74 75 76 77 78 79 L6 Radiators, AT MT

Brand: AW ALLOYWORKS

Features:

n
• [Vehicle Fitment] Radiator Compatible with 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 Ford F100 F150 F250 F350 Bronco F-Series Truck AT MT

n

• [Dimensions] Core Size: Height:19.25″ x Width: 26.3″ x Thick: 2.75”; Overall: Height 26.3″ x Width: 29.5″; Inlet Diameter: 1.75″ x Outlet Diameter: 2″; Trans Cooler Details: φ26*305*1/8-27NPT(T)

n

• [Premium Quality] Constructed with Aircraft AA5052 aluminum, this radiator is 100% welded and features brazed core technology with no epoxy. The high-quality aluminum core makes it a direct fit and built to last long. Before delivery, each radiator undergoes five checks in the production process and is pressure tested to ensure no leakage.

n

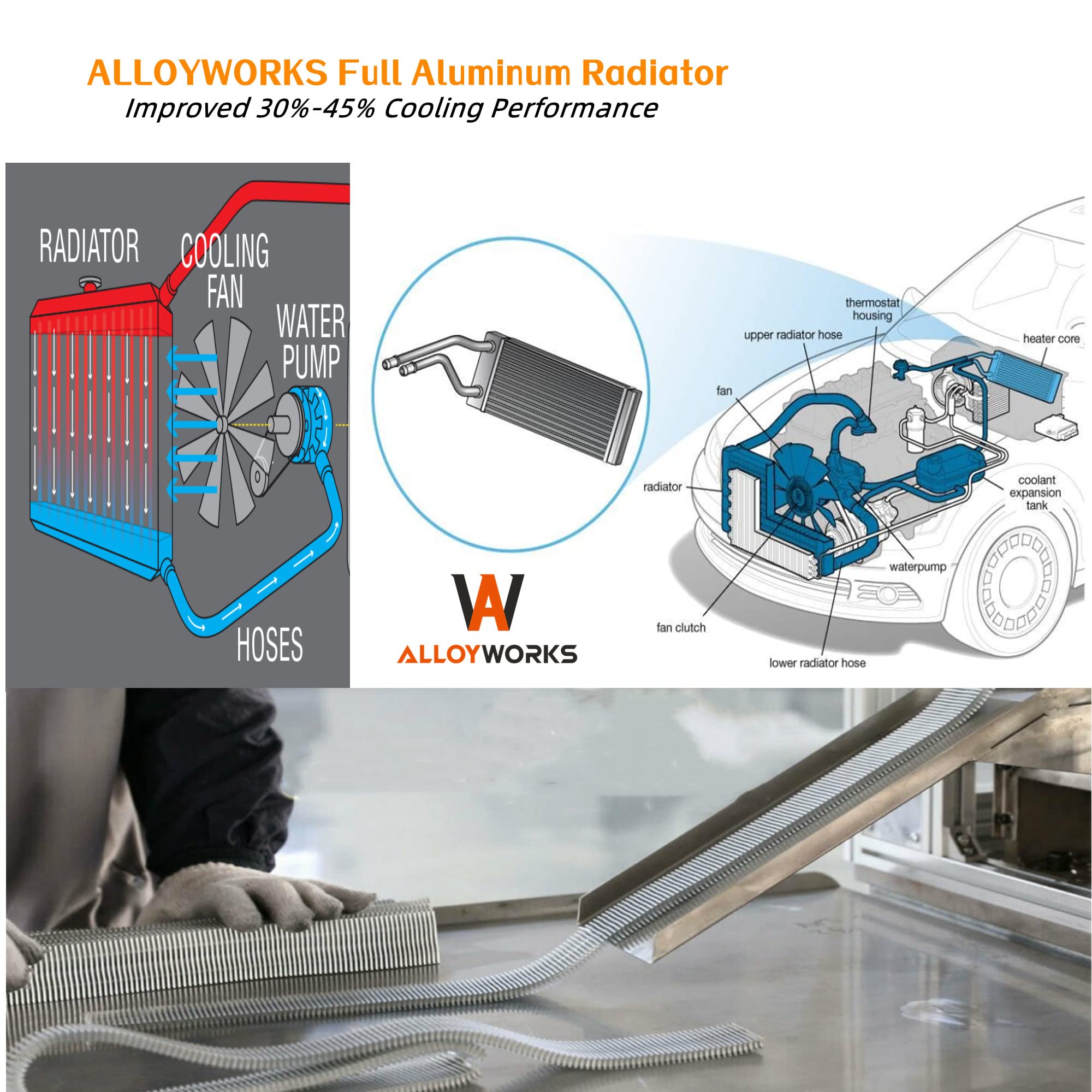

• [Cooling Feature] The full aluminum radiator is lightweight and high heat transferring aluminum features a tube and fin design,that dramatically increases surface area that enables the heat to dissipate more efficiently. It provides 30% more cooling capacity than a standard radiator.

n

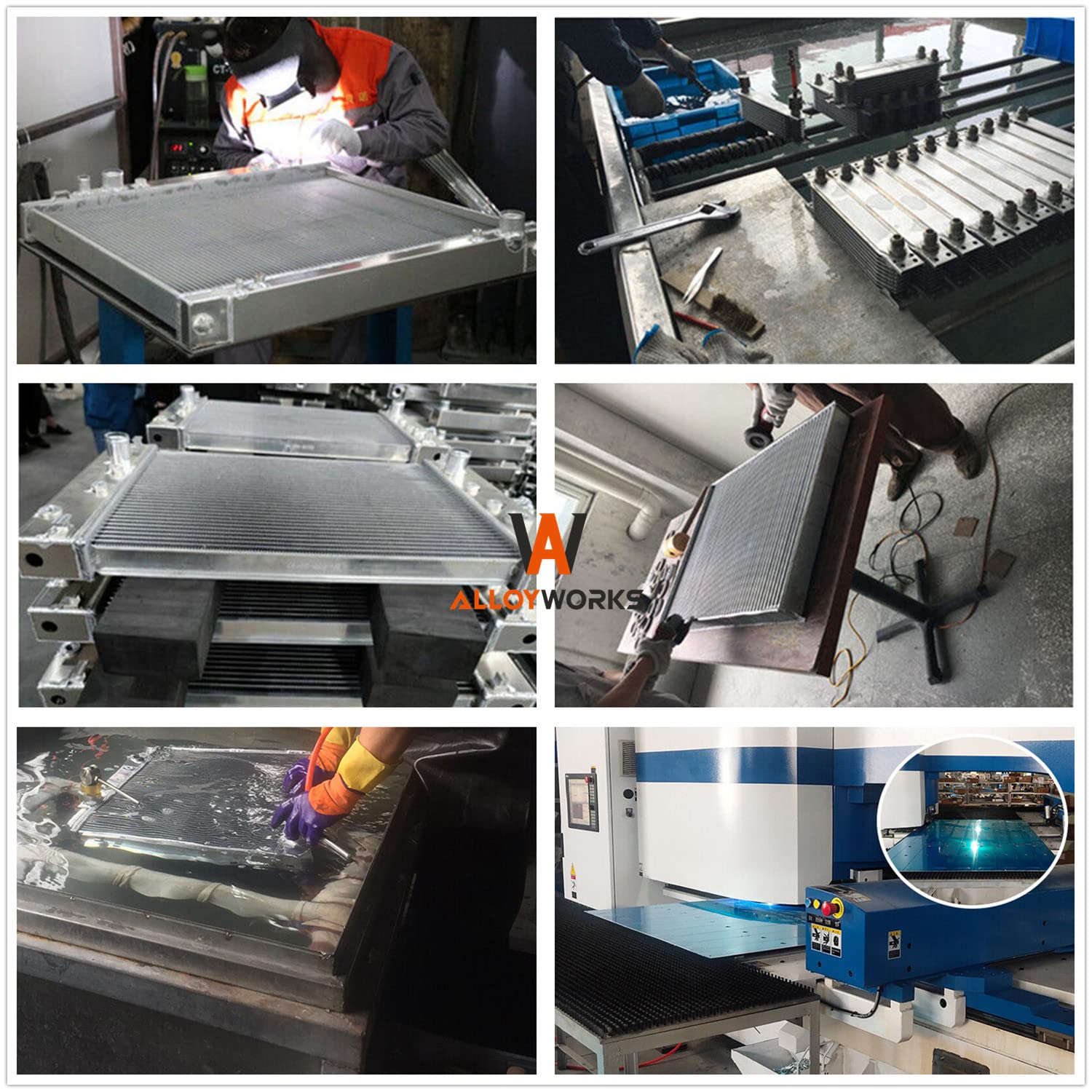

• [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption. Delivery: US Local Delivery.

n

• [Easy to Install] A quick installation with no drilling or modifications is possible now because this brand-new radiator is engineered and manufactured to meet the original specifications. CNC turret punch machine ensures the accuracy of the radiator size. Please use Amazon’s vehicle fitment tool before buying to ensure that the part is compatible for your vehicle.

n

• Please use Amazon’s vehicle fitment tool to confirm that the part is correct for your vehicle application before buy.

n

model number: 433,SBR433,CC433

Part Number: Rwff45

Details: ALLOYWORKS 3 Row of Tubes Core Racing Design, Complete Radiator will be your Best Choice!
n
nApplication:
nFor 1966-1979 FORD F-Series/ Bronco TRUCK V8
nFor Ford Bronco 1978-1979 (351ci V8, 400ci V8);
nFor Ford F-Series Truck 1968-1969 (4.9L Straight 6-cylinder, 360ci V8, 390ci V8);
nFor Ford F-Series Truck 1970-1972 (360ci V8, 390ci V8);
nFor Ford F-Series Truck 1973-1975 (302ci V8, 360ci V8, 390ci V8);
nFor Ford F-Series Truck 1976 (302ci V8, 351ci V8);
nFor Ford F-Series Truck 1977-1979 (302ci V8, 351ci V8, 400ci V8)
n
nOE/OEM Part Number: 433,SBR433,CC433,CU433,DPI433,DPI433,DPI132,CU132
n
nRadiator Details:
nColor: Silver
nCore Size: Height:19.25″ x Width: 26.3″ x Thick: 2.75”
nOverall: Height 26.3″ x Width: 29.5″
nInlet Diameter: 1.75″ x Outlet Diameter: 2″
nUpper Hose Fitting: PASS
nLower Hose Fitting: DRIVER
nTrans Cooler Details: φ26*305*1/8-27NPT(T)
nMounting Specs: Ver – 16 1/2 Horizontal – 27 3/8
nQC passed: Yes
nMounting Type: BRACKET
nMaterial: Full Aluminium
nCore and Tank: All Aluminum
nHigh Performance Racing Spec.
nMounting Style: Screw-On
nRadiator style: Downflow
nFit type: Vehicle Specific
nCrafts: 100% Tig welded
nDelivery: Local Delivery
nFitment Type: Direct Replacement
nPlacement on Vehicle: Engine Compartment
nSurface Finish: Aircraft Grade Raw Aluminum
nPetock Drain: OEM style brass petcock drain
nRadiator Cap: CNC machined filler neck and cap
nTransmission Cooler: Automatic and Manual
n
nGentle Hint:
nParameters Meticulous Prior to Ordering.
nPls compare the overall width with your original radiator.
nWarranty: 1 year warranty against manufacture defect and damage in transit.
nProfessional installation is highly recommended! No Fitting Instructions Supplied!
nPlease contact us for installation video or other any problem.

EAN: 7899886431328

Package Dimensions: 32.9 x 29.2 x 5.9 inches
