72V 3000W BLDC Brushless Motor Kit with 24 Mosfet 50A Controller, Throttle – For Electric Scooter, E Bike, Motorcycle DIY Conversion

Brand: Kunray

Features:

n

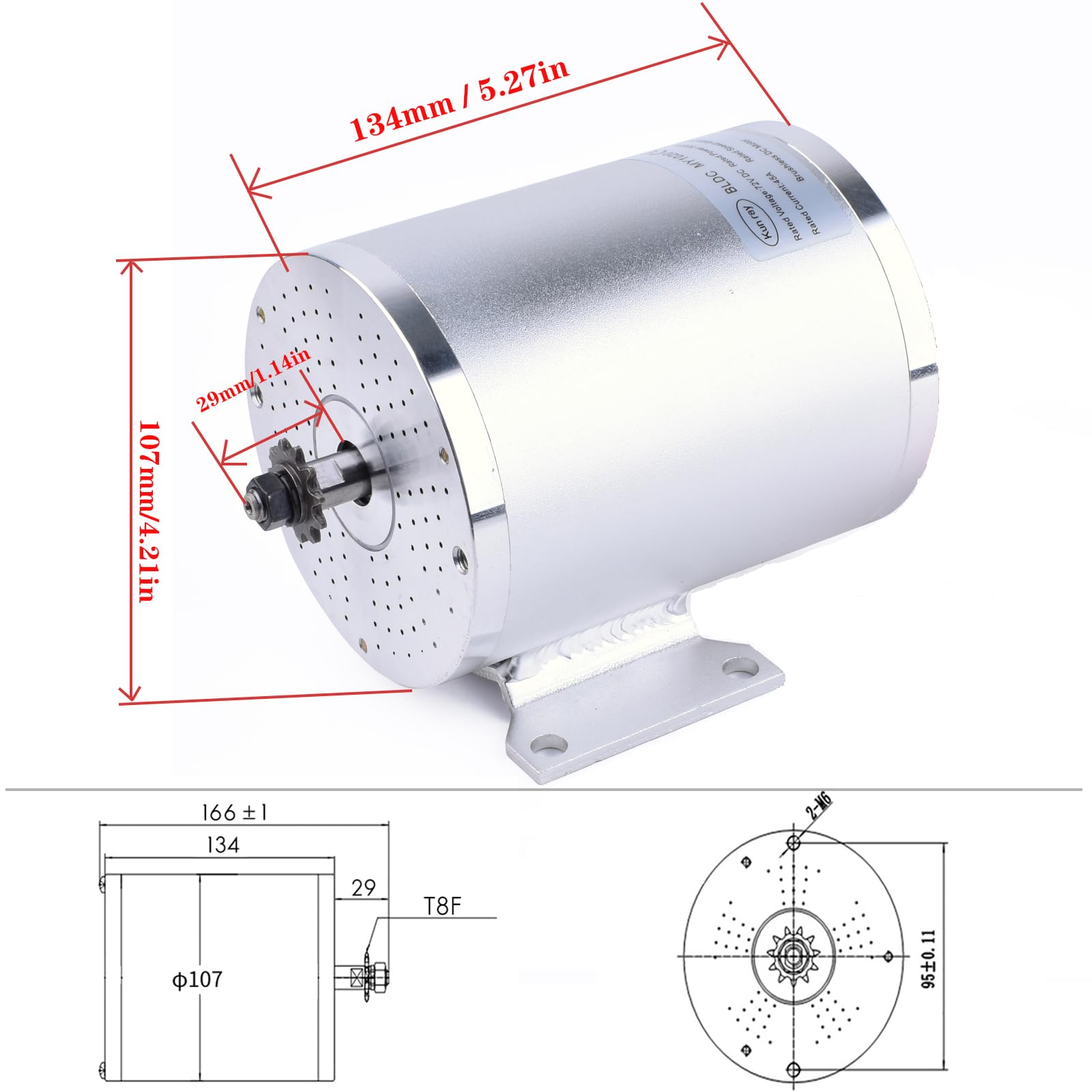

• Kunray MY1020 Brushless Motor Features: Electric Brushless DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life.

n

• BLDC Scooter Motor: Brushless High Speed Mid Drive Motor, Voltage 72V DC, Rated Power 3000W peak, Current 45A, Rated Speed 4900rpm/min, (Max 5800RPM), T8F 11Teeth Sprocket, Load Weight: About 100-200kg.

n

• BLDC Controller: Voltage 48-72V, Proctect 42 volt, Power 3000 watt, 24 mosfet, Current 50 amp, Phase Degree: 120°, Smart Controller Can Work With Hall Sensor And Without hall, Brushless Motor Speed Controller, E-Brake, 3-Speed (Low Mid High Speed), Reverse Functions, Indicator Light And Power Lock Functions.

n

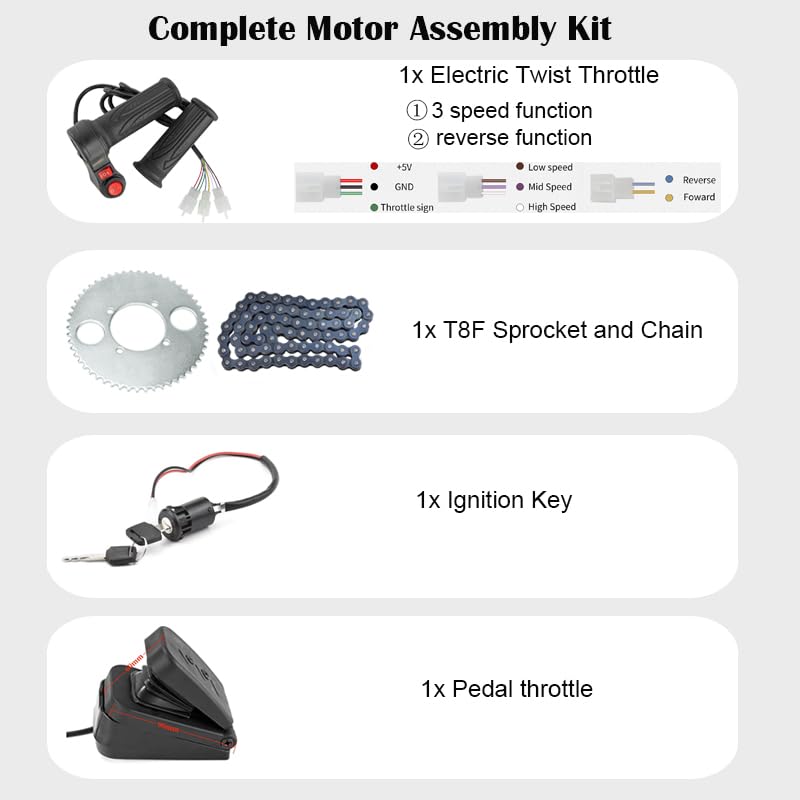

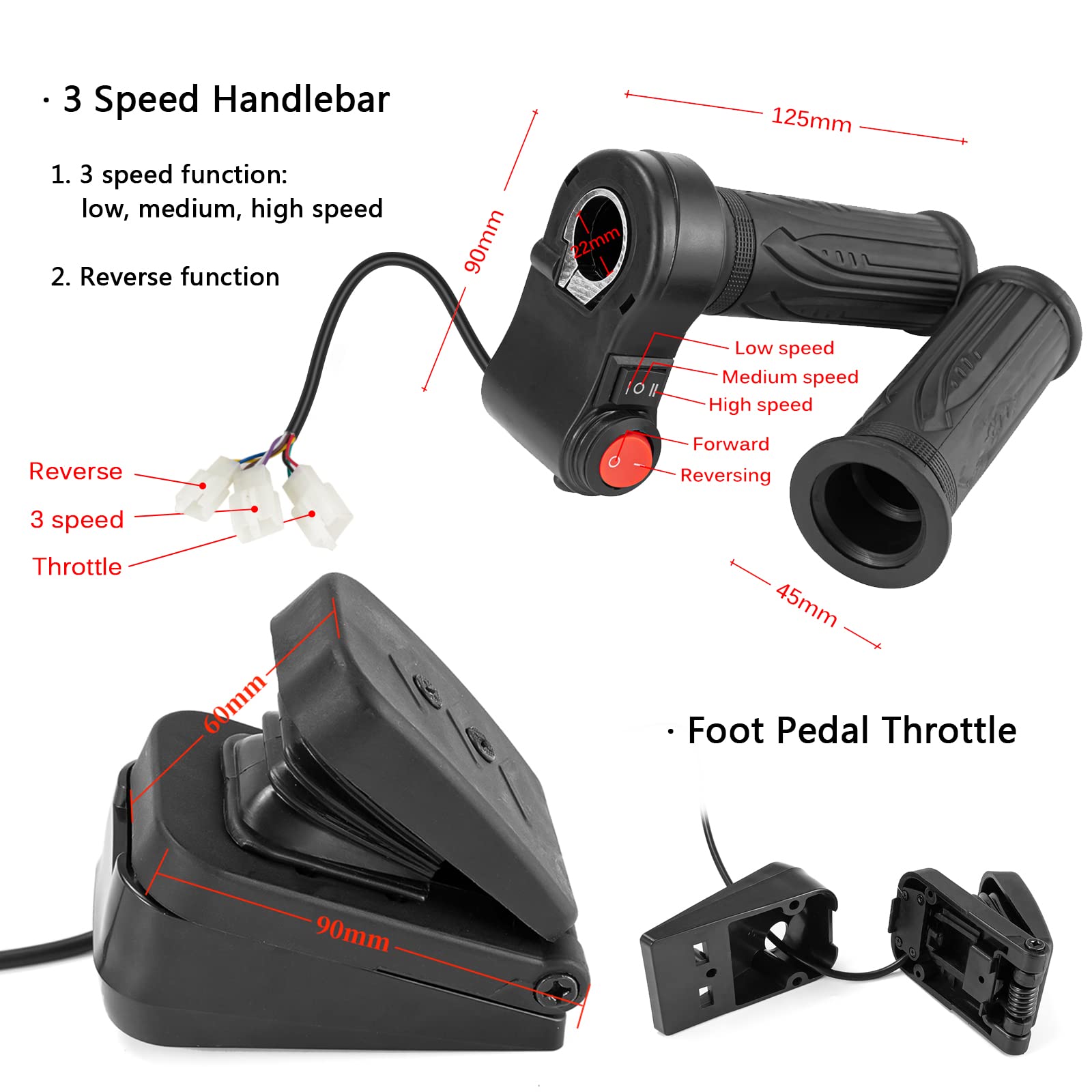

• Handlebar Twist Throttle: Universal Accelerator Handlebar Throttle Twist Grips, 12V-72V Universal, With 3 Speed (High,Mid and Low Speed) And Reverse Functions, Wire Length About 150cm ( 59 inch) , High Quality Rubber And ABS Material.

n

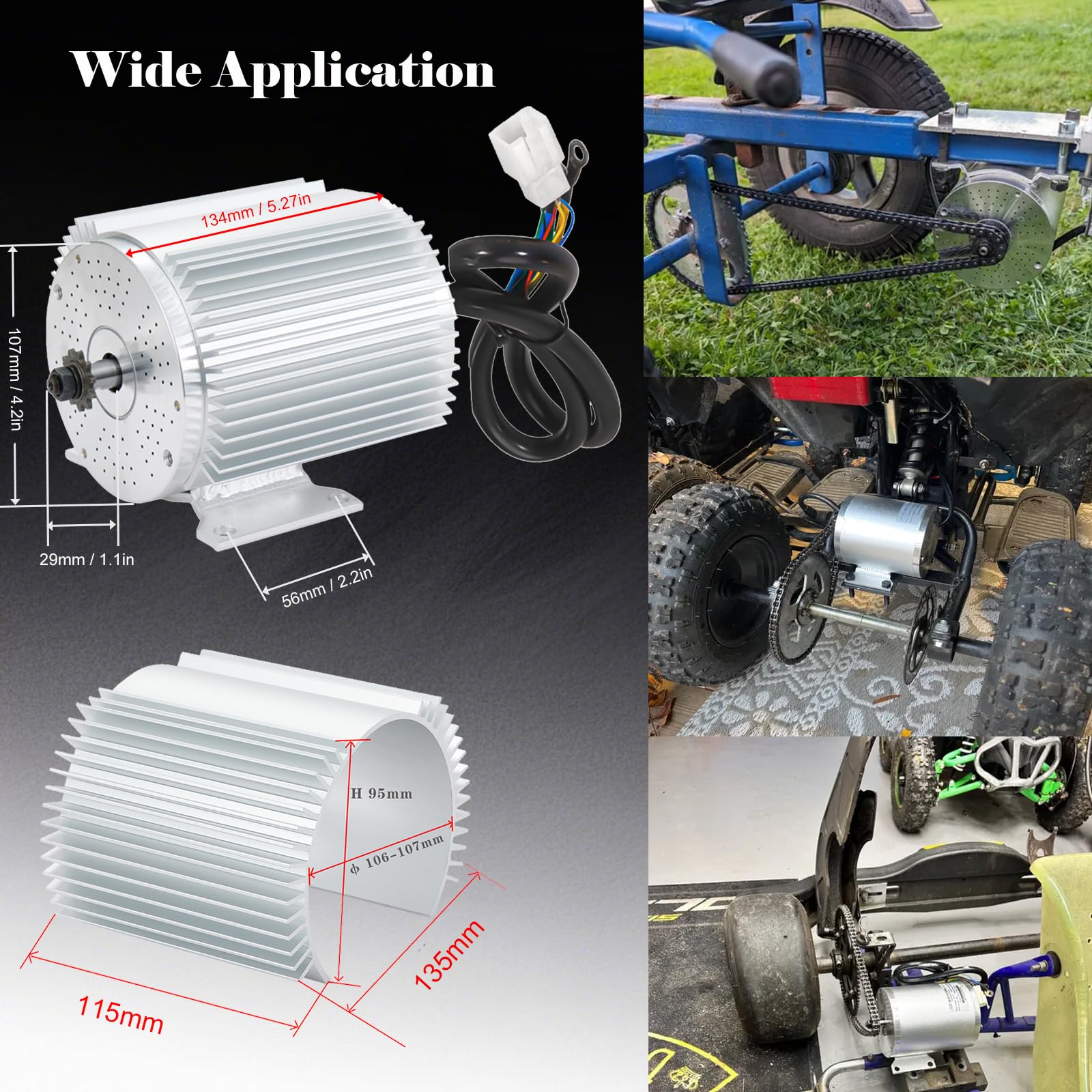

• Useful: Suit For Electric Scooter, Mini Electric Motorcycle DIY Engine Kit, Razor Push Scooter, Ebike Bicycle, Go Karts, E-bike, E-Tricycle,Mid Drive Motor Kit, Complete Set, DIY Engine System, Cycling Part and more.

n

Binding: Tools & Home Improvement

model number: kunray

Part Number: kunray

EAN: 0734779299371

Package Dimensions: 13.8 x 12.0 x 8.0 inches
